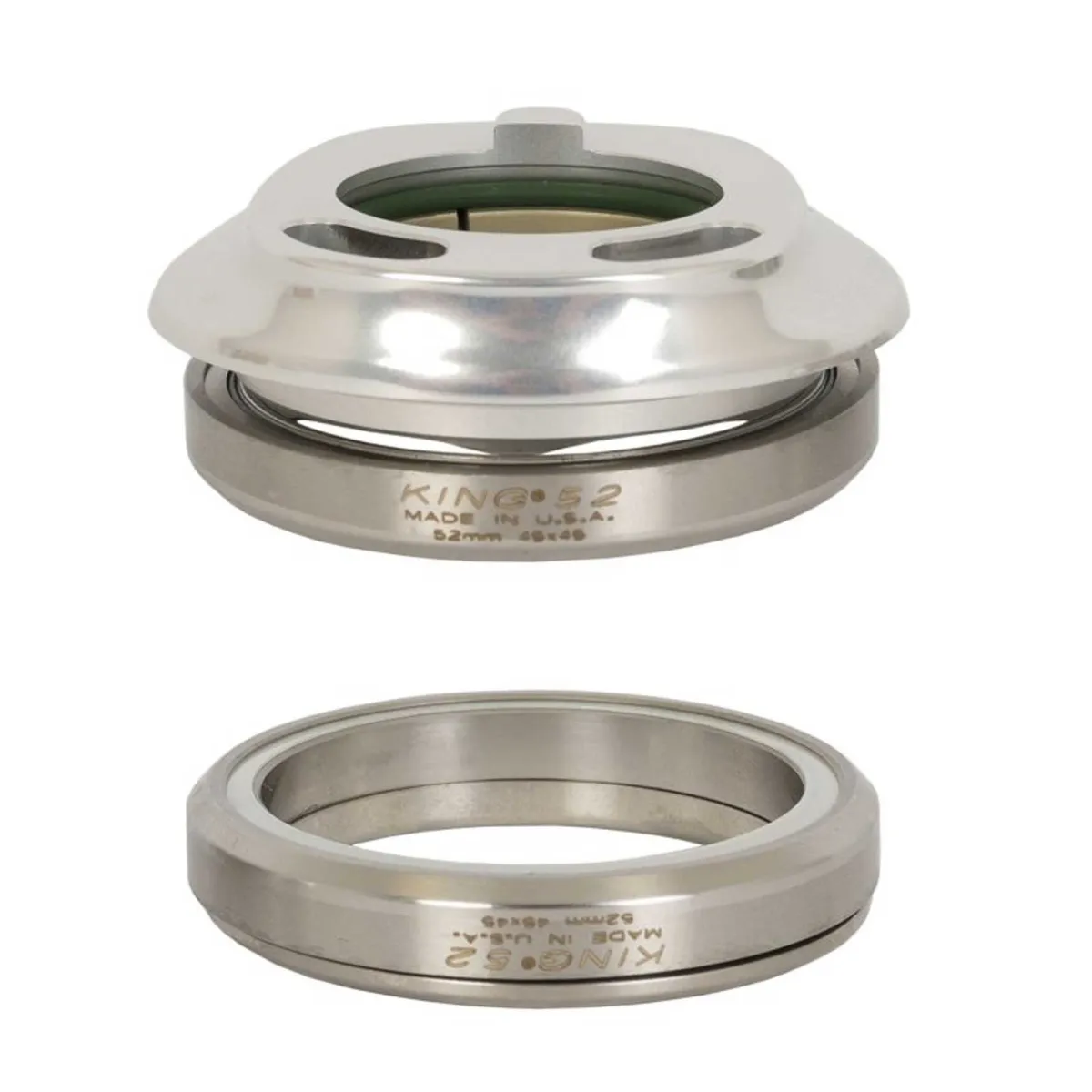

Chris King AeroSet 2 Headset

The Chris King AeroSet headset for the ENVE In-Route system with concealed cable routing in the fully integrated version for a 52mm headset race and a tapered 1 1/8–1.5-inch steerer tube. The upper cap with two recesses and a groove for routing is compatible with the ENVE In-Route system.

Chris King AeroSet 2 GripLock Headset ENVE In-Route Specifications and Dimensions:

• Top IS52/28.6 fully integrated ball bearings with 45x45 degree bearing angles, for 1 1/8-inch steerer tube
• Bottom IS52/40 fully integrated ball bearing with 36x45-degree bearing angle for 1.5-inch steerer tube
• Bearings: Stainless steel, double-sealed
• Compatible exclusively with 52 mm frame mounts and 1 1/8–1.5 inch tapered steerer tubes with ENVE IN-Route cable routing

The Chris King AreoSet 2:

headset now brings the proven Chris King quality to road bikes with internal cable routing from ENVE or FSA. Brake and gear cables, as well as DI2 cables, are discreetly routed through the frame, resulting in a clean and aerodynamic cockpit. With IS52 upper and lower cups, it is suitable for frames with a fully integrated 52 mm headset shell on the head tube and tapered forks with a steerer tube diameter of 1 1/8 inch / 28.6 mm at the top, 1.5 inches / 38 mm at the bottom and a 40 mm taper. The cap covers are made from aluminium and CNC-machined; the bearings are made from stainless steel with multiple seals and are so well-made that Chris King offers a 10-year warranty on all headsets. Furthermore, the bearings are easy to maintain.

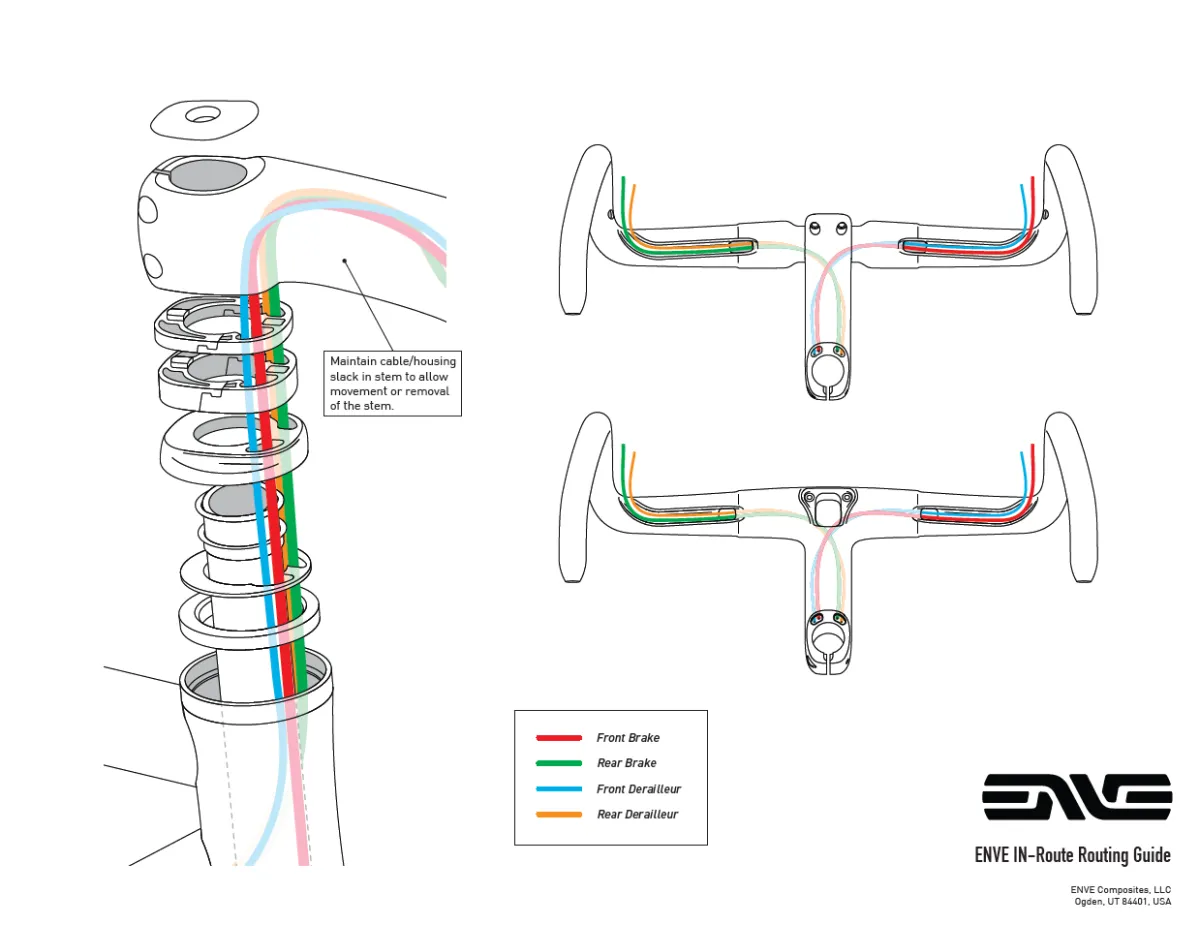

ENVE IN-Route cable routing:

Hidden cables and wires are essential when it comes to modern bicycles and aerodynamic advantages in competition. As a complete system, ENVE IN-Route offers a wide range of stem, handlebar, headset and fork combinations to provide the right fit for every frame material and rider size. It routes all shift and brake cables through the stem, then through the headset, and aligns them in front of the steerer tube. From there, the front brake cable enters a connection at the front of the steerer tube to be routed through the left fork leg to the brake. The rest flows around the steerer tube into the down tube. These features make IN-Route a complete solution for cable integration.

IN-Route works by routing brake lines and cables through the handlebars, into the stem and down into the front section of the head tube. This is achieved by using a fork with a round 1.125-inch steerer tube and routing the hoses/cables between the steerer tube and the larger 1.5-inch upper headset bearing. The upper bearing cap and spacers match the shape of the IN-Route stem and the SES AR One-Piece handlebar from ENVE.

Chris King quality:

Anyone who hears the name Chris King immediately thinks of extremely durable headsets. Manufactured by Chris King in Portland, Oregon, USA, to a standard of quality that rightly deserves the label ‘indestructible’. The benchmark in headsets – often copied, never equalled – which is why it comes with a 10-year warranty.

Chris King GripLock:

The multi-piece GripLock cap is fitted with a slotted cone ring, which allows for an even easier connection between the steerer tube and head tube

IS, Integrated Standard fully integrated headsets:

Head sets with the Integrated Standard (IS) require frames that incorporate the raceway for the head set bearings; this is why they are also referred to as fully integrated. The head set then consists of the bearings, which are inserted into the head tube of the frame, the fork cone and the upper bearing cover with cap and claw.

IS bearing installation dimensions 52-28.6 mm:

Upper frame mount 1.5 inches / 52 mm diameter, bearing angle 45x45 degrees, upper steerer tube diameter 28.6 mm, 1 1/8 inches

Bearing installation dimensions IS 52-40 mm:

lower frame mount 1.5 inches / 52 mm diameter, bearing angle 36x45 degrees, lower steerer tube diameter 38 mm, 1.5 inches. The tapered seat is 40 mm.

Herstellerinformation: Manufacturer details: Chris King, 2801 NW Nela St, 97210 Portland, Oregon, United States, http://chrisking.com
