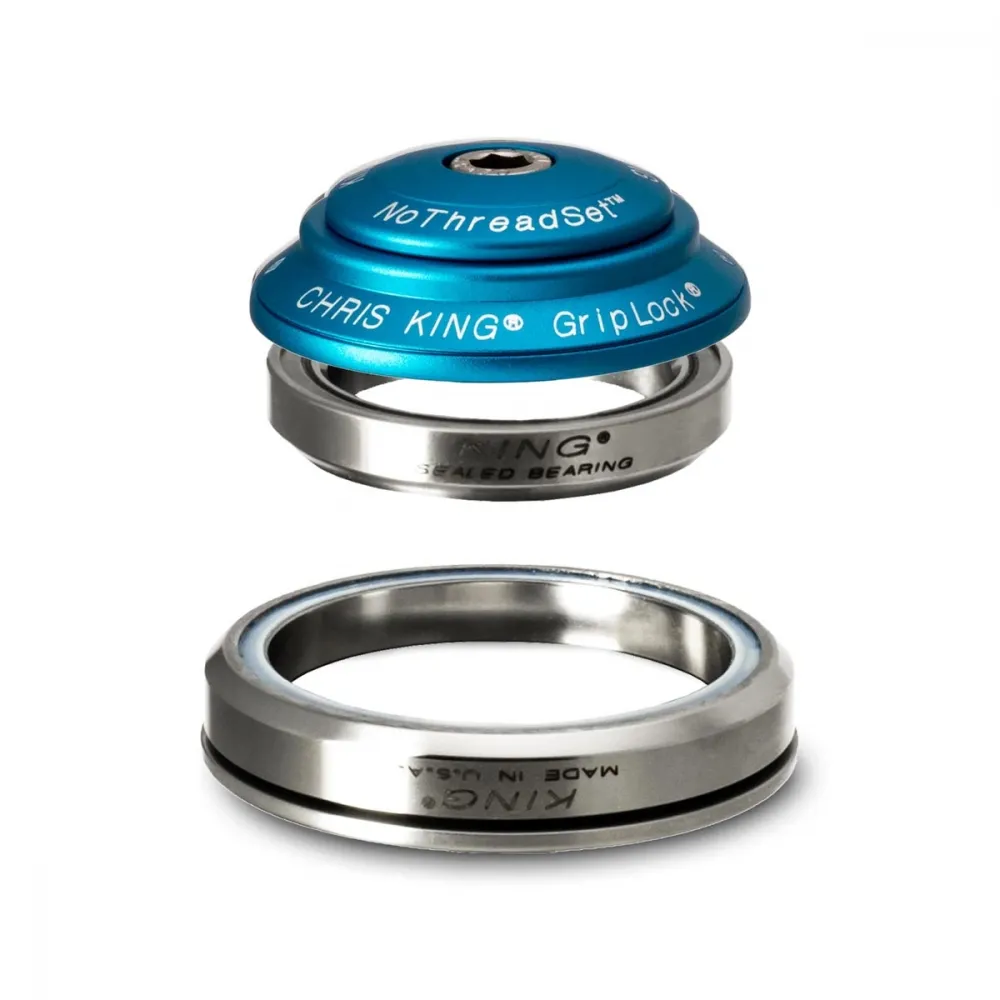

Chris King DropSet 3 Ceramic Headset

The Chris King DropSet 3 Tapered headset with IS41 upper cup and IS52 lower cup for frames with a 41 mm upper and 52 mm lower bearing seat on the head tube, and forks with a tapered steerer tube diameter of 1 1/8 inch / 28.6 mm at the top and 1.5 inches / 40 mm at the bottom.

Please note that the integrated bearing housing requires different bearing angles depending on the frame manufacturer. The DropSet 2 has a bearing angle of 45x45 degrees at the top and 36x45 degrees at the bottom. If in doubt, please check with the frame manufacturer to ensure this headset is compatible with your frame.

The headset has been developed for heavy-duty cycling and also looks great on a road bike. The cap covers are made from aluminium and CNC-machined; the bearings are ceramic, multi-sealed and so well-made that Chris King offers a 10-year warranty on all headsets. Furthermore, the bearings are easy to maintain.

Chris King quality:

Anyone who hears the name Chris King automatically thinks of extremely durable headsets. Produced by Chris King in Portland, Oregon, USA, to a standard of quality that rightly deserves the label ‘indestructible’. The benchmark in headsets – often copied, never equalled – which is why there is a 10-year warranty.

Chris King Ceramic Bearings

Chris King’s ceramic bearings offer the same qualities in terms of durability, maintenance and performance, but are even lighter and harder than the tried-and-tested stainless steel bearings. One of the most outstanding features of the ceramic balls used is their incredibly geometrically perfect roundness; furthermore, the extremely smooth surface guarantees optimal rolling behaviour and precision fit. The ceramic bearings are even lighter and harder than the stainless steel bearings; embedded in external bearing cups and multi-sealed, the bearings are virtually indestructible.

Chris King GripLock:

The NoThreadSet headset with the newly developed GripLock cap. The multi-piece cap is fitted with a slotted cone ring, which allows for an even simpler connection between the steerer tube and the head tube

IS, Integrated Standard fully integrated headsets:

Integrated Standard (IS) headsets require frames that incorporate the raceway for the headset bearings. Hence the name ‘fully integrated’. The headset then consists of the bearings inserted into the frame’s head tube and the fork cone plus upper bearing cover with cap and claw.

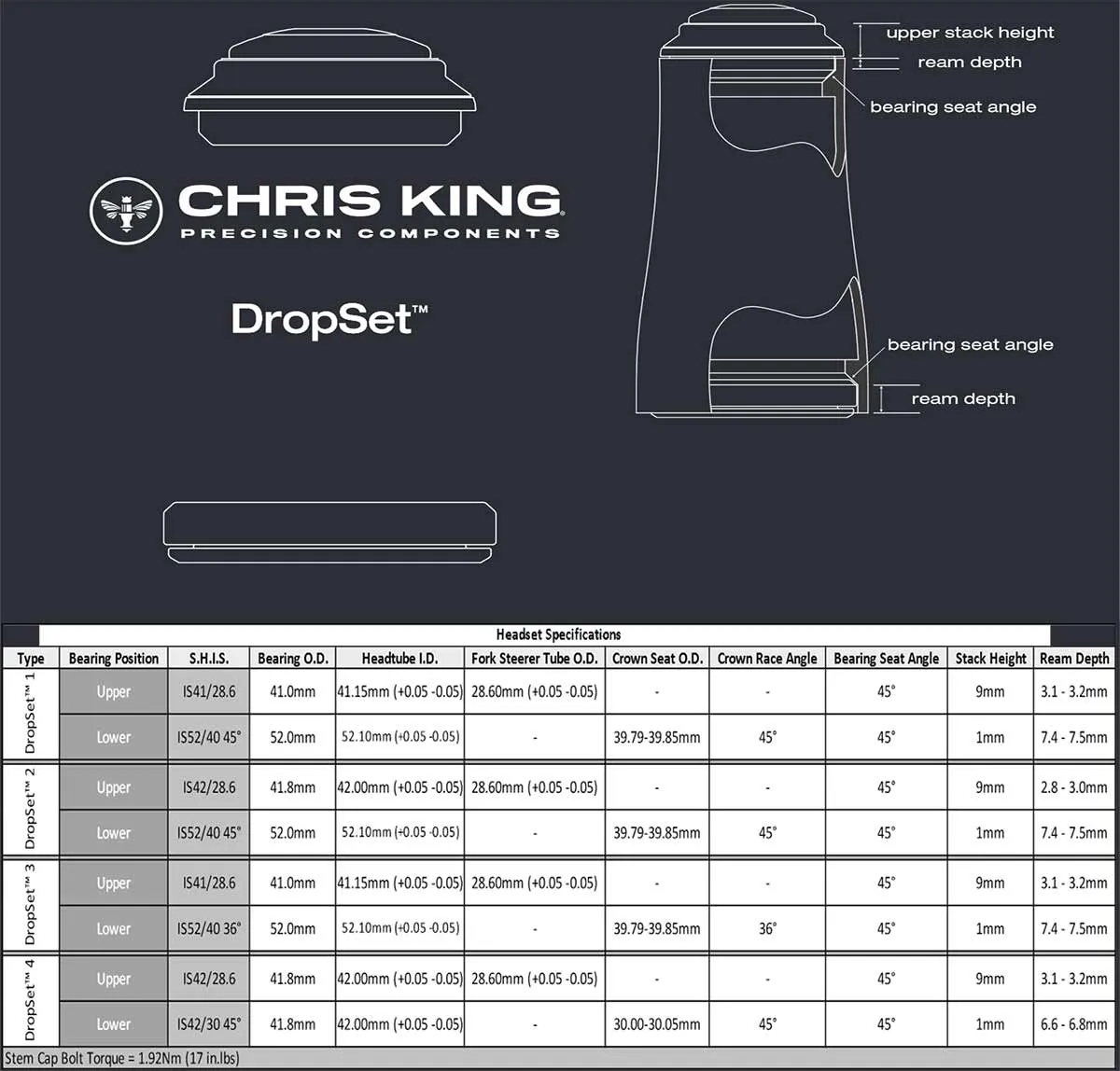

IS bearing installation dimensions 41-28.6 mm:

Upper frame mount diameter 41 mm, height 9 mm, bearing angle 45x45 degrees, upper steerer tube diameter 28.6 mm, 1 1/8 inch

Bearing installation dimensions IS 52-40 mm:

lower frame mount 52 mm diameter, height 1 mm, bearing angle 45x45 degrees, lower steerer tube diameter 40 mm, tapered 1.5 inches. The tapered seat is 40 mm.

Chris King DropSet 3 Ceramic Technology:

• Top: IS41/28.6 fully integrated ball bearing with 45x45 degree bearing angle, for 1 1/8 inch steerer tube
• Bottom: IS52/40 fully integrated ball bearing with 36x45-degree bearing angle for 1.5-inch steerer tube
• Installation height: 9 mm
• Bearings: Ceramic, double-sealed
• Includes Chris King star nut and end cap

Herstellerinformation: Manufacturer details: Chris King, 2801 NW Nela St, 97210 Portland, Oregon, United States, http://chrisking.com
