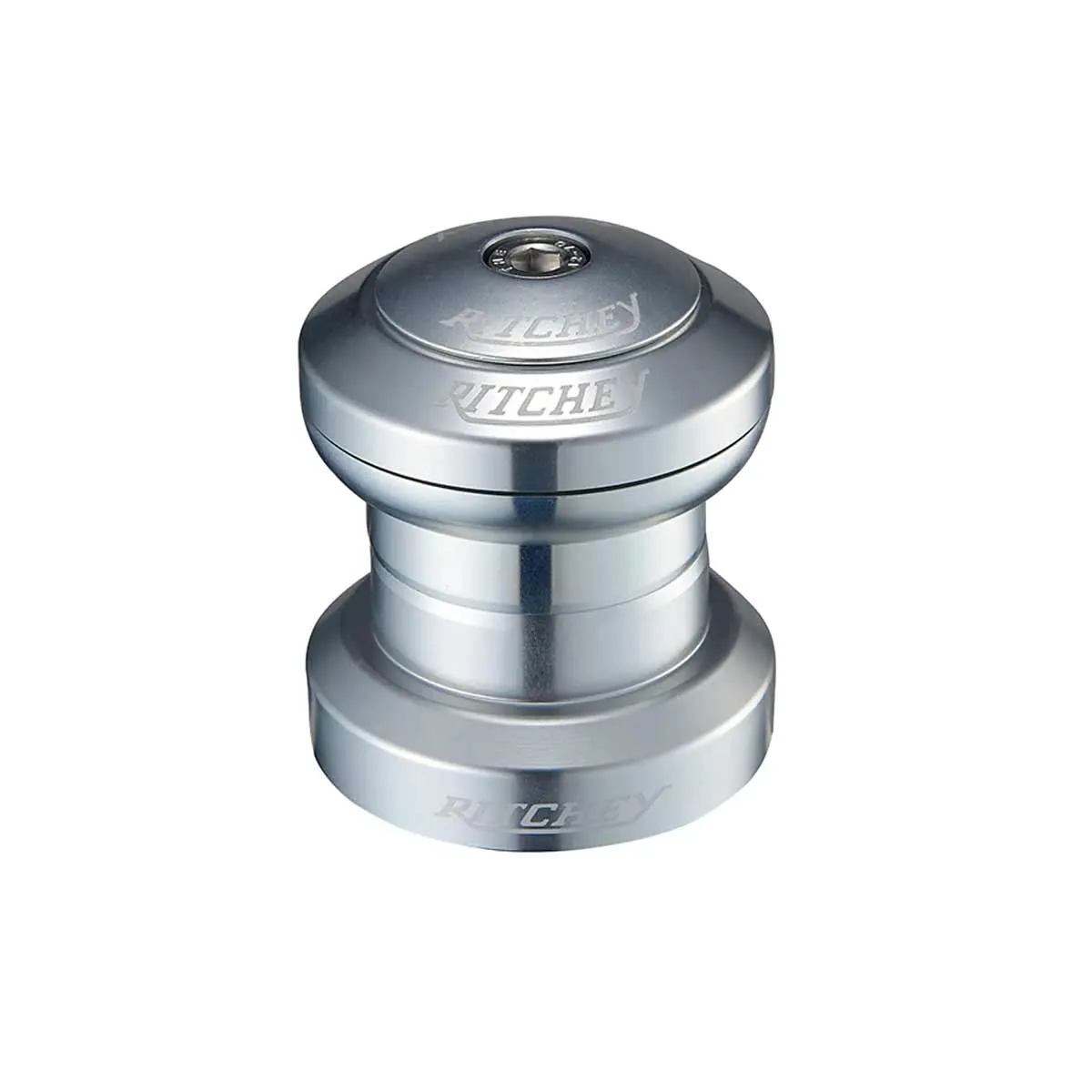

Ritchey Classic External Cup Headset

The Ritchey Classic headset in silver. High-quality compact bearings, load-optimised, with 7075 aluminium cups. This guarantees smooth running, low weight and a long service life. D

EC 34 Headset Installation Dimensions:

The EC34 headsets are pressed into the head tube. The press-fit dimension is 34 mm and the fork steerer tube diameter is 28.6 mm (1 1/8 inches). The headset cone requires a 30 mm seat.

Ritchey Classic Headset Technology:

• Industrial bearings
• Angled raceway on the fork crown
• Aluminium bearing cups
• Robust and lightweight headset.
• Height: 32 mm, 18 mm top, 14 mm bottom
• Weight: 128 grams, A Head cap and claw 28 grams
• Bearing dimensions: top: 41.8/30.15/8 mm 45°/45°, bottom: 44/30.5/8 mm 45°/45°
• Press-fit dimensions: top 34/28.6 mm, bottom 34/30 mm

The press-fit claw is included in the scope of delivery.
