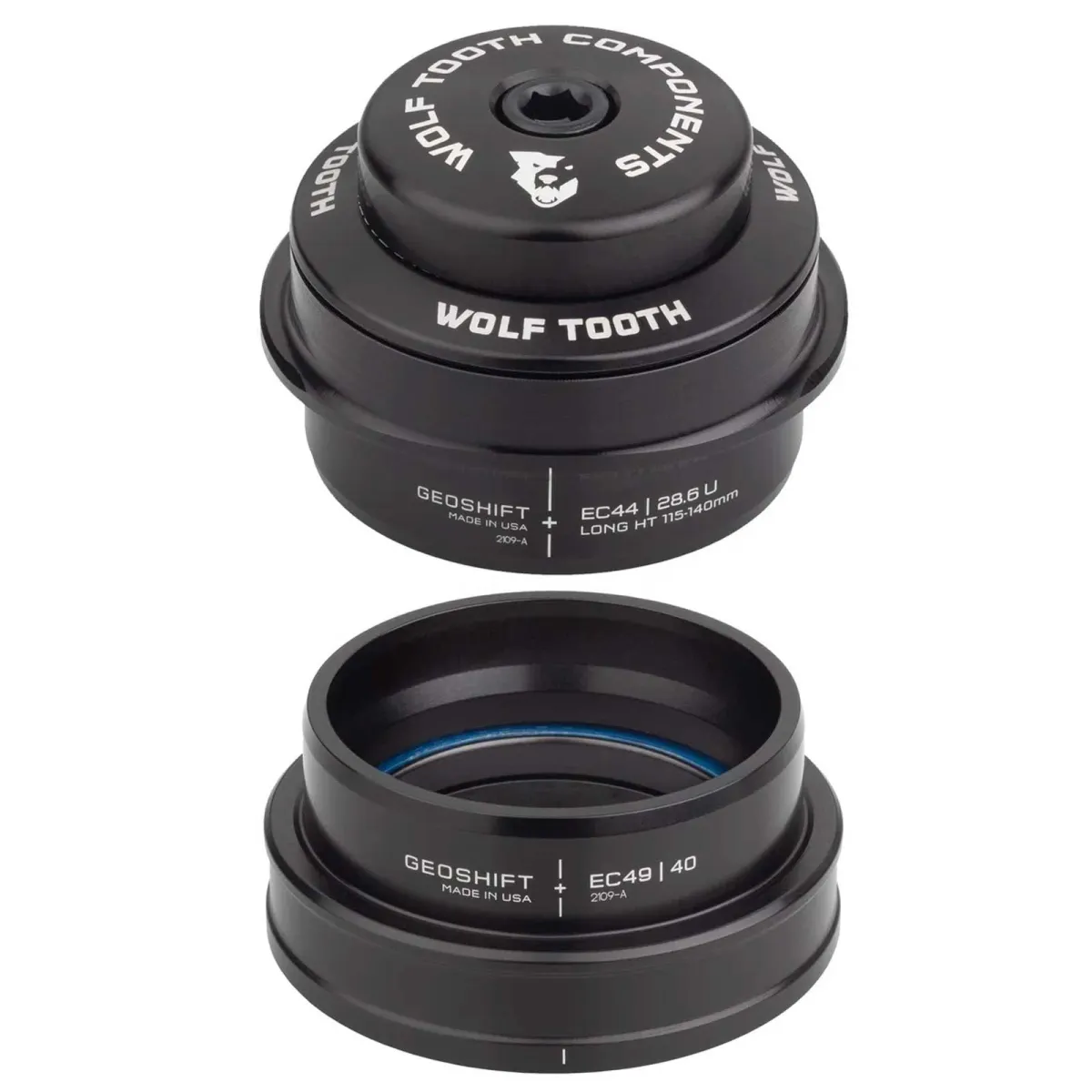

Wolf Tooth Performance Headset

The Geoshift headset from Wolf Tooth allows you to adjust the frame geometry by changing the head tube angle by 2 degrees. Suitable for frames with a tapered head tube with an internal diameter of 44 mm at the top and 49 mm at the bottom, and a tapered 1 1/8–1.5-inch steerer tube. The long version is compatible exclusively with 115–140 mm long head tubes.

Wolf Tooth Performance Headset 2-degree Geoshift Specifications and dimensions:

• Headset: 6061 aluminium, anodised, CNC-machined
• S.H.I.S standard: EC44/28.6 – EC/40
• Bearings: Enduro chrome steel, multi-sealed
• Top cup height: 15.9 mm
• Lower cup height: 13.0 mm
• Includes Wolf Tooth Ultralight end cap with integrated 5mm spacer and Star Nut clamp for aluminium/steel forks
• Adjusts the head tube angle by 2 degrees
• Long version compatible exclusively with headtubes between 115 mm and 140 mm in length. Shorter headtubes require the short version.

Wolf Tooth Geoshift:

The angle-adjustable Geoshift headsets allow the head tube angle to be adjusted by 1 or 2 degrees, depending on the model. Such a modification can be particularly useful in mountain biking. A flatter angle provides greater stability on fast descents, whilst a steeper angle enhances steering response and ensures maximum front-wheel traction.

EC44/28.6 - EC44/40 External Cup installation dimensions:

This headset is suitable for tapered steerer tubes with an internal diameter of 44 mm at the top and 49 mm at the bottom. The external cup bearing cups are pressed into the steerer tube and accommodate tapered fork steerer tubes with a diameter of 1 1/8 inches at the top and 1.5 inches at the bottom. The headset cone requires a 40mm seat on the fork.

Wolf Tooth Headset:

Wolf Tooth headsets are manufactured in the USA from 6061 aircraft-grade aluminium and are available in two ranges, Premium and Performance, which differ in terms of bearing materials. The headsets are available in various stack heights and with interchangeable end caps featuring integrated spacers.

Wolf Tooth Performance Bearings:

The Performance series, featuring black oxide-coated chrome steel bearings, has three levels with specifically shaped double-lip seals to protect the bearings even under the toughest conditions. Designed to be lightweight, strong and durable.
