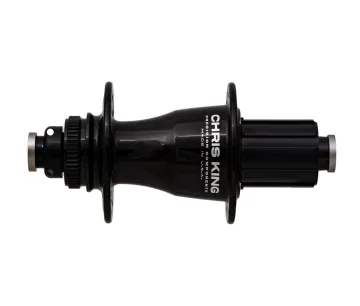

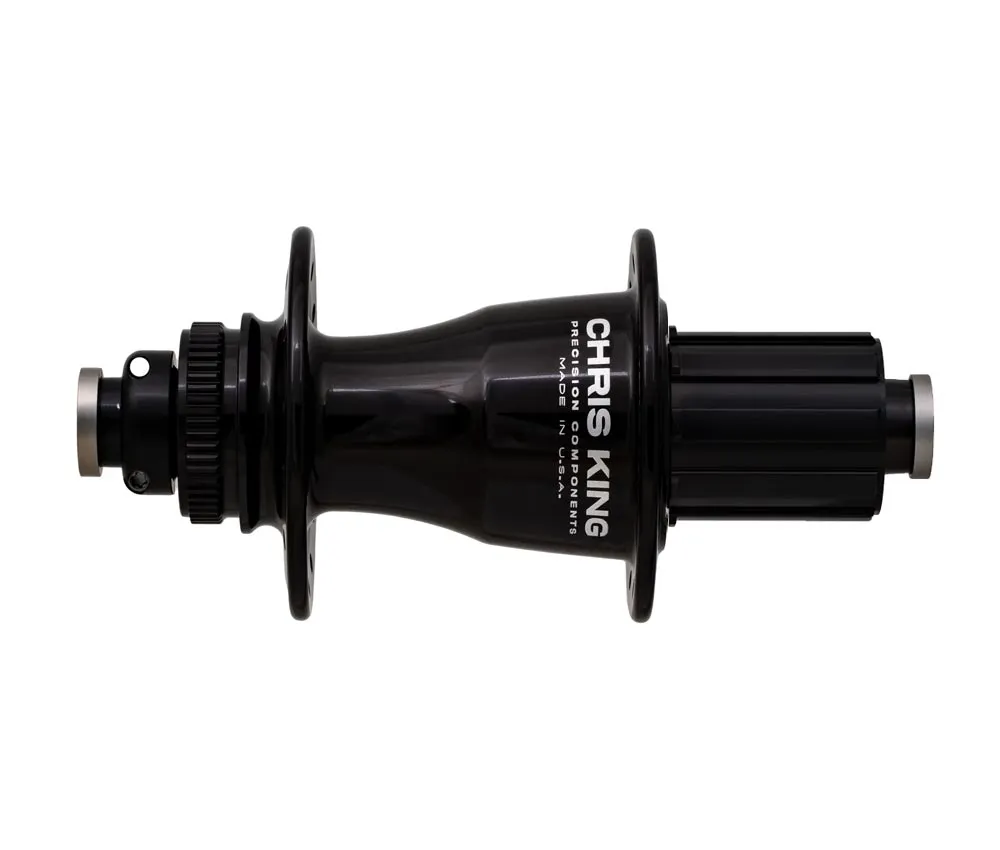

Chris King Boost Centre Lock Rear Hub

The black MTB rear hub from Chris King in the Boost Centerlock version, available with either HG10, SRAM XD or Shimano Microspline freehub bodies.

Superb, very light and absolutely durable. Chris King hubs have a reputation for being indestructible, and rightly so. The Boost Centerlock rear hubs use one-piece solid axles to provide one of the stiffest platforms available, improving your power transfer and putting every single watt into the ground. To keep mud and water out of the hubs, they feature heavy-duty bearing seals and retaining rings that offer excellent protection with extremely low drag – a rolling dream for everyone

Chris King Boost Centerlock Hub Technology:

• Application: MTB, Trail, Gravel, Cyclo-Cross
• Hub material: 2024 T6 aluminium
• Bearings: Stainless steel, 4x sealed
• Number of holes: 24
• Spoke type: J-bend
• Mounting width: 12x148 mm
• Brake type: Disc Centerlock
• Mounting type: Thru-axle, not convertible
• Bearing adjustment with Allen key
• Pitch circle diameter left/right: 57.4 mm/57.4 mm
• Flange spacing left/right: 36.3 mm/24.0 mm
• Spoke hole diameter: 2.5 mm
• Freewheel body:
  • Shimano HG10 freehub compatible with Shimano Road 9-10-speed, Shimano MTB 8-11-speed, Sram PG MTB 8-11-speed cassettes
• Weight: 295 grams (manufacturer’s specification)
• Warranty: 5 years

Your custom wheel with Chris King hub:

Ask us for a bespoke quote. We will build your dream wheelset, perfectly centred by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Chris King RingDrive

The patented Chris King RingDrive freehub technology, featuring 72 teeth – meaning 72 simultaneous engagement points – transfers power to the ground quickly with unrivalled efficiency. It is the sheer number of teeth that creates the legendary Chris King ‘angry bee’ sound. The Chris King freehub also engages three times faster than conventional hubs with 24 teeth and pawls.

Chris King Hub Quality

The quality of Chris King components is unique. High-precision manufacturing otherwise only found in the medical sector. Chris King hubs have a reputation for being indestructible, and rightly so. The hub bodies are superbly crafted and, thanks to the maximum flange spacing, offer particularly laterally stiff wheels. Rounded off by the high-precision CNC-machined hub body with anodised coating and the multi-sealed stainless steel industrial bearings. Superb, very light, extremely durable – manufactured by Chris King directly in Oregon, USA.

Chris King stainless steel bearings

Chris King stainless steel bearings are manufactured in Oregon, USA, and each bearing is inspected and assembled by hand. Unlike conventional radial bearings, Chris King builds sealed angular contact ball bearings that self-adjust during use rather than wearing out; like a fine wine or a high-quality guitar, the bearings improve with age. All bearings can be serviced without special tools; simply remove the retaining ring and seal, clean and re-lubricate – for a lifetime of reliable rolling.

Herstellerinformation: Manufacturer details: Chris King, 2801 NW Nela St, 97210 Portland, Oregon, United States, http://chrisking.com
