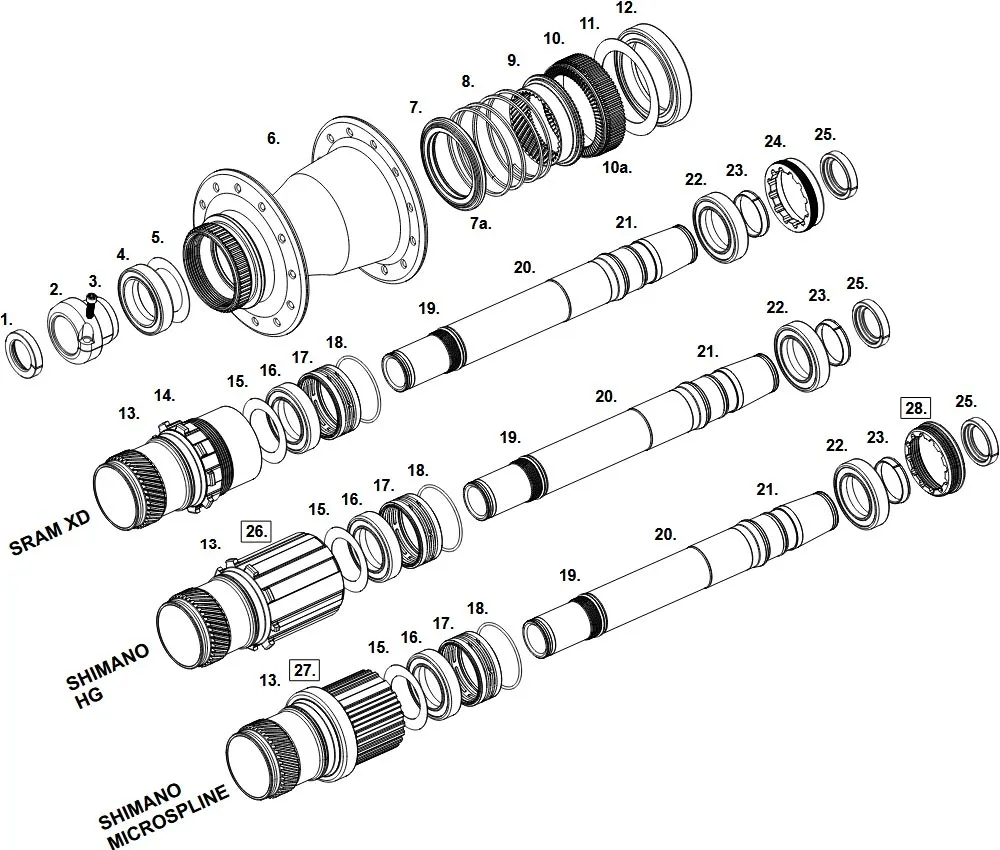

Spare parts: Chris King Boost Centerlock rear hub

All spare parts can be found on our website under the item numbers listed below.

All Chris King Boost Centerlock rear hub spare parts:

• No. 1: PHB575 – End stop
• No. 2: PHB828 – Axle nut, silver
• No. 2: PHB828B - Axle nut, black
• No. 3: 0000000 - Screw - not available separately
• No. 4: PHB713 - Stainless steel bearing (disc side)
• No. 4: PHB729 – Ceramic bearing (disc side)
• No. 5: PHB829 - O-ring kit
• No. 6: 0000000 - Hub - not available separately
• No. 7: PHB514 - Spring plate
• No. 7a: PHP553 - O-ring - not available separately
• No. 8: PHB513 - Drive spring
• No. 9: PHB511 – Drive ring
• No. 10: PHB512 – Driven ring
• No. 10a: PHB829 – O-ring kit
• No. 11: PHB538 – O-ring – not available separately
• No. 12: PHB515 – Stainless steel bearing, drive side
• No. 12: PHB576 – Ceramic bearing, drive side
• No. 13: PHB829 – O-ring kit
• No. 14: PHB825B – Sram XD freehub body
• No. 15: PHB829 – O-ring kit
• No. 16: PHB723 – Stainless steel bearing, freehub body (inner)
• No. 16: PHB730 – Ceramic bearing, freehub body (inner)
• No. 17: PHB801 - Freewheel spring
• No. 18: PHB829 - O-ring kit
• No. 19: PHB829 - O-ring kit
• No. 20: PHB830 - Axle
• No. 21: PHB829 – O-ring kit
• No. 22: PHB578 – Stainless steel bearing, freehub body outer
• No. 22: PHB769 - Ceramic bearing, freehub body outer
• No. 23: PHB803 - Lockring
• No. 24: PHB824 – Sram XD end cap
• No. 25: PHB575 - End stop
• No. 26: PHB826 - Shimano HG freehub body
• No. 27: PHB812 – Shimano Micro-Spline freehub body
• No. 28: PHB827 – Shimano Micro-Spline end cap

Herstellerinformation: Manufacturer details: Chris King, 2801 NW Nela St, 97210 Portland, Oregon, United States, http://chrisking.com
