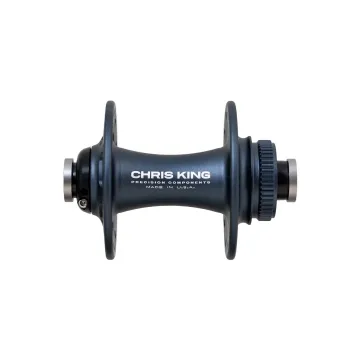

Chris King R45D front hub

The road bike version of Chris King hubs for disc brakes.

With great attention to detail, Chris King’s engineers have developed the R45D series to produce a hub body that is both lightweight and optimised for stiffness. Thanks to the significantly enlarged hub flange, the spoke holes are further apart than on disc hubs from other manufacturers. This significantly increases stability and distributes forces more effectively across the hub flange. These hubs can be easily and simply converted to a 9x100 mm quick-release setup by replacing the axle.

Chris King R45D Hub Technology and Dimensions:

• Application: Road, Gravel, Cyclo-Cross
• Hub material: Aluminium
• Bearings: Stainless steel, 4x sealed
• Spoke type: J-bend
• Mounting width: 12x100 mm
• Brake type: Disc Centerlock
• Mounting type: Thru-axle, convertible to quick-release
• Pitch circle diameter left/right: 57.4 mm/57.4 mm
• Flange spacing left/right: 22.3 mm/30.6 mm
• Spoke hole diameter: 2.5 mm
• Weight: 161 grams (manufacturer’s specification)
• Warranty: 5 years

Your custom wheel with Chris King R45D hub:

Ask us for a personalised quote. We will build your dream wheel, perfectly trued by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Chris King Hub Quality

The quality of Chris King components is unrivalled. High-precision manufacturing, the sort usually only seen in the medical sector. Chris King hubs have a reputation for being indestructible, and rightly so. The hub bodies are superbly crafted and, thanks to the maximum flange spacing, enable the construction of particularly laterally stiff wheelsets. Rounded off by the high-precision CNC-machined hub body with anodised coating and the multi-sealed industrial bearings. Superb, very light, extremely durable – manufactured by Chris King directly in Oregon, USA.

Chris King stainless steel bearings

Chris King stainless steel bearings are manufactured in Oregon, USA, and each bearing is inspected and assembled by hand. Unlike conventional radial bearings, Chris King builds sealed angular contact ball bearings that self-adjust during use rather than wearing out; like a fine wine or a high-quality guitar, the bearings improve with age. All bearings can be serviced without special tools; simply remove the retaining ring and seal, clean and re-lubricate – for lifelong reliability!
