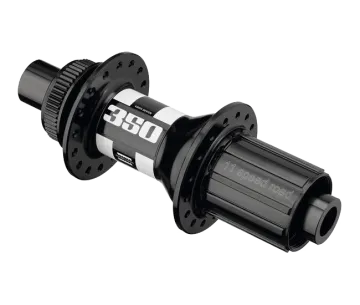

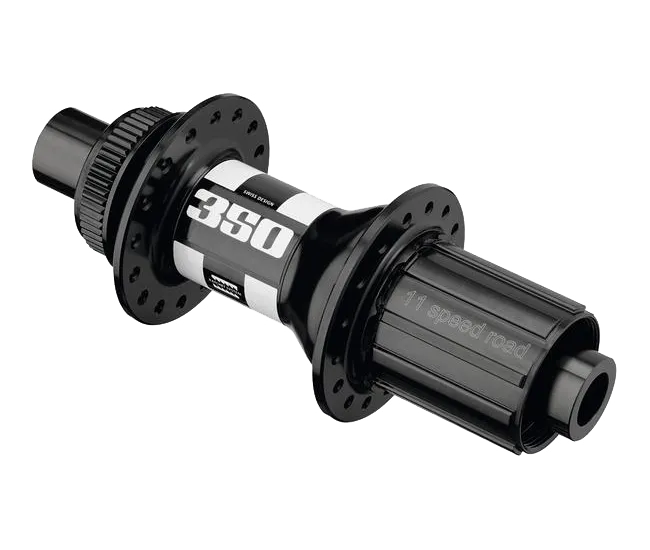

DT Swiss 350 Centerlock Hub

With the 350 hubs, DT Swiss offers affordable, high-quality hubs. From road bike to downhill versions, the 350 hub range is designed for maximum durability. Fitted with high-quality seals and bearings, this is the choice for you if you are looking for hubs for durable, low-maintenance wheelsets.

DT Swiss Ratchet Star Freehub Body System:

The Ratchet Star freehub body system works with two sprockets, each with 18 teeth. This ensures loss-free power transmission, extreme durability and virtually no play when pedalling. The freehub bodies can be fitted without tools. Freehub bodies are available for Shimano and SRAM 8-, 9- and 10-speed cassettes, for Campagnolo 9-, 10-, 11- and 12-speed cassettes, and also for the new XDR system with SRAM 12-speed XG cassettes.

DT Swiss 350 Disc rear hub specifications:

• Housing material: Aluminium
• Axle: Aluminium
• Industrial ball bearings
• Seal-less system
• Weight 267 grams (manufacturer’s specification)
• Disc brake mount: Centerlock
• X12 clamping width 142x12 mm for thru-axles; can be converted to 135x10 mm for quick-release mounting
• Ratchet Star freehub body: aluminium with 2 ratchet pucks, specially coated, 18-tooth ratchet
• Ratchet Star freehub body in aluminium, available as:
  • HG11 freehub body for Shimano and SRAM cassettes, compatible with 8, 9, 10 and 11-speed
  • Campa ED freehub body for Campagnolo cassettes, compatible with 9-, 10-, 11- and 12-speed
  • SRAM XDR freehub body for SRAM 12-speed AXS road bike cassettes

Your dream wheel with the DT Swiss 350 hub

Ask us for a personalised quote. We will build your dream wheelset, perfectly trued by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Compatible endstops for DT Swiss Disc Road Ratchet Star rear hub:

Quick-release mount HG11 freehub, 10x135 mm: Item No. HWGXXX0002777S
Quick-release mount Campa ED freehub, 10x135 mm: Item No. HWGXXX0004634S
Quick-release mount Sram XD freehub, 10x135 mm: Item No. HWGXXX00S3115S
Quick-release mount Sram XDR freehub, 10x135 mm: Item No.HWAXXX00S8123S
Thru-bolt mount HG11 freehub, 10x135 mm: Item No. HWGXXX0004634S
Thru-bolt mount Sram XD freehub, 10x135 mm: Item No. HWGXXX00S3218S
QR12 thru-axle mount HG11 freehub, 12x135 mm: Item No. HWGXXX0007569S
QR12 thru-axle mount Sram XD freehub, 12x135 mm: Item No. HWGXXX00S3382S
X12 Thru-Axle Mount HG11 Freehub, 12x142 mm: Item No. HWGXXX0003525S
X12 Thru-Axle Mount Campa ED Freehub, 12x142 mm: Item No. HWYABX00S7154S
X12 thru-axle assembly Sram XD freehub, 12x142 mm: Item No. HWGXXX00S3188S
X12 thru-axle assembly Sram XDR freehub, 12x142 mm: Item No. HWYAAX00S8888S

DT Swiss Road Ratchet Star Freehub Body

DT Swiss Ratchet Star HG11 Shimano/Sram freehub body without end stop Item No. HWYABX00S3184S
DT Swiss SL Aluminium Ratchet Star HG11 Shimano/Sram freehub body without end stop Item No. HWYABX00S3185S
DT Swiss Freewheel Body Kit Ratchet Star Aluminium HG11 Shimano/Sram with end stop for quick-release mounting Item No. HWYABX00S2775S
DT Swiss Freewheel Body Kit Ratchet Star Aluminium HG11 Shimano/Sram with end stop for 12x142 mm thru-axle mounting Item No. HWYABX00S3745S
DT Swiss Freewheel Body Kit Ratchet Star Aluminium ED Campagnolo with end stop for quick-release mounting, Item No. HWYABX00S1296S
DT Swiss Freewheel Body Kit Ratchet Star Aluminium ED Campagnolo with end stop for 12x142 mm thru-axle mounting, Item No. HWYABX00S7154S
DT Swiss Freewheel Body Kit Alu Ratchet Star Sram XD 11-12-speed end stop for 10x135mm quick-release mounting, Item No. HWYAAX00S3115S
DT Swiss Freewheel Body Kit Aluminium Ratchet Star Sram XDR 12-speed end stop for 12x142 mm thru-axle mounting, Item No. HWYAAX00S8888S
