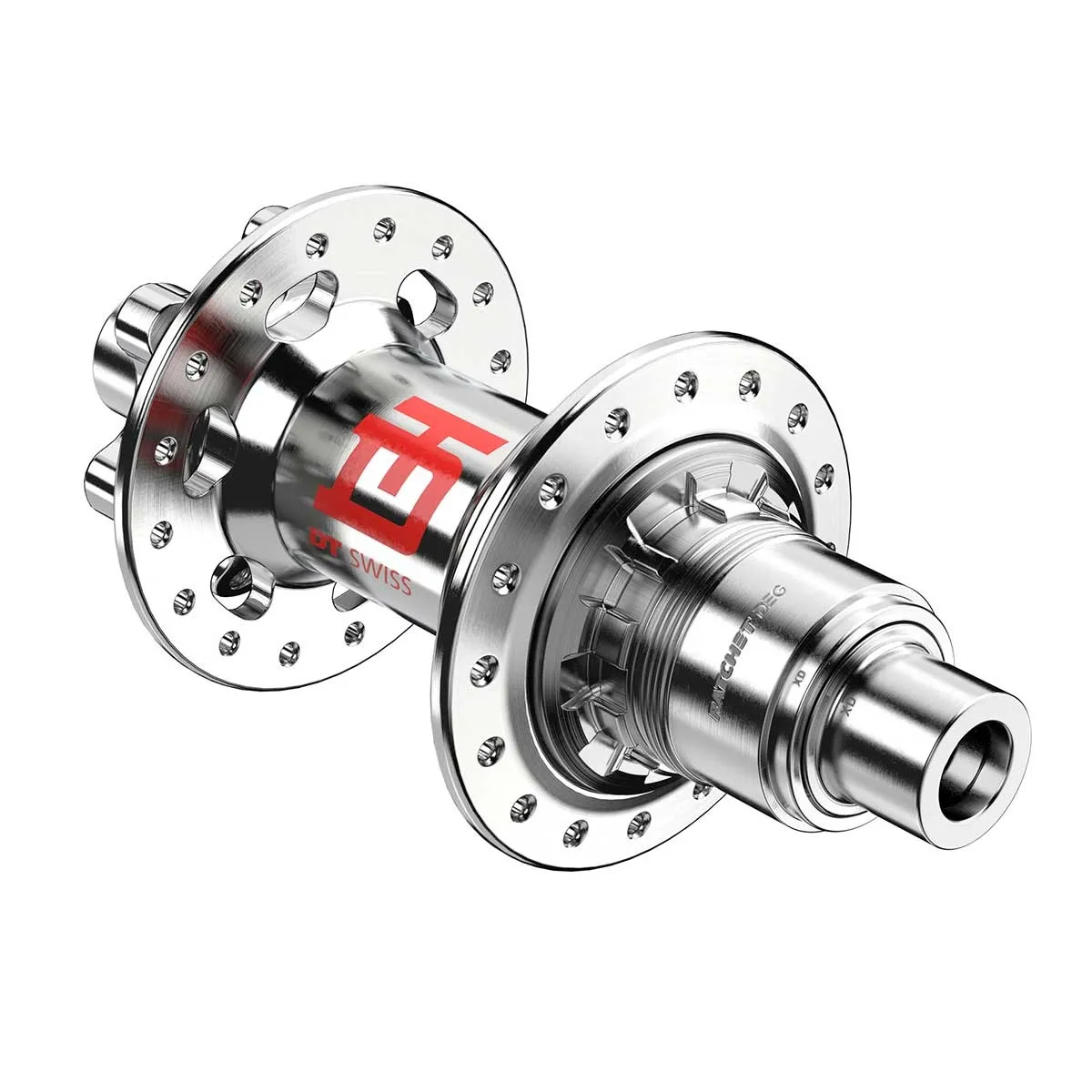

DT Swiss 240 DEG MTB Limited Edition Hub

The 3 Decades Limited Edition DT Swiss 240 DEG series, styled after the legendary Hügi hub, for use on MTBs with Boost 148 rear ends.

The DT Swiss 240 DEG hubs offer maximum durability and reliability. Thanks to the larger 90-tooth pulleys, the DEG hubs provide uncompromising propulsion. The Ratchet DEG system is based on a similar principle to the classic ratchet system – with the difference that all components have an optimised size thanks to the 90-tooth pawl.

The DEG freehub bodies are only available in Sram XD and Microspline versions.

DT Swiss 240 DEG rear hub technology:

• Application: MTB, Gravel,
• Housing material: Aluminium
• DEG freehub body: Aluminium with 2 ratchet discs, 90 teeth,
• Axle: Aluminium
• Stainless steel ball bearings
• Non-contact sealing system
• 6-hole disc brake mount
• Ratchet DEG freehub body
  • SRAM XD freehub body for SRAM 11- and 12-speed XG MTB cassettes
• Weight from 255 grams (manufacturer’s specification)

DT SWISS 240 DEG 3Decades Limited Edition:

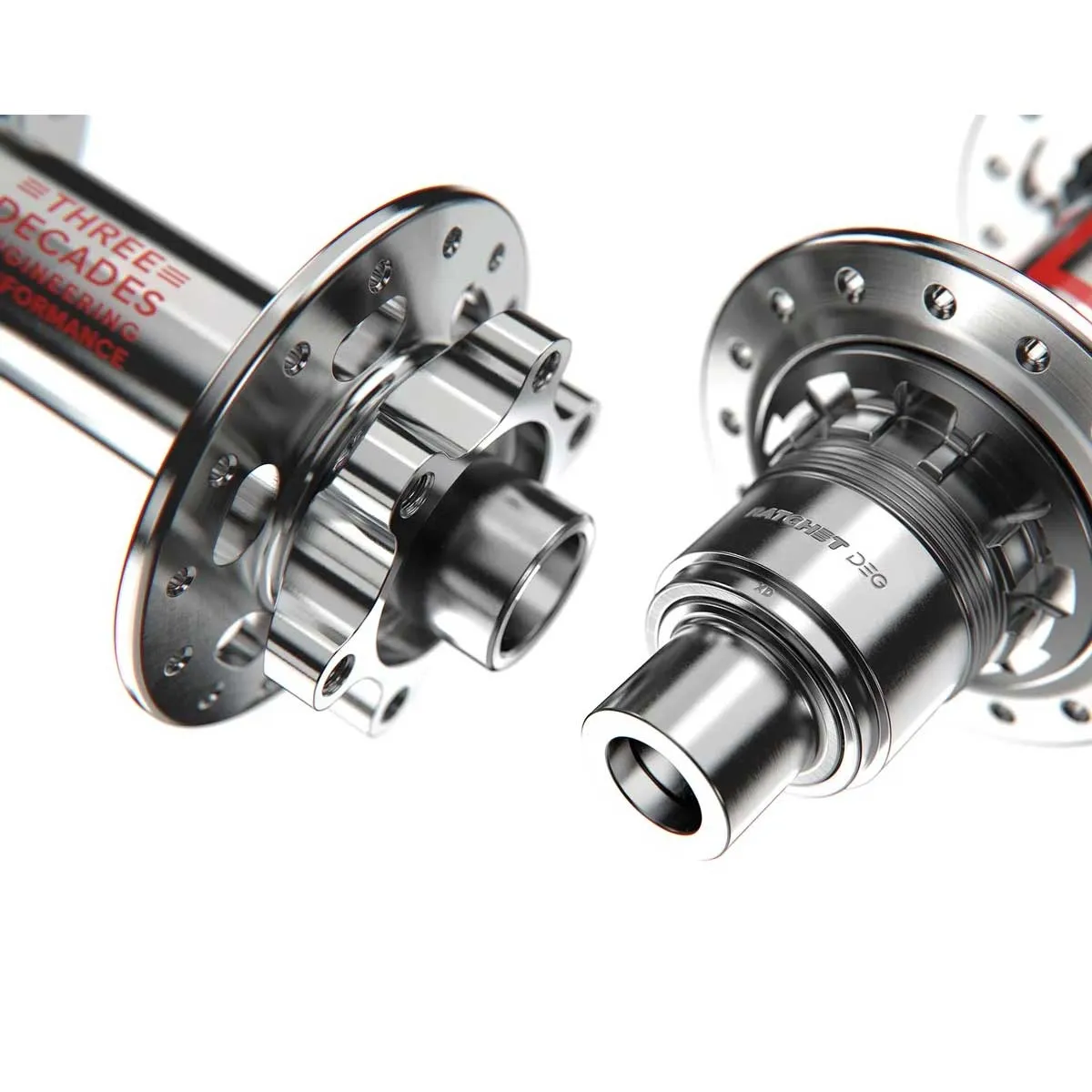

To celebrate the anniversary, the DT Swiss hub with the smallest engagement angle also features a very special design: a silver body with the original DT Swiss logo in red is reminiscent of the legendary Hügi hub from 1994 and gives your bike a truly unique touch. The 90T ratchets with 4-degree engagement angles enable faster and more direct acceleration out of corners and quicker pedal adjustment on technical sections.

DT Swiss Boost 12x148mm rear hubs:

The DT Swiss 240 3Decades rear hubs can only be used with Boost 12x148 frames. They are not convertible.

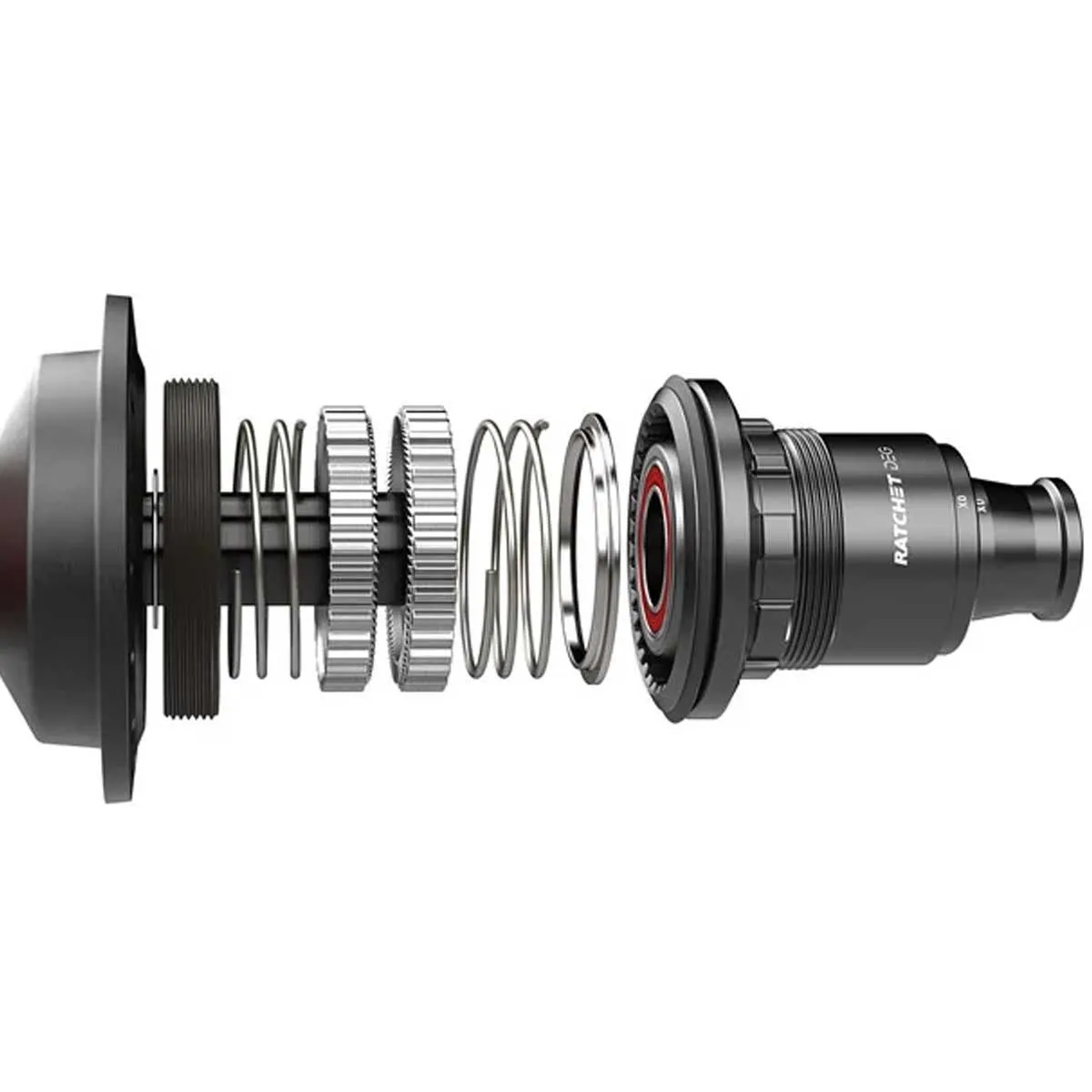

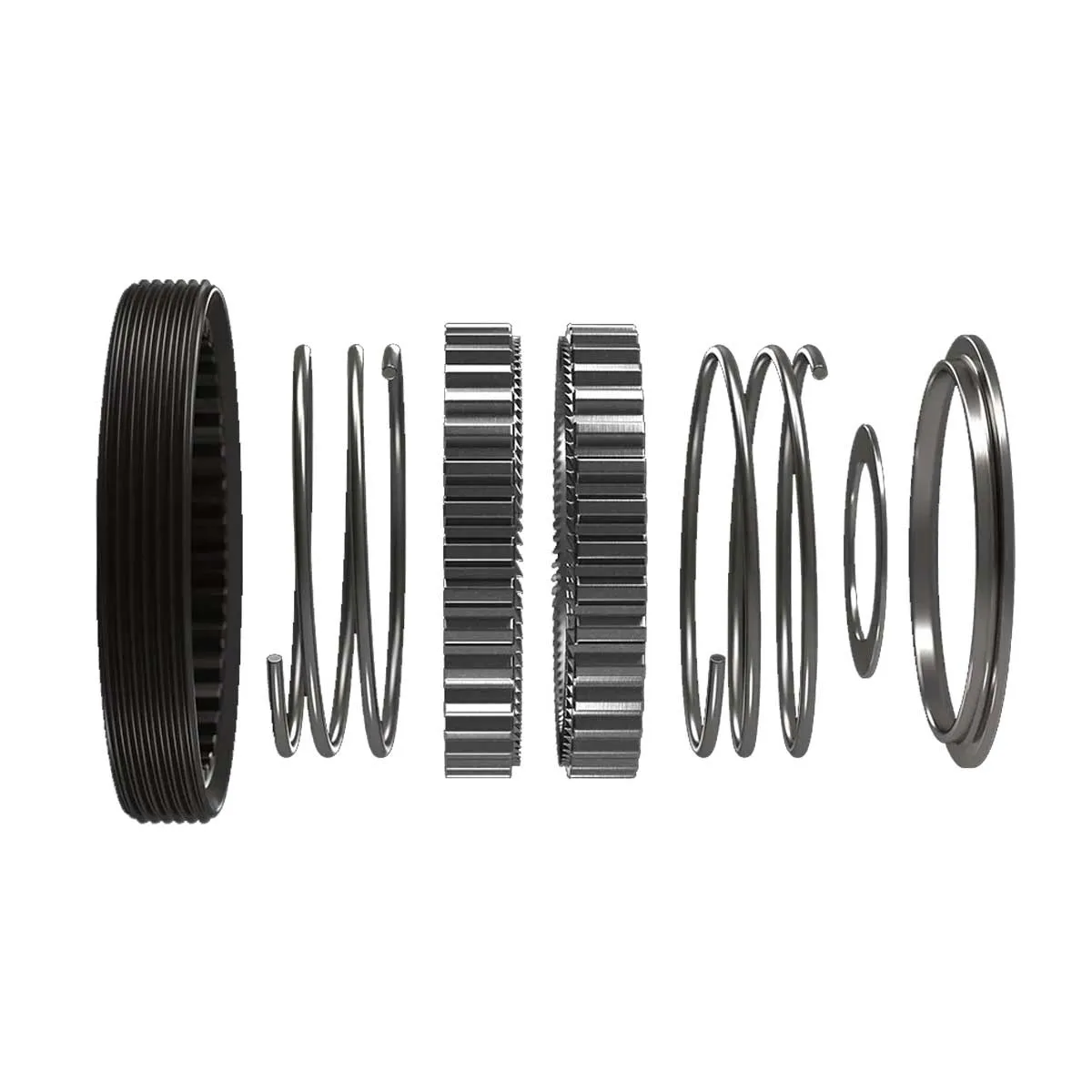

DT Swiss Ratchet DEG System:

The patent-pending Ratchet DEG system is based on a different approach to conventional freehub systems. It operates with a smaller engagement angle, thereby offering maximum reliability. The innovative design of the Ratchet DEG hub allows the bearing to be replaced without special tools. The threaded ring does not need to be removed. The steel DEG pawls are larger than on any previous DT Swiss models. They are designed to make it easier even for the strongest riders to transfer power over the long term and across a large contact area. The simultaneous engagement of the sprockets results in a larger contact area than with ratchet hubs – and thus a more even distribution of the load. The two enlarged sprockets have 90 teeth. With just 4, they therefore offer the smallest engagement angle of any hub in the DT Swiss range. On the trail, this leads to reduced backlash. The Ratchet DEG freehub body has a larger diameter at the ratchet interface. This means it fits perfectly with the size-optimised DEG ring. Furthermore, it is therefore only compatible with hubs equipped with the Ratchet DEG system. The seal is located on the freehub.

DT Swiss DEG bearing spacing:

The Ratchet DEG system has a larger bearing spacing than the classic Ratchet system. The drive-side bearing is at the same height as the threaded ring but, unlike the Ratchet EXP freehub system, is not integrated. The innovative design of the Ratchet DEG hub allows the bearing to be replaced without special tools. The threaded ring does not need to be removed here.

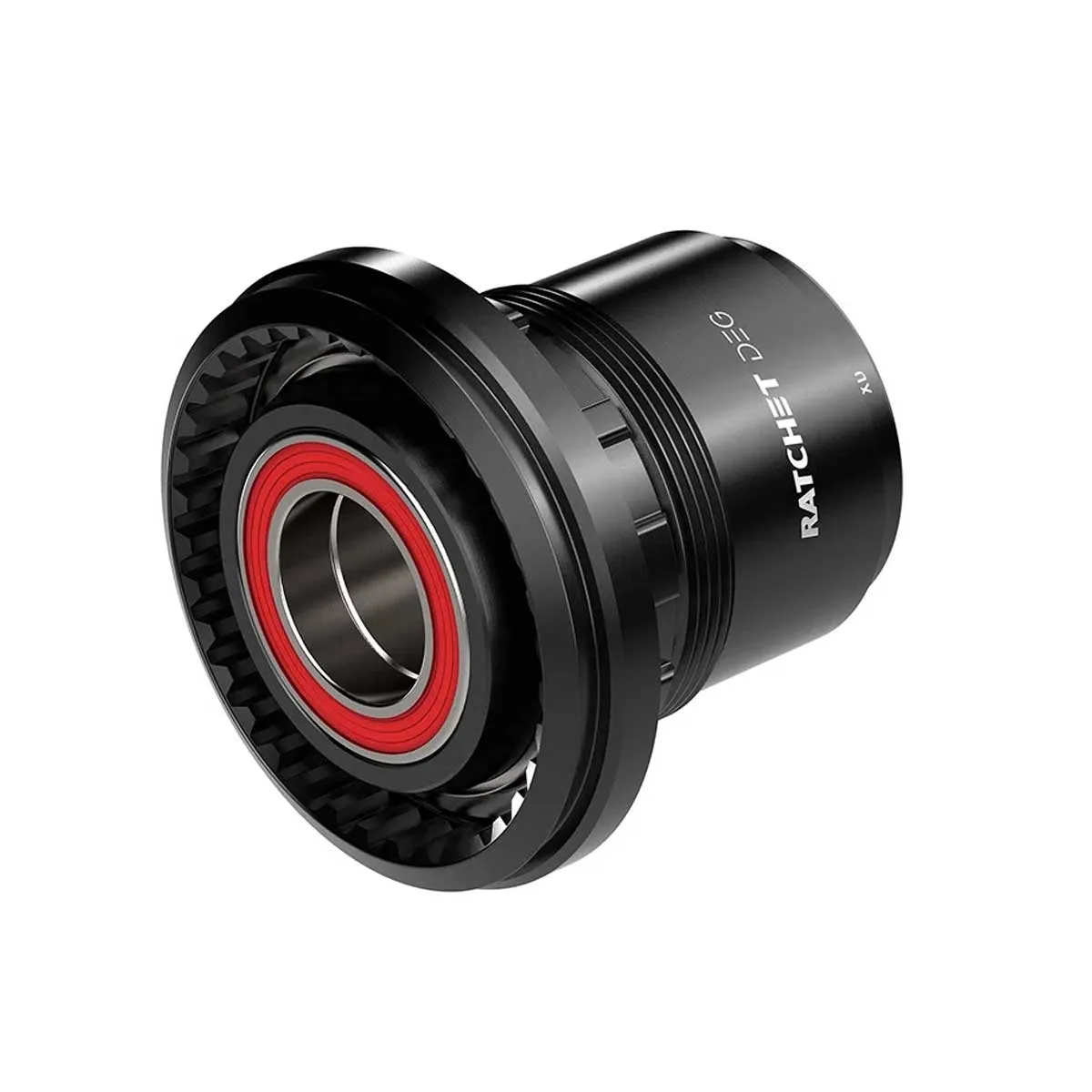

DT Swiss DEG freehub body:

The Ratchet DEG freehub body has a larger diameter at the ratchet interface. This means it fits perfectly with the size-optimised DEG ring. Furthermore, it is therefore only compatible with hubs equipped with the Ratchet DEG system. The support width is greater than on all other freehub body systems. The seal is located on the freehub.

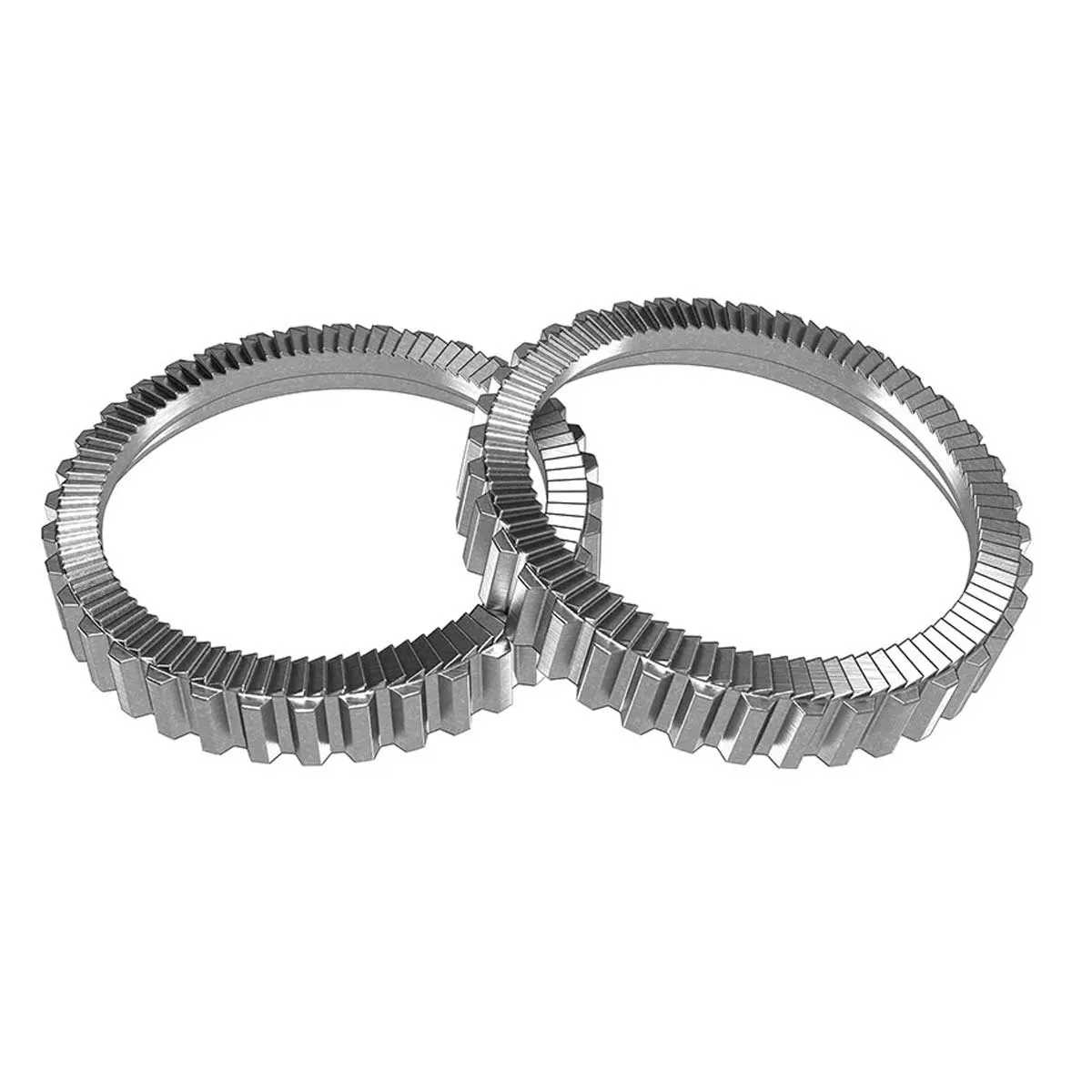

DT Swiss DEG sprockets:

The Ratchet DEG system and the new freehub body now allow the installation of size-optimised 90-tooth sprockets. This enables a 4° engagement angle. DEG sprockets are only compatible with Ratchet DEG hubs.

Your custom wheel with the DT Swiss 240 DEG hub

Ask us for a personalised quote. We will build your dream wheelset, perfectly centred by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheelsets – these spokes have proven themselves to be by far the most durable.
