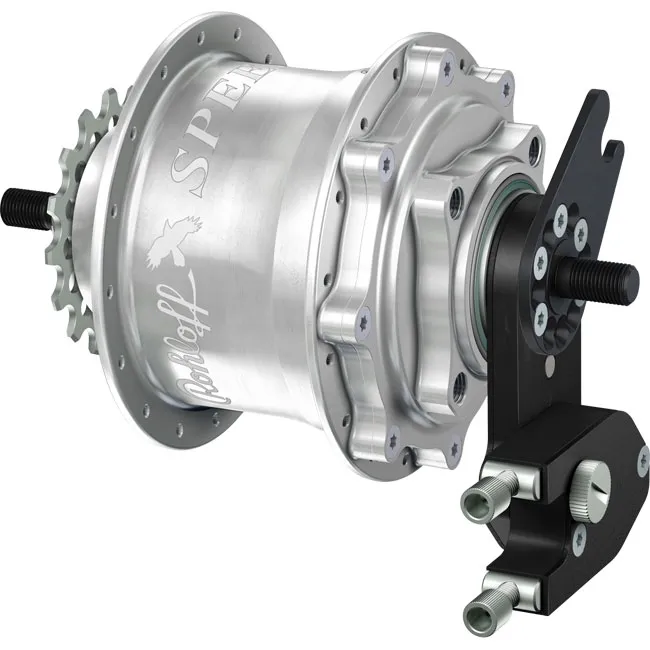

Rohloff Speedhub 500/14 TS DB OEM2 Hub

The latest Speedhub hubs are supplied with the new shift lever, 16 plug-in sprockets, the anodised version of the hub body, with an engraved logo and serial number. The Speedhub for disc brakes. Please note: special brake discs with a large four-hole mount are required for this hub. The Speedhub’s external cable routing allows for straightforward installation of the brake disc and shift cables.

Rohloff Speedhub TS DB EX OEM 2:

The TS OEM 2 axle plate for vertical dropouts with threaded axles and torque support at the IS2000 disc brake mount. If disc brakes are also fitted, the Rohloff Speedbone is additionally required.

• Hub contents: Screw-in axle hub with housing cover for mounting the Rohloff special brake disc, handle, cables, external cable routing, TS OEM2 axle plate for torque support on the IS2000 disc brake mount and mounting parts, 16 Rohloff plug-in sprockets.
• The Speedbone (item no. 8550) or Monkey Bone (8553/8554) are also required

Rohloff Speedhub 500/14

14 gears evenly spaced with the shifting capacity of a 27-speed MTB derailleur. Compact and low-maintenance, housed in a lightweight aluminium casing. Forced gear selection, straight chainline, low running costs and low weight. The advantages of the Rohloff Speedhub speak for themselves. High reliability, optimal gear ratios, a wide overall gear range, virtually maintenance-free and extremely simple operation are the key features. Low weight and high efficiency leave nothing to be desired. The sealed gearbox guarantees a long service life even under extreme conditions. The uniform gear spacing of 13.6 per cent enables the rider to always ride at their optimum performance level. A total gear ratio of 526 per cent ensures the right gear is available for every riding situation. The Rohloff SPEEDHUB 500/14 is operated via a twist shifter, which positively controls the hub via a separate shift cable for both upshifting and downshifting. Unlike all previous gear systems, gear indexing takes place not in the shifter, but directly in the gearbox, resulting in minimal wear and the need for adjustment.

Rohloff Speedhub 500/14 TS DB Hub

• Hub, 32-hole
• Shift lever, new version
• Shift cables, new version
• Rohloff sprocket, 16 teeth, plug-in version
• TS OEM2 axle plate
• External gear cable routing

Your custom wheel with the Rohloff Speedhub hub.

Ask us for a bespoke quote. We will build your custom wheel, perfectly hand-laced. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven to be by far the most durable.
