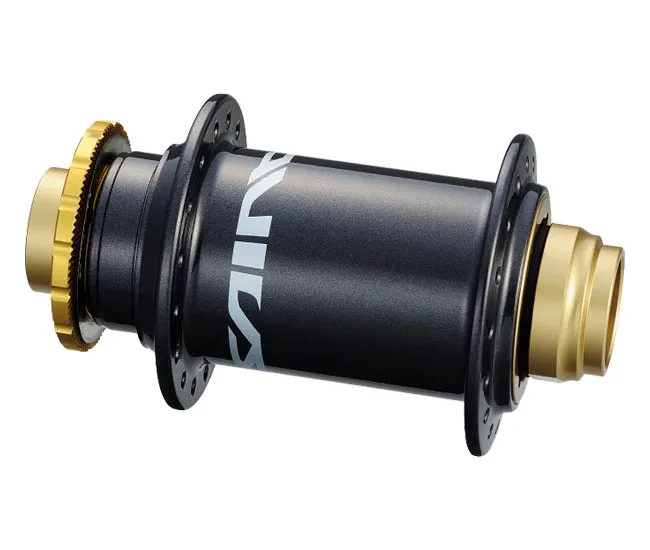

Shimano Saint Disc Front Hub HB M820

The third generation of SAINT hubs, the M820 series, was developed according to the Pure Gravity design philosophy with a clear focus on maximum speed during downhill riding. SAINT benefits from a state-of-the-art Ice-Tech brake disc with cooling fins to support better heat dissipation and optimum stability under demanding braking conditions.

Downhill mounting standard 20x110mm:

These hubs feature the classic downhill mounting standard for 20mm thru-axles with a hub mounting width of 110mm for older downhill forks. This is not compatible with the new Boost 20x110mm mounting standard. On Boost hubs, the brake disc mount is positioned 5 mm further out.

Shimano Saint HB M820 Hub Specifications:

• 12 mm aluminium axle
• Polished raceways
• Stainless steel balls
• Angled bearings
• Spoke hole circle: 52 mm
• Flange diameter: 59.6 mm
• Flange spacing: 61.6 mm
• Centerlock mount for brake discs
• DH mounting dimension 20x110 mm Thru-axle mounting
• Weight 216 grams

Your choice of wheel with the Shimano Saint Disc hub

Ask us for a personalised quote. We will build your dream wheelset, perfectly trued by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.
