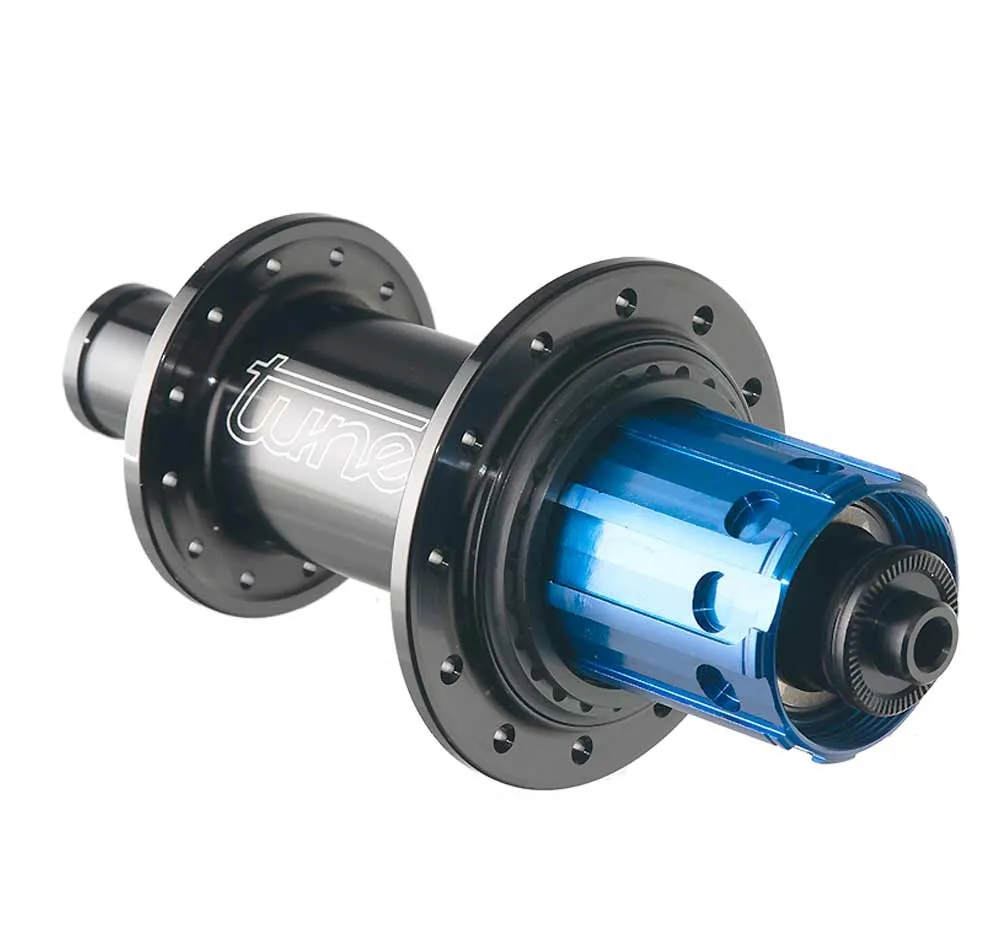

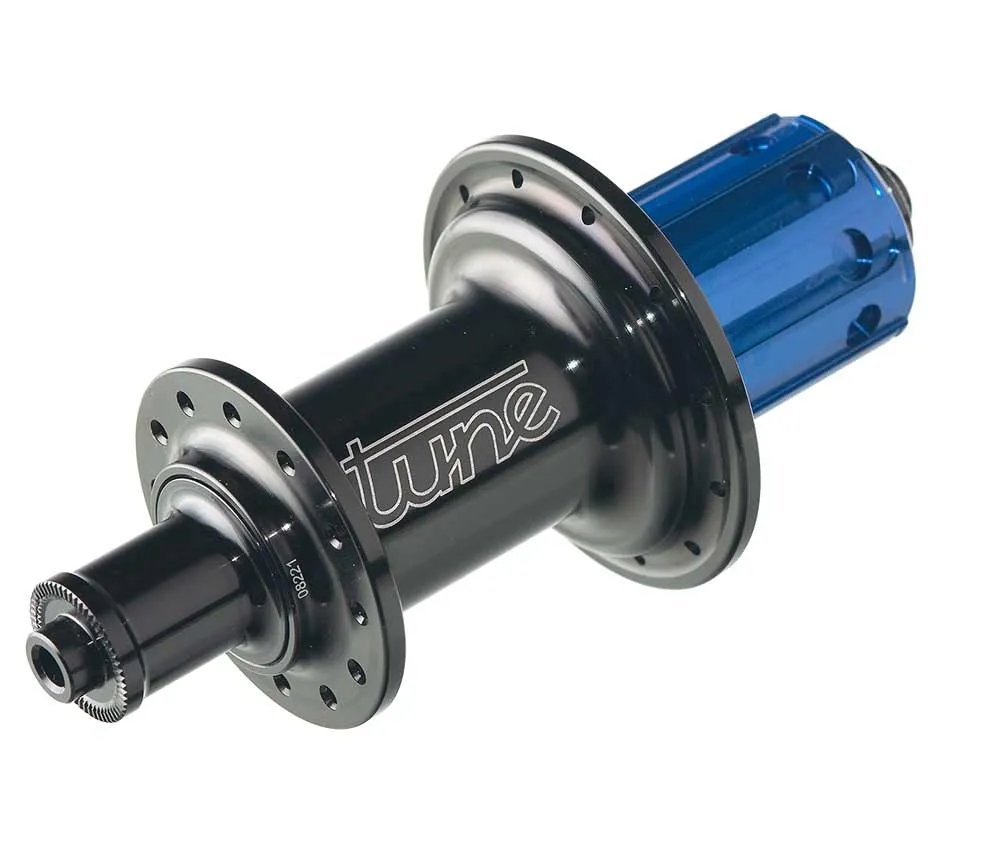

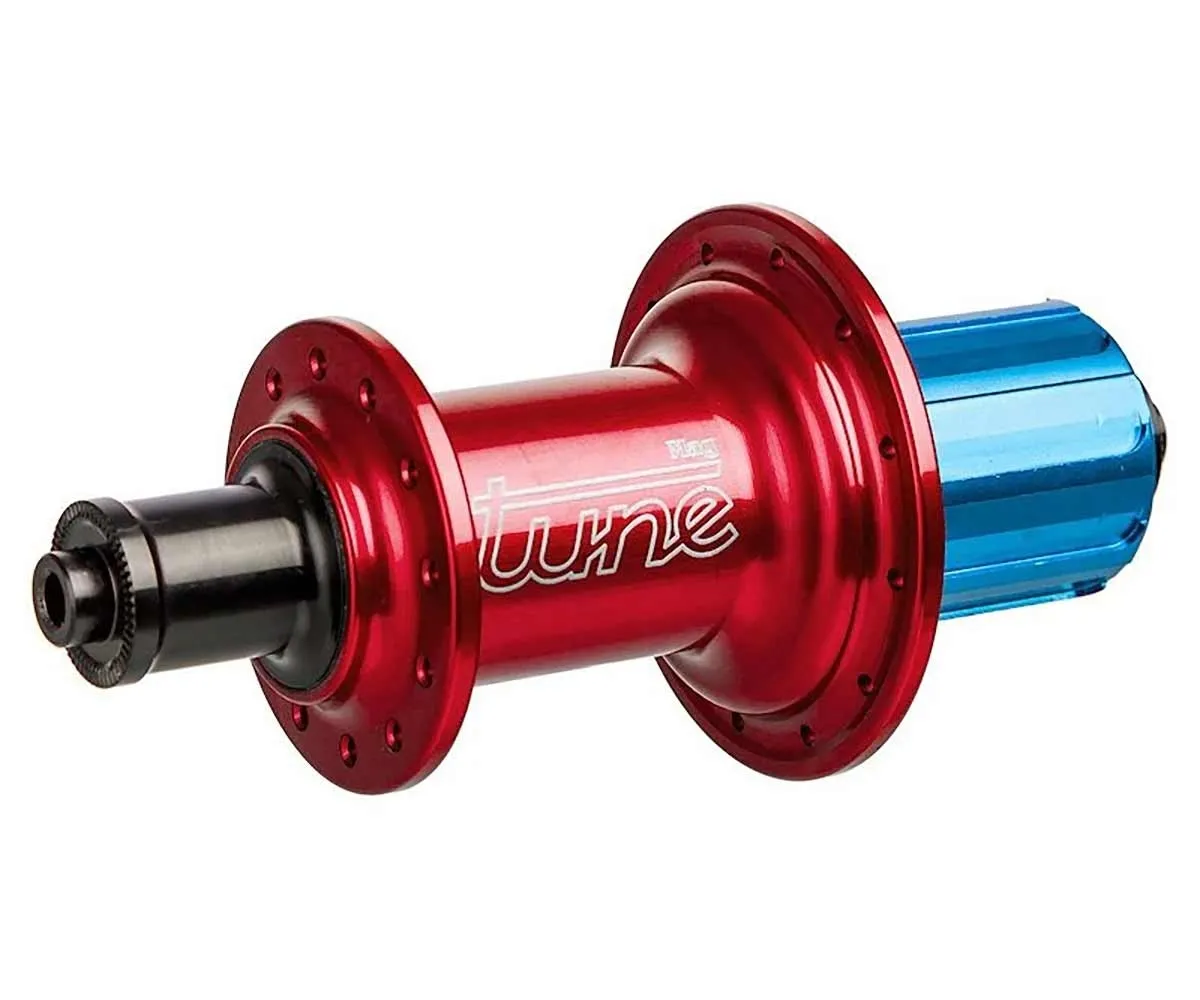

Tune Mag 170 Rear Hub

The revised classic MAG 180 has been transformed into the Tune MAG 170 with the new 17mm axle! The successor impresses with its durability, increased stiffness and further reduced weight. The Mag 170 with a 17mm axle now definitively enters the hardcore segment of rim brake hubs. Unique design: thanks to adjustable play, there is no bearing seizure even under the toughest clamping conditions. The larger flange, high/low flanges, on the freehub side allows for a more angled spoke pattern and thus a more symmetrical wheel. The Tune MAG 170 features a 4-bearing design. Despite its sensationally low weight, there are no restrictions on use! Tune uses special bearings that are not available in standard retail outlets!

Tune Standard Bearings:

The ball bearings are well-sealed and suitable for classic use on road bikes. The bearings are characterised by a special grease and a higher grease fill level. They are also well-sealed and maintenance-free.

Tune Mag 170 hub technology:

• Axle: 17 mm aluminium
• Pawl teeth: Titanium TiAI6V4
• Mounting width: 130 mm
• Seal: double-sealed
• Clamping method: Quick-release axle 10x130 mounting width
• Bolt circle: 55.5 mm
• Bearings: Standard 4 deep groove ball bearings 3 x 61803, 1 x 61903
• Freewheel body options:
  • HG11 freehub body compatible with Shimano and Sram road cassettes (8-speed, 9-speed, 10-speed and 11-speed)
  • Campa ED freehub body compatible with Campagnolo 9-, 10-, 11- and 12-speed cassettes
  • SRAM XDR freehub body compatible with SRAM AXS Road 12-speed and 11 + 12-speed XG MTB cassettes
• Weight: approx. 178 grams

Your custom wheel with the Tune Mag 170 hub

Ask us for a personalised quote. We will build your dream wheelset, perfectly trued by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.
