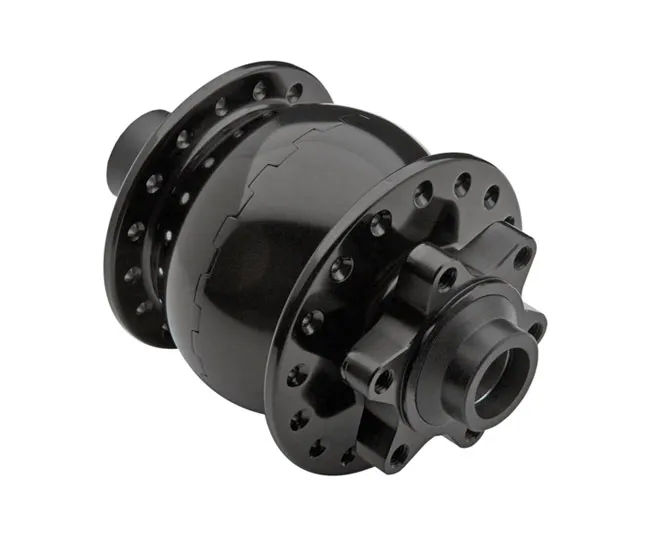

Schmidt SON 28/15 hub dynamo

The Son 28 Disc version for 15x100 mm thru-axle mounting. The choice for high-quality gravel and MTB wheels with a 15x100 mm mounting dimension.

Your custom wheel with the Son 28 15 Boost hub dynamo:

Ask us for a personalised quote. We will hand-build your dream wheelset, perfectly trued by hand. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Schmidt SON 28/15 hub dynamo technical specifications:

• Electrical output: 6V / 3W in accordance with StVZO Approval: ~~~ K 179
• Permitted wheel sizes: 16–29 inches
• Efficiency: 65 per cent at 15 km/h Idle power consumption: 0.5 watts at 15 km/h
• Magnetic rotor: Neodymium-iron-boron, 26-pole
• Connection: 4.8 mm flat plug, two-pin, potential-free
• Cabling: Coaxial cable, PVC-free, 3 mm
• On/off switch: Switch in headlight housing
• Bearing: Deep groove ball bearing 629 2RSH
• Seal: Gap seal, sealing washers and pressure equalisation system
• Hub shell: Polished 6082 aluminium Number of spoke holes: 32 Weight: 480 grams
• Axle: Hollow axle made of cold-hardened, stainless steel
• Boost thru-axle mounting 15x100 mm
• Brake disc mounting: 6-hole disc
• Contents: Schmidt’s original hub dynamo
• Recommended lamp: Schmidt SON Edelux

SON 28 15 100 disc 6-hole

The SON 28 for 15x100 mm thru-axle fitting. The thru-axle stiffens the suspension fork and allows for more precise positioning of the hub, which is particularly beneficial for disc brakes. The weight has been kept pleasingly low at 460 g. The new SON 28 is similar in design and appearance to the SONdelux. In the standard version, the flange spacing and bearing spacing are increased by 12 mm and 10 mm respectively compared to the SONdelux. Compared to the SON 28 Classic model years 2000 to 2011, idle losses have been reduced by approx. 15 per cent and the weight by 140 g.

Son 28 Dynamo:

The SON Schmidt Original Hub Dynamo, 28 Hub Dynamo, has been the standard for high-quality, fail-safe bicycle lighting for years and, as a result of its design, remains unmatched even by new products from much larger companies. The secret lies in its gearless construction using high-quality materials and the adherence to tight tolerances, which is likely only achievable through hand-crafting by a dedicated small team. The dynamo is simply switched off electrically. Thanks to optimisation, the no-load losses when switched off amount to just 1 watt and are imperceptible even to the most sensitive cyclists whilst riding.
