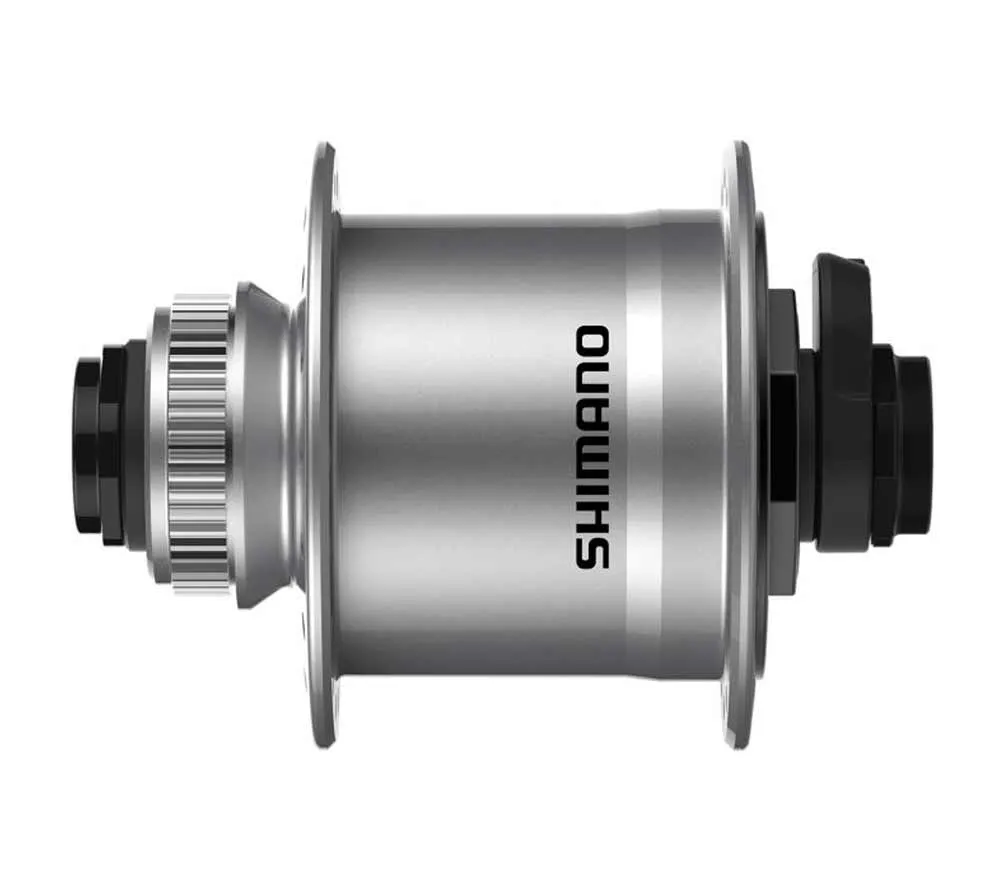

Shimano Hub Dynamo

The Shimano DH-UR708 hub dynamo for Centre Lock disc brakes is part of the Shimano Alfine component series. The Alfine series offers minimal rolling resistance and high energy efficiency. The anodised surface, single-contact seals and high-quality bearings ensure excellent durability. Thanks to the aluminium axle and aluminium ring, the weight has been reduced. The hub dynamo is equipped with a high-quality sealing system, ensuring that dirt has no chance of entering the hub. Rubber seals enhance water resistance. The highest quality standards ensure the hub runs smoothly for a long time. The hub dynamo is STVZO-approved, delivering a voltage of 6 volts and a power output of 3 watts.

Shimano DH UR708 Hub Dynamo Specifications

• Electrical output: 6V / 3W in accordance with StVZO Approval: ~~~ K 439
• Axle: Hollow axle made of 7022 T6 aluminium Axle ends: Stainless steel
• For dynamo-powered 6 V lighting systems
• With SM-DH10 surge protection
• Brake disc mount: Disc Centerlock
• Bolt circle diameter 62 mm
• Flange spacing 52 mm
• For wheel sizes from 26 to 28/29 inches
• Mounting dimensions 15x100mm thru-axle
• Weight: 476 grams (manufacturer’s specification)
• Includes plug and SM-DH10 surge protector

Your custom wheel with the Shimano DH UR705 hub dynamo.

Ask us for a personalised quote. We’ll build your dream wheel, perfectly hand-trued. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
