Spare part for Shimano XTR pedals

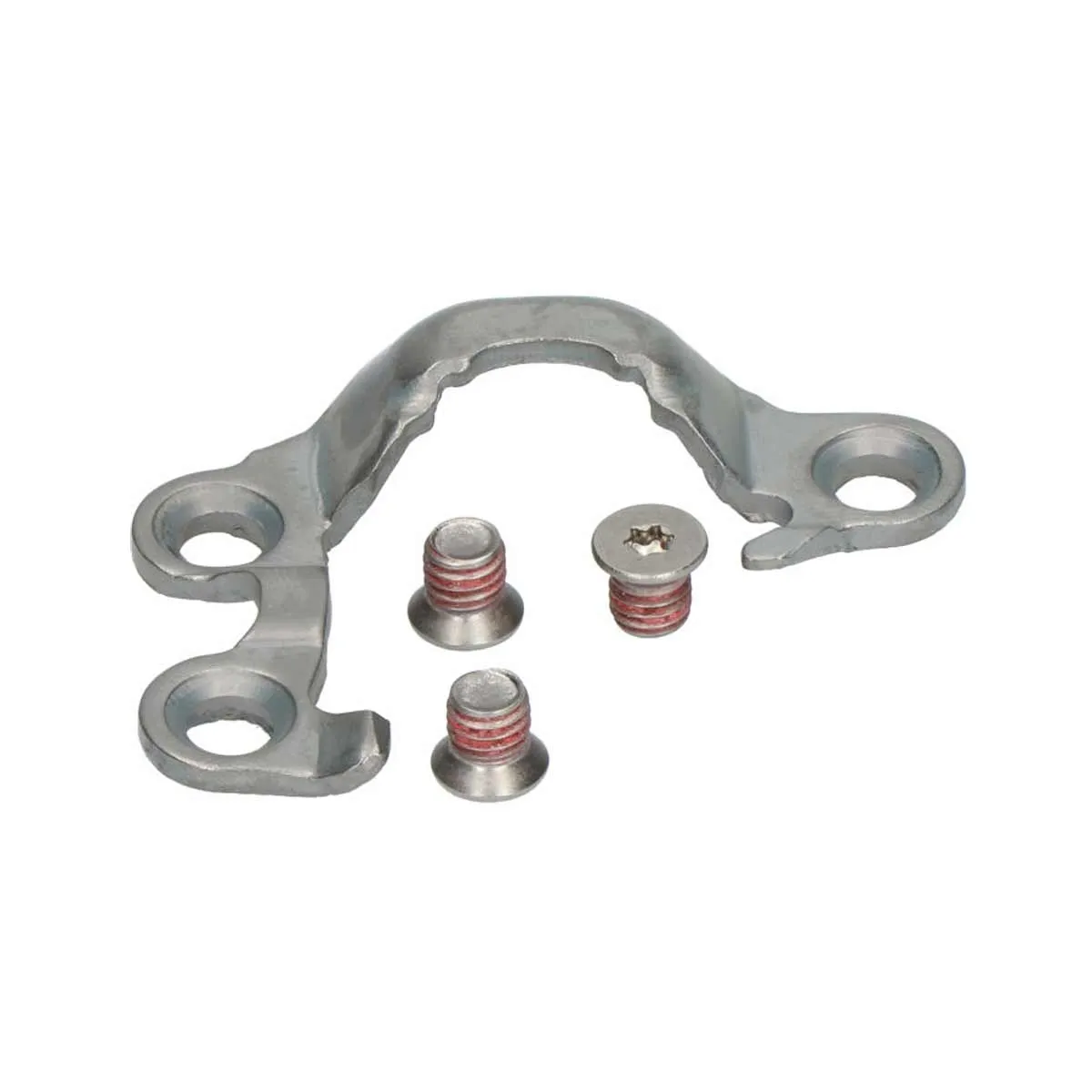

Left cleat with fixing bolts for the body cover, left, and fixing bolts, hexalobular #10,
Compatible with XTR clipless pedals:
- PD-M980
- PD-M985
- PD-M9000
- PD-M9100
- PD-M9200
- PD-M9020
- PD-M9120
- PD-M9220

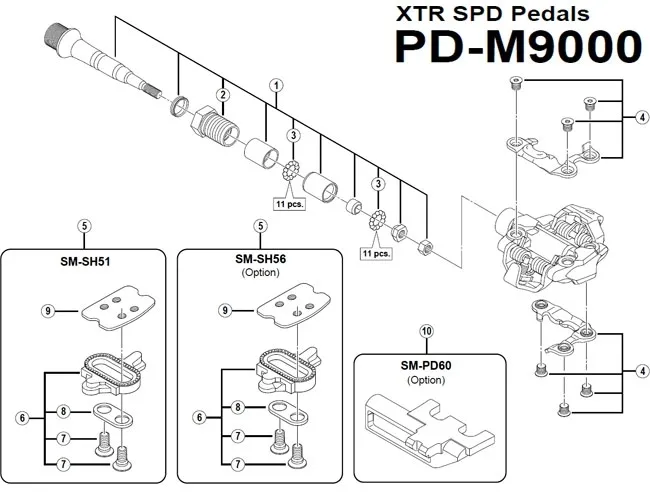

Shimano XTR PD-M9000 Pedal Spare Parts:
- No. 1, Item No. Y46X98050 Pedal Axle Assembly, Right / B.C.9/16 x 20T.P.I.
- No. 1, Item No., Y46X98020 Pedal Axle Assembly, Left / B.C.9/16 x 20T.P.I.
- No. 2, Item No., Y46X98030 Lock Bolt, Right
- No. 2, Item No. Y46X98040 Lock Bolt, Left
- No. 3, Item No. Y41N98030 Steel Ball, 3/32, 62 pcs.
- No. 4, Item No. Y46F98050 Body Cover, Right, and Fixing Bolts, Hexalobular #10
- No. 4, Item No. Y46F98060 Body Cover, Left, and Fixing Bolts, Hexalobular #10
- No. 5, Item No. Y42498220 SM-SH51 Cleat Set, Single Release Mode / Pair
- No. 5, Item No. Y41S98092 SM-SH56 Cleat Set, Multiple Release Mode / Pair
- No. 6, Item No. Y42498201 SM-SH51 Cleat Set without Cleat Nut, Single Release Mode / Pair
- No. 6, Item No. Y41S98100 SM-SH56 Cleat Set without Cleat Nut, Multiple Release Mode / Pair
- No. 7, Item No., Y41704030 Cleat Fixing Bolt, 1 pc.
- No. 8, Item No., Y42423000 Cleat Adapter, 1 pc., A
- No. 9, Item No., YL0E04000 Cleat Nut, 1 pc., A
- No. 10, Item No. Y40Z98010 SM-PD60 Reflector Unit, Pair/Option, A
- No. 10, Item No., Y40Z98020 SM-PD60 Reflector Unit, AS/Pair/Option, A

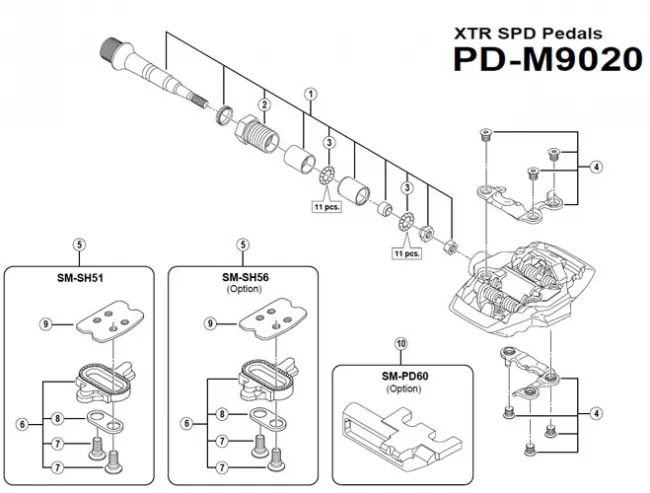

Shimano XTR PD-M9020 Pedal Spare Parts:
- No. 1, Item No., Y46X98050 Pedal Axle Assembly, Right / B.C. 9/16 x 20 T.P.I.
- No. 1, Item No., Y46X98020 Pedal Axle Assembly, Left / B.C. 9/16 x 20 T.P.I.
- No. 2, Item No. Y46X98030 Lock Bolt, Right
- No. 2, Item No. Y46X98040 Lock Bolt, Left
- No. 3, Item No. Y41N98030 Steel Ball, 3/32, 62 pcs.
- No. 4, Item No. Y46F98050 Body Cover, Right, and Fixing Bolts, Hexalobular #10
- No. 4, Item No. Y46F98060 Body Cover, Left, and Fixing Bolts, Hexalobular #10
- No. 5, Item No. Y42498220 SM-SH51 Cleat Set, Single Release Mode / Pair
- No. 5, Item No. Y41S98092 SM-SH56 Cleat Set, Multiple Release Mode / Pair
- No. 6, Item No. Y42498201 SM-SH51 Cleat Set without Cleat Nut, Single Release Mode / Pair
- No. 6, Item No. Y41S98100 SM-SH56 Cleat Set without Cleat Nut, Multiple Release Mode / Pair
- No. 7, Item No. Y41704030 Cleat Fixing Bolt, 1 pc.
- No. 8, Item No. Y42423000 Cleat Adapter, 1 pc.
- No. 9, Item No. YL0E04000 Cleat Nut, 1 pc.
- No. 10, Item No. Y40Z98010 SM-PD60 Reflector Unit, Pair/Option
- No. 10, Item No. Y40Z98020 SM-PD60 Reflector Unit, AS/Pair/Option

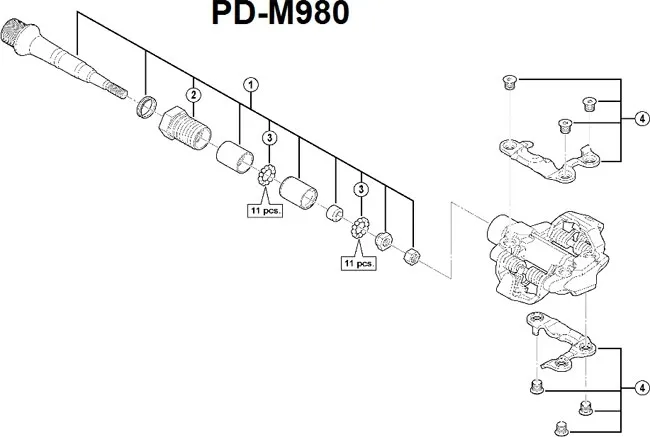

Left cleat plate with fixing bolts for the XTR PD-M980, PD-M9000, PDM9020, Body Cover, left, and Fixing Bolts, Hexalobular #10, No. 4
Shimano XTR PD-M9000 Pedal Spare Parts:
- No. 1, Item No. Y46X98050 Pedal Axle Assembly, Right / B.C.9/16 x 20T.P.I.
- No. 1, Part No., Y46X98020 Pedal Axle Assembly, Left / B.C.9/16 x 20T.P.I.
- No. 2, Item No., Y46X98030 Lock Bolt, Right
- No. 2, Item No. Y46X98040 Lock Bolt, Left
- No. 3, Item No. Y41N98030 Steel Ball, 3/32, 62 pcs.
- No. 4, Item No. Y46F98050 Body Cover, Right, and Fixing Bolts, Hexalobular #10
- No. 4, Item No. Y46F98060 Body Cover, Left, and Fixing Bolts, Hexalobular #10
- No. 5, Item No. Y42498220 SM-SH51 Cleat Set, Single Release Mode / Pair
- No. 5, Item No. Y41S98092 SM-SH56 Cleat Set, Multiple Release Mode / Pair
- No. 6, Item No. Y42498201 SM-SH51 Cleat Set without Cleat Nut, Single Release Mode / Pair
- No. 6, Item No. Y41S98100 SM-SH56 Cleat Set without Cleat Nut, Multiple Release Mode / Pair
- No. 7, Item No., Y41704030 Cleat Fixing Bolt, 1 pc.
- No. 8, Item No., Y42423000 Cleat Adapter, 1 pc., A
- No. 9, Item No., YL0E04000 Cleat Nut, 1 pc., A
- No. 10, Item No. Y40Z98010 SM-PD60 Reflector Unit, Pair/Option, A
- No. 10, Item No., Y40Z98020 SM-PD60 Reflector Unit, AS/Pair/Option, A
Shimano XTR PD-M9020 Pedal Spare Parts:
- No. 1, Item No., Y46X98050 Pedal Axle Assembly, Right / B.C. 9/16 x 20 T.P.I.
- No. 1, Item No., Y46X98020 Pedal Axle Assembly, Left / B.C. 9/16 x 20 T.P.I.
- No. 2, Item No. Y46X98030 Lock Bolt, Right
- No. 2, Item No. Y46X98040 Lock Bolt, Left
- No. 3, Item No. Y41N98030 Steel Ball, 3/32, 62 pcs.
- No. 4, Item No. Y46F98050 Body Cover, Right, and Fixing Bolts, Hexalobular #10
- No. 4, Item No. Y46F98060 Body Cover, Left, and Fixing Bolts, Hexalobular #10
- No. 5, Item No. Y42498220 SM-SH51 Cleat Set, Single Release Mode / Pair
- No. 5, Item No. Y41S98092 SM-SH56 Cleat Set, Multiple Release Mode / Pair
- No. 6, Item No. Y42498201 SM-SH51 Cleat Set without Cleat Nut, Single Release Mode / Pair
- No. 6, Item No. Y41S98100 SM-SH56 Cleat Set without Cleat Nut, Multiple Release Mode / Pair
- No. 7, Item No. Y41704030 Cleat Fixing Bolt, 1 pc.
- No. 8, Item No. Y42423000 Cleat Adapter, 1 pc.
- No. 9, Item No. YL0E04000 Cleat Nut, 1 pc.
- No. 10, Item No. Y40Z98010 SM-PD60 Reflector Unit, Pair/Option
- No. 10, Item No. Y40Z98020 SM-PD60 Reflector Unit, AS/Pair/Option
