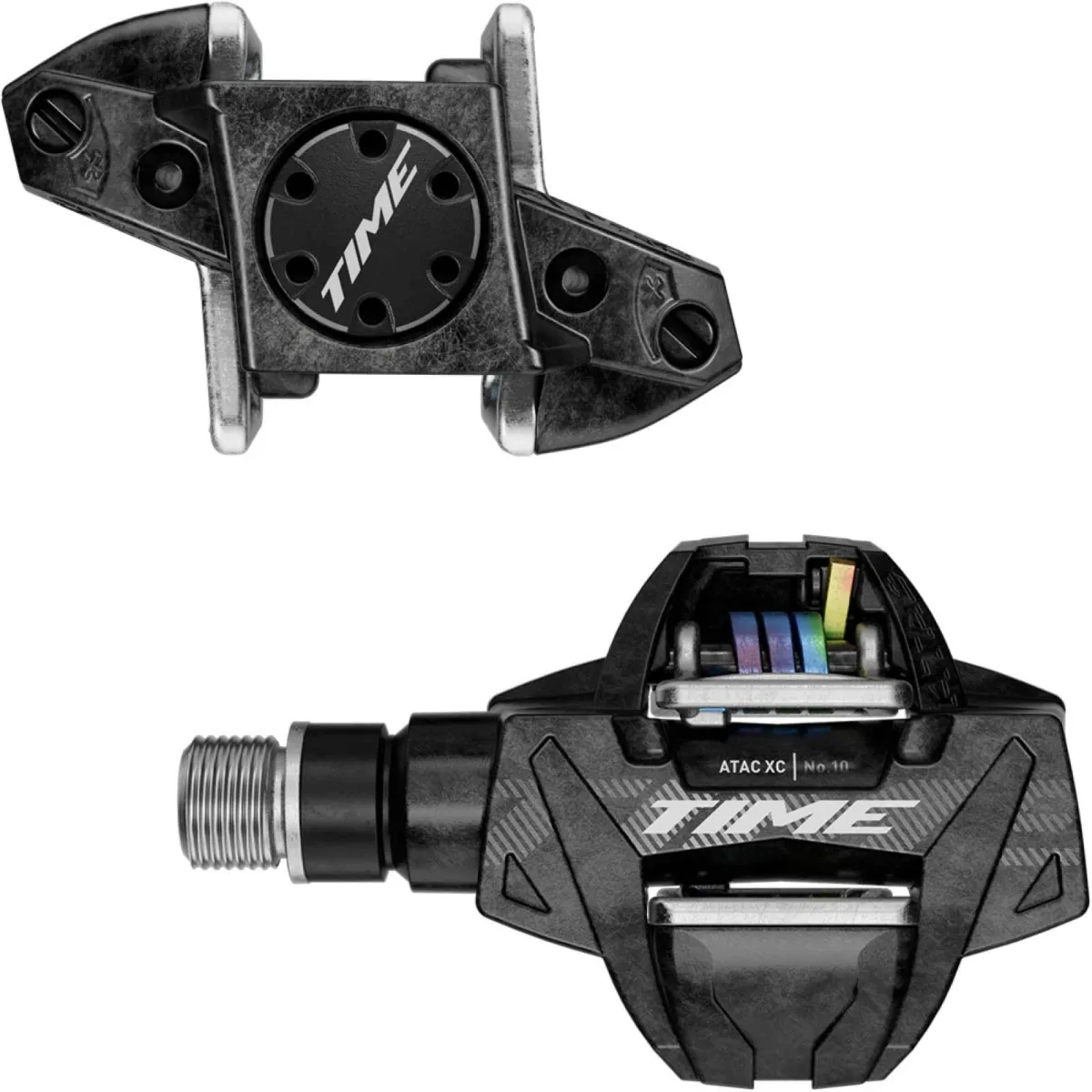

Time Atac XC Clipless Pedal | No.10
The competition MTB, cross and gravel ATAC XC No.10 pedals from Time for heavier riders, featuring a stainless steel axle. These pedals, with their adjustable angle, the famously easy entry and the new body shape that provides even better foot support, offer everything a cyclist could wish for. High-end, lightweight pedals.
Intended use: Cross-country racing, marathon.
Time A.T.A.C XC 10 Carbon Pedal Technology and Dimensions:
- Stainless steel axle, forged
- Industrial bearings
- Pedal body, carbon composite
- Aluminium spring
- Aluminium end cap
- Q-factor 54 mm
- Lateral foot movement, 6 mm
- Height, body 19 mm, width 63 mm
- Sole clearance 17.8 mm
- Release angle 13/17 degrees

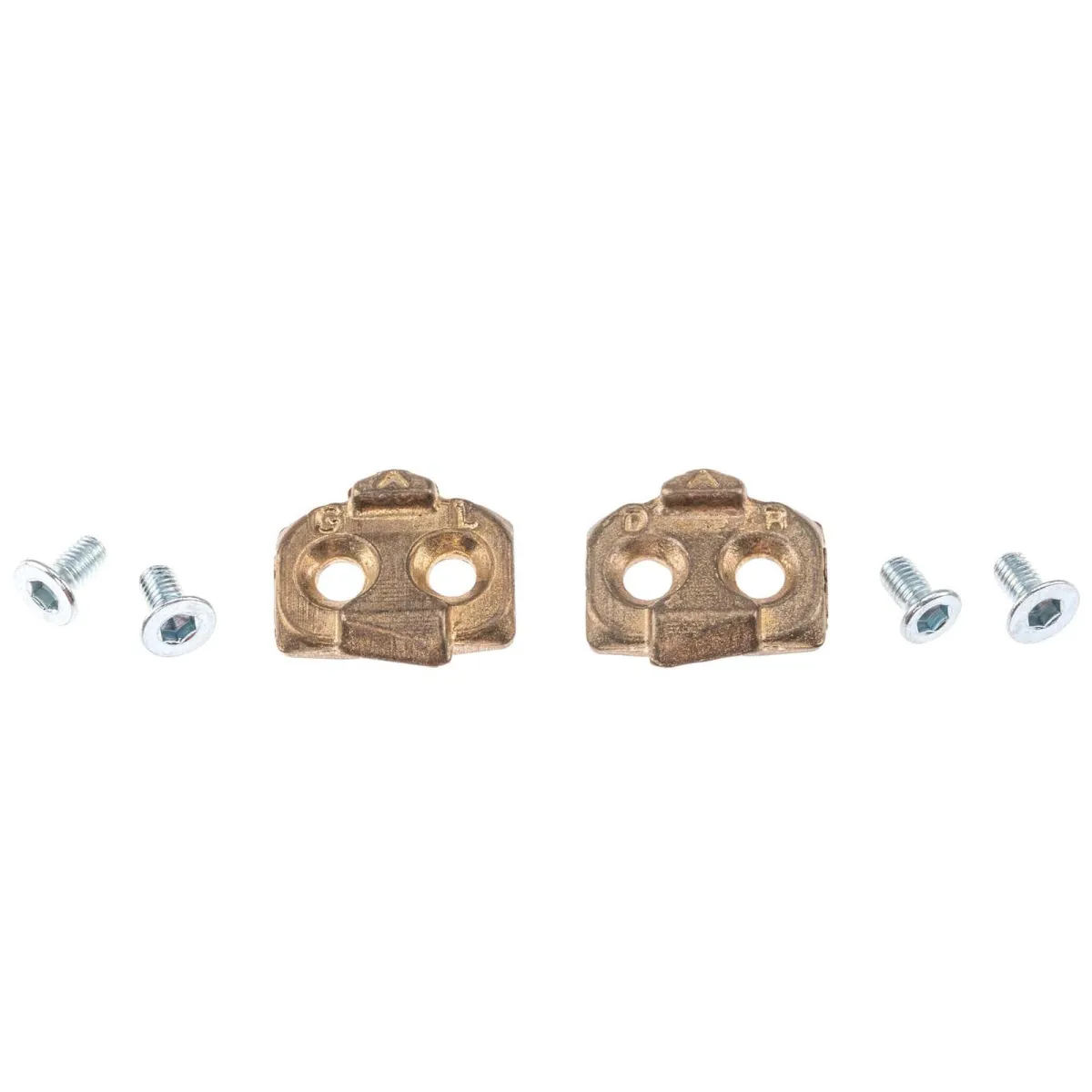

- Includes cleats, compatible with all standard MTB shoes
- Weight: 286 grams, pair (manufacturer’s specification)
Time pedals are fitted using a 6 mm Allen key. The cleats on Time A.T.A.C XC pedals are not compatible with Shimano SPD system cleats.
The ATAC XC 10 is a popular pedal among competitive cyclists due to its low weight and ergonomic design. The pedal combines the lightness of a carbon body with the durability of a hollow steel axle, as well as tension adjustment to suit your needs. Lateral and diagonal freedom of movement for fewer injuries and reduced muscle fatigue. The pedal’s self-cleaning design clears mud and debris with every pedal stroke. The ATAC XC 10 offers a smooth and consistent engagement with a tension adjustment to suit your preferences and needs. This pedal is a great option for XC, gravel or cyclocross.
Time A.T.A.C. Auto Tension Adjustment Concept:
The Time Auto Tension Adjustment Concept offers simple, adjustment-free and highly ergonomic shoe retention. This very open system is virtually dirt-resistant and maintenance-free. The 13 or 17-degree range of motion, depending on cleat mounting, provides a natural foot and ankle position whilst pedalling. Thanks to the special ATAC design, ATAC TIME pedals self-clean of mud, sand, gravel and other debris, ensuring reliability and safety in all situations.
Time Bioperformance:
As with all Time pedals, the foot has 6 mm of lateral freedom of movement and the angle at which the foot can rest on the pedal allows for ±5 degrees of freedom of movement. This may take some getting used to when you first switch to Time pedals, but it allows for an ergonomically sound foot position. Your feet automatically find the correct position on the pedal.
Time self-cleaning concept:
When you step into the Speciale, the cleats automatically clean the open-arch binding mechanisms of mud and dirt, ensuring perfect function even under the most extreme conditions. The low spring tension, combined with the large release angle, ensures absolute reliability without the risk of accidental release.
Time Micro Adjustment:
The Micro Adjustment also allows you to adjust the release force within a range of plus or minus 5 degrees.
