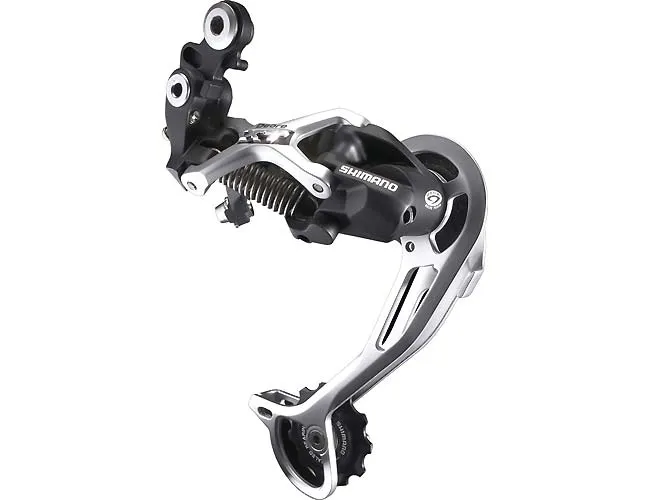

Shimano XT RD-M772 long-cage rear derailleur

Shimano Deore XT RD-M772 rear derailleur spare parts

Shimano Deore XT RD-M772 rear derailleur spare parts:

• No. 1: Y5W798110, Mounting kit
• No. 2: Y55625060, Adjustment screw for tension spring, B-type SOLD OUT
• No. 2: Y55625040, adjustment screw for tension spring, A-type, M4x 18 mm
• No. 3: Y5W798020, Limit screws (2 pcs)
• No. 4: Y5W798030, Cable fixing screw
• No. 5: Y5UC14000, Sealing ring P
• No. 6: Y5W722000, tension spring
• No. 7: Y5W798040, outer chain guide plate, GS type
• No. 7: Y5W798050, outer chain guide plate, SGS type
• No. 8: Y53M24400, fixing screw for gear wheel
• No. 9: Y5W798080, Tension and chain guide roller
• No. 10: Y5W709000, inner chain guide plate GS
• No. 10: Y5W710000, inner chain guide plate SGS
• No. 11: Y5W798100, Adjusting screw with plate M4x 18 mm a-type
• No. 11: Y5W798120, adjustment screw with plate M4x 18 mm b-type

The XT Shadow rear derailleur RD-M772 is only available in the Top Normal version; it shifts to the larger sprockets via a cable.

One of the highlights of the new XT is undoubtedly the Shimano Shadow rear derailleur RD-M772. Originally developed for all-mountain bikers, it is sure to find many fans amongst other mountain bikers too. Shimano Shadow is a new shifting system featuring a rear derailleur with a super-slim profile, saving 11–18 mm, which significantly reduces the risk of damage on narrow, challenging trails.

Furthermore, the Shadow rear derailleur offers greater vertical stability, which reduces the rear derailleur hitting the right seatstay on bumpy trails. The rear derailleur is precisely positioned and works perfectly. Particular attention was paid to keeping the weight as low as possible and ensuring crisp shifting for extreme use. The cable length has been reduced, as less cable means less friction and therefore better feedback.

Shimano XT RD-M772 rear derailleur technology

• Long derailleur arm 10.5 cm
• Aluminium parallelogram offset inwards
• Fluorin-coated pivot bushings
• Stainless steel pivot pins
• Upper pulley with ceramic bearings
• Lower shift roller on ball bearings
• Adjustable spring tension
• Compatible with all Shimano 9-speed MTB shift levers
• Weight: RDM-772-SGS: 224 grams

Shifting capacity of the long XT rear derailleur: 47 teeth, largest sprocket to be shifted, 34 teeth.
