Hydraulic Disc Sram Red 22 Flat Mount
The hydraulic shift-and-brake system with disc brakes from the Sram Red 22 series offers loss-free braking power transmission in combination with the ergonomic Sram Doubletap shift levers. The Sram Red 22 disc brakes feature a flat-mount brake caliper
Sram Red 22 Hydraulic Ergodynamic Shift Levers
The Sram Red 22 ErgoDynamic shift-brake levers with hydraulic master cylinder are the best solution for optimising the contact points between rider and bike. The new version features a smaller, more ergonomic grip. The Sram Red 22 levers from the 11-speed Sram Red series. The ErgoDynamic design: first-class control and comfort, new grip width adjustment adaptable to all hand sizes, DoubleTap and Zero Loss for smooth and precise shifting.
SRAM Red Zero Loss:
The shift travel makes all the difference: conventional shifters require a specific shift travel angle to trigger the shift pawl – in a race, this results in a crucial loss of time even before the actual shifting process begins. The SRAM Red is the first road bike shifter with zero degrees of lost shift travel; the shift cables move without the slightest delay as soon as the lever is pressed
Sram Red 22 Hydraulic Disc Brake
The disc brakes from the Red 22 series, designed for brake discs up to 160 mm in size. The hydraulic SRAM Red 22 disc brake offers optimum braking performance with minimal operating forces and precise modulation. The loss of force and friction caused by cable transmission in traditional cable-actuated brakes is eliminated in this system. Braking performance remains consistent in all weather conditions. Thanks to the separation of the rim/tyre and the braking surface, issues with heat build-up are elegantly resolved.
Flat Mount Standard:
The new Flat Mount caliper standard for road bike brakes reduces weight and offers a significantly sleeker look. With the Flat Mount standard, the rear caliper sits directly on the chainstay; no adapter is required for caliper mounting. The bolts pass through the chainstay from below directly into the brake caliper. A flat adapter is still required on the fork. The adapter is screwed onto the rear of the fork leg, with the brake sitting directly on the adapter. By flipping the adapter, the available brake disc sizes of 140 and 160 mm can be changed.
Sram Connectamajig
The Connectamajig is a hose connector that ensures simple, quick and convenient installation of the SRAM Red 22 hydraulic braking system. The brake lines can be routed both externally and internally and are compatible with SRAM 22 and SRAM S-700 hydraulic braking systems.
SRAM Red 22 hydraulic shift-and-brake technology:
- Double Tap with Zero Loss, resulting in 0 degrees of lost shift travel; shift cables move without delay
- Gears: 11-speed
- Right-hand shifter
- Material: Carbon brake and shift levers
- Compatibility: SRAM Red 22, Force 22 rear derailleurs
- Other: Ergonomic design and improved comfort with grip width adjustment and minimal weight, internally and externally routed shift cables and longer, optimised levers
- Hydraulic brake cylinder
- Easy bleeding
- Hose length 1800 mm
- Compatible brakes: SRAM Red 22, Force 22, Rival 22 hydraulic disc brakes
SRAM Red 22 hydraulic disc brake:
- Flat Mount brake caliper
- Optimised power and modulation for road bikes and cyclocross
- Quick-release lever for easy wheel changes
- Tool-free reach adjustment
- Recommended brake discs: Sram Centerline
- Recommended brake disc sizes: 160 mm for road, 140 mm for cyclocross
Total weight, shifter and brake: 449 grams including hose

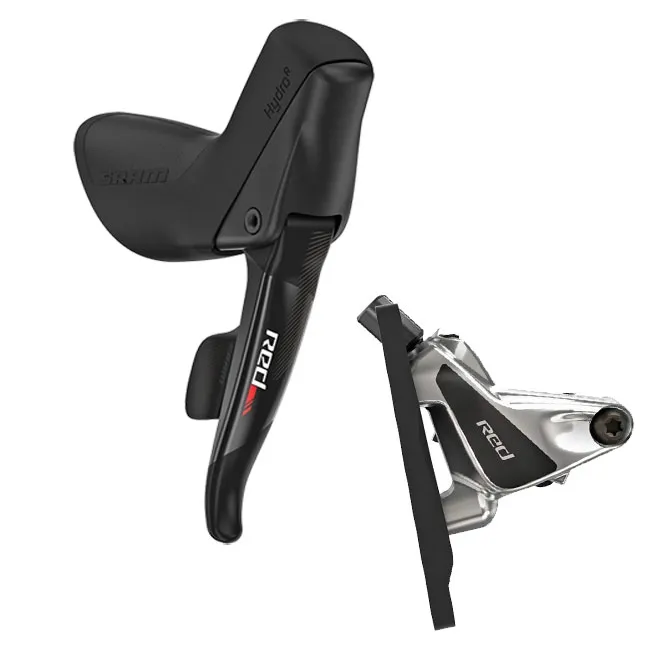

Included in delivery: Sram Red 22 11-speed right-hand shift/brake lever plus hydraulic Red 22 rear disc brake including brake pads, shift cables, 1800 mm brake hose, fully pre-assembled and bled
