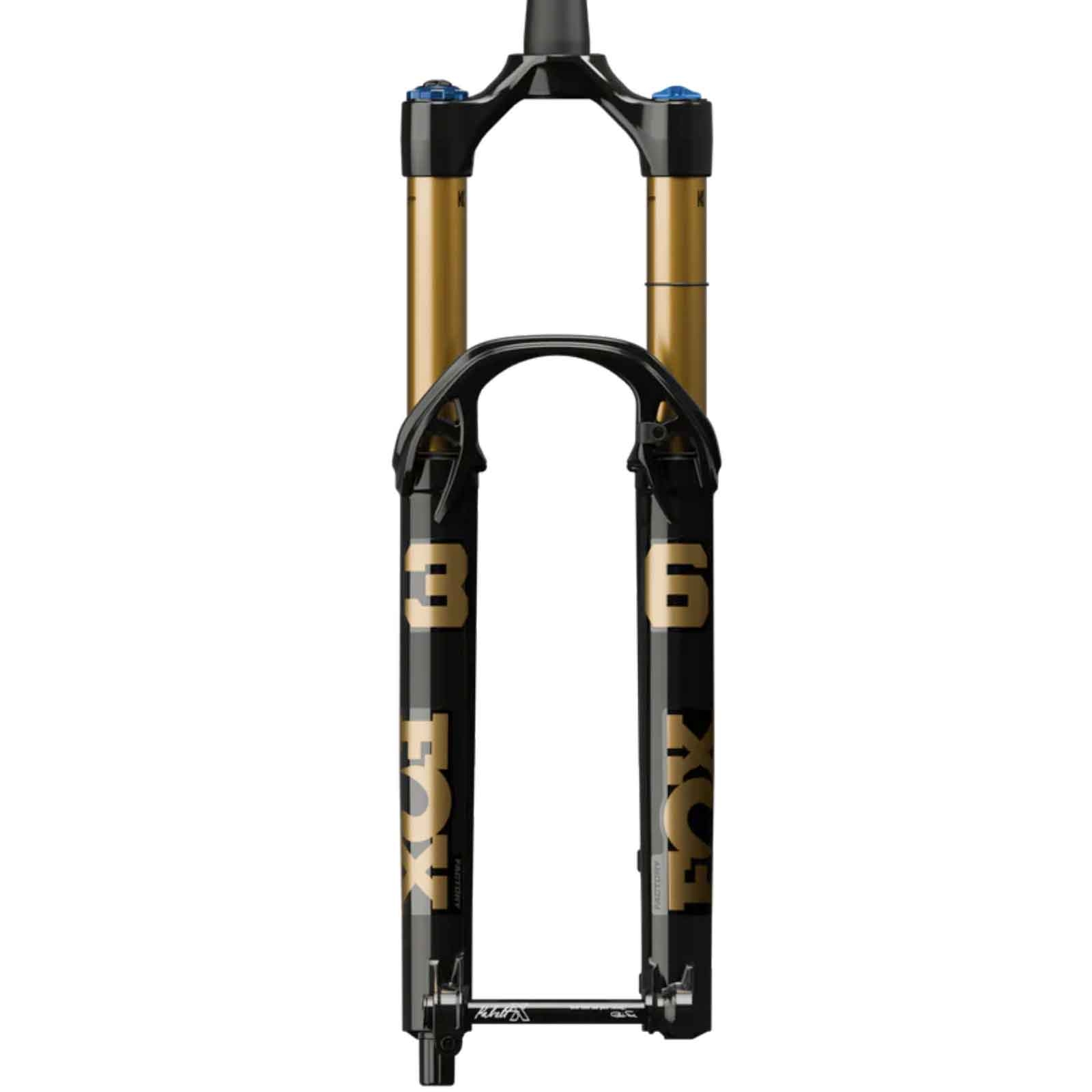

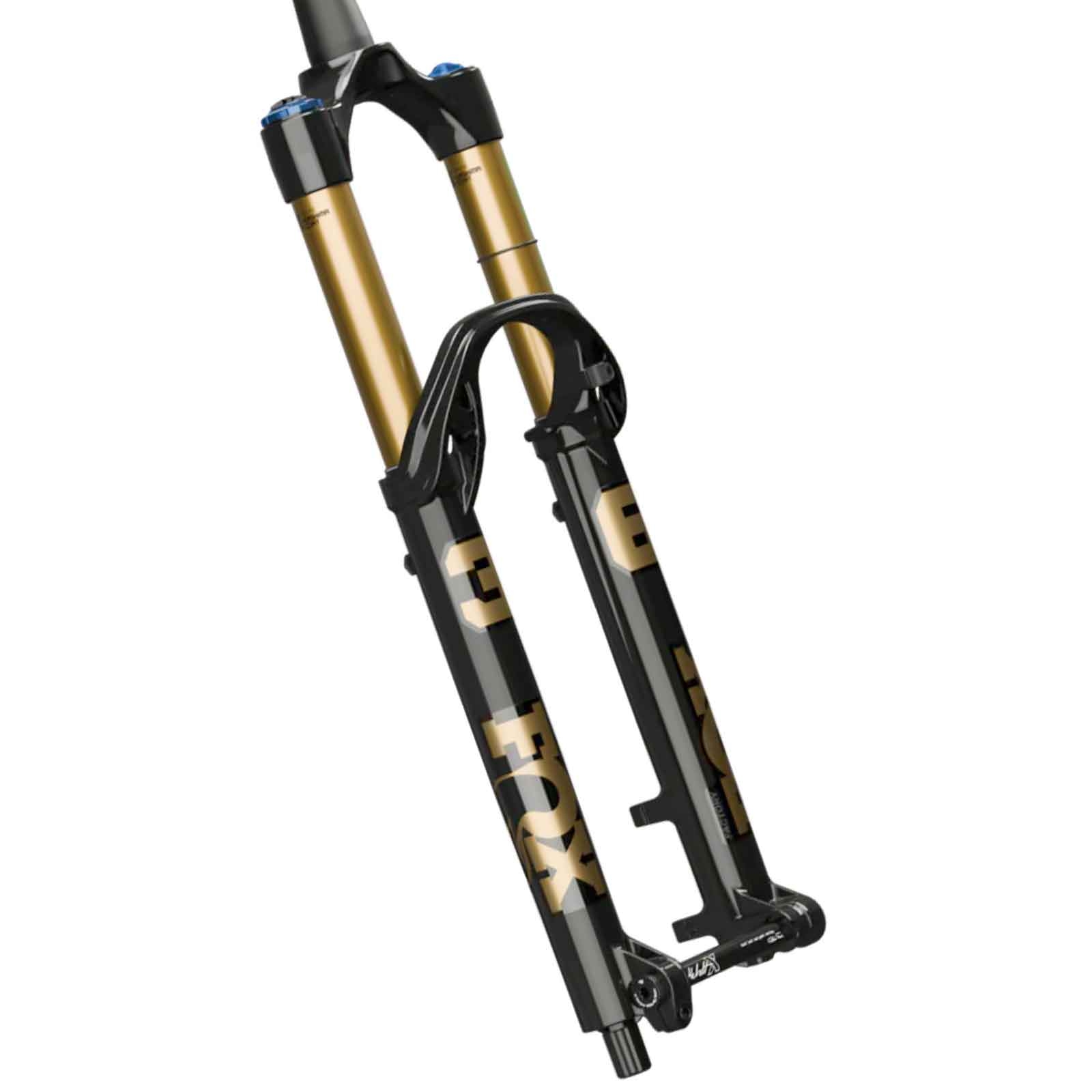

Fox 36 Factory suspension fork

The FOX 38 FACTORY Grip X2 has been fundamentally redesigned to meet the demands of the most challenging enduro rides.

• New chassis is stiffer and lighter
• New enlarged bushing cover reduces stress and increases durability.
• New GlideCore air spring with vertical and horizontal compliance
• New Float Evol air spring with increased volume
• New MCU bottom-out buffer.
• Newly developed Grip X2 damper cartridge with an optimised oil circuit

Included:

• Fox 38 suspension fork with serial number, Kabolt-X thru-axle 15x110mm, 3 volume spacers, single-shell clamp, in original packaging with instruction manual and full warranty.

Fox 38 Factory Grip X2 suspension fork specifications and dimensions:

• For 29-inch wheels
• Boost 15x110mm
• Tapered steerer tube tapering from 1.5 to 1 1/8 inches
• Standoffs: 38mm
• Suspension system: Air, F LOAT EVOL GlideCore
• Adjustment: Low-speed compression, high-speed compression, rebound, air pressure
• Damping: Oil, Grip X2 cartridge (new version)
• Crown: Aluminium
• Steerer tube: Aluminium, 245mm length
• Installation height: 549 mm
• Maximum tyre width: 2.6
• Maximum tyre diameter: 76 cm
• Wheel mounting dimension: 15x110 mm with Kabolt-X Floating Axle quick release
• Disc mount: Post Mount 8 direct mount 200 mm disc
• Maximum permitted disc size: 230 mm
• Weight: 2360g, manufacturer’s specification
• Not approved for use on e-bikes

The latest evolution of the popular 36 brings the power of a large fork to all-mountain riding. Thanks to increased steering stiffness and smoother suspension travel, the 36 delivers an enduro feel without adding weight. Available with GRIP X shock options for trail riding and GRIP X2 for gravity riding.

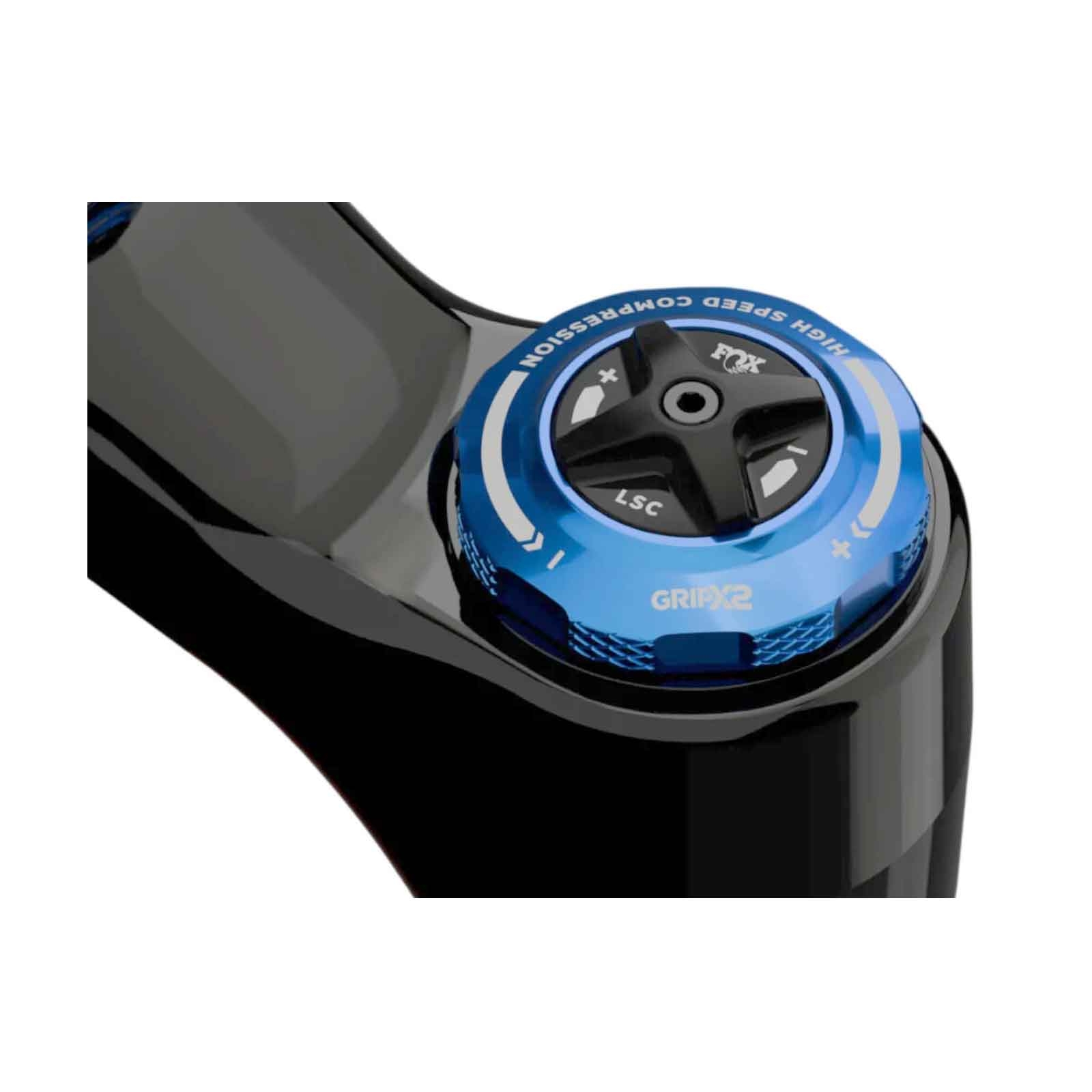

Fox Grip X2 shock cartridge

The most adjustable, supportive and smooth-running shock FOX has ever developed. It allows for a higher seat position within the travel, ensures the tyres grip the ground firmly and offers more traction in corners – all whilst reducing rider fatigue. Find out more about the new GRIP family below. The Grip X2 cartridge utilises a unique bladder design with the lowest possible friction for a sealed cartridge. The 2012 Fit damping allows for more usable travel and is even easier to adjust. This prevents the damping oil from mixing with air, enabling improved damping consistency and reducing unsprung mass in the system for faster response and greater steering precision.

Fox Float Glidecore air spring:

The seamlessly integrated FLOAT Glidecore air spring reduces friction by moving with the fork under dynamic load. Large-diameter O-rings dampen and control this movement whilst simultaneously reducing the start-up friction of the air spring. The result? Smoother suspension behaviour.

Fox ARCH TO RIVAL gas bridge:

The new arch design, generatively designed and optimised by FOX engineers, encases the lower fork legs and increases the fork’s torsional stiffness by a full 20% compared to the previous 36 model. Cut-outs in strategic locations contribute to weight reduction.

Fox Kashima steerer tube coating:

The gold high-end Kashima coating from Japanese specialists MI YAKI reduces friction and significantly increases durability. Fox suspension forks owe their butter-smooth response to this coating.
