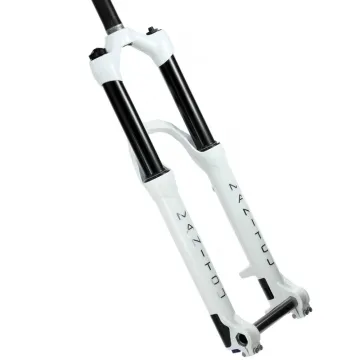

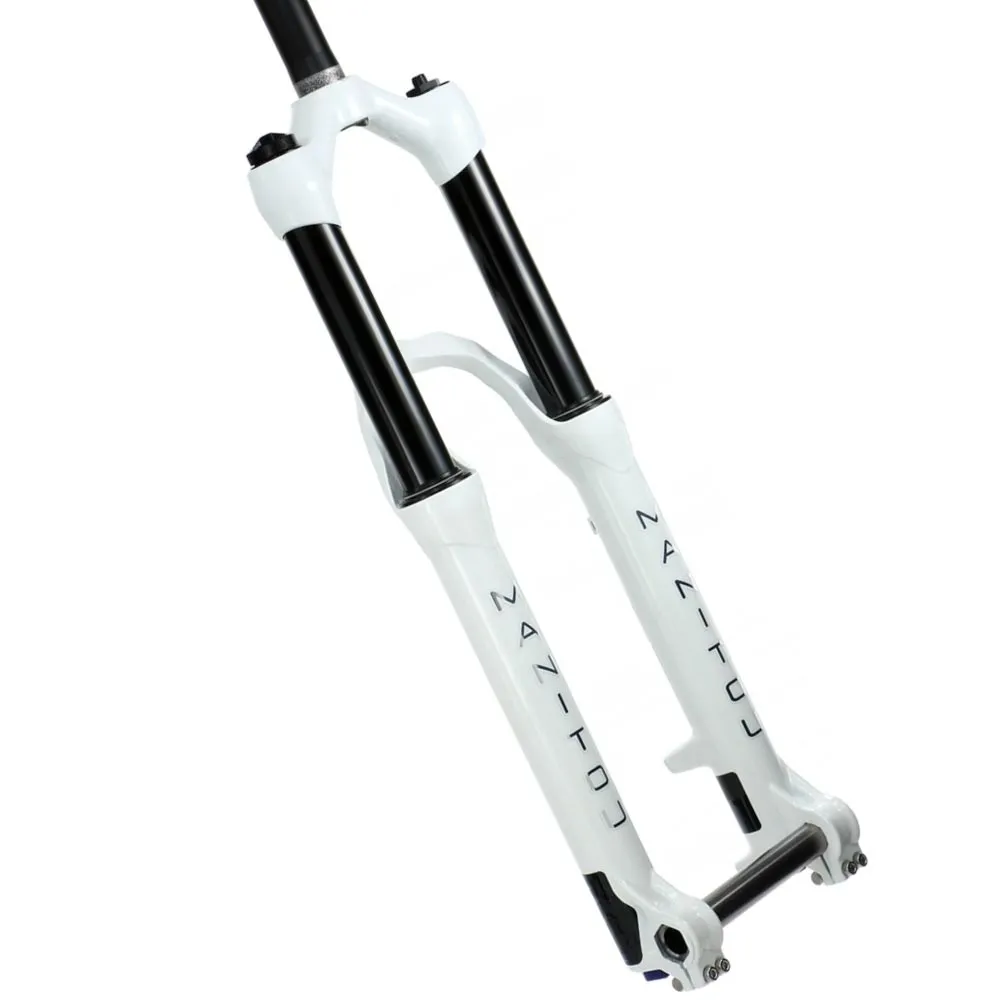

Manitou Circus Expert suspension fork, dirt jump

The affordable Manitou Circus Dirt Jump suspension fork with Absolute Plus damping. Bulky stanchions, thick 32 mm aluminium upper legs, adjustable rebound damping, well-known Manitou damping technologies and an air spring system. Manitou’s competitively priced new Cirus suspension fork offers some of the technologies found in its bigger siblings. In terms of design and technology, it is based on the tried-and-tested MINUTE. Only available with 20 mm thru-axle mount.

Not compatible with Boost 20x110 mm wheels

The Circus project actually began with the aim of giving slopestylers the decisive edge in competitions.

It didn’t take long for the Circus to evolve into the industry-leading dirt jump fork. Since then, it has been the benchmark for the tough demands of everyday dirt jumping and has regularly secured podium places at professional events for almost a decade

Manitou Circus suspension fork specifications

• for 26-inch wheels
• Steerer tube: Aluminium, tapered from 1.5 to 1 1/8 inches
• Fork crown: Hollow-forged aluminium
• ABSOLUTE Plus with Jump Stack
• Adjustment options: Air pressure, rebound, compression
• Spring: ACT Air spring
• Compression damping: ABS+ with Jump Stack
• Rebound: Adjustable TPC cartridge
• Lubrication: Oil
• Travel 130 mm, internally convertible to 120 mm
• Mounting height 508–498 mm
• Offset 41 mm
• Maximum tyre width 67 mm
• Maximum brake disc size 220 mm
• Brake caliper mount: Post Mount 6, 160 mm direct mount
• QR20 thru-axle mount 20x110 mm incl. 20 mm Hexloc thru-axle
• Weight: 2128 grams (manufacturer’s specification)
