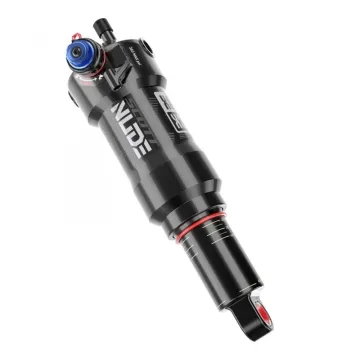

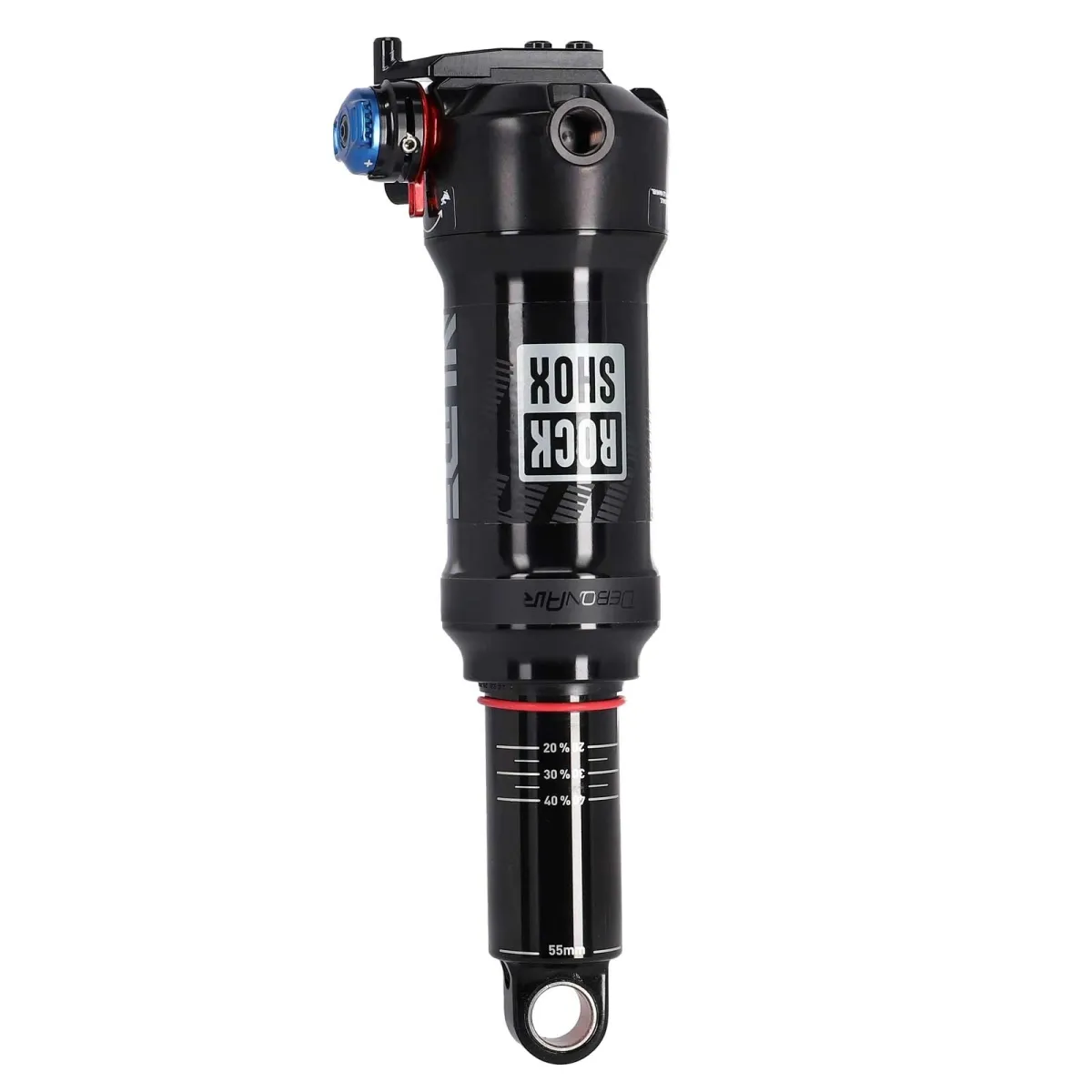

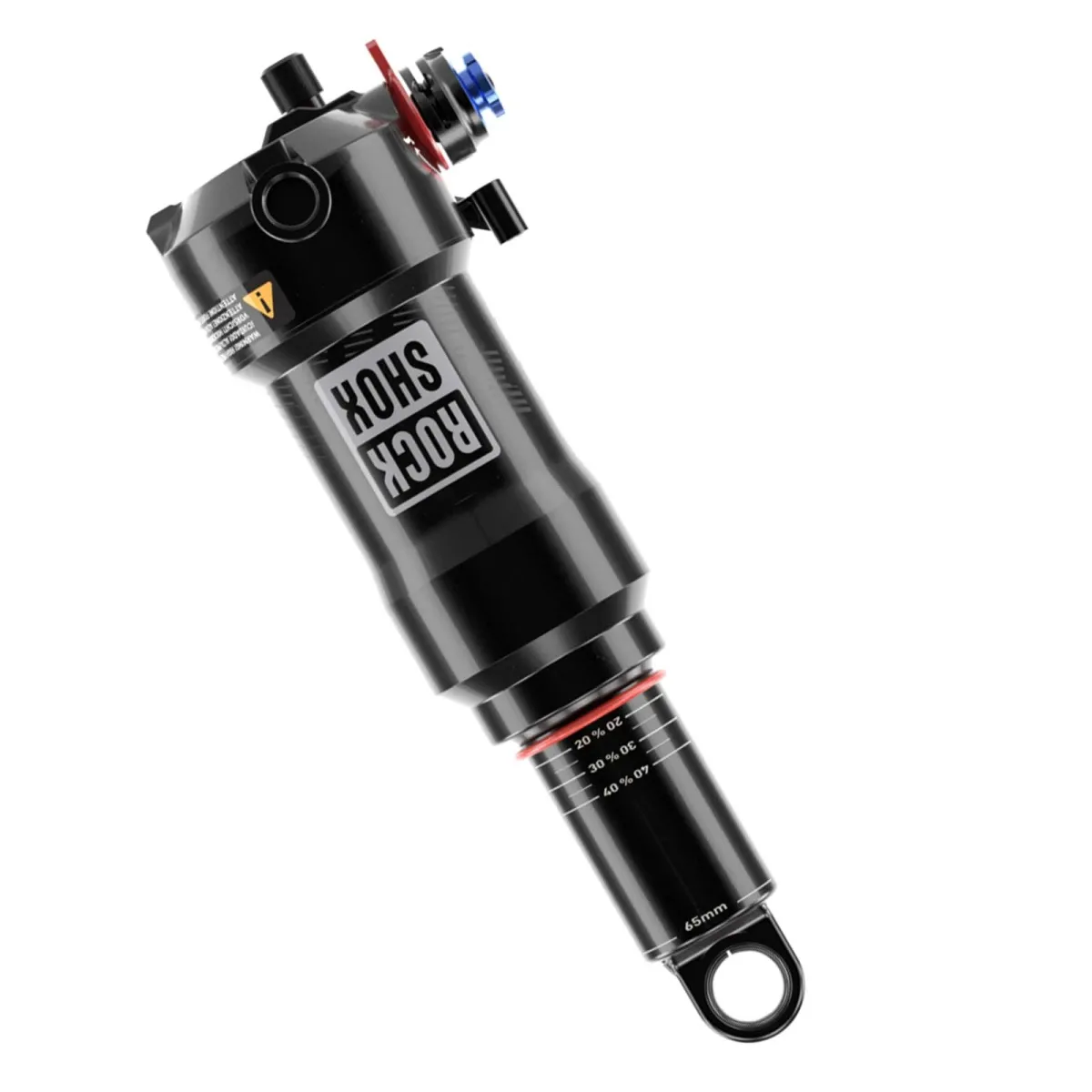

RockShox Deluxe Nude RLC3 Nude DebonAir suspension fork
The special shock absorber for Scott Spark RC 2016+ model bikes with remote control. The remote control is not included.
The RockShox Deluxe NUDE was developed in collaboration with the Scott development team to offer riders the ultimate RockShox shock absorber featuring proprietary NUDE technology with Descend mode, Traction Control mode and Lockout mode – all controlled via remote. Lightweight and efficient in true Deluxe style.
Included:
RockShox Deluxe Nude RLC3 shock, for Scott Spark RC 2016+ models, 10x20 mm thread, and of course a full manufacturer’s warranty
RockShox Deluxe Nude RLC3 Debon Air shock technology:
- Application: Cross Country, All Mountain
- Suspension system: Debon Air+
- Damping: External rebound, compression, Open/Lock
- Adjustability: external rebound adjustment, 3-stage compression adjustment: open / platform / closed, for remote control
- Stem material: 7075 aluminium
- Housing material: Aluminium, 7075
- Weight: 313 grams (manufacturer’s specification at 195 mm length)
PLEASE NOTE: To fit a shock, the mounting bushings are required to adapt to the respective frame. We offer these bushings separately. Please ensure that the bushings fit exactly. If possible, determine the required measurement using a caliper. The trunnion mounting bolts are part of the frame and are usually supplied with the frame/bike.
RockShox Descend
The RockShox shock absorber for Scott’s proprietary Nude System features two positive air chambers. In Descend mode, both chambers are open, creating a larger chamber volume. This allows you to utilise the full rear suspension travel. Both the fork and the shock are 100 per cent optimised for downhill performance, taking into account the air spring and damping. Thanks to the TwinLoc suspension system, Scott can develop bikes that make absolutely no compromises when it comes to downhill performance.
RockShox Rapid Recovery:
Thanks to the Rapid Recovery system, the shock returns to its initial position more quickly after successive impacts, giving the bike more precise traction. This more active suspension system never fails and ensures a ride with higher and softer suspension stiffness. With Rapid Recovery, the rider benefits from greater suspension travel for a smoother and more controlled ride with every impact.
RockShox DebonAir+:
The new DebonAir Plus system offers the perfect balance between butter-smooth responsiveness and support throughout the entire travel. Equipped with two new air chamber options, it allows you to adjust the negative and positive air volumes to find the perfect setup for every bike. The highly adjustable DebonAir Plus air spring offers the ride feel of a steel spring. The DebonAir Plus air chamber in RockShox Deluxe shocks features larger chambers; both the positive and negative chambers are now larger, enabling a softer response and up to 30 per cent lower breakaway torque. Generally, the spring curve becomes more linear with the DebonAir, and the rear wheel also generates more traction in the DebonAir version and responds even better to small bumps. Additionally, the size of the air chamber can be adjusted using tokens, thereby altering the response.
RockShox Metric Sizing:
Metric Sizing enables suspension and frame manufacturers to significantly simplify the sizing and installation of shock absorbers. At the same time, it offers performance benefits for suspension and frame designs. It also allows for simpler mounting hardware with new mounting options.
