Grafity, Enduro and All Mountain suspension fork, RockShox Lyrik Ultimate Charger 3.1 RC2 DebonAir plus, 27.5-inch Boost, 150 mm travel, FS-LYRK-ULT-D2, Electric Red, 15x110 Maxle Stealth thru-axle, tapered steerer tube

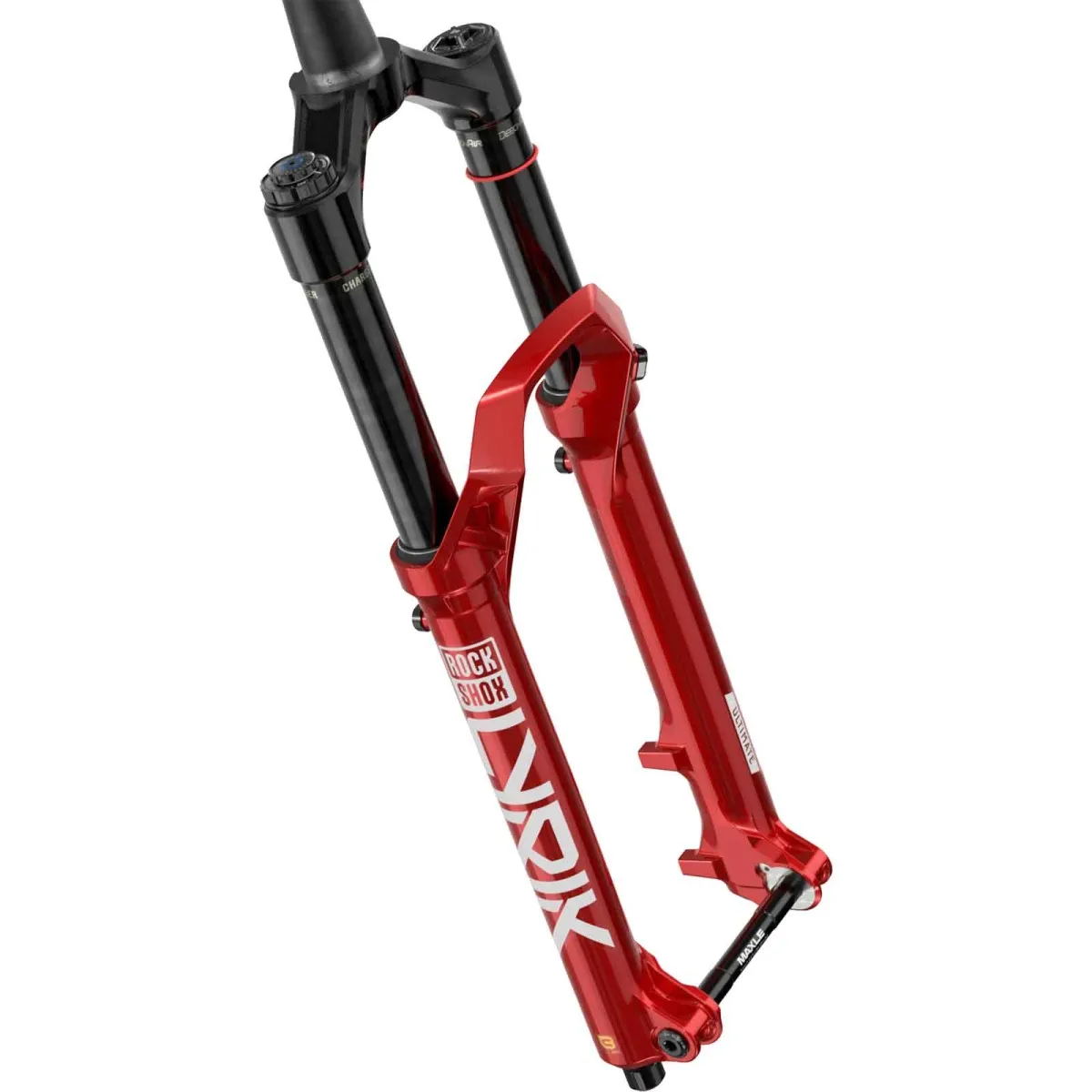

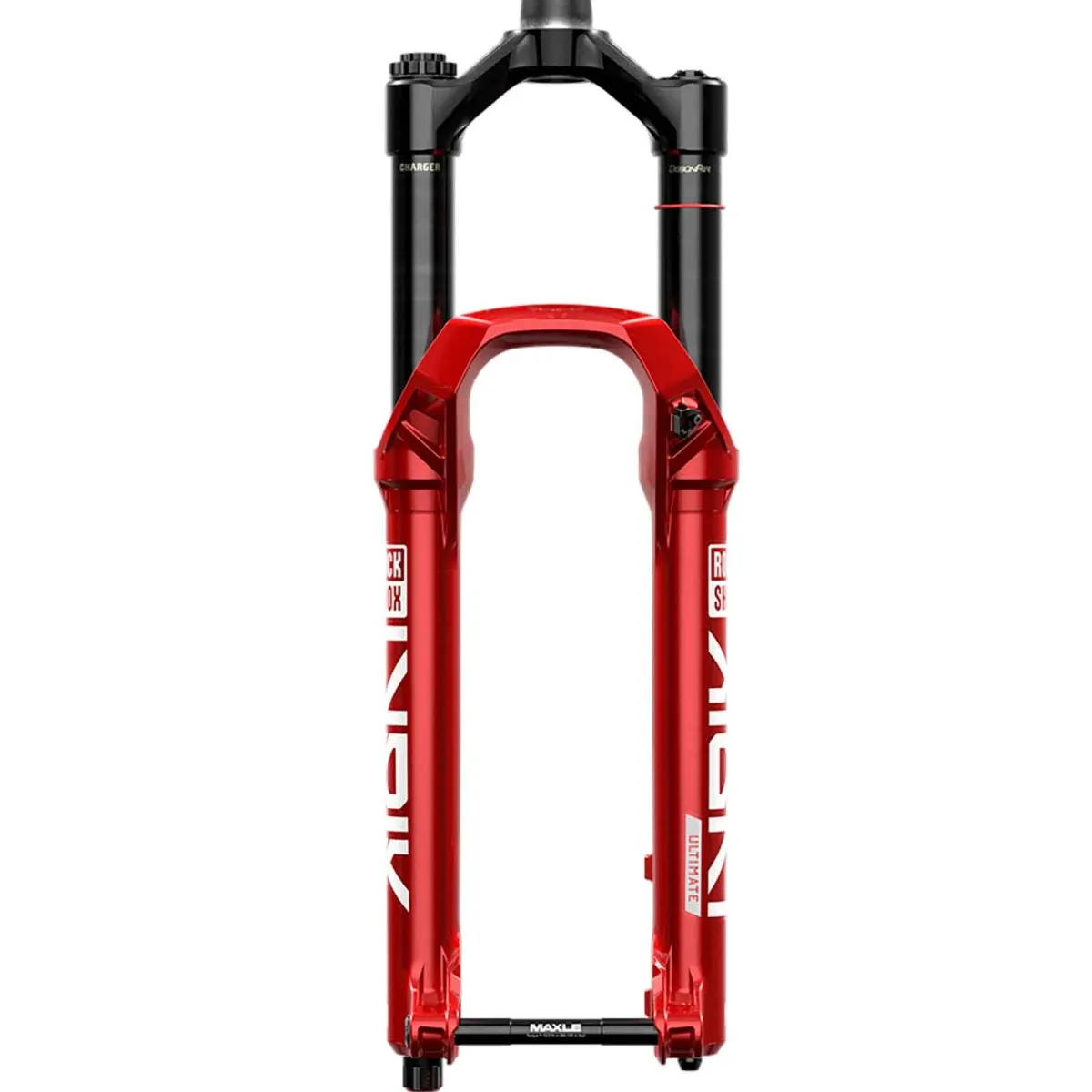

RockShox Lyrik Ultimate 3.1 RC2 suspension fork

The suspension forks and shocks from the Signature series are now also available in the iconic RockShox Electric Red.

RockShox Lyrik Ultimate 3.1 RC2 suspension fork specifications and dimensions:

For 27.5-inch Boost wheels
Steerer tube: Tapered from 1.5 to 1 1/8 inches
Intended use: Gravity, Enduro, All Mountain
Suspension system: DebonAir+
Suspension settings: Air pressure via Schrader valve, curve via Bottomless Tokens
Damping: Charger 3.1 RC2
Damping settings: Rebound at the start of travel, low-speed compression, high-speed compression
Offset: 37 mm
Travel: 150 mm
Clearance: 542 mm
Max tyre width: 81 mm
Max tyre diameter: 77 cm
Crown: forged 6061 T-6 aluminium
Seat tubes: 35 mm 7000 series aluminium, low-friction anodised
Down tubes: magnesium
Weight: approx. 2028 grams (manufacturer’s specification)
Max recommended brake disc size: 220 mm
Brake disc mount: Post Mount 7, direct mount 180 mm disc
Boost dropouts 15x110 mm incl. Maxle Stealth Boost thru-axle

27.5-inch Boost:

The Boost standard with a hub spacing of 15x110 mm allows for stiffer wheelsets and wider tyres, up to 3.0. The increased fork leg spacing requires the new Boost spacing of 15x110 mm. The wider hubs result in a flatter spoke angle, thereby increasing the lateral stiffness of the wheels, leading to more stable and durable wheels.

For tyres wider than 2.8, please note the minimum clearance between the tyre and the fork crown; 6–8 mm is required, otherwise the fork may lock up suddenly. Tyres from different manufacturers and fitted to rims of varying widths will also mount at different heights and widths. The maximum tyre width must not exceed 81 mm; the maximum diameter of the wheel with tyre must not exceed 73 cm.

LYRIK ULTIMATE FS-LYRK-ULT-D2

The Lyrik gives you the confidence you need when you want to conquer technically demanding lines and steep sections at top speed. It is a tribute to everything we love most about biking – the interplay of coordinated navigation through unknown terrain and controlled chaos, from which dream lines emerge. The Lyrik’s incredibly light yet reinforced and stiff chassis keeps you on your toes, no matter what lies ahead. Push your own limits with maximum focus and ultimate precision, and enjoy the sweet melody of Lyrik bliss

As the most versatile suspension fork in the RockShox range, the Lyrik harmonises downhill potential with effortless efficiency. With the new Charger 3.1 RC2 damping and its wider range of adjustment options, the Lyrik – with its already legendary performance – now heralds the next era of perfect suspension action. The Lyrik Ultimate is packed with state-of-the-art technologies, such as ButterCup technology and the DebonAir+ air spring in its stiff 35 mm chassis. Better than ever before, the Lyrik is ready to push your limits. To meet the demands of the world’s best riders, the Charger 3.1 is the ingenious next evolutionary step in our proven damping platform. With its expanded adjustment range, separately adjustable High-Speed Compression (HSC) and Low-Speed Compression (LSC), and adjustable Low-Speed Rebound, the Charger 3.1 RC2 smooths out even the roughest trails. The adjustment range of the Charger 3.1 RC2 has been expanded – with less compression damping in the LSC range in the open position and additional support in the closed position on the HSC circuit. This gives you more traction, control and comfort to shred the trickiest lines all day long.

The highest-performance damping technology has just received another upgrade. The Charger 3.1 damping platform marks the beginning of a new era in mountain biking. More damping no longer means your hands have to suffer from an insensitive ride feel. The aim: to reduce the stresses transmitted to your hands, leading to greater control and safety. This means you can ride the fork with more compression damping – and thus more control – without it feeling harsh or providing excessive feedback. The incredible consistency of the Charger 3 platform was made possible by a damping design featuring an Internal Floating Piston (IFP). The steel spring on the opposite side of the piston ensures unrivalled responsiveness and more consistent handling throughout the entire travel. What sets the Charger 3 apart from other dampers is the truly independently adjustable compression damping in the High-Speed (HSC) and Low-Speed (LSC) ranges. Cross-talk between HSC and LSC has been eliminated – that is, the influence that the HSC and LSC settings have on one another, which previously made truly independent tuning of the two impossible.

The Charger 3 platform was developed with the mid-position as the starting point. With a twist of the dial to increase or decrease damping, you can find the optimal combination of comfort, traction and control for any terrain and any day – there are simply no wrong settings anymore. Tuning your suspension has never been so precise and so personalised.

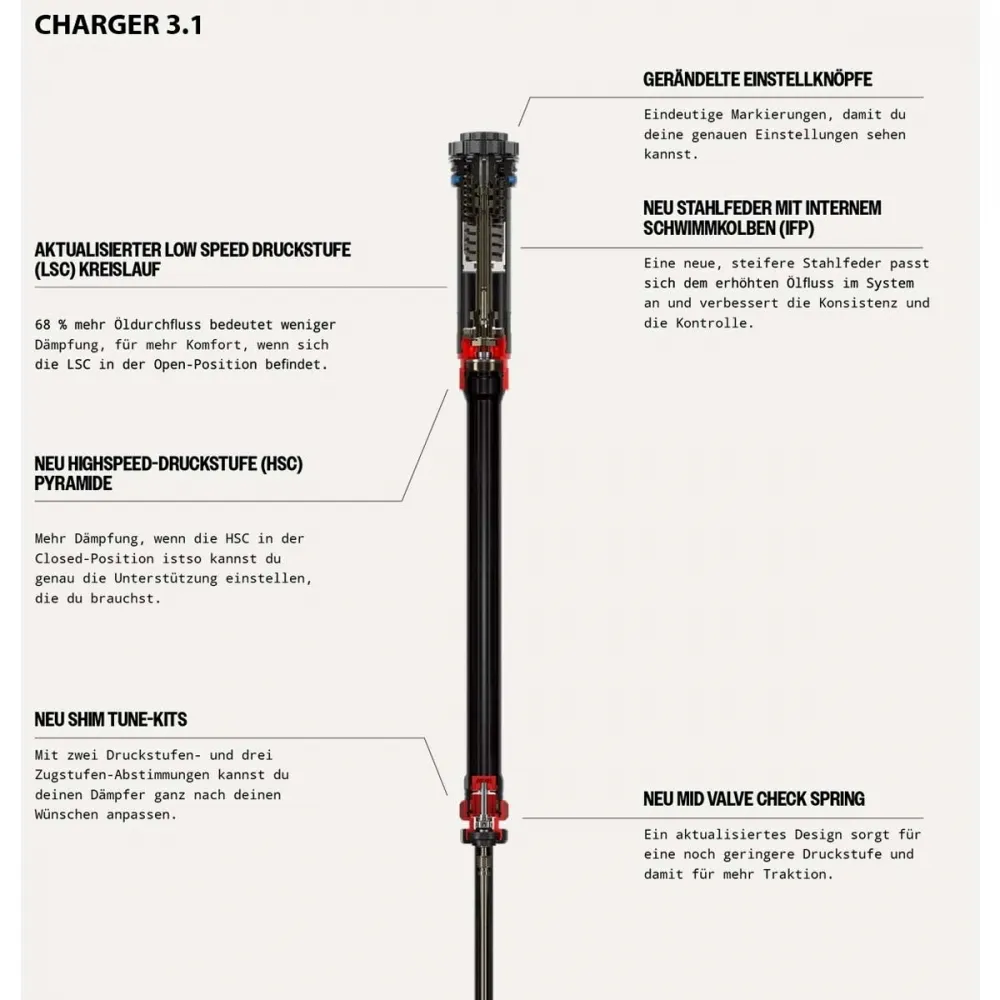

RockShox Charger 3.1 RC2:

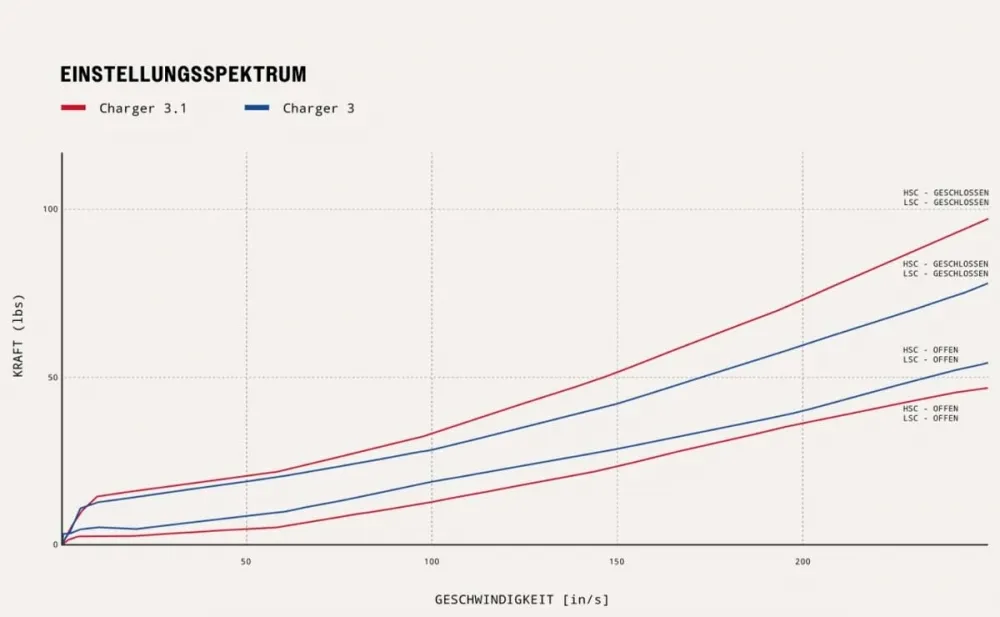

To meet the demands of the world’s best riders, the Charger 3.1 is the ingenious next evolution of our proven suspension platform. With its expanded adjustment range, separately adjustable High-Speed Compression (HSC) and Low-Speed Compression (LSC), and adjustable Low-Speed Rebound, the Charger 3.1 RC2 smooths out even the roughest trails. The adjustment range of the Charger 3.1 RC2 has been expanded – with less compression damping in the LSC range in the open position and additional support in the closed position for the HSC circuit. This gives you more traction, control and comfort to shred the trickiest lines all day long.
The Charger 3.1 RC2 shock offers independent adjustment of high- and low-speed compression, plus additional adjustable low-speed compression. With a smoother transition to high-speed compression (mHSC), the revised shim stack reduces the impact of fast impacts and hard braking bumps. The RockShox Lyrik Ultimate 3 RC2 suspension fork works with the Charger 3 shock featuring new Maxima Push oil, SKS seal rings and a self-adjusting negative air chamber. With the help of the so-called bladder – a sac that absorbs the oil volume during compression and supports the rebound – foaming of the oil is prevented during fast compression and heavy damping work. This prevents the mixing of oil and air to achieve consistent, perfect damping behaviour. The Charger 3 damping design offers more extensive adjustment options for the low-speed compression in open mode and a more effective mode for pedalling, which proves particularly useful on hilly trails

RockShox DebonAir+ suspension system:

The new DebonAir system offers even more sensitive response and, thanks to the larger stanchion diameter, an even larger air chamber. By repositioning the seal head relative to the dip, RockShox has raised the fork’s travel from top-out to sag. This means more support at the start and the ability to utilise the full travel to stay on the trail at all times. The spring rate can be adjusted across a wide range from linear to progressive thanks to the Token spacers. Equipped with external rebound adjustment and external low-speed compression adjustment, the suspension fork can be set up quickly and easily. Air pressure is automatically distributed between the positive and negative chambers depending on the riding situation. This ensures you have the full travel available in every situation.
The DebonAir plus dampers barely give way when you apply light pressure to the pedals. At first glance, this may seem like a weakness, but on the trail the benefits are clearly noticeable. This creates a seamless connection between the bike and the ground, with your DebonAir shock smoothing out bumps. The linear spring rate curve offers low breakaway torque over the first third of the travel. This ensures that hard initial impacts are smoothed out perfectly. Thanks to the increasing progression, the full travel is still available.

Offset:

These suspension forks have a 44 mm rake. This rake offers excellent manoeuvrability on 29-inch bikes. The offset refers to the forward reach created by the fork. The greater this value, the further the front wheel extends from the direct extension of the head tube/steerer tube. This results in a longer wheelbase and better straight-line stability. Bike manufacturers generally design their frames for a fixed offset value. If in doubt, please check with the frame manufacturer to find out which offset is correct for your frame.

RockShox ButterCups:

filter out 20 per cent of high-frequency vibrations. This significantly reduces hand and arm fatigue, so you feel fresher for longer and have more control.

RockShox Ultimate Bushing:

The bushing package maximises bushing overlap, reduces friction and ensures the best possible ride quality.

RockShox Pressure Relief Valves:

the pressure relief valves eliminate unwanted air pressure build-up in the stanchion unit caused by changes in altitude or temperature. At the touch of a button, the valves ensure a first-class fork feel.

RockShox Rapid Recovery:

Thanks to the Rapid Recovery system, the damper returns to its initial position more quickly after successive impacts, allowing the bike to maintain more precise traction. This more active damping system does not fail and ensures a ride with higher and softer spring stiffness. With Rapid Recovery, the rider benefits from greater travel for a smoother and more controlled ride with every impact.

RockShox ButterCups:

filter out 20 per cent of high-frequency vibrations. This significantly reduces hand and arm fatigue, so you feel fresher for longer and have more control.

RockShox Ultimate Bushing:

the bushing package maximises bushing overlap, reduces friction and ensures the best possible ride quality.

RockShox Pressure Relief Valves:

RockShox Rapid Recovery:

Thanks to the Rapid Recovery system, the damper returns to its initial position more quickly after successive impacts, allowing the bike to maintain more precise traction. This more active damping system does not fail and ensures a ride with higher and smoother spring stiffness. With Rapid Recovery, the rider benefits from greater travel for a smoother and more controlled ride with every impact.

RockShox Bottomless Tokens:

By inserting the optionally available volume spacers, the air volume of the fork can be reduced, thereby influencing the suspension characteristics. A smoother response with higher end-stroke progression is achieved by using the volume spacers.

RockShox Air Shaft:

The new Debon Airshaft is fitted in the left fork leg. This ensures improved responsiveness and can be replaced relatively easily. This also allows the suspension travel to be adjusted. The Airshafts are available as spare parts.

RockShox Maxle Stealth thru-axle:

The 15 mm Boost thru-axle system offers greater stiffness with low weight, but is only compatible with wheelsets designed for this system. The new Stealth thru-axles can be fitted quickly and easily using a 6 mm Allen key.

RockShox Torque Cups

The wheel mount on RockShox suspension forks is designed for Torque Cups. These provide a larger contact surface for the hub axle, thereby increasing the stiffness of the suspension fork/wheel system. Torque Cups are available as an option for most wheelsets.
