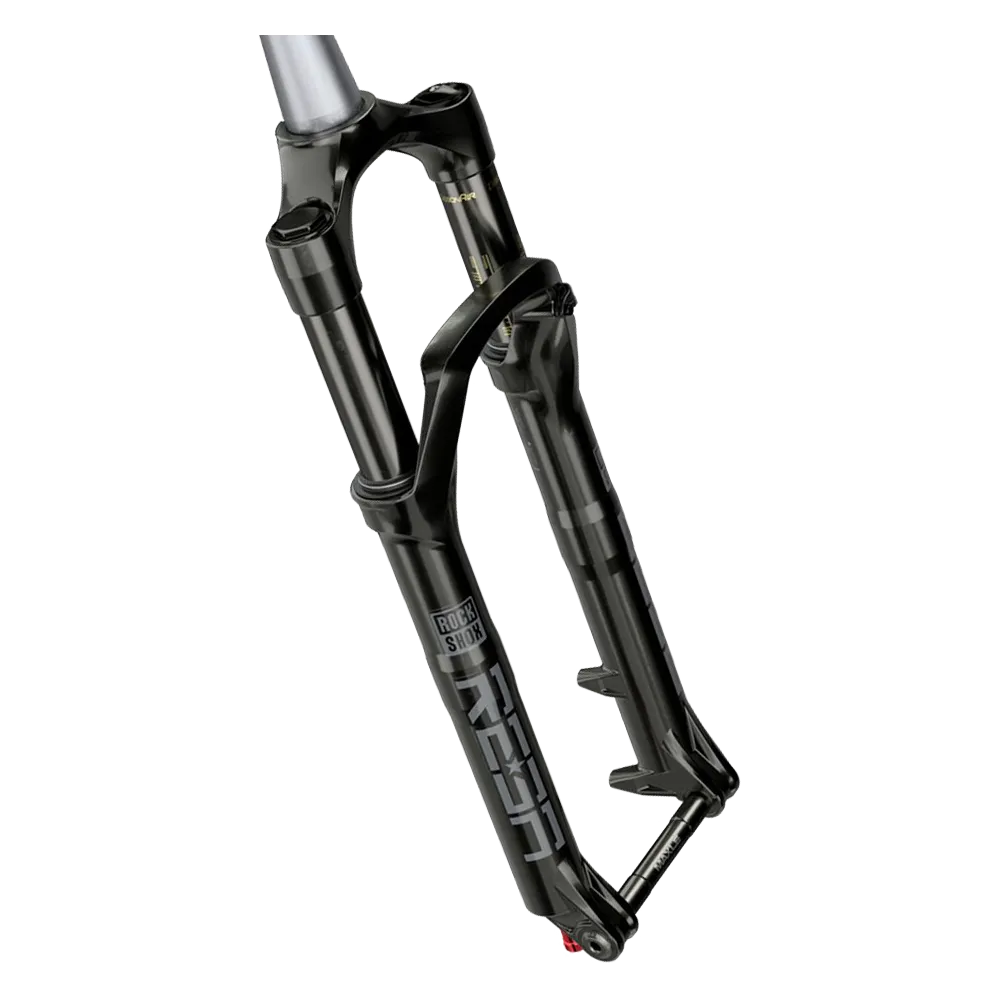

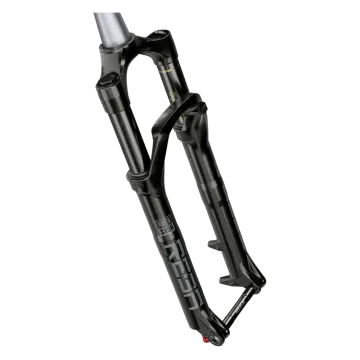

RockShox Reba Solo Air suspension fork

The fork for lighter riders up to 65 kg. Designed for use from cross-country to trail riding, this suspension fork features special tuning for lighter riders. In doing so, the long-established US manufacturer not only enhances the riding experience for children, teenagers and small, lighter adults. The name Reba has always been synonymous with quality and performance at RockShox. With technologies developed for SID, Reba and Revelation, the Reba is the first choice for anyone seeking the unique RockShox performance. The Reba series without lockout, specially tuned for lighter riders

RockShox Reba Motion Control:

The special tuning for riders up to 65 kg ensures excellent responsiveness at low rider weights, whilst the suspension unit delivers optimum suspension performance and minimal weight. Designed for cross-country to trail use, the Reba Motion Control unit features a trigger torque that reliably suppresses excessive bobbing when riding out of the saddle or climbing.

RockShox Reba Solo Air suspension system:

The Solo Air system, featuring external rebound adjustment, external low-speed compression adjustment and lockout, can be adjusted quickly and easily. Air pressure is automatically distributed between the positive and negative chambers depending on the riding situation. The RockShox Reba RL fork features a self-adjusting negative air chamber. This allows the full travel to be utilised, despite the air suspension.

RockShox Air Shaft:

The Airshaft is mounted in the left fork leg. This can be replaced relatively easily, thereby changing the travel. The Airshafts are available as spare parts.

RockShox Maxle thru-axle:

The 15 mm thru-axle system offers greater stiffness with low weight, but is only compatible with wheelsets designed for this purpose. The new Stealth thru-axles can be fitted quickly and easily using a 6 mm Allen key.

RockShox Reba Solo Air suspension fork technology:

• Intended use: Cross Country, Trail for lighter riders up to 65 kg
• For 26-inch wheels
• Steerer tube: Aluminium tapered from 1.5 to 1 1/8 inches, 265 mm length
• Travel 100 mm
• Installation height 473 mm
• Offset 40 mm
• Maximum tyre width 63 mm
• Maximum tyre diameter 691
• Suspension: Solo Air
• Suspension adjustability: Positive and negative air pressure via Schrader valve
• Damping: Motion Control with preset platform
• Damping adjustability: External rebound adjustment
• Fork crown: Hollow-forged aluminium AL66 TV
• Legs: Aluminium 7000, low-friction anodised, 32 mm
• Stanchions: Magnesium, one-piece,
• disc brakes only, PM6-74 mount
• QR15 dropouts 15x100 mm including 15 mm Maxel Stealth thru-axle
• up to 220 mm disc size
• Maximum rider weight 65 kg
• Weight: approx. 1599 g (manufacturer’s specification)

RockShox Reba contents:

RockShox Reba Solo Air suspension fork, QR15 Maxel Stealth thru-axle, clamp, in original packaging with instruction manual and full manufacturer’s warranty.
