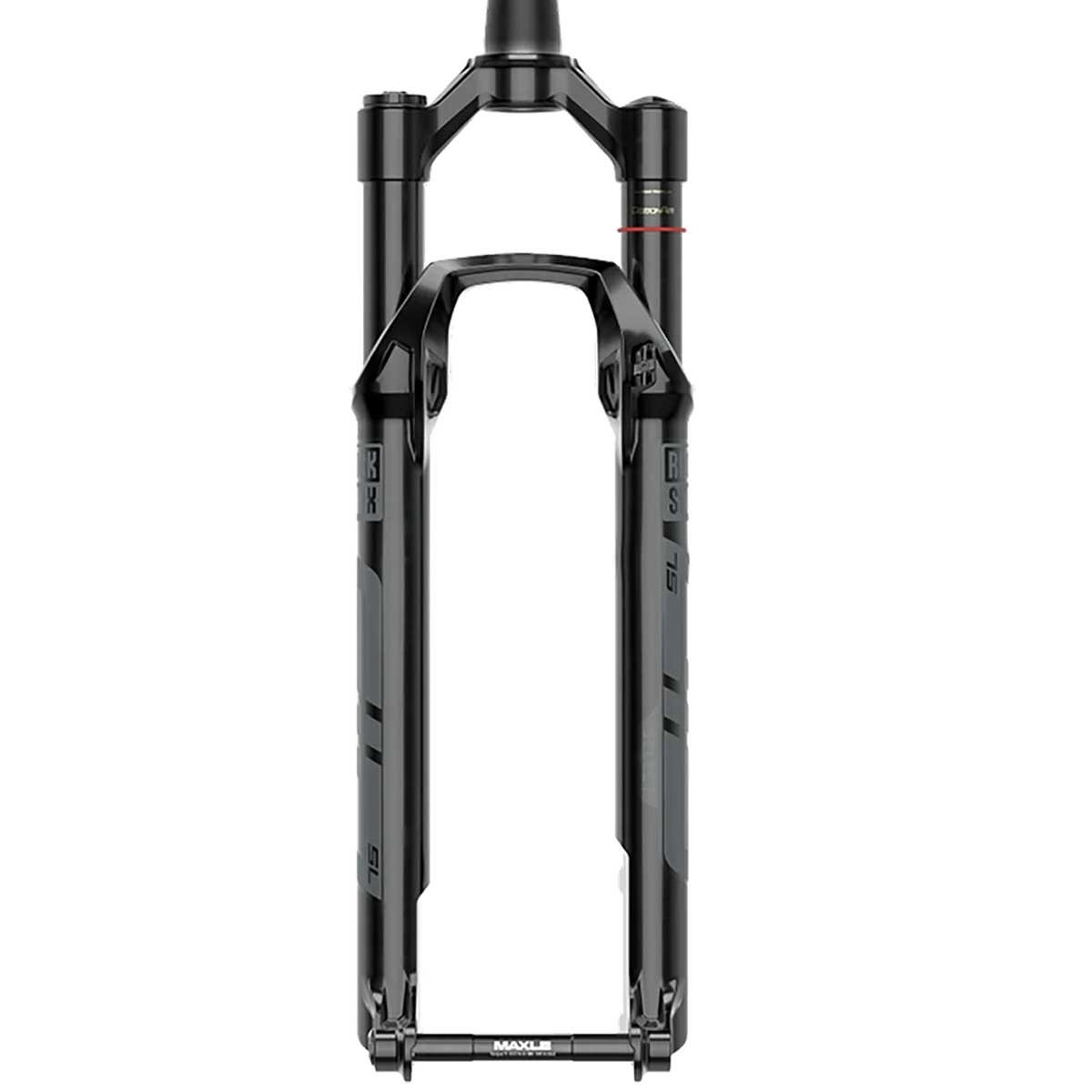

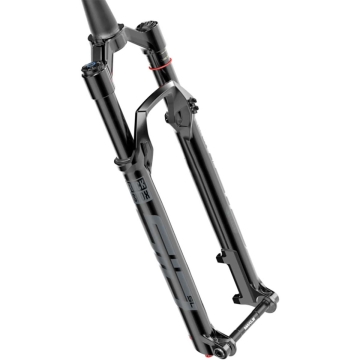

RockShox Sid SL Select 3P suspension fork
The new Sid SL Select fork with 32 mm stanchions, featuring the new Charger RL damping with 3-stage compression (Open / Pedal / Lockout).
Cross-country isn’t complicated, and the SID SL Select offers race-ready speed in our lightest chassis to date. With the updated Charger XC suspension, you have more control than ever before when the going gets tough. With the Charger RL damper, the new SID SL Select is a race-ready package that has proven itself at the start and finish lines.
RockShox package includes:
RockShox Sid SL Select RL 3P suspension fork, Maxle Stealth Boost thru-axle, fork crown clamp, incl. ZipTie mudguard, original packaging with instruction manual and full manufacturer’s warranty.
RockShox SID SL Select 3P suspension fork specifications:
- Wheel size 29-inch Boost
- Steerer tube: aluminium tapered, tapering from 1.5 to 1/8 inch, 265 mm length
- Intended use: Cross Country, Marathon
- Suspension system: DebonAir+
- Suspension system adjustability: Air pressure adjustable on negative and positive air chambers via Schrader valve
- Damping: Charger RL

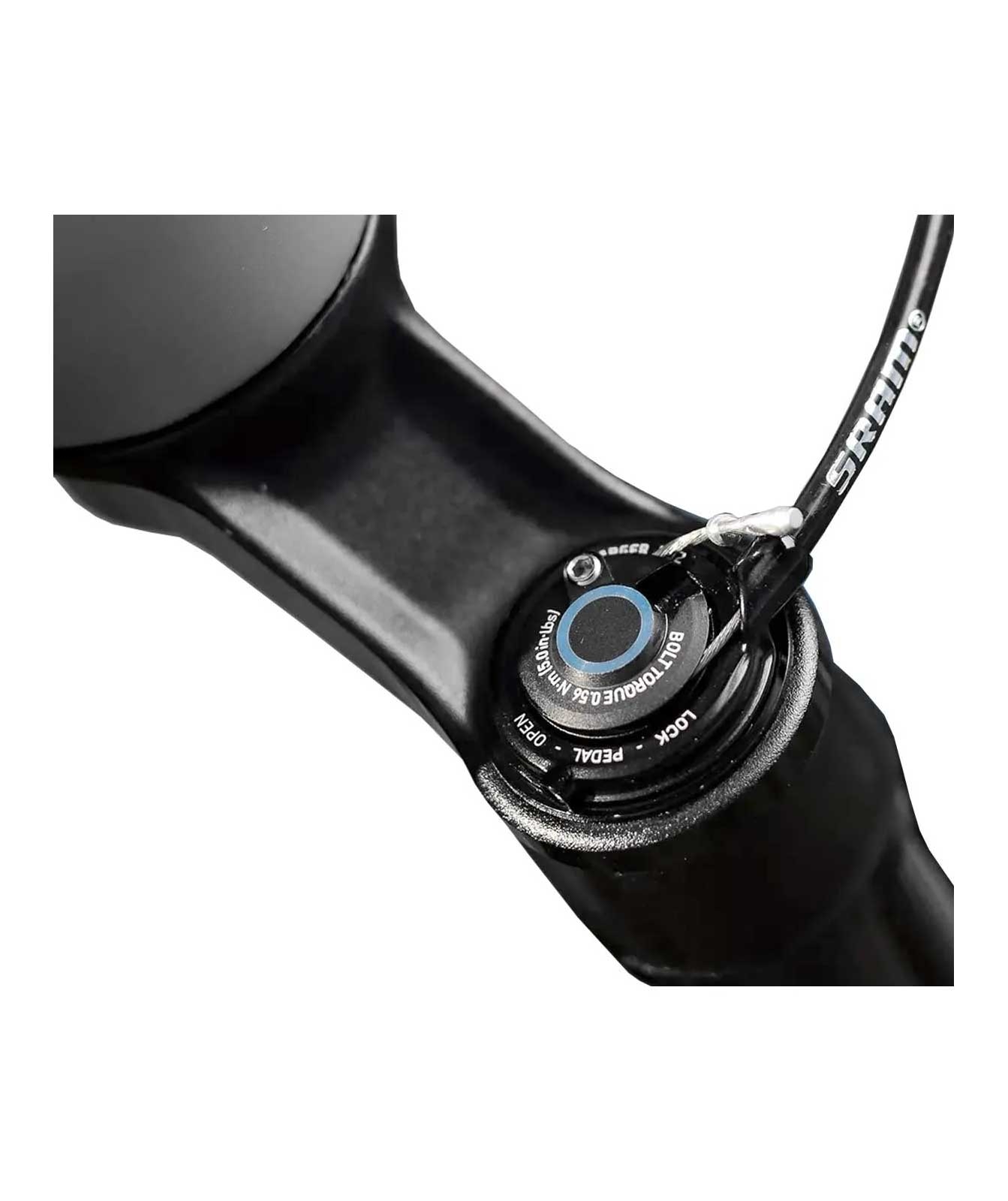

- Damping adjustability: External rebound adjustment, external compression adjustment (3-stage): Open, Pedal, Lockout
- Crown: Aluminium
- Upper legs: 32 mm, 700 series aluminium
- Lower legs: Magnesium
- Offset 44 mm
- Travel: 100 mm
- Installation height 511 mm
- Maximum tyre diameter: 755 mm
- Maximum tyre width: 62 mm
- Disc brake mount, Post Mount 6, 160 mm direct mount
- Boost dropouts 15x110 for 15 mm Boost thru-axle fitting, including Maxle Stealth Boost thru-axle
- Maximum recommended brake disc size: 203 mm
- Weight: approx. 1700 grams (manufacturer’s specification)
- Suitable for e-bikes
RockShox Sid SL Select 3-position
The RockShox Sid SL Select 3P RL suspension fork with the new Charger RL damping and Debon Air+ suspension. The Charger RL 3-position damper features three compression settings: Open, Platform and Lockout
RockShox Sid Debon Air Plus suspension system:
The Debon Air+ system with particularly sensitive response and a larger air chamber. The Debon Air suspension is specially tuned to the demands of XC racing and provides a higher ride height for greater confidence and control
RockShox Charger RL damping:
The Charger RL damper offers independent rebound adjustment and a 3-stage compression adjustment. With a smoother transition, the revised shim stack reduces the impact of fast impacts and hard braking surges. The RockShox Rid Select RL suspension fork works with the Charger RL shock, featuring new Maxima Push oil, SKS seal rings and a self-adjusting negative air chamber. With the help of the so-called bladder – a sac that absorbs the oil volume during compression and supports the rebound – oil foaming is prevented during fast compression and heavy damping work. This prevents the mixing of oil and air to achieve consistent, perfect damping performance.
RockShox Sag Markings:
If you don’t set your suspension correctly, you might as well be riding someone else’s bike. But why waste plastic clips or rulers to keep adjusting the suspension? RockShox sag marks are printed directly onto the fork steerer tubes for simple and precise adjustment of the perfect suspension.
RockShox Bottomless Tokens:
By inserting the optionally available volume spacers, the air volume in the fork can be reduced, thereby influencing the suspension characteristic curve. A smoother response with higher end-stage progression is achieved by inserting the volume spacers.
RockShox Maxima Pus Fluid:
Thanks to the new damper oil developed in collaboration with oil specialist Maxima, the fork operates with low friction. The rebound Sim Stack has also been optimised to further improve oil flow, ensuring even more consistent performance. New SK oil seals reduce friction even further.
RockShox Maxle Stealth thru-axle:
The thru-axle system offers greater stiffness with low weight, but is only compatible with wheelsets designed for this purpose.
RockShox Air Shaft:
The Airshaft is mounted in the left fork leg. It can be replaced relatively easily, allowing the travel to be adjusted.
RockShox Torque Cups
The wheel mount on RockShox suspension forks is designed for Torque Cups. These provide a larger contact surface (31 mm) for the hub axle, thereby increasing the stiffness of the suspension fork and wheel system. Torque Cups are available as an option for most wheelsets. Of course, standard end caps can also be used.
