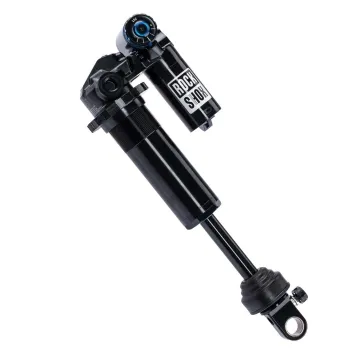

RockShox Vivid Ultimate Coil DH RC2T rear shock
The new high-end coil shock for the toughest downhill use, the RockShox Vivid Coil Ultimate DH RC2T, is packed with new technology: TouchDown DH RC2T damping, hydraulic bottom-out, adjustable high-speed and low-speed compression.
The NEW TouchDown DH RC2T shock features a rebound adjustment and independent high-speed and low-speed compression adjustments without the Threshold lever. A soft, travel-specific bottom-out shock for all travel lengths, allowing for full suspension travel
Included:
- RockShox Vivid Ultimate Coil DH RC2T shock, naturally with full manufacturer’s warranty
RockShox Vivid Coil Ultimate DH RC2T shock technology:
- Dual Flow Adjust rebound damping
- 20 clicks for rebound adjustment cover all riding styles.
- Adjustable high-speed and low-speed compression
- Adjustable external rebound, 2-position open/firm
- High and low-speed compression adjustment
- Adjustable hydraulic bottom-out, 5-stage
- Shock tuning: Reb55/Comp30
- Shaft eyelet / body eyelet: Standard / Trunnion
- Spring system: Coil
- Shaft material: 7075 aluminium,
- Housing material: Aluminium
- Shock eyelet inner diameter 12.7 mm
- Compatible with the 8x30 ball bearing adapter
- Weight: approx. 490 grams, manufacturer’s specification
- E-bike approved
Rockshox Vivid Coil DH Ultimate
The world’s best downhill racers need it. The toughest tracks demand it. The Vivid Coil is unrivalled in terms of downhill performance and adjustability. With the travel-dependent TouchDown RC2T damping, you can easily achieve your perfect riding experience. The externally and fully independent high- and low-speed compression settings offer incredible responsiveness at the start of the travel, plenty of support and control in the mid-travel range, and Adjustable Hydraulic Bottom-Out to soften those really hard landings. That unmistakable feel of a steel spring, further developed with premium technologies to offer you the world’s best suspension performance.
TouchDown DH without the Threshold platform adjustment. The TouchDown RC2T shock is characterised by sensitivity and smoothness at the top end, whilst remaining stable and supportive throughout the entire travel. With an additional Adjustable Hydraulic Bottom-Out to withstand hard impacts, this position-sensitive shock offers reliable performance and tunability with energetic responsiveness at every position of the travel. The adjustable hydraulic bottom-out damper features five pressure settings, allowing the resistance in the final 20 per cent of travel to be individually adjusted. Compatible with the new Electric Red coil springs. A soft, travel-specific bottom-out damper for all travel lengths, enabling full suspension travel. Maxima Plush damping fluid reduces friction and dampens shock noise. 20 clicks for rebound adjustment offer a wide range of settings and are suitable for a variety of rider types. The rebound adjuster can be pulled out to reveal a 3mm hex key, which can be used to adjust both the high-speed compression and the hydraulic bottom-out. Compatible with 8x30 bearing adapters
Trunnion shock mount:
On frames with this shock mount, the shock head is bolted directly to the frame; only the shaft has the classic eye for mounting the shock bushing. This mount allows for a more compact design. The frame must be designed for this. These shocks are not compatible with standard frames.
ATTENTION: To fit a shock, mounting bushings are required to adapt to the respective frame. We offer these bushings separately. Please ensure that the bushings fit exactly. If possible, determine the required dimension using a calliper.
RockShox Bottom-Out:
The Vivid features adjustable hydraulic bottom-out, which increases compression damping in the final 20 per cent of travel. This is controlled individually via an adjustable dial with five different settings. How much damping it provides is entirely up to you. The key element is an adjustable dial with five different settings, allowing you to fine-tune the damping to your preference. Vivid’s AHBO allows for a wider range of rebound settings to perfectly match the kinematics of different frames.
RockShox TouchDown DH RC2T:
TouchDown technology is Vivid’s new position-dependent damping system. The TouchDown DH RC2T damping features a rebound adjustment and independent high- and low-speed compression settings. RockShox has developed a rear shock that responds lightly at the start of the travel whilst remaining smooth in the middle and at the end of the stroke. The TouchDown RC2T damping offers a sensitive and smooth response, remaining stable and supportive throughout the entire travel. Furthermore, each phase of the suspension transitions seamlessly into the next. TouchDown technology bypasses the main piston’s compression damping in the first 10 per cent of travel, ensuring a smooth response. Vibration suppression is just the start. To tackle rough terrain, the next 70 per cent of the Vivid’s travel is damped by a controlled and stable compression stage. In addition to the adaptability of TouchDown technology, the adjustable hydraulic bottom-out allows you to fine-tune the suspension for the hard impacts in the final 20 per cent of travel.
The rebound knob can be pulled out to reveal a 3 mm Allen screw, which can be used to adjust both the high-speed compression and the hydraulic bottom-out.
The rebound knob can be pulled out to reveal a 3 mm Allen screw, which can be used to adjust both the high-speed compression and the hydraulic bottom-out.
RockShox Coil:
The classic steel suspension of the Vivid Coil shock offers superb responsiveness without any breakaway torque. You can adjust the RockShox Vivid perfectly to your weight and preferred response. The air volume is regulated via a valve in both the negative and positive air chambers
