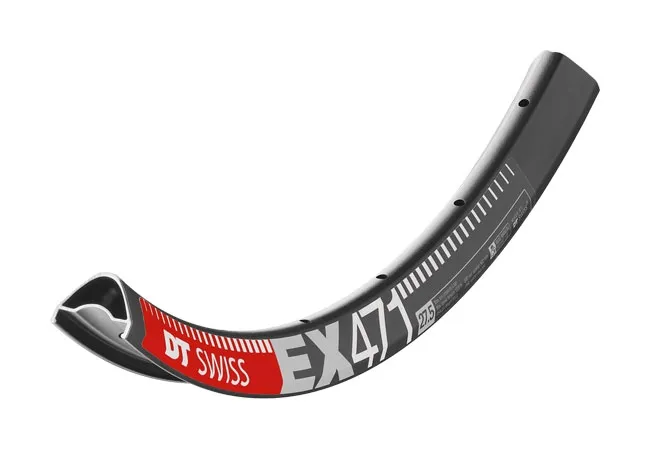

DT Swiss EX 471 rim

The lightweight 30 mm wide Enduro rim from DT Swiss, the EX 471. Designed for wide Enduro tyres, the DT EX 471 rim offers very high stability whilst weighing a pleasingly low 500 grams. Thanks to extensive FEM analyses, DT Swiss EX 471 rims feature material only where it is actually needed. These rims are supplied with special DT Squorx Pro Head nipples and PHR washers and must only be laced using these nipples. With the wide EX 471 rim, DT Swiss offers a rim for stable and lightweight Enduro wheelsets. Cleanly finished, with a welded joint and stainless steel eyelets, the DT Swiss EX 471 strikes the perfect balance between low weight and high stability.

The DT Swiss XM 401 rims are equipped with rim flanges adapted for tubeless rim tape and can be easily upgraded to lightweight tubeless rims using DT Swiss tubeless rim tape

DT Swiss EX 471 Disc 27.5-inch rim specifications:

• ETRTO: 584 x 25, 27.5-inch
• ERD: 562 mm
• Aluminium rim, single-spoke
• Width: 25 mm (internal), 30 mm (external) Height: 21 mm
• Max. recommended tyre width: 2.4
• SBTW welded joint
• Valve hole 6.5 mm
• Required rim tape: 559 x 27 mm
• Weight 500 grams including Squorx Pro nipples

Scope of delivery DT Swiss EX 471:

DT EX 471 rim, Squorx Pro Head nipples, PHR washers

Your custom wheel with the DT Swiss EX 471 rim.

Ask us for a bespoke quote. We will build your dream wheelset, perfectly hand-laced. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.
