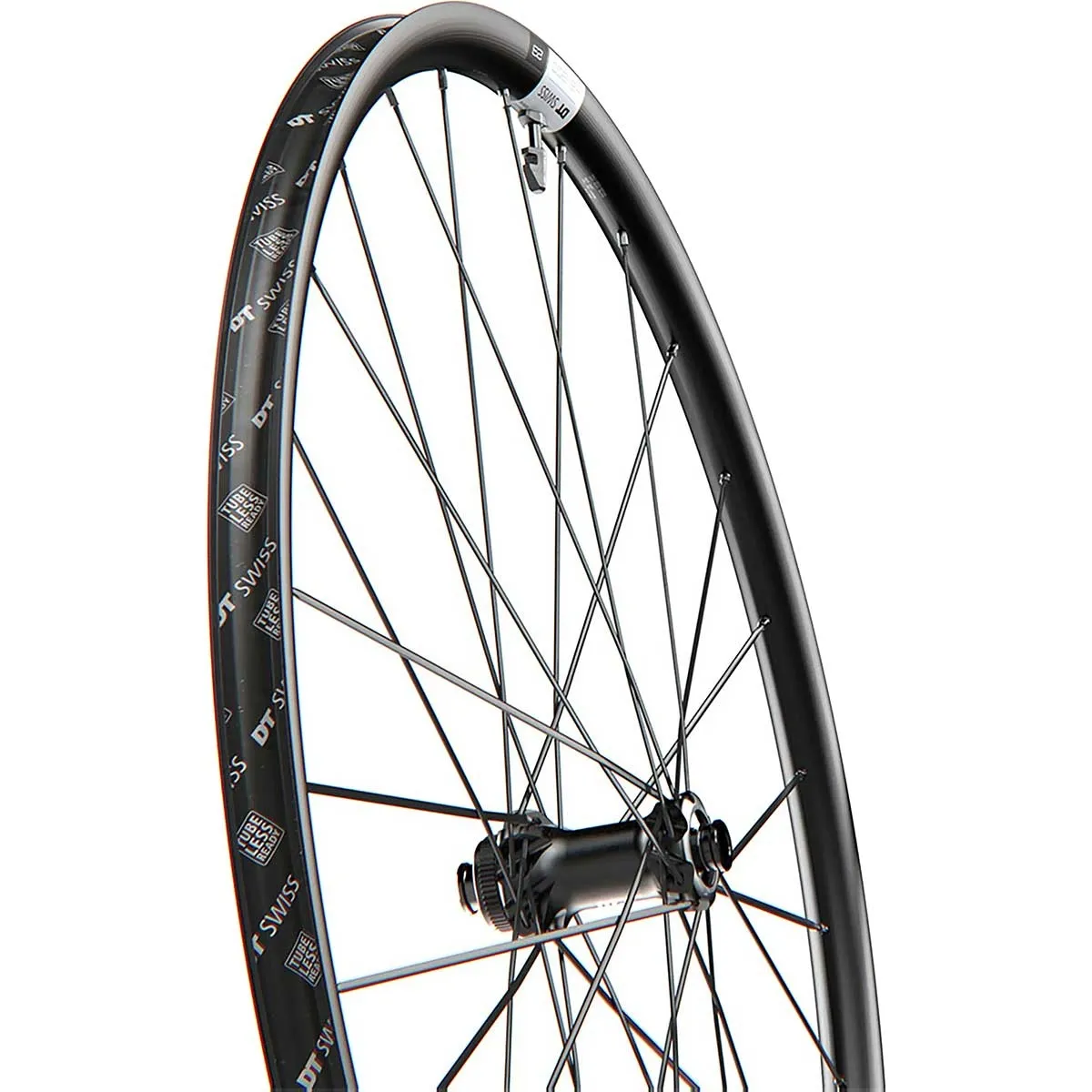

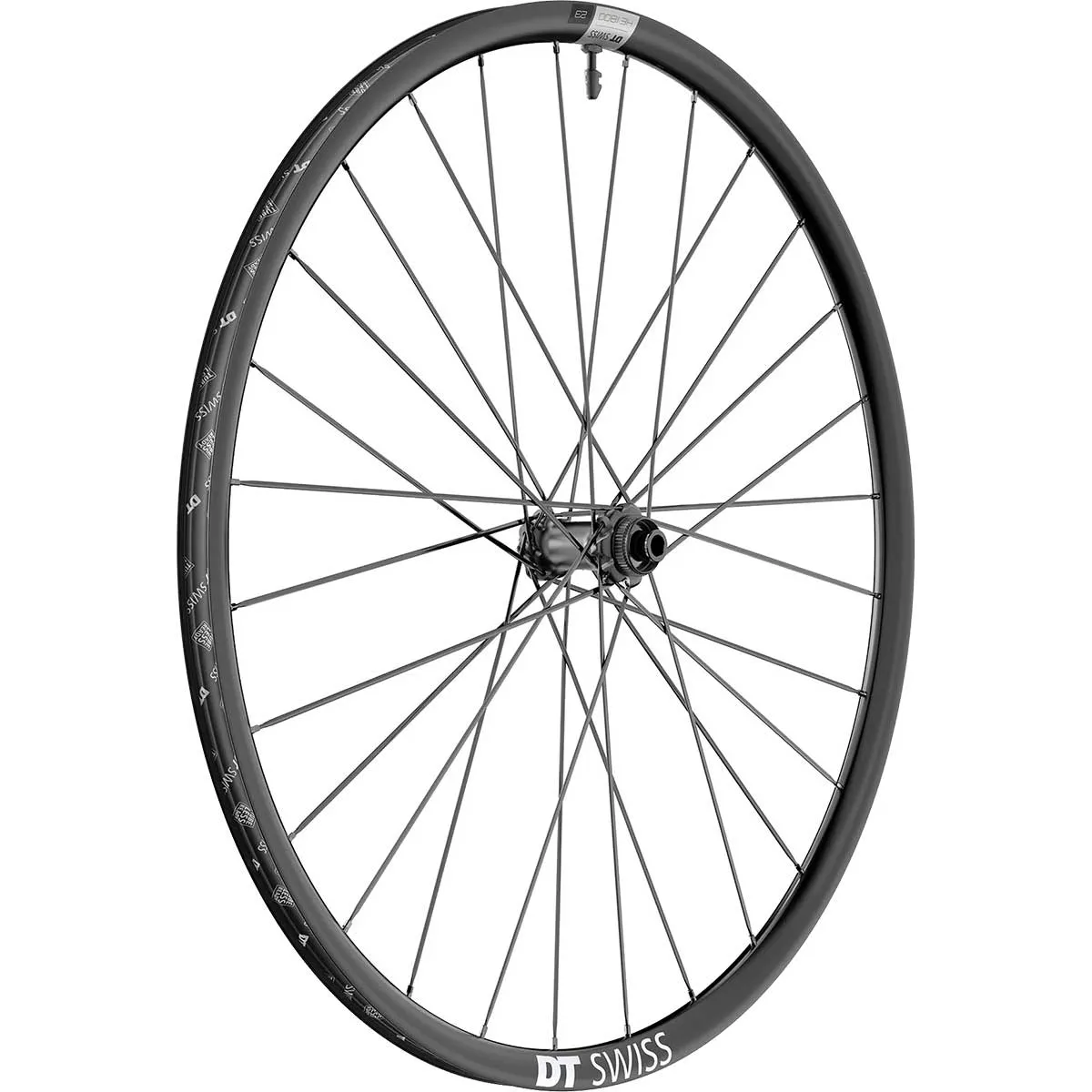

DT Swiss HG 1800 SPLINE DB 25 12/110 mm Hybrid Wheel

The 28/29-inch DT Swiss Hybrid Gravel front wheel HG 1800 with the Boost hub for 12x110mm or 15x110mm thru-axles.

The DT Swiss HG 1800 SPLINE has been specially developed to meet the requirements of e-gravel bikes. The 24 mm rim width perfectly supports tyres up to 50 mm wide, making your ride over gravel feel like a walk in the park. At its core, the newly designed hub houses the Ratchet LN freehub system, which ensures reliable power transfer. The specially reinforced spokes and hub ensure durability, whilst the Ratchet LN freehub system guarantees reliable power transfer through simultaneous engagement. The result is a robust and durable wheelset that allows the rider to focus on just one thing: enjoying the ride.

DT Swiss Hybrid Wheels:

E-road bikes help cyclists keep going. However, due to the additional weight and power from the specific frame and motor designs, the wheels are subjected to higher loads and torques over longer distances. DT Swiss Hybrid Road wheels are designed to cope with these additional loads thanks to the increased strength of the individual wheel components.

DT Swiss HG 1800 Spline 23 Hybrid 28-inch wheel technology:

• 28/29-inch ETRTO: 622 x 24 / 700C
• Clincher, for folding and clincher tyres, Tubeless Ready
• Recommended for e-bikes up to 32 km/h or max. 250W

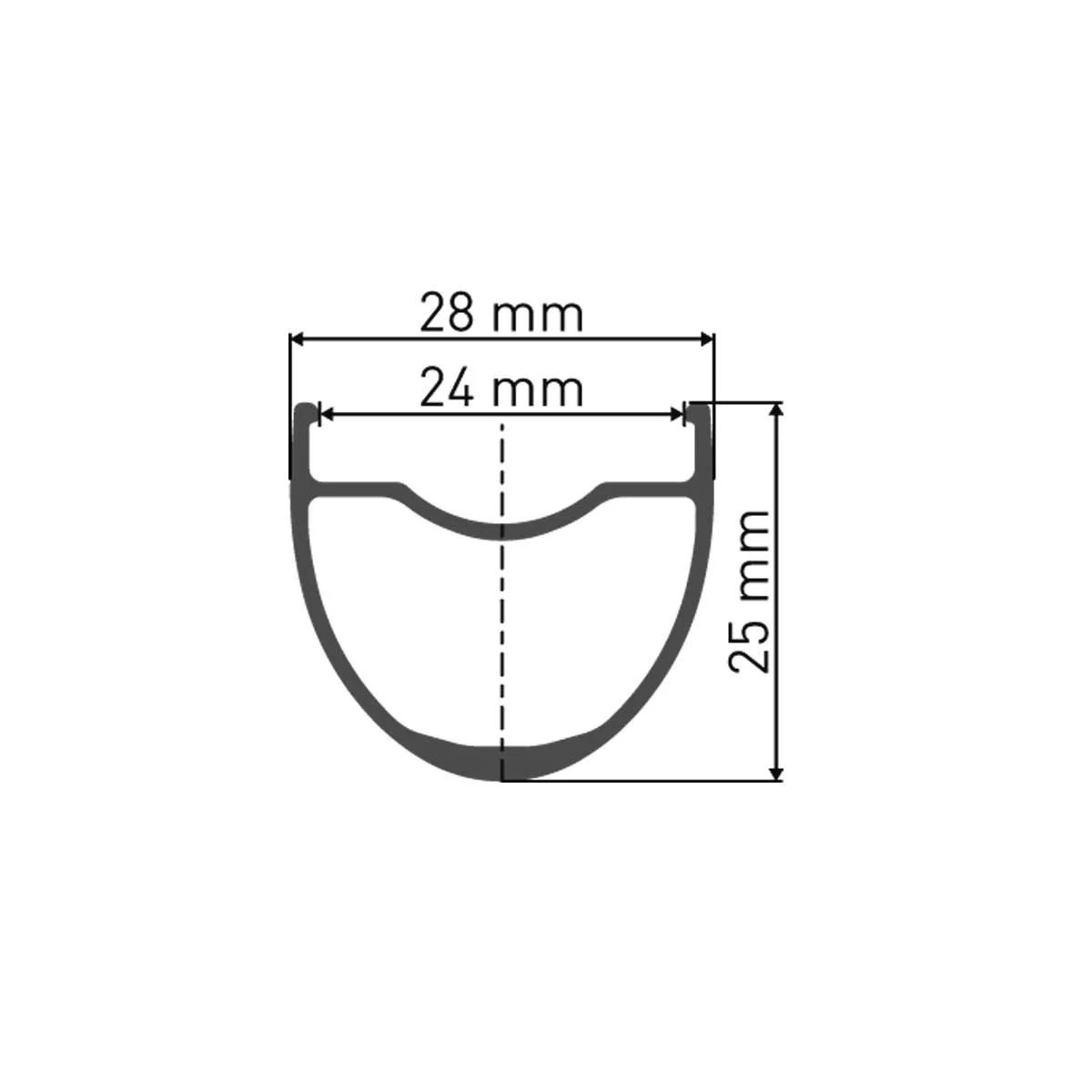

• Rim width 28 mm, height 25 mm, rim depth 24 mm
• Rim type: Hooked / Crochet tubeless TC
• DT 370 spline hub with Swiss steel ball bearings and Ratchet LN freehub
• Spokes: butted, cold-forged New Aero Hybrid flat spokes
• Nipples: DT Swiss Prolock aluminium special nipples
• Lacing pattern: 3-cross
• 28 spokes per wheel
• DT Swiss 370 Spline Boost front hub, Disc Centerlock
• Recommended maximum system weight: 140 kg
• ASTM classification 2

Contents: DT Spline HG 1800 Spline DB 25 wheel:

DT Swiss HG 1800 Spine DB 25 front wheel, DT Swiss Boost end caps as selected, 27 mm tubeless rim tape, 32 mm tubeless valves (road)

DT Swiss New Aero Hybrid Straight Pull Spokes

Exceptionally strong and durable, the New Aero Hybrid spokes are specially designed for high-stress use on e-bikes; they are more stable than conventional spokes yet can still be trued and replaced using standard tools.

DT Swiss HG 1800 Hybrid Disc rims

The wide, extra-reinforced hybrid rims with a 24 mm rim width are suitable for folding and clincher tyres from 30–50 mm wide. The classic rim profile with a flange is suitable for tubeless and standard tyres with inner tubes. The rims are supplied with tubeless rim tape fitted and an UST valve.

DT Swiss 1800 Spline Hybrid Disc Hubs

Equipped with a Centerlock mount, the DT Swiss 1800 Hybrid Spine Disc hubs are compatible with all types of brake discs; adapters for 6-bolt brake discs are available as an option. The DT Swiss Spline Disc hubs, with their optimised hub shell for straight-pull spokes and the super-robust Ratchet LN freehub system based on the classic DT Swiss 370 hubs, are exceptionally durable; the rear hubs can be serviced without tools.

Compatible endstops for DT Swiss Disc Road 1800 front wheels:

• 12x110 mm thru-axle mount: Item No. HWGXXX00S6885S
• Thru-axle mounting 15x110 mm: Item No. HWGXXX0004785S

Spare parts for DT Swiss HG 1800 front wheel:

• Ball bearing type 6902 15x28x7mm Item No. HSBXXX00N2336S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
