Road bike, Cross Road, Gravel wheel, Schmidt’s SON 29 S Straightpull hub dynamo with DT Swiss RR 481 Disc rim, laced with DT Swiss spokes at TNC

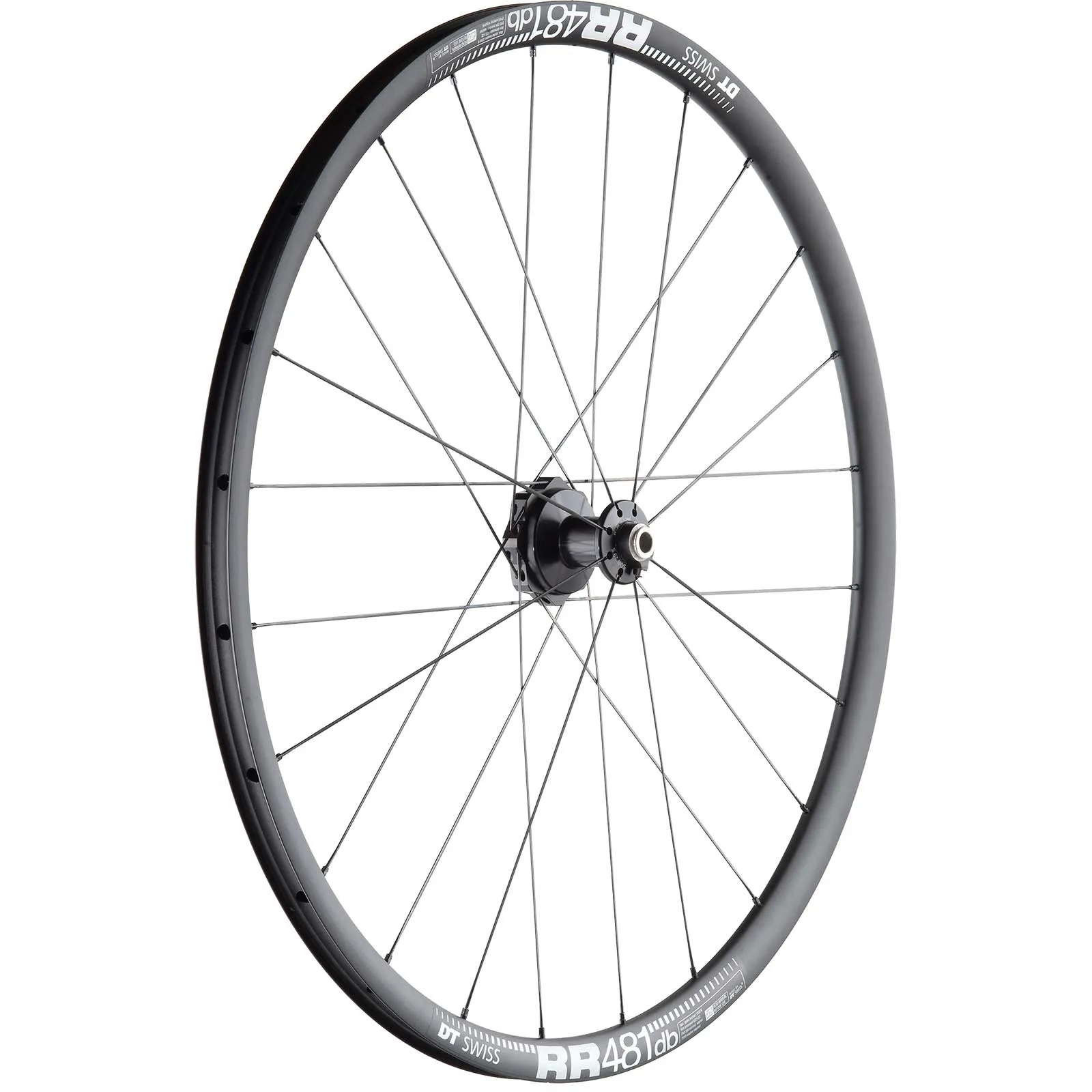

Schmidt Son 29 S hub dynamo wheel with DT Swiss RR 481 rim
The 28-inch front wheel featuring the Son 29 S straight-pull dynamo with the robust and lightweight DT Swiss RR 481 gravel rim, with a 22 mm rim width, for use on gravel, cross-country and road bikes
Wheel building at TNC-Hamburg:
We manufacture these wheels entirely by hand for you. Thanks to expertise gained from over 30 years of experience in wheel building, we extract the optimum in roundness, durability and stiffness from the material. These wheels are, of course, tested multiple times; we also pre-load the spokes in both the radial and tangential directions. This eliminates the need for re-truing over a long period of time. We use DT Swiss spokes exclusively. These ensure outstanding durability of the wheels. For enduro use, we recommend brass nipples.
These wheelsets are made to order specifically for you, which is why we cannot offer a right of withdrawal for them.
Included in delivery:
- Front wheel fully laced and hand-trued in our workshop with Son 29 S hubs, DT spokes, DT nipples as selected and DT Swiss RR 481 Disc rim.
- Excludes rim tape and valve
- Weight from 995 grams, depending on the spokes and nipples selected
Schmidt SON 29 S hub dynamo Technical data:
- Electrical output: 6V / 3W in accordance with StVZO Approval: ~~~ K 179
- Permitted wheel sizes: 16–29 inches
- Efficiency: 65 per cent at 15 km/h Power consumption when idling: 0.5 watts at 15 km/h
- Magnetic rotor: Neodymium-iron-boron, 26-pole
- Connection: 4.8 mm flat plug, two-pin, potential-free
- Cabling: Coaxial cable, PVC-free, 3 mm
- On/off switch: via switch in headlight housing
- Axle: Hollow axle made of cold-hardened, stainless steel
- Bearing: Deep groove ball bearing 629 2RSH
- Seal: Gap seal, sealing washers and pressure equalisation system
- Hub sleeve: Aluminium 6082
- Axle: Hollow axle made of cold-work hardened, stainless steel
- For 12x100 mm thru-axle mounting
- Bolt circle diameter: Disc side tangential 72 mm, radial 41 mm
- Recommended light: Schmidt SON Edelux
DT Swiss RR 481 DB rims Technology and dimensions:
- Application: Crossroad, Gravel, Cross and Touring
- ASTM classification 2
- 28 inches, 700C
- Width: outer 26 mm, inner 22 mm, height 25 mm
- ETRTO: 622 x 22 mm
- ERD 594 mm
- Aluminium rim
- SBTW welded joint
- Maximum tyre width: 28–50 mm
- Recommended rim tape: 622 x 25 mm
- Recommended tubeless valve: 32 mm
- Weight 485 grams (manufacturer’s specification)
- Recommended for riders up to 120 kg

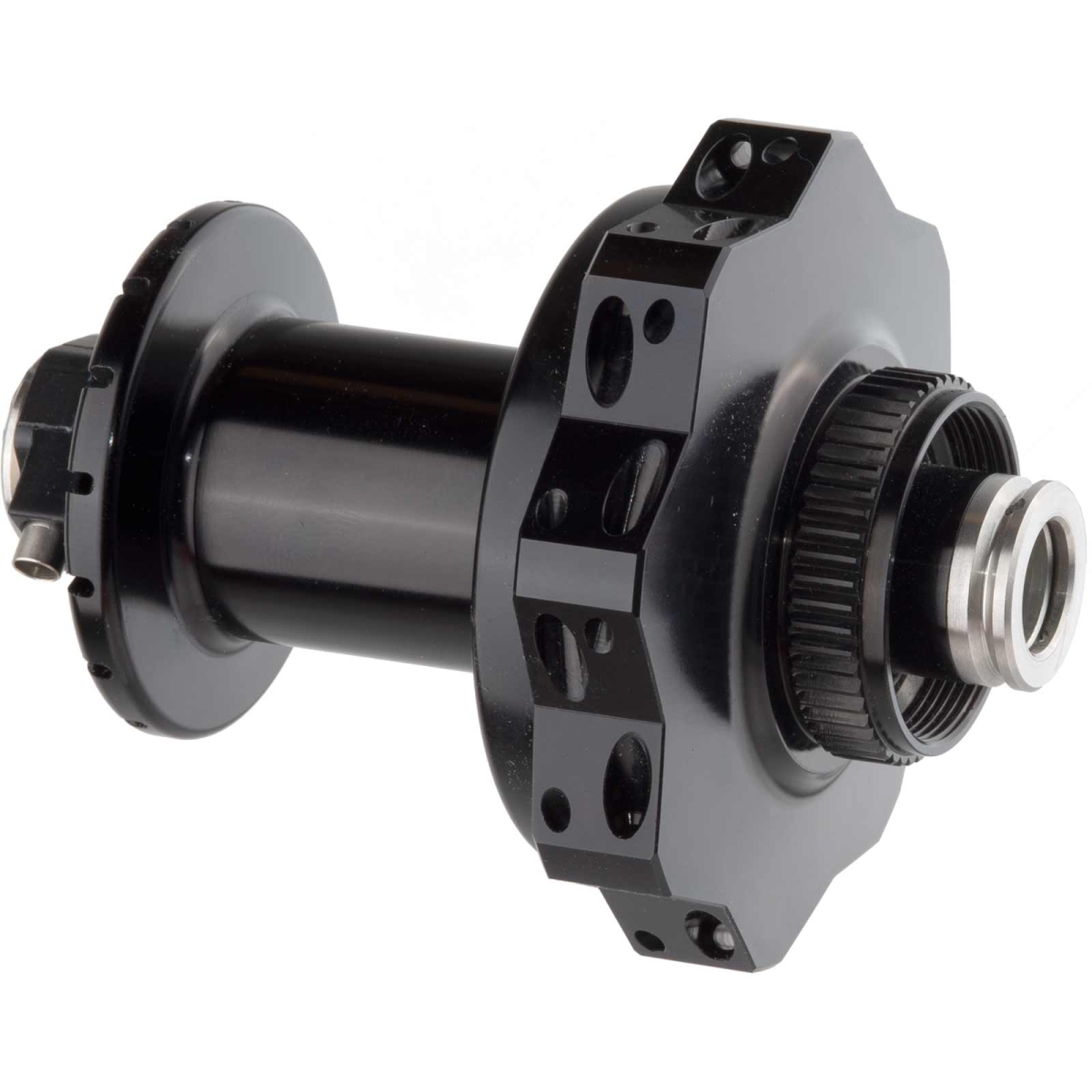

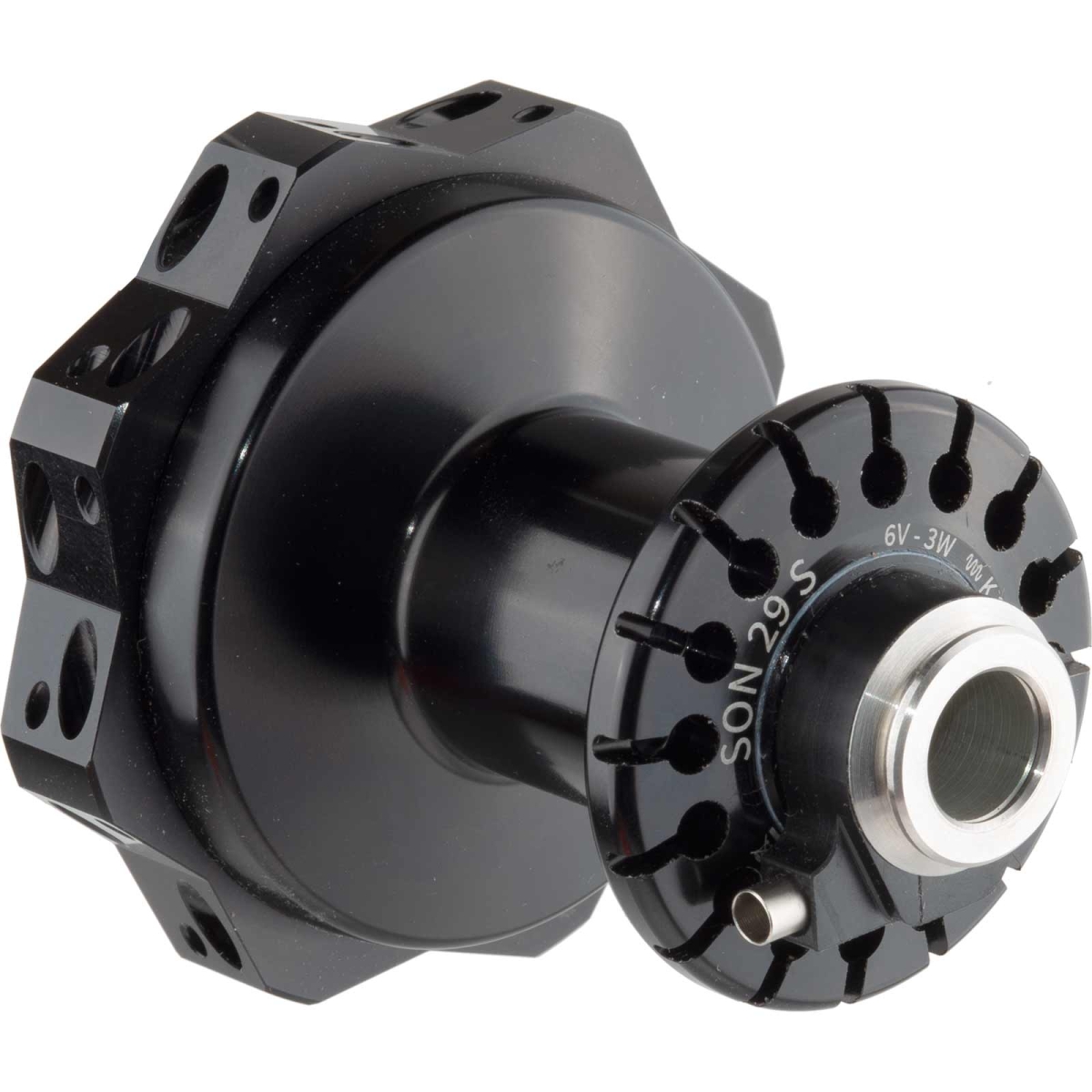

SON 29 S Straightpull hub dynamo:
The new SON 29 S: slim, light, efficient. The straight-pull dynamo delivers 6V/3W even at low speeds thanks to its optimised design and meets StVZO requirements even for 29-inch wheels. Ideal for high-performance charging electronics. The brake disc side is cross-spoked and the connection side is radially spoked. The 24-hole version has 16 left and 8 right spokes, the 32-hole version has 16 left and 8 right spokes. The SON 29 S comes as standard with a coaxial socket for the SON coaxial plug
DT Swiss RR 481 DB rim:
The gravel, cross-road and road rim, DT Swiss RR 481 DB, designed for use with disc brakes, made from 485 grams of high-strength aluminium, very stable and, with a 22 mm rim width, perfect for wide tyres. With a 22 mm rim width, the DT Swiss RR 481 DB rim is ideal for tyre sizes from 25–40 mm. Cleanly finished, with a welded joint, CNC-machined sidewalls and a 25 mm high rim bed, the DT Swiss RR 481 DB offers the optimal rim for building lightweight and stable wheelsets.
DT Swiss Competition Spokes
The double cold-forged spoke made from rust-resistant 18/10 chrome-nickel steel with a tapered middle section for robust, lightweight wheelsets. We recommend these spokes for virtually all wheelsets. Extremely durable and sufficiently lightweight, the DT Competition spokes enable wheel building of the highest standard. Thanks to the tapered middle section, the spokes absorb movements in the wheel exceptionally well, without compromising on lateral stiffness or durability.
DT Swiss Aero Comp spokes:
Designed for stable, laterally stiff yet aerodynamic wheels, the DT Swiss Aero Comp spoke in the straight-pull version is first tapered in the middle section using a cold-forging process, making it lighter and stronger. In a further complex process, it is flat-forged to optimise aerodynamic properties whilst simultaneously increasing material strength. The DT Aero Comp guarantees a balanced combination of stiffness, aerodynamics and durability.
DT Swiss Aero Lite spokes:
The DT Swiss Aerolite spoke is flatter and lighter than any other; the DT Swiss Aerolite spoke features an aerodynamic flat profile and is extremely lightweight. Thanks to the 0.9 x 2.3 mm aerodynamic mid-section, this spoke can be fitted to all standard hubs. The Cold Forging Technology (CFT) developed by DT Swiss makes the reduced and forged DT Aerolite the lightest stainless steel spoke and gives it excellent mechanical properties. Particularly suitable for super-light and fast road or cross-country wheelsets. 64 DT Aerolite spokes weigh an incredible 278 g at a length of 264 mm. Weight per spoke at a length of 264 mm: 4.31 grams.
DT Swiss Revolite spokes:
The DT Revolite is the ideal choice for riders looking for a spoke that combines durability, low weight and aerodynamics. With a 2.3x1.3 mm cross-section in the middle section of the spokes, these offer excellent aerodynamics. Through several rounds of development, their innovative shape has been optimised to outperform all other DT Swiss MTB spokes in their weight class in terms of durability. This has been achieved through the unique blading process, which achieves additional compaction of the material, and a patent-pending process that ensures a uniform transition from the tapered to the forged section of the spoke. Weighing just approx. 4.5 grams at a length of 264 mm per spoke, the Revolite is also exceptionally light.
DT Swiss Squorx Pro Head Nipple PHR Washer:
The DT Squorx Pro Head nipple combines ease of installation, light weight and optimal performance in a single product. The Torx head makes lacing flat spokes a breeze. The spherical contact surface ensures perfect alignment with the spoke, whilst the square section allows for easy re-centring using standard tools with the tyre fitted. With these rims, the Squorx nipples are included in the scope of delivery, along with the PHR washer, which is fitted between the nipple and the rim bed. This ensures even pressure distribution and long-lasting durability.
