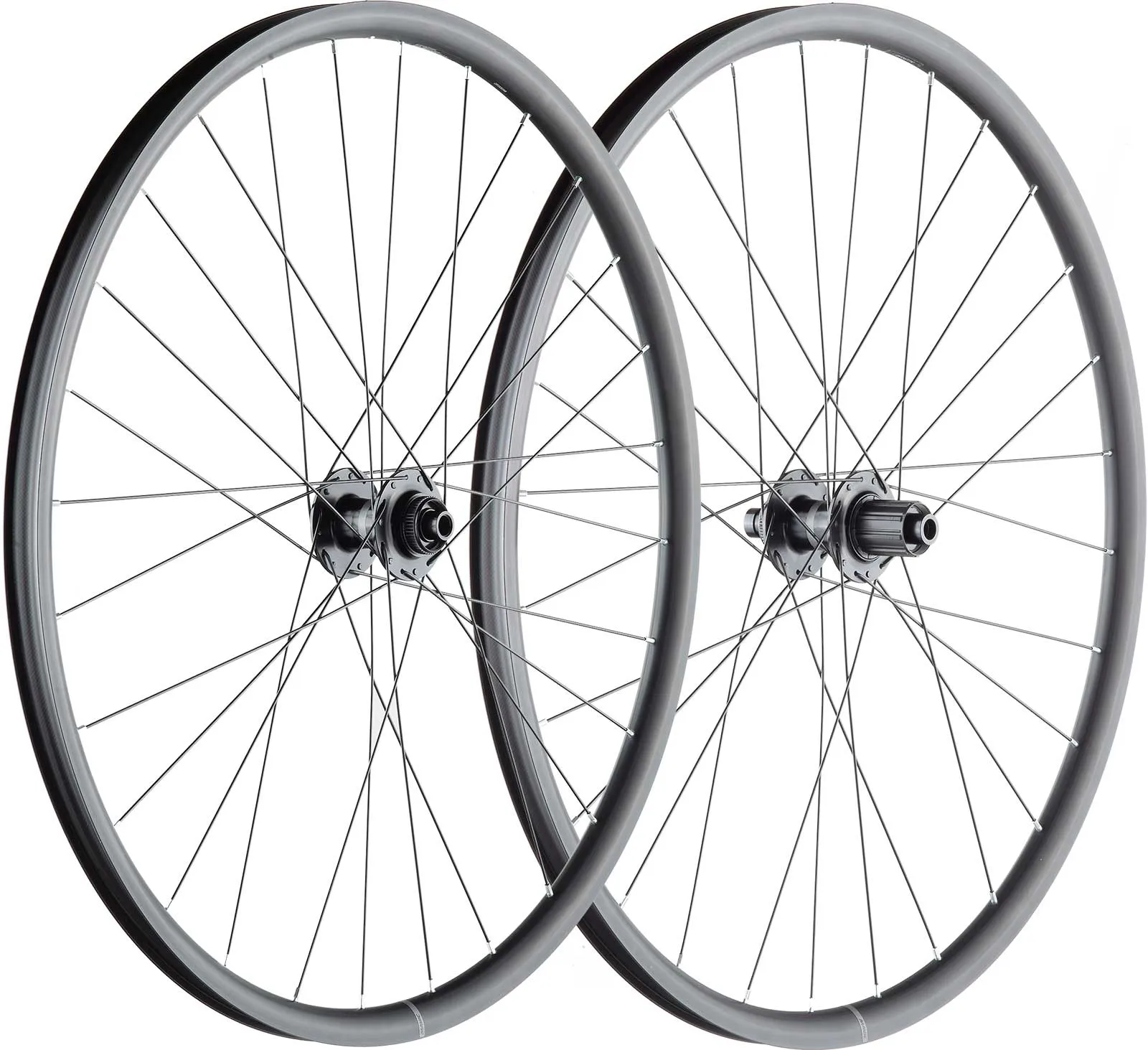

Mavic Allroad 1 Disc wheels

Enter the world of Mavic Allroad with these sturdy, asymmetrical-design wheels, featuring wide and versatile rims, Classic hubs, J-bend steel spokes, and the robust Mavic Allroad Disc wheels with Instant Drive freehub body. The rims, with a 25 mm rim width, also offer perfect grip for wide tyres

Included:

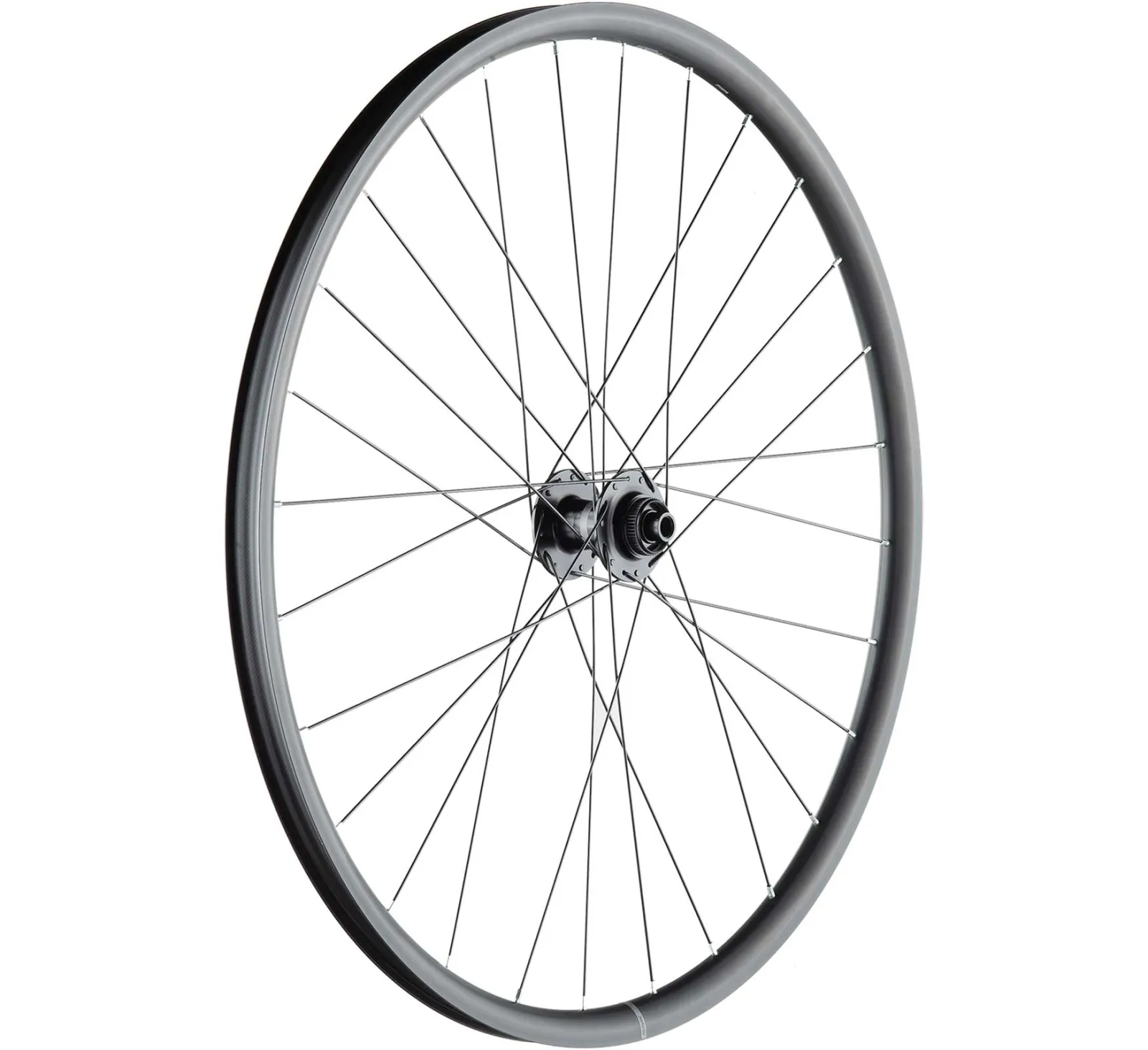

• Mavic Allroad 1 Disc front wheel, end caps as selected, standard rim tape

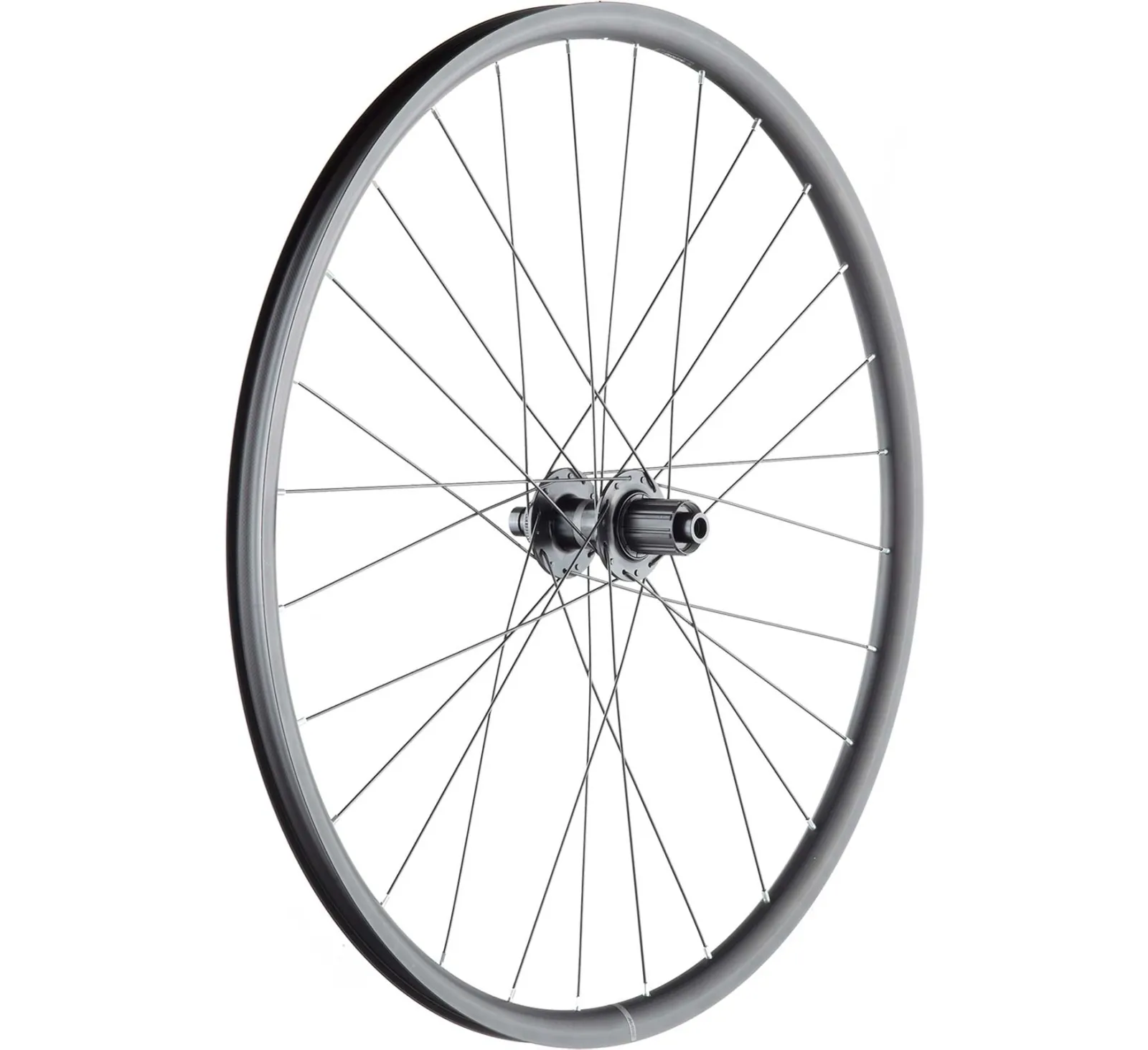

• Mavic Allroad 1 Disc rear wheel, end caps and freehub body as selected, standard rim tape

These wheelsets can be converted to tubeless using 28 mm wide tubeless rim tape (item no. V2700101) and a tubeless valve (item no. A0004293).

Mavic Allroad 1 Disc wheel technology:

• Recommended use: Road Race, Training, Cross
• 28 inches, ETRTO 622 x 25TSS / 700C
• Spokes: 28 black high-tensile J-bend steel spokes
• Rim material: Aluminium drop-out, black,
• Hookless rim = TSS, tubeless straight side
• Tubeless ready, hookless
• Spoke pattern: Front and rear wheels double-crossed
• Bearings: Industrial-grade hubs
• Hub body: Aluminium
• Brake disc mounting: IS 6-hole

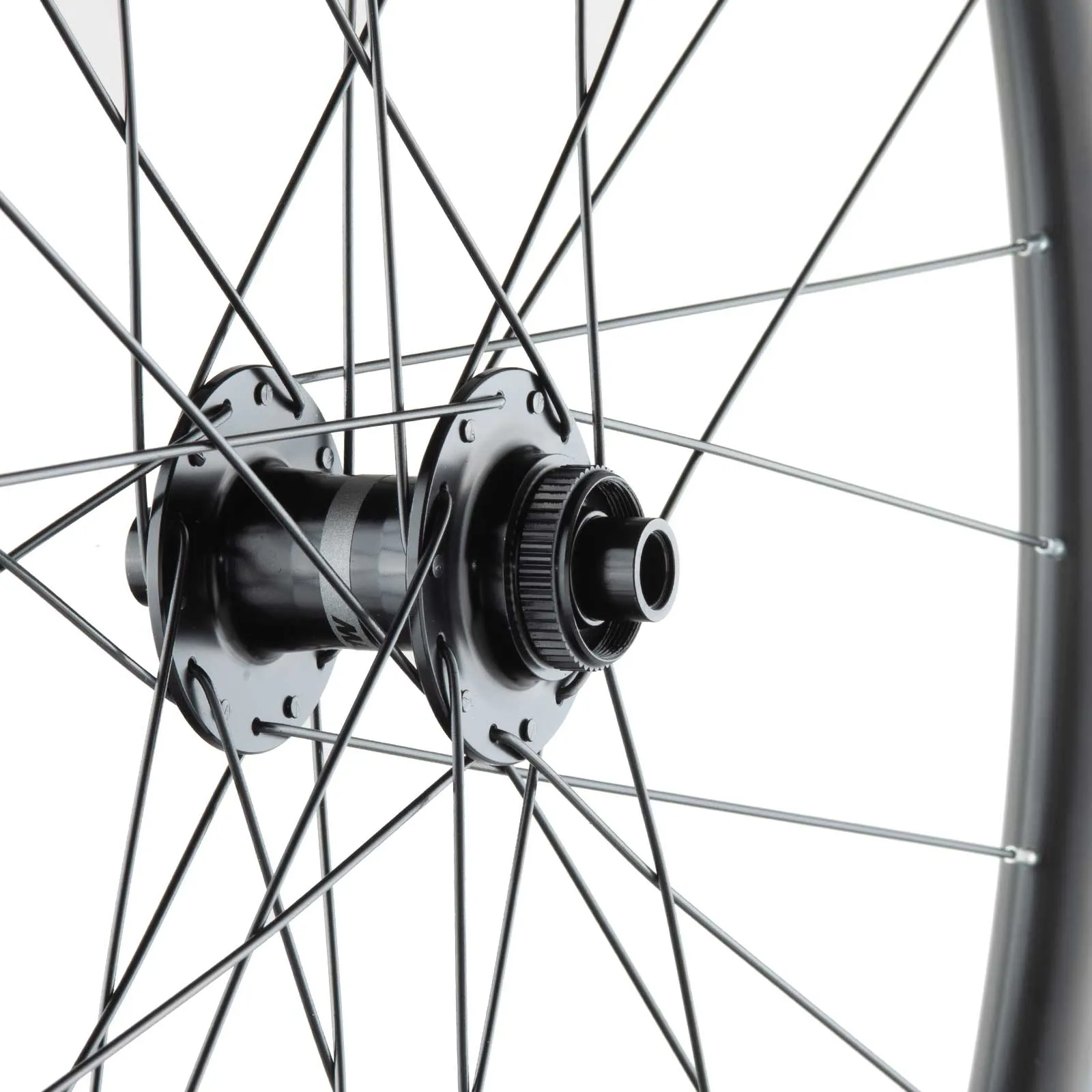

• Front wheel hub: 12x100mm or 9x100mm quick-release mount
• Rear wheel hub: aluminium body, 12x142mm thru-axle or 10x135mm quick-release mount
• Instant Drive 360-tooth freewheel body, available as:
  • HG11 freehub for Shimano and SRAM cassettes 8 + 9 + 10 + 11-speed
  • Microspline freehub for Shimano Gravel cassettes, 12-speed compatible
  • ED Campagnolo freehub body for Campagnolo cassettes 9, 10, 11 and 12-speed
  • N3W Campagnolo freehub body for Campagnolo 13-speed cassettes
  • SRAM XDR freehub for SRAM Road AXS 12-speed and SRAM MTB XG 11- and 12-speed cassettes
• Maximum recommended rider weight: 120 kg

Mavic Allroad Disc weights, manufacturer’s specifications:

• Front wheel: 989 grams
• Rear wheel: 1112 grams
• Wheelset: 2100 grams

The Mavic Allroad 1 Disc wheelset weighs just 1890 grams and has a 25 mm rim width. Despite the weight saving, the rims have become even more rigid and durable thanks to H2 cold-forging. High-quality hub technology with industrial bearings, 20 spokes per wheel, cleanly finished, robust rims specially designed for use with disc brakes, and all at a price at which you couldn’t even build your own wheels. The ideal wheelset for gravel, cyclocross, training and road touring.

Compatible end stops, front wheel:

• Quick-release mounting, 9x100 mm adapter, item no.: V2680301
• Thru-axle mounting, 12x100 mm, adapter part no.: V2680501
• Thru-axle mounting, 15x100 mm, replacement axle part no.: V2372301 plus part no.: adapter V2372501

Compatible end stops, rear wheel:

• Quick-release mounting, installation dimension 10x135 mm, adapter part no.: V2510801
• Thrust axle mounting, installation dimensions 12x135 mm, adapter part no.: V2510901
• Thru-axle mounting, 12x142 mm adapter, Part No: V2510701

Compatible Instant Drive 360 freehub body

• HG11 aluminium freehub for Shimano and SRAM cassettes, compatible with 8, 9, 10 and 11-speed systems, item no. V3430101
• HG11 Aluminium Light Freewheel for Shimano and SRAM cassettes, 8 + 9 + 10 + 11-speed compatible Part No. V3850101
• Microspline aluminium freehub for Shimano and SRAM cassettes, 8 + 9 + 10 + 11-speed compatible Item No. V3990101
• ED freewheel for Campagnolo cassettes, 9 + 10 + 11 + 12-speed compatible Item No. V34401001
• N3W freehub for Campagnolo cassettes, 10 + 11 + 12 + 13-speed compatible Item No. V4270101
• SRAM XD Road freehub for SRAM AXS Road and XG MTB cassettes, 11 + 12-speed compatible Item No. V2580101

Mavic Allroad 1 Disc technologies:

• Mavic rims:
  the rims are fitted with special rim flanges that make fitting tyres extremely easy; the tyres practically spring into the correct position and, provided you have a strong thumb, can be fitted without tools and inflated using standard air pumps.
• QRM Auto:
  Industrial bearings of this quality are only found in Mavic hubs – QRM bearings with double seals, of the 2RS or LLU type, and with extremely tight tolerances. Self-aligning bearings offer very high durability, low maintenance and excellent smoothness.

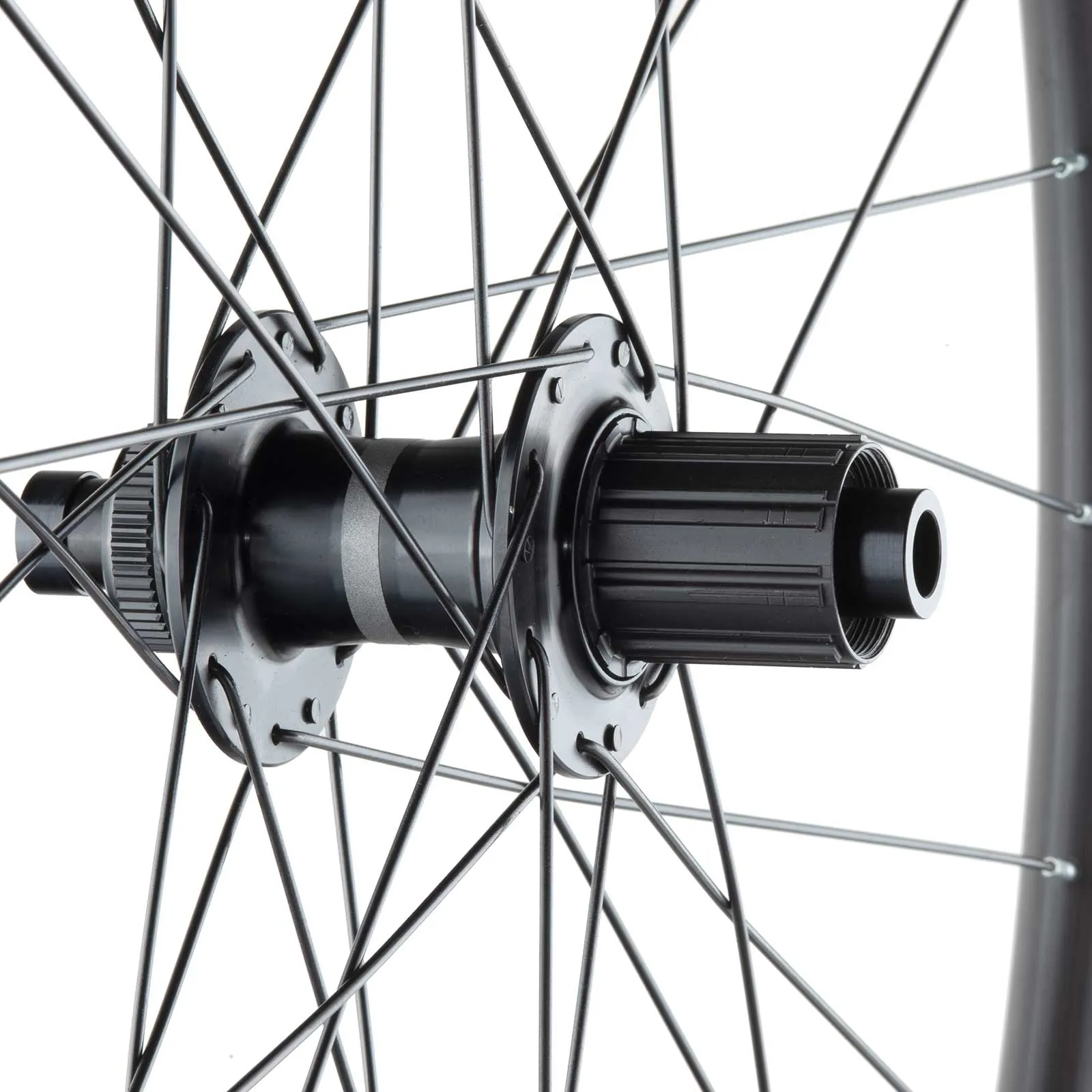

• Mavic Instant Drive Freehub Body:
  The new Instant Drive 360 freehub system is super-light and ensures rapid power transfer with a mere 9-degree engagement angle. A large, contact-free rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two sprockets with 40-tooth profiles ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available in an HG11 version for Shimano and SRAM 8-11-speed, SRAM XD 11- and 12-speed XG/AXS, and Campagnolo 9-11-speed ED cassettes.
• Compatibility:
  the oversized aluminium axles allow for easy conversion to all standard axle systems, including quick-release mounting as well as QR 12x100mm, X12x142mm and 12x135mm thru-axle mounting. End stops for 12mm thru-axles and quick-release mounts are included in the scope of delivery. Conversion to 15x100 mm front wheel mounting is possible by replacing the entire hub axle

Hookless rims, Tubeless Straight Side (TSS) rims:

are characterised by a hookless rim profile. Unlike hooked rims, they do not have a mechanical interlock between the tyre bead and the rim flange. On hookless rims, the tyre is held in place solely by the tyre bead and the frictional forces between the tyre and the rim flange. On a hooked rim, the tyre is additionally secured by the mechanical interlock between the tyre bead and the rim flange. Hookless setups are more sensitive to potential deviations in system tolerances. It is therefore essential that all specifications regarding hookless compatibility provided by tyre and wheel manufacturers are followed. Adherence to the maximum tyre pressure and maximum inner rim width is crucial for the safe use of hookless rims. The maximum specifications for air pressure and inner rim width when fitting to hookless rims and rim flanges can be found on the tyre packaging.
