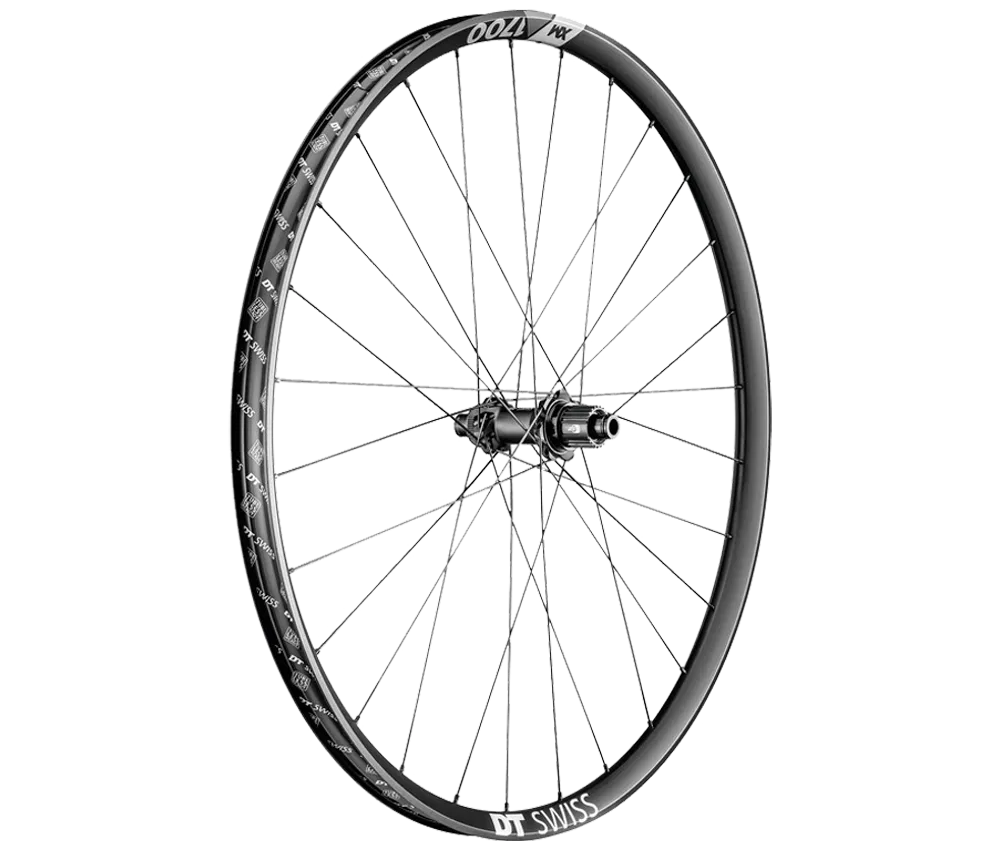

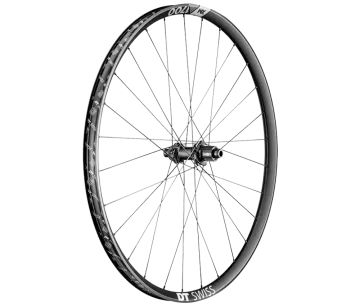

DT Swiss XM 1700 Spline wheel
The robust and lightweight All Mountain and Trail wheelsets, DT Swiss XM 1700 Spline with a 30 mm rim width. According to DT Swiss, the best aluminium All Mountain wheelsets.
The Ratchet Star hubs, based on the DT Swiss 350 SL hubs, and the lightweight, welded, wide and super-sturdy rims give the XM1700 wheels outstanding stability and are perfectly suited to wide tyres. Designed for all-mountain use, tyres up to 2.6” wide can be fitted. The legendary reliability of the Ratchet freehub system, the straight-pull hubs and the lightweight yet exceptionally robust rims guarantee worry-free riding.
DT Swiss XM 1700 Spline 30 27.5-inch wheel specifications:
- 27.5-inch ETRTO: 584 x 30
- Rims: SBWT welded DT Swiss rim

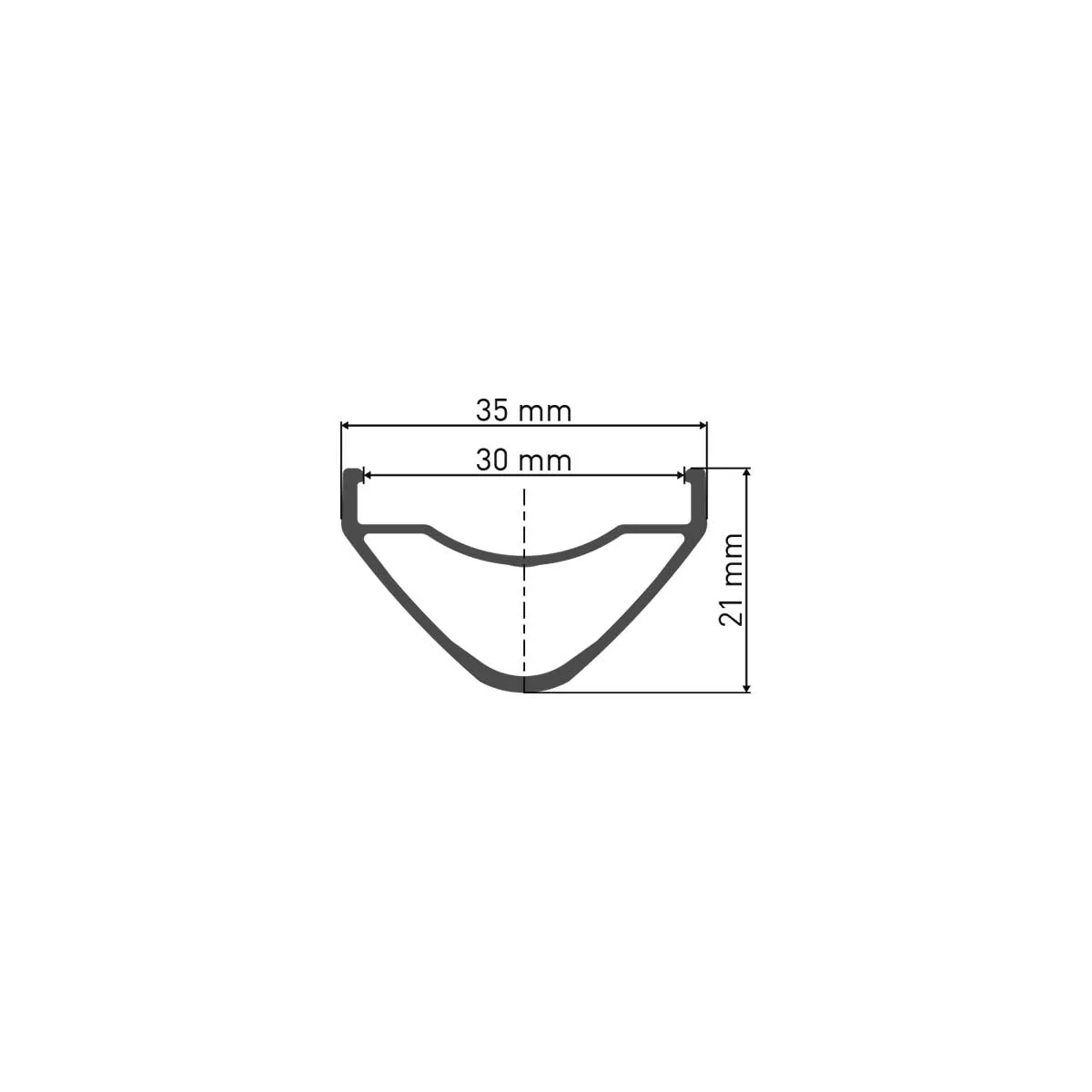

- Rim dimensions: inner width 30 mm, outer width 35 mm, height 21 mm
- Hub with Swiss precision ball bearings
- Ratchet Star 36-tooth freehub
- DT Swiss Straight Pull spokes: tapered, cold-forged round spokes
- Nipples: DT Pro Lock aluminium nipples
- Lacing pattern: 3-cross
- 28 spokes per wheel
- Maximum tyre width 2.6
- Required rim tape width: 32 mm
- Brake mount: Centerlock
- Boost rear hub 12x148 mm for Boost thru-axle mounting, convertible to 10x141 mm Boost quick-release mounting
- Ratchet Star freehub body, available as
- HG10 aluminium or steel freehub body for Shimano MTB cassettes 8 + 9 + 10 + 11-speed and Sram MTB cassettes 8 + 9 + 10-speed
- SRAM XD aluminium or steel freehub body for SRAM 11- and 12-speed XG MTB cassettes
- Micro Spline freehub body for Shimano 12-speed MTB cassettes
- Weight from front: 829 grams, rear: 919 grams (manufacturer’s specification)
- Maximum recommended system weight: 120 kg
- ASTM classification: 4
Contents of DT Swiss XM 1700 Spline wheelset:
DT Swiss XM 1700 Spline 30 rear wheel, 12x148 mm Boost end caps, freehub body as selected, 32 mm tubeless rim tape, 32 mm tubeless valves
DT Swiss 1700 Spline hubs:
The DT Swiss straight-pull hub shells of the Spline wheelsets require minimal material, allowing them to be constructed to be lightweight yet stable. With the optimised hub body, specifically designed for extreme braking forces, and the reinforced flange, DT Swiss provides the perfect foundation for extremely stable All Mountain, Enduro and FR wheelsets.

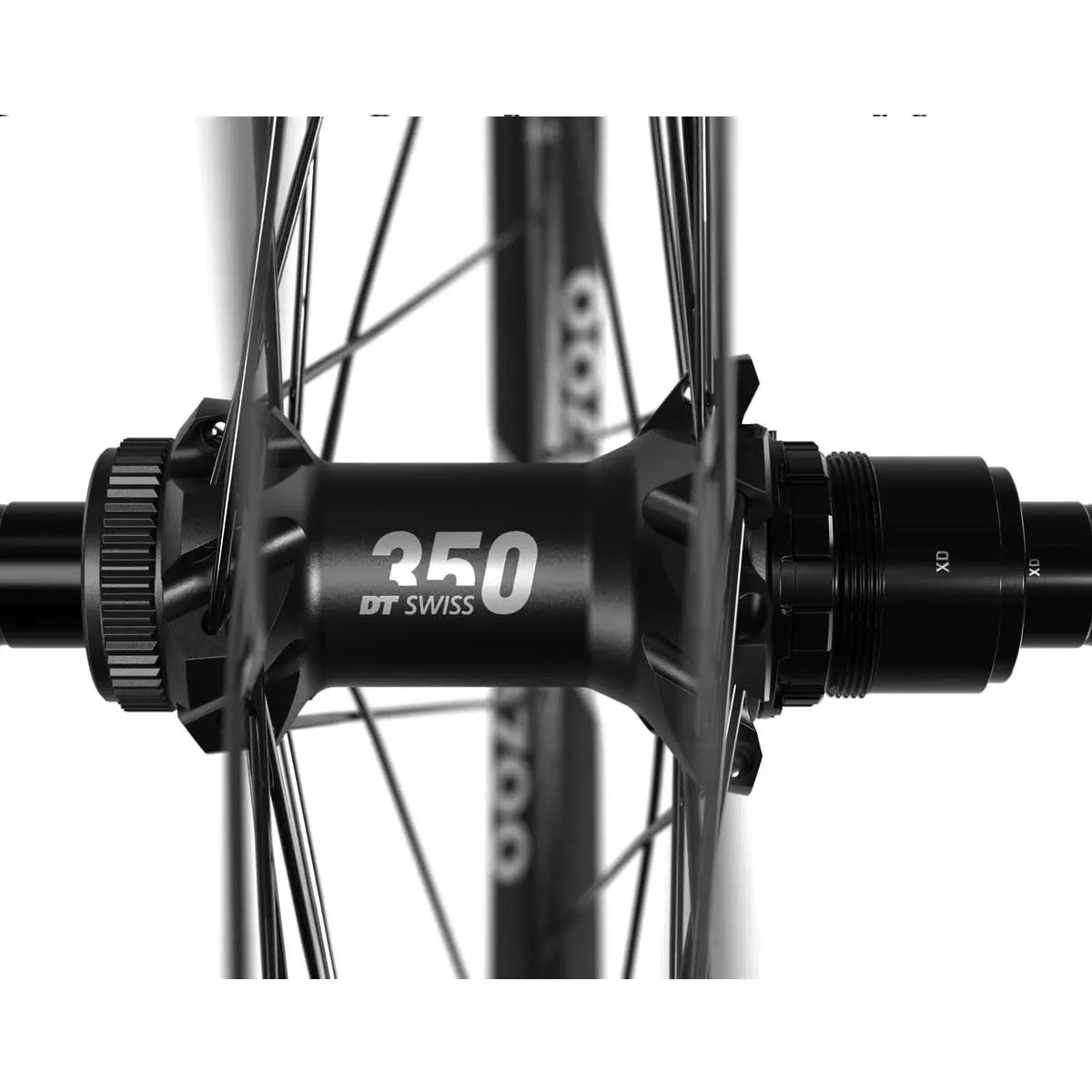

DT Swiss Spline 1700 Boost rear hub:
The DT Swiss Spline Boost rear hubs feature a wider hub body with spoke lugs and flange positioned further outwards. This makes these wheels even more laterally stiff and durable. Due to the wider hub design with a 148x12 mm thru-axle mount, these hubs cannot be fitted to frames with an X12x142 mm mounting dimension and are only compatible with Boost 12x148 mm or Boost 10x141 mm rear ends / frames

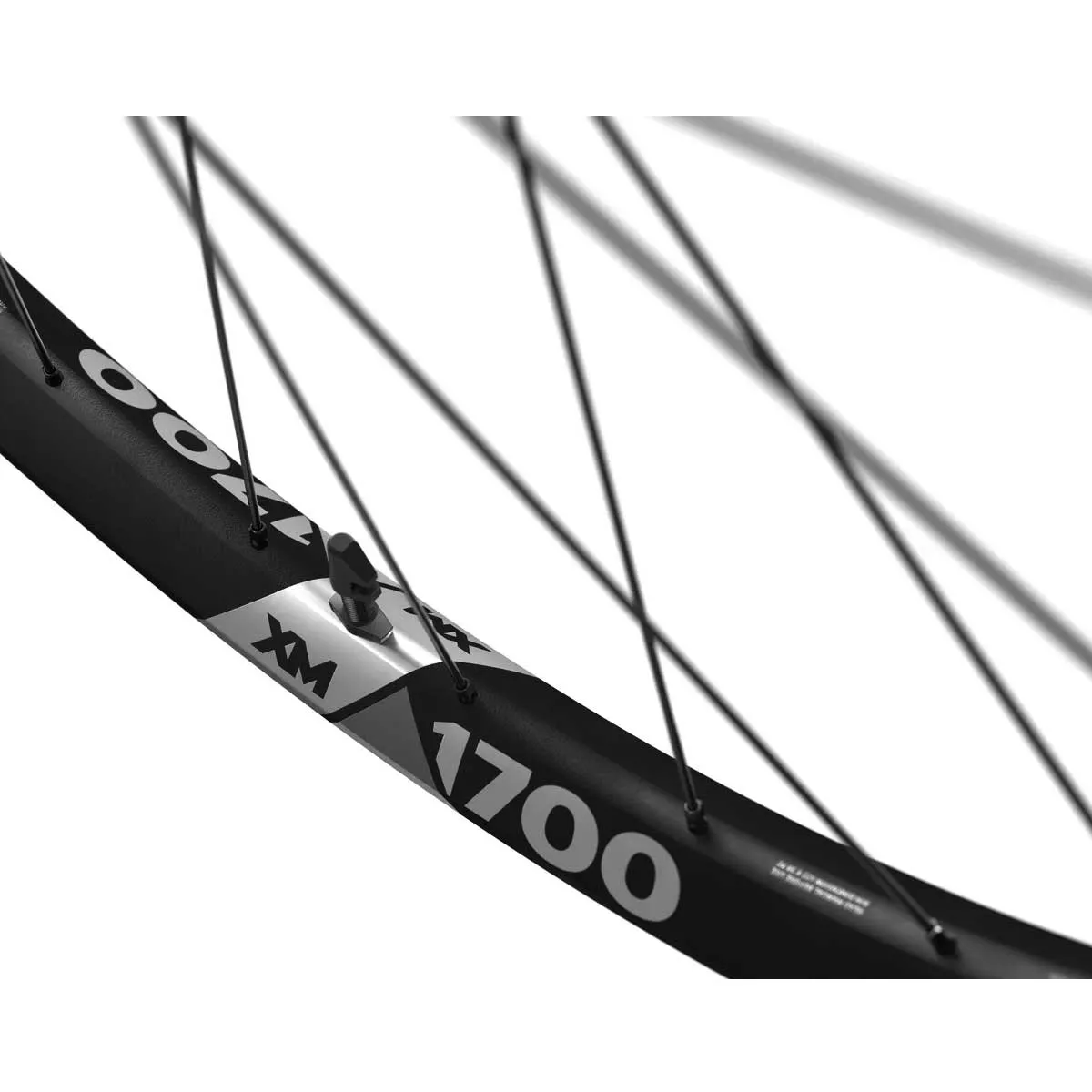

DT Swiss XM 1700 Spline rims:
Built for all-mountain use, the DT Swiss XM 1700 offers excellent acceleration and high stability. The sturdy rims are butt-welded and require less material than the even sturdier EX 1700 rims. The rim profile is designed to be sturdy enough to satisfy the best enduro riders, whilst remaining lightweight. With a 30 mm rim width, tyres ranging from 2.0 to 2.6 inches in width can be fitted. Thanks to the wide rims, wide tyres roll significantly more easily and offer greatly improved cornering. The new rim spokes make the DT Swiss Spline rims ideally suited for upgrading with a tubeless kit.
DT Swiss Star Ratchet EXP System:
The proven DT Swiss Star Ratchet System, in the new EXP version with a toothed freewheel body, allows for easy conversion to various axle or rotor standards. The DT Swiss Ratchet Star EXP rear hubs can be easily converted to fit standard axle mounts. The new end caps offer an even more precise fit. Thanks to a larger bearing spacing, the EXP hubs are even more stable than their already excellent predecessor models.
DT Swiss Straight Pull Spokes:
To achieve an ideal balance between weight and stability, only the highest-quality straight-pull Competition spokes are used in Spline wheelsets. They are stiffer than conventional spokes yet can still be trued and replaced using standard tools. The straight-pull lacing allows for precise placement and alignment of the spokes. This optimises the wheel’s stiffness and eliminates any unwanted stress peaks.
Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
