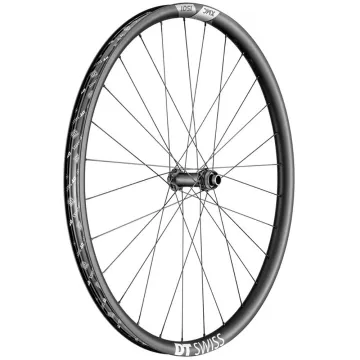

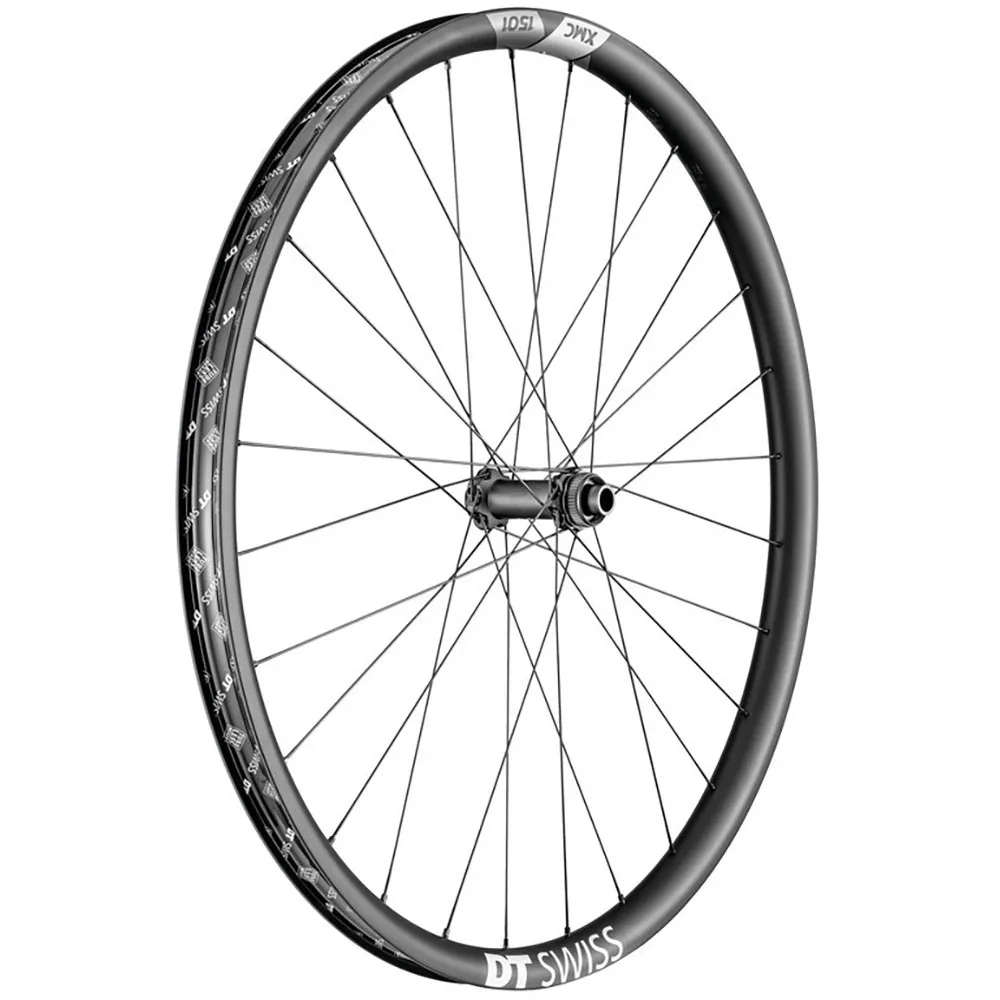

DT Swiss XMC 1501 Spline One 30 Boost wheelset
The all-mountain variant of the DT Swiss Spline 1501 Spline One wheelset range, featuring 30 mm full-carbon rims and DT EXP 240 hubs. Very lightweight, from 1565 grams, agile yet stable enough for tough MTB use
The low weight of the carbon rim, specifically designed for all-mountain use, combined with the latest evolution of the DT Swiss 240 hub featuring the Ratchet EXP freehub, makes the XMC 1501 SPLINE ONE wheels a reliable companion on all-mountain adventures of every kind. The 30 mm wide, tubeless-optimised carbon rim provides excellent support for wide tubeless tyres. Double-butted Competition Race spokes and the highest quality wheel building round off the XMC 1501 Spline One wheels.
The DT Swiss XMC 1501 Spline One 30, with a 36 mm outer rim width and weighing just 1609 grams for the wheel set, is lightweight yet still sturdy enough for freeride and enduro use. Thanks to the high-end 240 EXP hubs with rust-proof ball bearings and the lightweight 30 mm wide carbon rims, the XMC 1501 Spline One wheels offer excellent acceleration. The legendary reliability of the Ratchet System hub and the straight-pull spokes combine to create the perfect competition wheel.
DT Swiss EXP hubs:
The DT Swiss 1501 wheelset series features the 240 EXP hubs. The DT Swiss 240 EXP straight-pull hubs offer minimal weight combined with exceptional durability. The new axle system, with 15 per cent more support width, increases hub stiffness. The EXP feature on the DT Swiss 240 hubs involves the integration of the pawl and threaded ring, which reduces the number of components and thus lowers the weight. A single coil spring ensures faster, complete engagement and therefore greater reliability. The complete interlocking of the spline rings creates a large contact surface and thus low point loads, resulting in superior reliability. The stainless steel ball bearings have proven to be extremely reliable and durable since the introduction of the 240 hubs. The patented freehub body works with spline rings that interlock. This guarantees loss-free power transmission.
DT Swiss Spline One Boost 15x110 front hub:
The DT Swiss Boost front hubs feature a wider hub body with spoke lugs and flange positioned further outwards. This makes these wheels even more laterally stiff and durable. Due to the wider hub design with 110x15 mm thru-axle mount, these hubs cannot be converted and are only compatible with Boost 15x110 mm forks; they can be converted to Torque Caps.
DT Swiss XMC 1501 Spline One 30 rims:
Carbon allows for the production of a 30 mm wide rim that provides ideal support for modern tyres, enables lower tyre pressure and thus reduces rolling resistance on rough surfaces. Thanks to the low moment of inertia of a carbon rim, the DT Spline One wheelsets offer rapid acceleration and precise handling. With an internal rim width of 30 mm, they are ideally designed for use from all-mountain to downhill with high-volume tyres. The rims of the EXC 1501 wheelsets are extra-reinforced and extremely stable. With an outer rim width of 35 mm, tyres ranging from 2.1 to 3.0 inches in width can be fitted. Thanks to new rim beads, the DT Swiss Spline One rims are ideally designed for upgrading with a tubeless kit. DT Swiss has also developed new tubeless kits specifically for this purpose. These are included in the scope of delivery
DT Swiss Straight Pull Competition Race spokes:
To achieve an ideal balance between weight and stability, only the highest-quality straight-pull spokes are used in Spline One wheelsets. They are stiffer than conventional spokes yet can still be trued and replaced using standard tools. The straight-pull lacing allows for precise placement and alignment of the spokes. This optimises the wheel’s stiffness and eliminates any unwanted stress peaks.
DT Swiss XMC 1501 Spline One 30-inch wheel specifications:
- 29-inch ETRTO: 622 x 30
- Rims: Full carbon DT Swiss rim
- Rim dimensions: inner width 30 mm, outer width 36 mm, height 25 mm
- Top-end hub with stainless steel ball bearings
- Ratchet Star freehub with 36-tooth sprocket
- DT Swiss Straight Pull spokes: butted, cold-forged spokes
- Nipples: DT Pro Lock aluminium nipples
- Spoke pattern: 3-cross
- 28 spokes per wheel
- Maximum tyre width 3.0
- Brake disc mount: Disc Centerlock
- Boost front hub 15x110 mm clamping width for Boost thru-axle fitting, convertible to Torque Caps
- Weight approx. 775 grams, manufacturer’s specification
- Maximum recommended system weight (rider and bike): 130 kg
- ASTM classification: 4
Scope of delivery DT Swiss XMC 1501 Spline One 30 Boost wheel:
- DT XMC1501 Spline One 30 Boost front wheel, end caps for Boost thru-axle installation, Centerlock adapter, tubeless rim tape, tubeless valve
Compatible front hub end caps:
- End caps Torque Caps 15x110 mm Item No: HWGXXX0006682S
- Left end cap 15x110 mm Item No.: HWAXXX00S2760S
- Right end stop 15x110 mm Item No.: HWAXXX00S2761S
Compatible front wheel spare parts:
- Tubeless valve 18–25 mm black Item No.: TVVXA32S23757S
- Tubeless rim tape 32 mm Item No: TVX3210S29846S
- Ball bearing 17 x 28 x 7 mm Item No.: HSBXXX00N9115S
- Hub axle 17 x 64.3 mm Part No: HRCXXX00N3296S
Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
