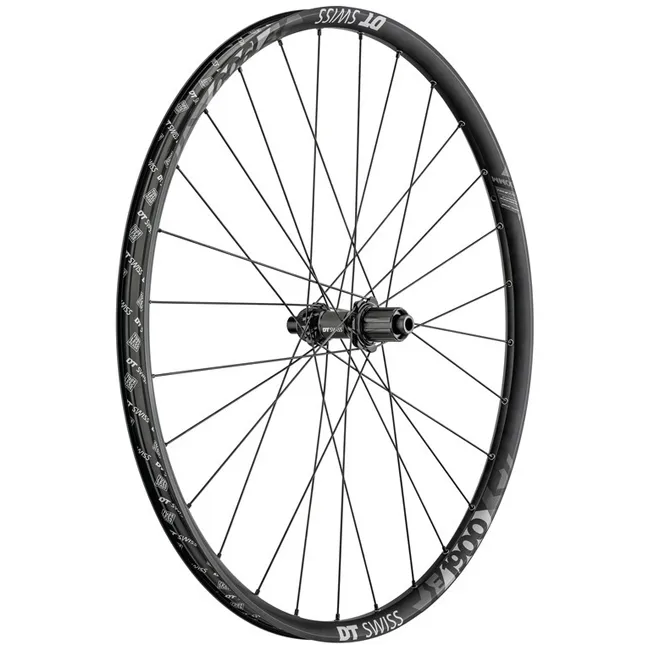

DT Swiss E 1900 Spline wheelset

The affordable freeride and enduro wheels, DT Swiss E 1900 Spline 30, now with 35 mm wide rims. Thanks to the DT Swiss hubs with Swiss precision ball bearings and the lightweight, high-strength rims, the E 1900 wheels offer high stability combined with a good weight-to-strength ratio. Built for tough enduro use, tyres up to 3.0” wide can be fitted. The legendary reliability of the DT Swiss hubs and the straight-pull lacing ensure long-lasting riding enjoyment.

DT Swiss 1900 Spline Hubs:

The DT Swiss straight-pull hub shells on the Spline wheelsets require minimal material, allowing them to be constructed to be lightweight yet stable. With the optimised hub body, specifically designed for extreme braking forces, and the reinforced flange, DT Swiss provides the perfect foundation for extra-stable wheelsets. The hubs on the Spline wheelsets feature a Centerlock brake disc mount.

The DT Swiss 1900 Spline hubs can be converted to fit all standard mountings using end stops; the front hubs are designed for 15 mm thru-axles and can be converted to a 9x100 mm quick-release mount. The rear hubs can be converted to 10x135mm quick-release mounts, 10x135mm thru-bolt, 12x135mm and 12x142mm thru-axle mounts. The list of compatible end caps and freehub bodies can be found below in the product description.

DT Swiss Pawl Freehub Body:

The Pawl freehub bodies, featuring the robust 3-pawl locking system, ensure efficient and smooth power transfer. Thanks to the tool-free design of DT Swiss rear hubs, they can be serviced and converted without tools. The Pawl freehub bodies are available as HG10 for Shimano and SRAM 8–10-speed and Shimano 11-speed MTB cassettes. Please note that the HG10 freehub bodies are not compatible with 11-speed road bike cassettes. Additionally, the XD11 pawl freehub body is available only for SRAM 11-speed XG MTB cassettes

DT Swiss E 1900 Spline rims:

Built for tough freeride and enduro use, the DT Swiss E 1900 rims with a 30 mm rim width offer maximum stability at a low weight. Designed for tyres from 2.2 to 3.0 inches wide, thanks to new, extra-sturdy rim spokes, the DT Swiss Spline rims are ideally suited for upgrading with a tubeless kit. Tubeless rim tape and valve included

DT Swiss Champion Straight Pull Spokes:

To achieve a good balance between weight and stability, Champion straight-pull spokes are used in Spline wheelsets. They are more stable than conventional spokes yet can still be trued and replaced using standard tools. The straight-pull lacing allows for precise placement and alignment of the spokes. This optimises wheel stiffness and eliminates any unwanted stress peaks.

DT Swiss E 1900 Spline 27.5-inch wheel specifications:

• 27.5-inch ETRTO: 584 x 30
• Rims: Aluminium tubeless-ready
• Rim dimensions: Inner width 30 mm, outer width 35 mm, height 21 mm
• Hub with steel ball bearings
• 3-pawl freehub system
• DT Swiss Comp Straight Pull spokes: cold-forged round spokes
• Nipples: DT Pro Lock brass nipples
• Lacing pattern: 3-cross
• Number of spokes: 28 per wheel
• Maximum tyre width 3.0
• Required rim tape width: 32 mm
• Brake disc mount: Centerlock
• QR15 front hub, 100 x 15 mm clamp width for 15 mm thru-axle fitting, convertible
• X12 rear hub 142 x 12 mm clamp width for X12 thru-axle mounting, convertible
• Rotor available as:
  • HG10 freehub body for Shimano and Sram 8, 9 and 10-speed MTB cassettes and Shimano XTR, XT, SLX 11-speed MTB cassettes
  • SRAM XD freehub body for SRAM 11- and 12-speed XG MTB cassettes
• Weight approx. FR: 983 grams, RR: 1060 grams

Scope of delivery DT Swiss E 1900 Spline 30 wheelset:

DT E 1900 Spline rear wheel, QR15 and X12 end caps, tubeless valve

Compatible endstops for DT Swiss 1900 Spline rear wheels:

• Quick-release mounting HG10 freehub, 10x135 mm: Item No. HWGXXX0001528S
• Quick-release mount Sram XD freehub, 10x135 mm: Item No.HWGXXX00S3115S
• Thru-bolt mounting HG10 freehub, 10x135 mm: Item No. HWGXXX0004634S
• Thru-bolt mount Sram XD freehub, 10x135 mm: Item No. HWGXXX00S3218S
• QR12 thru-axle mount HG10 freehub, 12x135 mm: Item No. HWYXXX0001287S
• QR12 Thru-Axle Mount Sram XD Freewheel, 12x135 mm: Item No.HWGXXX00S3382S
• X12 thru-axle mount HG10 freehub, 12x142 mm: Item No. HWGXXX0002193C
• X12 thru-axle mount Sram XD freehub, 12x142 mm: Item No. HWGXXX00S3188S

DT Swiss MTB freehub body, 3-pawl system

• DT Swiss Freewheel Body Hybrid Steel MTB Pawl Shimano/Sram HG10HG10 Item No: HWRAAMWSS0342S
• DT Swiss Hybrid Steel MTB Freewheel Body, Sram XD 11-12-speed, Item No: HWRAAMWSS1049S
• DT Swiss Freewheel Body Aluminium MTB Pawl Shimano/Sram HG10 End Stop for 10x135 mm Quick Release Mounting, Item No. HWYABM00S6147S
• DT Swiss Aluminium MTB Freewheel Body Pawl Shimano/Sram HG10 End Stop for 10x135 mm Thru-Bolt Mounting, Item No. HWYABM00S6147S
• DT Swiss Freehub Body Aluminium MTB Pawl Shimano/Sram HG10 End Stop for 12x142 mm Thru-Axle Mounting, Item No. HWYABM00S6150S
• DT Swiss Aluminium Freewheel Body Kit, Sram XD 11-12-speed End Stop for 10x135mm Quick Release Mounting, Item No. HWYAAM00S3907S
• DT Swiss Freewheel Body Kit Aluminium Pawl Sram XD 11-12-speed End Stop for X12x135 or 12x150mm Thru-Axle Mounting, Item No. HWYAAM00S3908S
• DT Swiss Freehub Body Kit Aluminium Pawl Sram XD 11-12-speed end stop for X12x142mm or 12x157mm thru-axle mounting, Item No. HWYAAM00S3909S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
