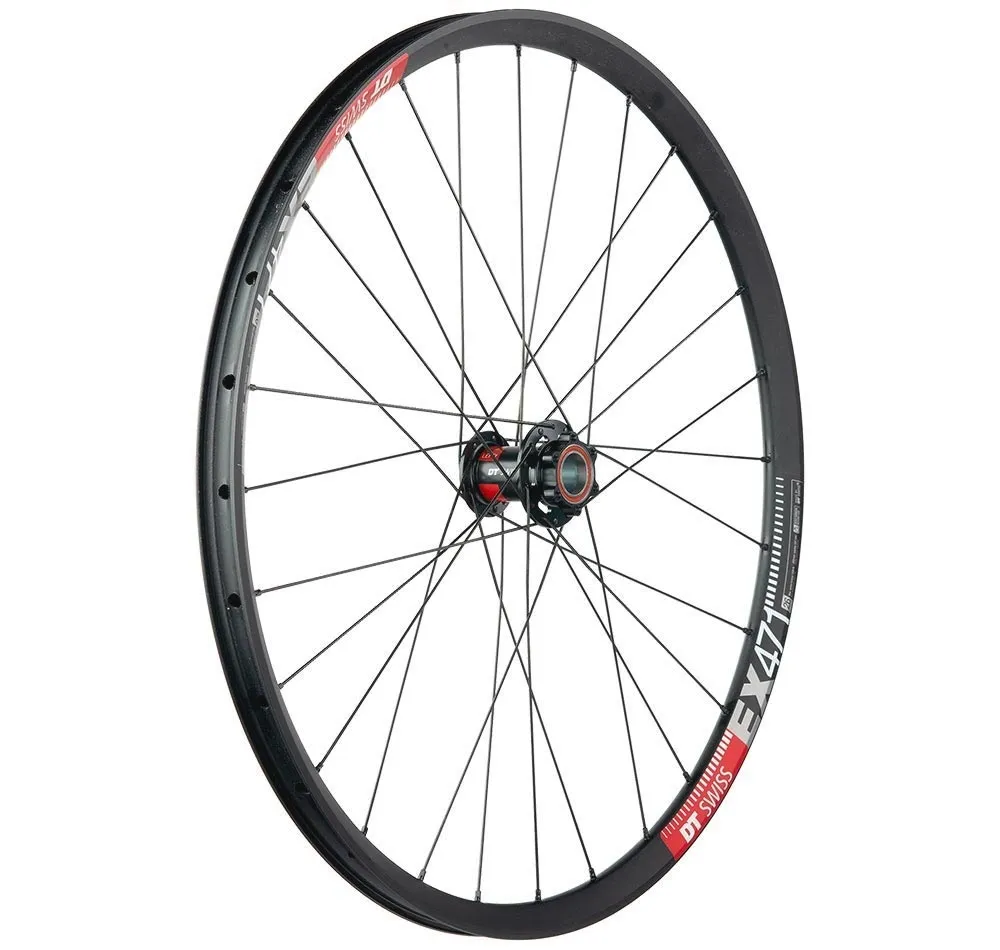

26-inch wheel DT Swiss 240S Lefty

The front wheel featuring the DT Swiss 240 EXP Lefty hub and the EX 471 tubeless-ready rims from DT Swiss. Hand-built in our specialist workshop. Available with different spokes and nipples

Wheel building at TNC-Hamburg:

We manufacture these wheels entirely by hand for you. Thanks to more than 30 years’ experience in wheel building, we extract the optimum in concentricity, durability and stiffness from the materials. These wheels are, of course, tested multiple times for truing, and we also pre-load the spokes in the longitudinal direction. This eliminates the need for re-truing over a long period of time.

These wheels are made to order specifically for you, which is why we cannot offer a right of return for them. This item is not eligible for a discount.

DT Swiss 240 EXP Lefty hubs:

With the DT Swiss 240 EXP hubs, the Swiss revolutionised lightweight hub construction years ago. Minimal weight combined with extremely good durability is something of a rarity, particularly in hub construction. The ‘S’ in the DT Swiss 240 EXP hubs stands for the stainless steel ball bearings

• DT Swiss 240 EXP Disc 6-bolt Lefty front hub:
  For Lefty installation, the DT Swiss 240S hub: compatible only with Lefty 50 Hybrid forks; a Cannondale adapter is required for Supermax 60 Lefty forks

DT Swiss EX 471 rim

The lightweight 30 mm wide Enduro rim from DT Swiss, the EX 471. Designed for wide Enduro tyres, the DT EX 471 rim offers very high stability with a pleasingly low weight of just 475 grams. Thanks to extensive FEM analyses, DT Swiss EX 471 rims feature material only where it is actually needed. These rims are supplied with special DT Squorx Pro Head nipples and PHR washers and must only be laced using these nipples. With the wide EX 471 rim, DT Swiss offers a rim for stable and lightweight Enduro wheelsets. Cleanly finished, with a welded joint and stainless steel eyelets, the DT Swiss EX 471 strikes the perfect balance between low weight and high stability.

DT Swiss EX 471 Disc Rim Specifications:

• ETRTO: 559 x 25, 26 inches
• ERD: 537 mm
• Aluminium rim, single-spoke
• Width: 25 mm (internal), 30 mm (external) Height: 21 mm
• Maximum recommended tyre width: 2.4
• SBTW welded joint
• Valve hole 6.5 mm
• Required rim tape: 559 x 27 mm
• Weight 475 grams including Squorx Pro nipples
