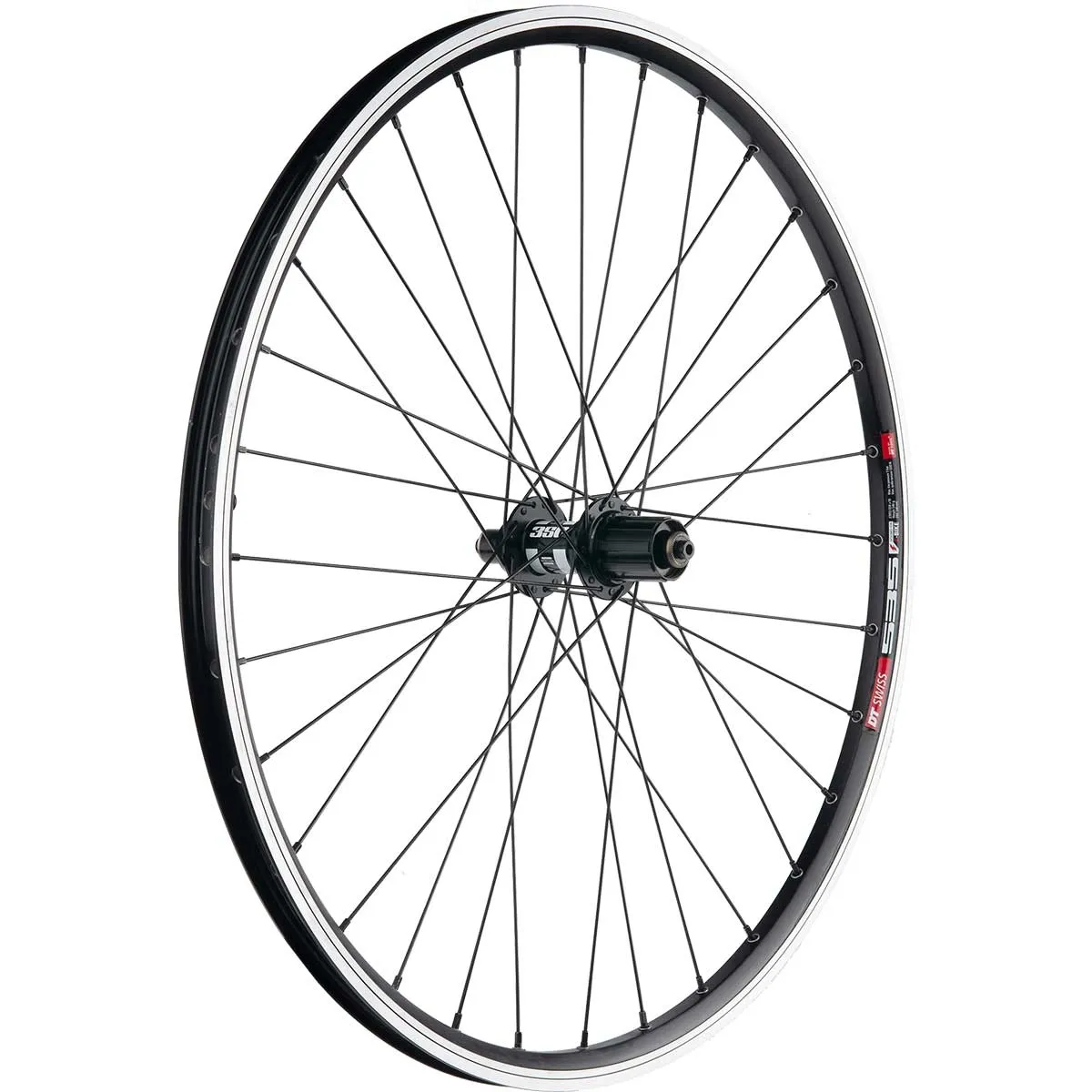

DT Swiss 350 NoDisc hub plus DT Swiss 535 rim
The rear wheel for 26-inch bikes with rim brakes. The robust DT 535 rims combined with the DT Swiss 350 NoDisc hub result in a durable and stable 26-inch wheel for classic rim brakes. The DT Swiss 350 hub is designed for classic quick-release mounting with a 10x135 mm mounting dimension.
Wheel building at TNC-Hamburg:
We manufacture these wheels entirely by hand for you. Thanks to more than 30 years of experience in wheel building, we extract the optimum in roundness, durability and stiffness from the materials. These wheels are, of course, tested multiple times for truing, and we also pre-load the spokes in both the radial and lateral directions. This eliminates the need for re-truing over a long period of time. We use DT Swiss spokes exclusively. These ensure outstanding durability of the wheelsets.
These wheelsets are made to order specifically for you, which is why we cannot offer a right of return for them. Please feel free to enquire about other wheel set configurations. We will then provide you with a quote.
Included in delivery:
- Rear wheel fully laced and perfectly trued in our workshop, with DT 350 NoDisc hub, DT Swiss UB 535 rim and DT spokes, excluding rim tape and valve
DT Swiss 350 No Disc rear hub technology:
- Housing material: Aluminium
- Freewheel body: Aluminium with 2 pawls, specially coated
- Axle: Aluminium
- Industrial ball bearings
- Seal-less sealing system
- Weight: 252 grams
- Clamp width 135x10 mm for quick-release mounting, convertible
- Ratchet Star freehub body available as:
HG11 rotor compatible with Shimano and Sram road and MTB cassettes (8, 9, 10 and 11-speed)
Micro Spline rotor
compatible with Shimano MTB cassettes (12-speed)XD rotor compatible with Sram MTB XG cassettes (11 and 12-speed) - Weight approx. 328 grams
DT Swiss 535 26-inch rims Specifications:
- ETRTO: 559 x 22, 26-inch
- ERD: 540 mm
- Aluminium rim, single-pinned
- For rim brakes only
- Width: 19 mm (internal), 24 mm (external) Height: 20 mm
- Maximum recommended tyre width: 2.5
- Valve hole 6.5 mm
- Rim tape 21 mm
- Weight: 524 grams
DT Swiss 350 No Disc Hubs:
With the 350 hubs, DT Swiss offers affordable, high-quality hubs. From road bike to downhill versions, the 350 hub range is designed for maximum durability. Fitted with high-quality seals and bearings, these are the hubs to choose if you’re looking for long-lasting, low-maintenance wheelsets. The rear hub is equipped with the Ratchet Star ratchet body system
DT Swiss Ratchet Star freehub system:
The Ratchet Star freehub body system works with two sprockets, each with 18 teeth. This ensures loss-free power transmission, extreme durability and virtually no play when pedalling. The freehub bodies can be fitted without tools. Freehub bodies are available for Shimano 8–11-speed MTB cassettes and SRAM 8–10-speed MTB cassettes for the XD system, as well as for SRAM 11+12-speed XG cassettes and the Shimano Micro Spline 12-speed MTB cassette system.
DT Swiss 535 Rim
The affordable 26-inch rim from DT Swiss for rim brakes. With the 535 rim, DT Swiss offers a wide and very robust rim for use in cross-country, all-mountain and e-bike applications. With its clean finish, the DT Swiss 535 rim, measuring 24 mm in width and 189 mm in rim width, allows for the fitting of tyres up to 2.5 inches wide.
DT Swiss Competition Spokes:
These double cold-forged spokes are made from rust-resistant 18/10 chrome-nickel steel with a tapered middle section, ensuring robust yet lightweight wheelsets. We recommend these spokes for virtually all wheelsets. Extremely durable and sufficiently lightweight, DT Competition spokes enable wheel building of the highest standard. Thanks to the tapered middle section, the spokes absorb movements in the wheel exceptionally well, without compromising on lateral stiffness or durability. Weight with brass nipples approx. 7 grams
DT Swiss Squorx Pro Head spoke nipples:
The DT Squorx Pro Head nipple combines ease of installation, light weight and top performance in a single product. The Torx head makes lacing flat spokes a breeze. The spherical contact surface ensures perfect alignment with the spoke, whilst the square section allows for easy re-centring using standard tools with the tyre fitted. These features ensure even pressure distribution and long-lasting durability
