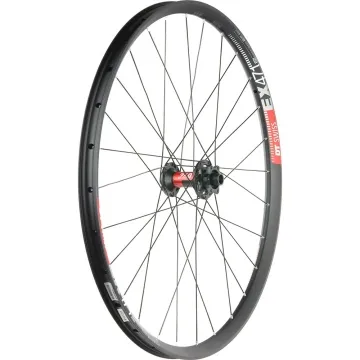

27.5-inch MTB wheel DT Swiss 240 EXP

The front wheel featuring DT Swiss 240 EXP hubs and tubeless-ready rims from DT Swiss. Hand-built in our specialist workshop. You can customise this wheelset entirely to your specifications.

Wheel building at TNC-Hamburg:

We manufacture these wheels entirely by hand for you. Thanks to more than 30 years of experience in wheel building, we get the very best in roundness, durability and stiffness out of the material. These wheels are, of course, tested multiple times for truing, and we also pre-load the spokes in the longitudinal direction. This eliminates the need for re-truing over a long period of time.

These wheels are made especially for you, which is why we cannot offer a right of return for them.

DT Swiss 240 hubs:

With the DT Swiss 240 hubs, the Swiss revolutionised lightweight hub construction years ago. Minimal weight combined with exceptional durability is a rarity, particularly in hub construction.

Available DT Swiss 240 hubs for this wheel:

• DT Swiss 240 EXP Disc 6-hole QR9 front hub:
  For QR9 mounting, the DT Swiss 240 EXP hub: 9x100 mm clamp width for quick-release mounting, without quick-release skewer
• DT Swiss 240 EXP Disc 6-hole QR15 front hub:
  For 15 mm thru-axle mounting, the DT Swiss 240 EXP hub: 15x100 mm clamp width for QR15 thru-axles
• Front wheel hub DT Swiss 240 OS EXP Disc 6-hole QR20:
  For 20 mm thru-axle mounting, the DT Swiss 240 EXP hub: clamping width 20x110 mm for QR20 thru-axles
• DT Swiss 240 EXP Disc 6-hole Boost 15 front hub:
  For 15 mm Boost thru-axle installation, the DT Swiss 240 EXP hub: 15x110 mm clamp width for Boost thru-axles
• DT Swiss 240 EXP Disc 6-hole Boost OS front hub:
  For 20 mm Boost thru-axle mounting, the DT Swiss 240 EXP hub: 20x110 mm clamp width for Boost thru-axles
• DT Swiss 240 EXP Disc 6-hole Lefty front hub:
  For Lefty installation, the DT Swiss 240 EXP hub: compatible only with Lefty Hybrid forks; a Cannondale adapter is required for Supermax Lefty forks

DT Swiss tubeless-ready rims:

The new generation of DT Swiss rims, featuring an excellent stiffness-to-weight ratio and a new rim design. These rims are supplied with DT Squorx Pro Head nipples and must only be laced using these nipples and washers. The DT Swiss XR 331, XM 401 and EX 475 rims are equipped with specially adapted rim flanges for tubeless tape and can be easily upgraded to tubeless rims using DT Swiss tubeless tape

Available DT Swiss rims for this wheel:

• DT Swiss XR 361 rim, the robust All Mountain CC rim from DT Swiss
  Width: 22.5 mm (internal) 26 mm (external), weight 410 grams including Squorx Pro Head nipples
• DT Swiss XR 391 rim, the wide All Mountain CC rim from DT Swiss
  Width: 25 mm (internal) x 30 mm (external), weight 440 grams including Squorx Pro Head nipples
• DT Swiss XM 401 rim, the lightweight All Mountain and Trail rim from DT Swiss
  Width: 22.5 mm (internal) 24 mm (external), weight 430 grams including Squorx Pro Head nipples
• DT Swiss XM 421 rim, the robust All Mountain and Trail rim from DT Swiss
  Width: 25 mm (internal) 30 mm (external), weight 450 grams including Squorx Pro Head nipples
• DT Swiss XM 481 rim, the wide All Mountain and Trail rim from DT Swiss
  Width: Inner 30 mm, Outer 35 mm, Weight 490 grams including Squorx Pro Head nipples
• DT Swiss XM 521 rim, the super-wide all-mountain and trail rim from DT Swiss
  Width: 35 mm (internal) / 40 mm (external), weight 545 grams including Squorx Pro Head nipples

Included:

Front wheel with DT Swiss 240 EXP hub, DT rim, DT spokes and DT nipples as selected. Laced and trued in our workshop. Excludes rim tape and UST valve
