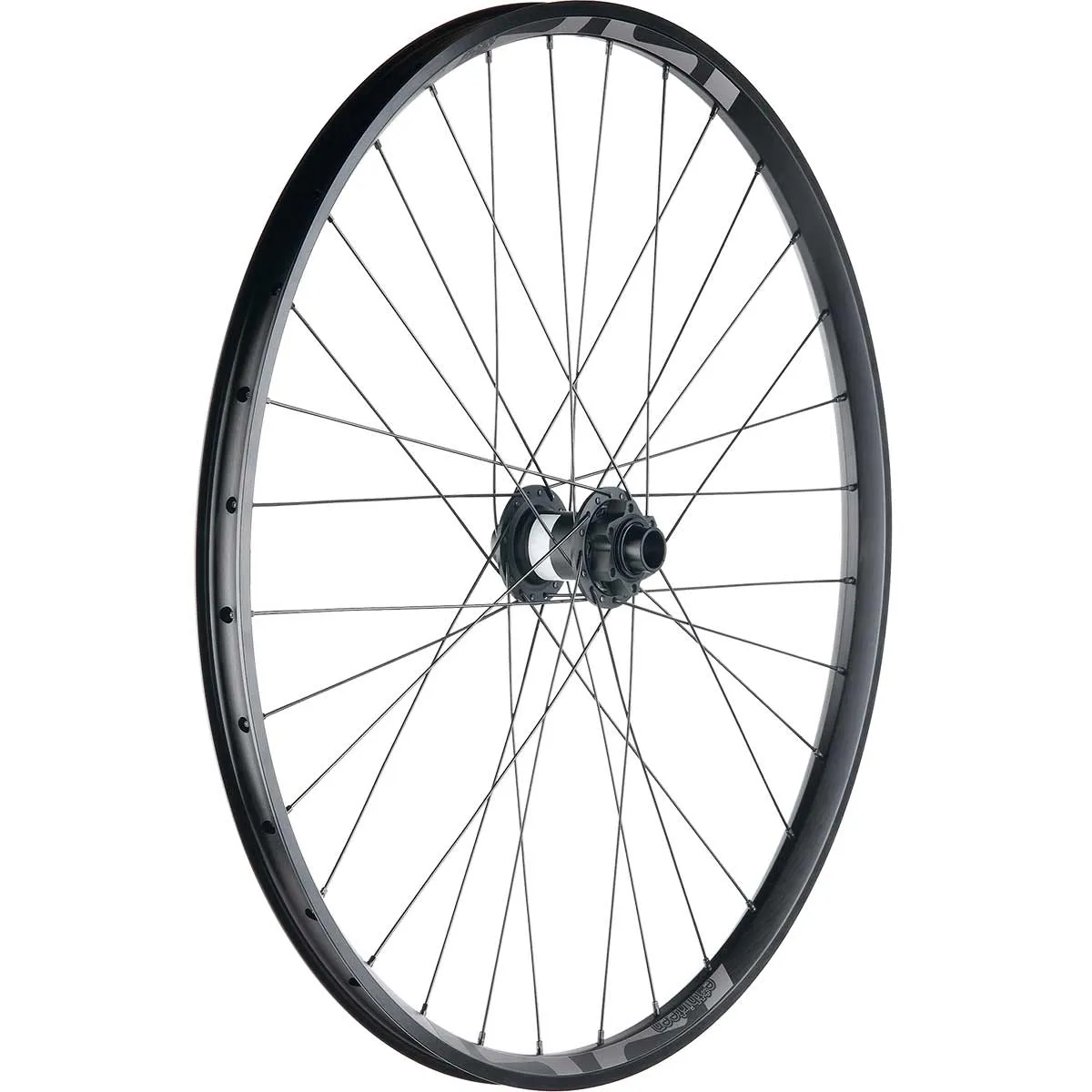

DT Swiss 350 Disc wheel set with LG1 and DH rims

The All Mountain Trail and Enduro, 27.5-inch front wheel featuring the new DT Swiss 350 Classic hubs and the e*thirteen TRS+ plus rim with a 27 mm rim width. The new robust DT Swiss 350 Classic hubs are designed for a system weight of 140 kg yet remain lightweight

The hubs are available in all standard mounting widths, from quick-release to Super Boost thru-axle, Disc 6-bolt and Disc Centerlock. The Centerlock hubs are not available in all mounting sizes

DT Swiss 350 Classic hubs:

With the 350 hubs, DT Swiss offers affordable, high-quality hubs. From road bike to downhill versions, the 350 hub range is designed for maximum durability. Equipped with high-quality seals and bearings, they are the choice if you are looking for hubs for long-lasting, low-maintenance wheelsets. The DT 350 rear hubs are also fitted with DT’s patented Ratchet Star SL freehub system. Two 36-tooth discs mesh together to guarantee loss-free power transmission. Thanks to the raised hub flanges, the DT Swiss 350 hubs provide wheelsets with excellent lateral stiffness and durability.

e*thirteen TRS Plus rim:

The Plus version of the TRS rim with a welded rim joint for even greater stability. A durable and lightweight rim for all-mountain and enduro use. The TRS+ rim is highly puncture-resistant and is, of course, also tubeless-ready. The 27 mm rim width of the TRS+ is ideal for most tyre sizes. This ensures optimal tyre support.

Wheel building at TNC-Hamburg:

We hand-build these wheelsets exclusively for you. Thanks to over 30 years’ experience in wheel building, we extract the optimum in concentricity, durability and stiffness from the material. These wheelsets are, of course, tested multiple times; we also pre-load the spokes in both the radial and lateral directions. This eliminates the need for re-truing over a long period. We use DT Swiss spokes exclusively. These ensure outstanding durability of the wheelsets. For DH and Enduro use, we recommend brass nipples.

These wheels are custom-made for you, so we cannot offer a right of return for them. Please feel free to enquire about other wheel configurations. We will then send you a quote.

Included in delivery:

Front wheel fully laced and hand-trued in our workshop with a DT 350 hub, DT spokes, DT nipples as selected and an e*thirteen TRS Plus rim. Excludes rim tape and valve

DT Swiss 350 Classic MTB Disc front hub specifications:

• Housing material: Aluminium
• Axle: Aluminium
• Industrial ball bearings
• Seal-less sealing system
• Weight from 172 grams
• Available as:
  • 9x100 mm quick-release mount
  • 15x100 mm thru-axle mount
  • DH 20x110 mm thru-axle mount, disc 6-bolt only
  • Boost 15x110 mm thru-axle mount
  • Boost 20x110 mm thru-axle mount, disc 6-hole only

e*thirteen TRS+ Aluminium Disc 27.5-inch Rims Specifications:

• ETRTO: 584 x 27, 27.5-inch
• ERD: 561 mm
• Application: Downhill, Enduro
• Material: Aluminium
• Width: 27 mm (internal), 30 mm (external)
• Required rim tape: 559 x 29 mm
• Weight: 488 grams
• Recommended tyre width: 2.1 to 2.5

DT Competition spokes:

The double cold-forged spoke made from rust-resistant 18/10 chrome-nickel steel with a tapered middle section for robust, lightweight wheels. We recommend these spokes for virtually all wheels. Extremely durable and sufficiently lightweight, DT Competition spokes enable wheel building of the highest standard. Thanks to the tapered middle section, the spokes absorb movements in the wheel exceptionally well, without compromising on lateral stiffness or durability. Weight with nipple approx. 7 grams

DT Swiss Aero Comp spokes:

Designed for stable, laterally stiff yet aerodynamic wheelsets, the DT Swiss Aero Comp spoke is first cold-forged in the middle section, making it lighter and stronger. In a further complex process, it is flat-forged to optimise aerodynamic properties whilst simultaneously increasing material strength. The DT Aero Comp guarantees a balanced combination of stiffness, aerodynamics and durability.

DT Swiss Aero Lite spokes:

The DT Swiss Aerolite spoke is flatter and lighter than any other; the DT Swiss Aerolite spoke features an aerodynamic flat profile and is extremely lightweight. Thanks to the 0.9 x 2.3 mm aerodynamic mid-section, this spoke can be fitted to all standard hubs. The Cold Forging Technology (CFT) developed by DT Swiss makes the reduced and forged DT Aerolite the lightest stainless steel spoke and gives it excellent mechanical properties. Particularly suitable for super-light and fast road or cross-country wheelsets. 64 DT Aerolite spokes weigh just an incredible 278 g at a length of 264 mm. Weight per spoke at a length of 264 mm: 4.31 grams

DT Squorx spoke nipples:

The DT Swiss Squorx Pro Head nipple combines ease of installation with light weight thanks to the DT Pro Head shape, combined with an additional Torx and square tool socket. The Torx socket provides a larger contact area during wheel building, ensuring that the force from the tool is better distributed across the nipple. The spherical contact area within the rim guarantees perfect alignment with the spoke.
