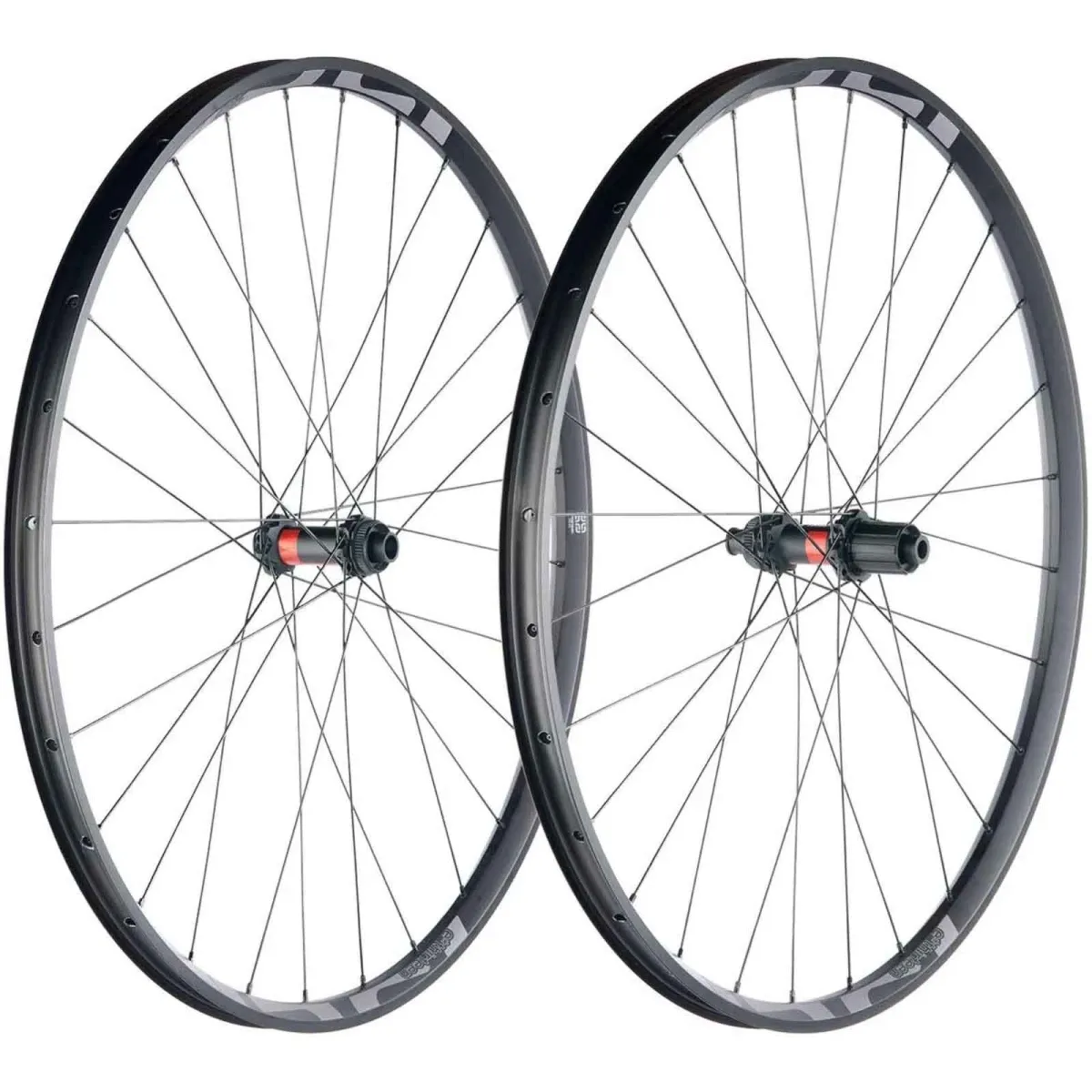

DT Swiss 240 EXP Straightpull wheelset with e*thirteen Optimus Race Trail rims

The high-end trail and all-mountain wheelset featuring the new DT Swiss 240 EXP Spline hubs and e*thirteen Optimus Race Trail rims with a 28 mm rim width, weighing just 477 grams.

We offer this wheelset with Centre Lock or Disc 6-hole brake disc mounts. The 240 EXP hubs are available in quick-release, thru-axle or Boost thru-axle versions.

Wheel building at TNC-Hamburg:

Hand-built in our specialist workshop. We manufacture these wheels entirely by hand for you, which is why we cannot offer a right of return for them. Thanks to more than 30 years’ experience in wheel building, we extract the optimum in concentricity, durability and stiffness from the materials. These wheels are, of course, tested multiple times; we also pre-load the spokes in both the transverse and longitudinal directions. This eliminates the need for re-truing over a long period of time. We use DT Swiss spokes exclusively. These ensure outstanding durability of the wheelsets. For DH and Enduro use, we recommend brass nipples.

Please feel free to enquire about other wheel configurations. We will then send you a quote.

Included in delivery:

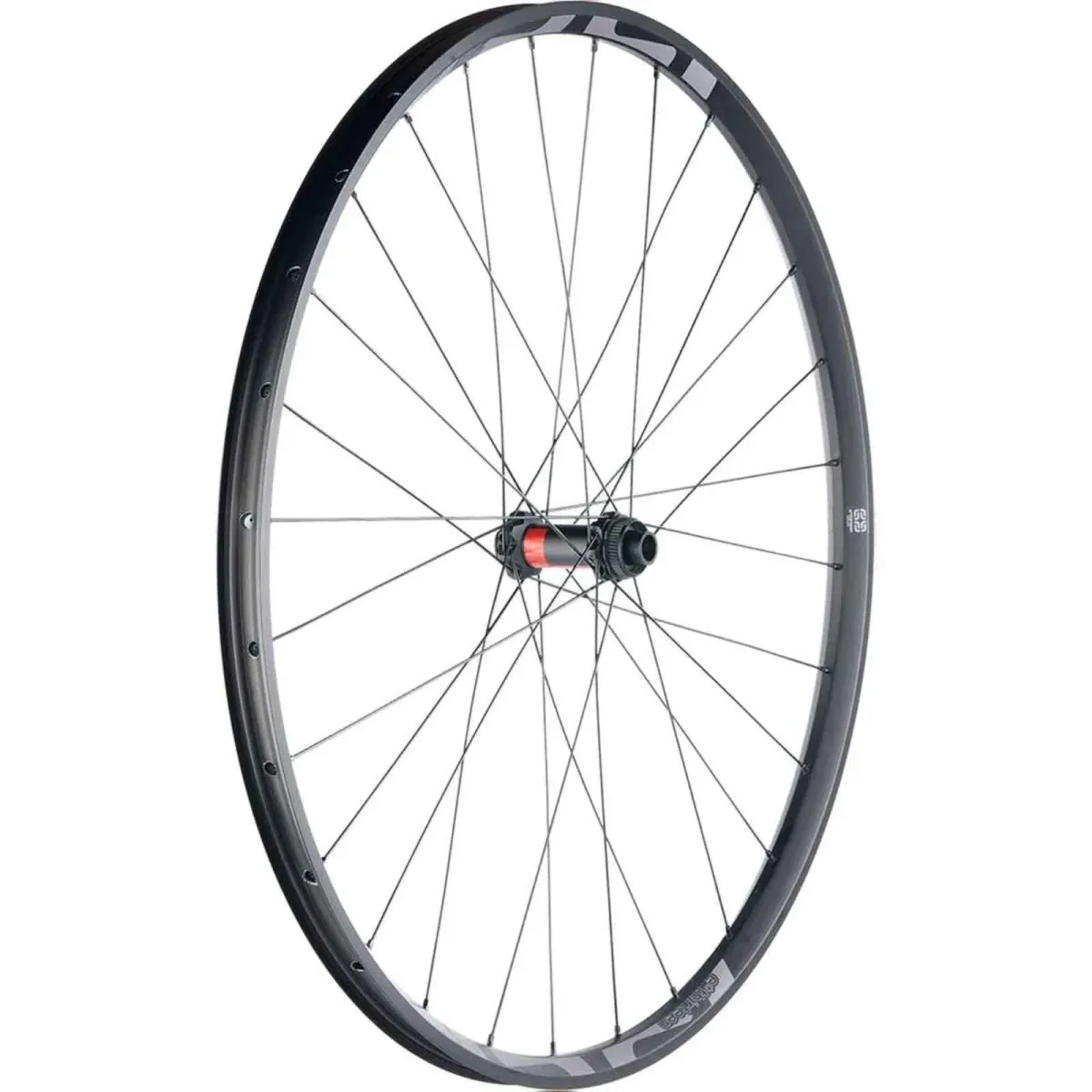

• Front wheel fully laced and perfectly trued in our workshop, with DT Swiss 240 EXP Spline hub, e*thirteen Optmus Race Alloy rim and DT spokes, without rim tape and valve

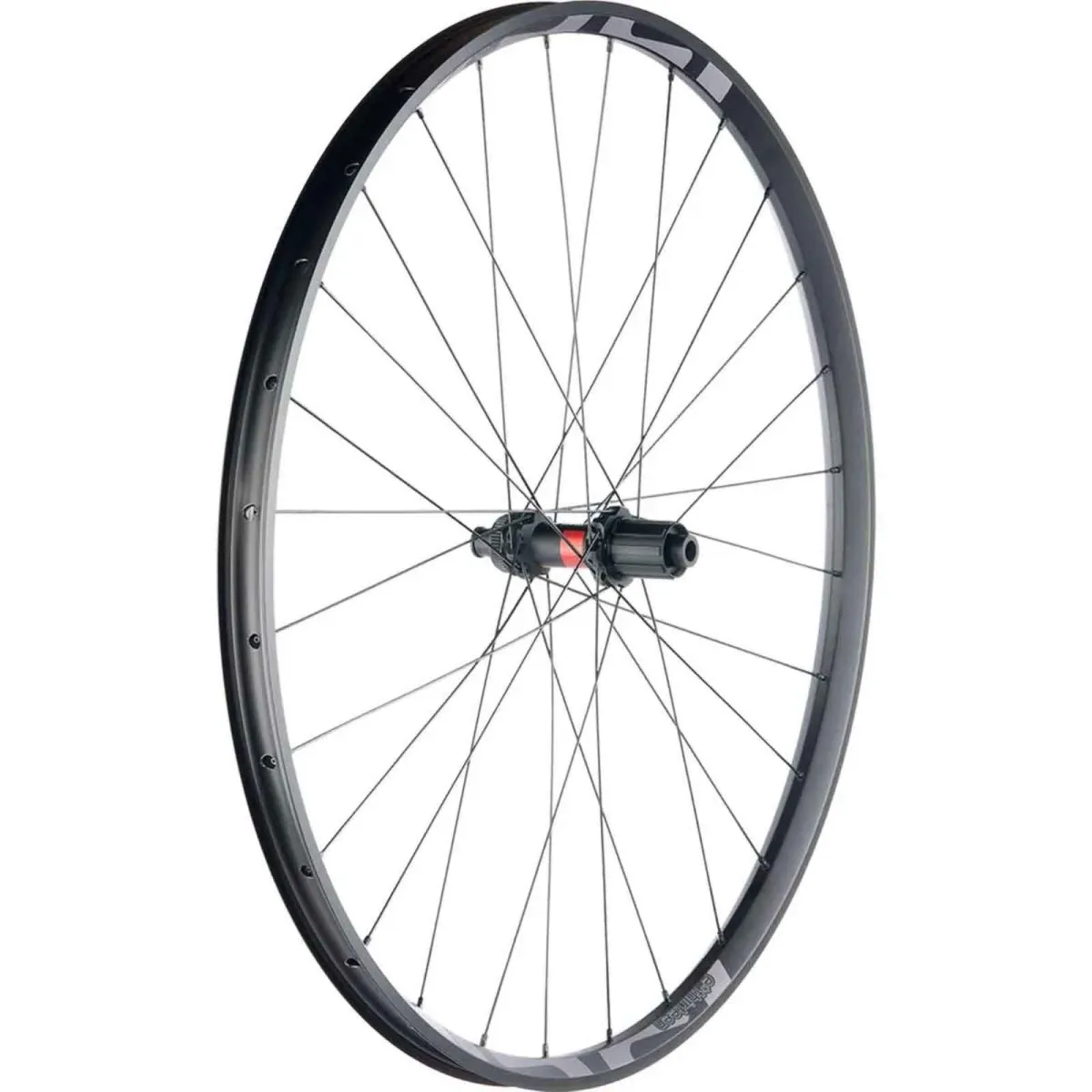

• Rear wheel fully laced and perfectly trued in our workshop, featuring a DT Swiss 240 EXP Spline hub, e*thirteen Optmus Race Alloy rim and DT spokes, without rim tape and valve

DT Swiss 240S EXP Straightpull front hub technology:

• Applications: MTB, road bike; cyclocross, gravel, touring
• Housing material: Aluminium
• Axle: Aluminium
• Stainless steel ball bearings
• Seal-less sealing system
• Weight: from 118 grams
• Brake disc mount, Centerlock or 6-bolt disc
• Available front hubs
  • Thru-axle mounting 15x100 mm
  • Quick-release mounting 9x100 mm
  • Boost thru-axle mounting 15x110 mm

DT Swiss 240 EXP Straightpull rear hub technology:

• Applications: MTB, road bike; cyclocross, gravel, touring
• Housing material: Aluminium
• EXP Ratchet freehub body: Aluminium with 2 ratchet pinhubs, specially coated
• Axle: Aluminium
• Stainless steel ball bearings
• Seal system: non-contact
• Weight from 237 grams
• Brake disc mount: Centerlock or 6-bolt disc
• Available rear hubs
  • Thru-axle mounting 12x142 mm
  • Quick-release mounting 10x135 mm
  • Boost thru-axle mounting 12x148 mm
  • Super Boost thru-axle mounting 12x157 mm, 6-bolt disc only
• Available freehub bodies
  • HG10 for Shimano 8-11-speed and Sram 8-10-speed MTB cassettes
  • XD for SRAM 11- and 12-speed MTB XG cassettes
  • Micro Spline for Shimano 12-speed MTB cassettes

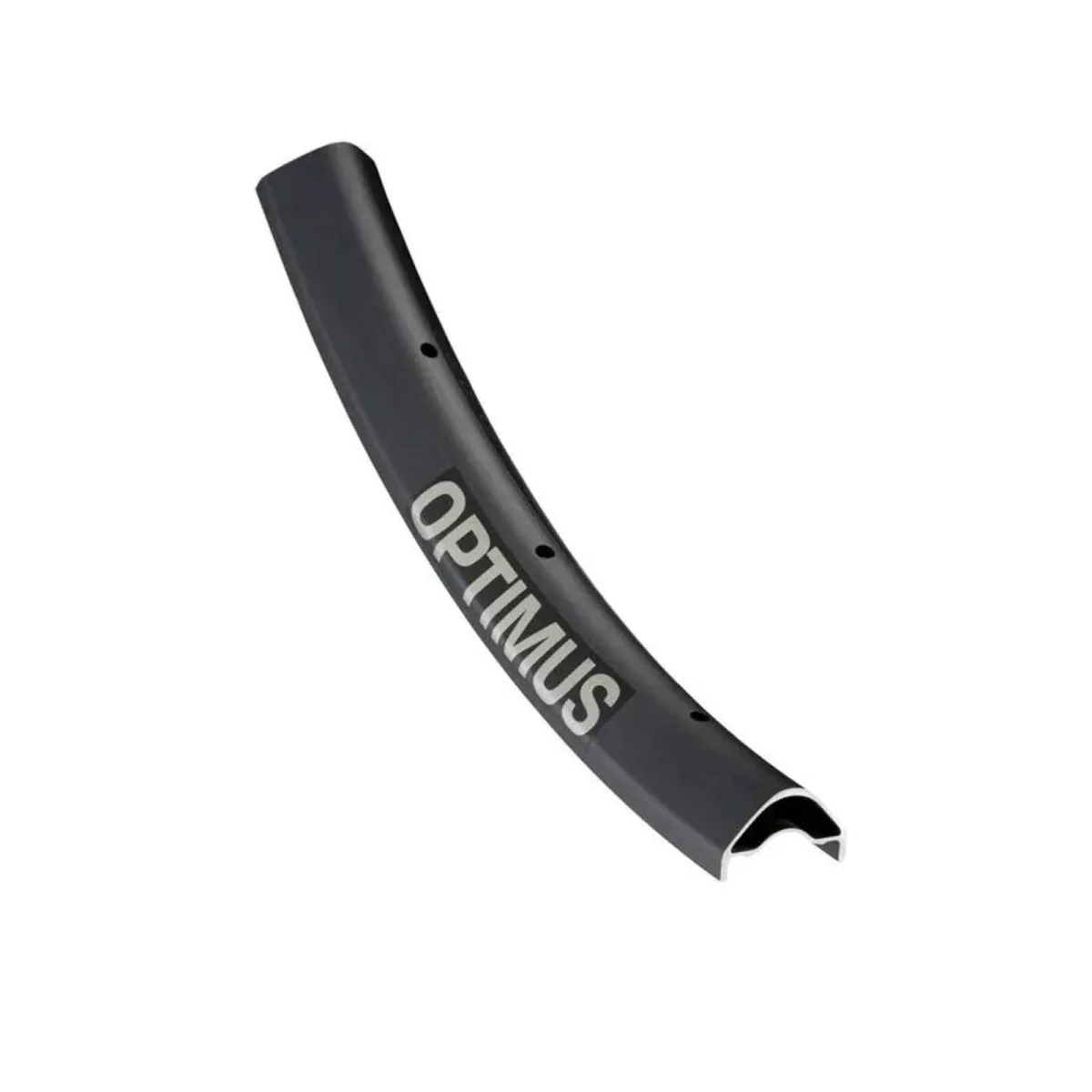

e*thirteen Optimus Race aluminium rims – specifications and dimensions:

• 29 inches, ETRTO: 622 x 28
• Rim width 28 mm
• ERD: 593 mm
• Intended use: Cross Country, Marathon, Trail
• Material: Aluminium 6069AL
• Internal width 28 mm
• Required tubeless rim tape width: 30 mm
• Weight: 477 grams (manufacturer’s specification)
• Recommended tyre width: 2.3 to 2.5

DT Swiss 240 EXP hubs:

The DT Swiss 240 EXP straight-pull hubs offer minimal weight combined with exceptional durability – a rarity in hub construction. The DT Swiss 240 EXP hubs feature low-maintenance stainless steel ball bearings. The patented freehub body utilises interlocking toothed discs, ensuring loss-free power transmission. Straightpull refers to straight, non-offset spokes. Thanks to this technology, it is possible to achieve an ideal balance between weight and stability. The straightpull spokes allow for very precise alignment and optimised positioning within the wheel, resulting in a stiffer and more responsive wheel.

DT Competition spokes:

The double cold-forged spoke made from rust-resistant 18/10 chrome-nickel steel with a tapered middle section for robust, lightweight wheels. We recommend these spokes for virtually all wheels. Extremely durable and sufficiently lightweight, DT Competition spokes enable wheel building of the highest standard. Thanks to the tapered middle section, the spokes absorb movements in the wheel exceptionally well, without compromising on lateral stiffness or durability. Weight with nipple approx. 7 grams.

DT Competition Race spokes:

Just as versatile as the bent version of the DT Competition spoke, but as a straight spoke. They are optimally matched to the new straight-pull hubs and offer even greater durability compared to the conventional DT Competition spoke. Thanks to the extra-thin middle section, they save a further 35 g per wheel compared to the already lightweight DT Competition, whilst offering almost the same stiffness and durability.

DT Swiss Aero Comp spokes:

Designed for stable, laterally stiff yet aerodynamic wheelsets, the DT Swiss Aero Comp spoke is cold-forged in the middle section, making it lighter and stronger. In a further complex process, it is flat-forged to optimise aerodynamic properties whilst simultaneously increasing material strength. The DT Aero Comp guarantees a balanced ratio of stiffness, aerodynamics and durability.

DT Swiss Aero Lite spokes:

The DT Swiss Aerolite spoke is flatter and lighter than any other; the DT Swiss Aerolite spoke features an aerodynamic flat profile and is extremely lightweight. Thanks to the 0.9 x 2.3 mm aerodynamic mid-section, this spoke can be fitted to all standard hubs. The Cold Forging Technology (CFT) developed by DT Swiss makes the reduced and forged DT Aerolite the lightest stainless steel spoke and gives it excellent mechanical properties. Particularly suitable for super-light and fast road or cross-country wheelsets. 64 DT Aerolite spokes weigh an incredible 278 g at a length of 264 mm. Weight per spoke at a length of 264 mm: 4.31 grams

DT Swiss Revolite spokes:

After several rounds of production, the DT Revolite spoke was given its unique shape – completely new for this product type – which provides the spoke with clear advantages such as durability and low weight. The DT Revolite is the ideal choice for riders looking for a spoke that combines durability and low weight. Over several rounds of development, its innovative shape has been optimised to withstand repeated stress and to surpass all other DT Swiss MTB spokes in its weight class in terms of durability. The flat-forging process increases the material density, resulting in even greater strength with lower weight. Unlike the classic spoke, the production process for the DT revolite includes an additional step: the DT Swiss-specific reduction method using a cold forging process. The result is a lightweight, double-tapered spoke that increases the strength of the material whilst retaining its valuable elastic properties. The patent-pending forging process ensures a uniform transition between the tapered and forged sections of the spoke, thereby increasing its durability.

DT Squorx spoke nipples:

The DT Swiss Squorx Pro Head nipple combines ease of installation with light weight thanks to the DT Pro Head shape, combined with an additional Torx and square tool socket. The Torx socket provides a larger contact area during wheel building, ensuring that the force from the tool is better distributed across the nipple. The spherical contact area within the rim guarantees perfect alignment with the spoke.
