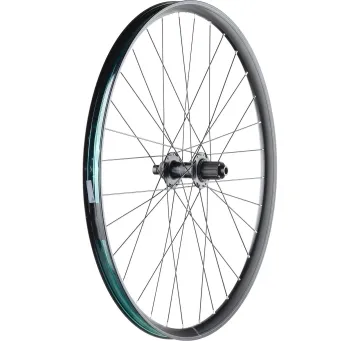

Mavic E-Crossride 1 E-bike wheel

The new affordable and extra-robust Mavic E-Crossride enduro and trail e-bike wheels, featuring Classic hubs, 32 J-bend spokes and a 30 mm rim width, are designed for high-torque e-bikes and maximum riding enjoyment. Approved for a system weight of up to 150 kg

Included

• Mavic E-Crossride 1, 27.5-inch rear wheel, freehub body as selected, tubeless rim tape

Mavic E-Crossride 1 e-bike wheel specifications and dimensions:

• 27.5-inch, ETRTO 584x30, 650B
• Applications: E-bikes, All Mountain, Trail, Enduro
• Classic hub: aluminium body, sealed industrial bearings
• Rim width: 30 mm
• Rim: Aluminium
• Brake disc mount: DCL Disc Centerlock
• J-bend spokes: 32 steel spokes
• Rear wheel: Boost 12x148 mm thru-axle, non-convertible
• Instant Drive 360-tooth freehub body, available as
  • HG10 freehub body for Shimano MTB cassettes 8 + 9 + 10 + 11-speed and Sram MTB cassettes 8 + 9 + 10-speed
  • SRAM XD freehub body for SRAM 11- and 12-speed XG MTB cassettes
  • Micro Spline freehub body for Shimano 12-speed MTB cassettes
• Weight approx. set 2150 grams, front wheel 1000 grams, rear wheel 1150 grams (manufacturer’s specification)
• Minimum tyre size: width 52 mm – max. pressure 2.95 bar/43 PSI
• Maximum tyre size: width 76 mm – max. pressure 2.45 bar/36 PSI
• ASTM Category 3: Enduro and trail racing
• Maximum recommended system weight: 150 kg

Mavic E Crossride 1 Application:

E-bikes, all-mountain, trail enduro. Suitable for use with disc brakes only. Approved by Mavic for riders and bikes up to 150 kg. These wheels can be used with genuine UST tyres, tubeless-ready tyres and standard tyre-inner tube combinations.

Mavic E Crossride 1 rims:

The wide rims with a 30 mm rim width are made from high-strength Maxtal aluminium, making them lightweight and, thanks to the asymmetrical spoke pattern, very laterally stiff.

The rims, specially developed for use on e-bikes, are particularly stable. The Crossride 1 rims are suitable for UST, tubeless tyres, tubeless-ready tyres and standard tyres with an additional inner tube.

Hookless Tubeless TSS:

Hookless Tubeless or Tubeless Straight Side (standard abbreviation TSS) describe the rim construction. Tubeless-compatible rims can be ridden without an inner tube, but a setup with an inner tube is also possible. Hookless or Straight Side describe the shape of the rim flange, which in this case is straight and designed without the classic hook. This design offers advantages in terms of greater impact resistance for carbon rim flanges and allows tyre pressures of up to 5 bar.

Mavic Crossride 1 Spokes:

32 high-strength J-bend steel spokes per wheel offer very high strength and durability.

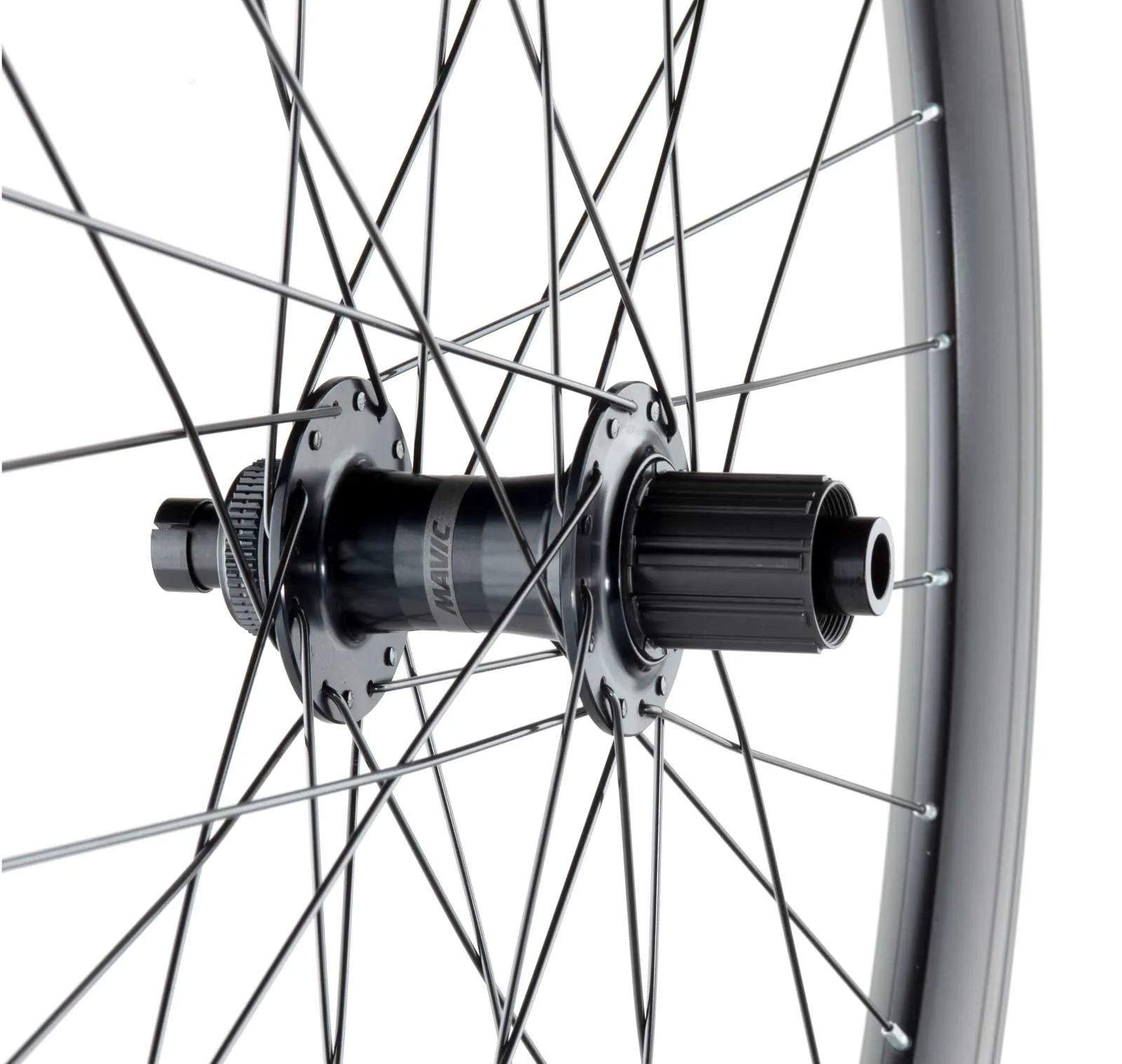

Mavic Classic E-Bike Hub:

The new Classic hubs for e-bike use, featuring a high-flange design and 32 classic J-bend spokes. This guarantees maximum durability and lateral stiffness. The Instant Drive 360 freehub system is lightweight and ensures rapid power transfer with an engagement angle of just 9 degrees. A large, contact-free rubber seal reduces friction. A radial seal ensures low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available as an HG10 version for Shimano 8-11-speed / Sram 8-10-speed, Sram XD 11- and 12-speed, and Shimano 12-speed Micro Spline.

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
