Mavic E Crosstrail SL E-bike wheelset

The new Mavic E-Crosstrail SL enduro and trail e-bike wheelsets with genuine UST Force rims, developed for high-torque e-bikes and maximum riding enjoyment. Lightweight at just 1825 grams and approved for a system weight of up to 150 kg

The E-Crosstrail SL wheels with extra-sturdy, non-drilled Force UST rims, ISM weight reduction, and E-Bike Infinity hubs – the choice when light handling and very high stability are required.

Included:

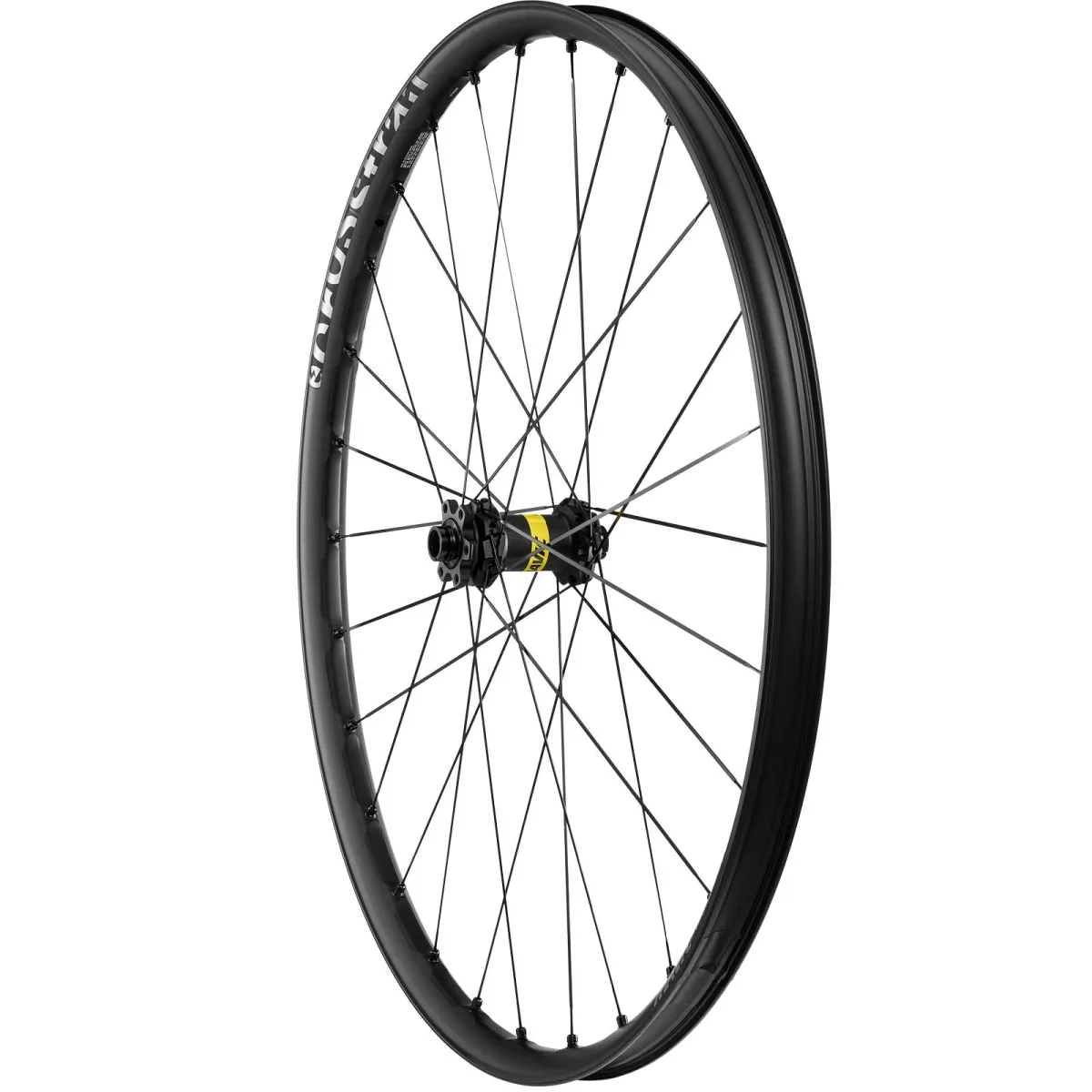

• Mavic E-Crosstrail SL 27.5-inch front wheel, end stops as selected, tubeless valve

Mavic E Crosstrail SL 27.5-inch bike wheel technical specifications:

• 27.5-inch ETRTO 584x30
• Intended use: E-bikes, All Mountain, Trail, Enduro
• Recommended tyre width: 2.5 to 3.0 inches
• Hub: Aluminium body, sealed industrial bearings, adjustable,
• Rim width: 30 mm
• Rim: Aluminium Force ISM, Blackshield
• Spokes: 28 stainless steel aero spokes
• Front wheel: Boost 15x110 mm thru-axle, convertible to torque caps
• Weight approx. 856 grams, manufacturer’s specification
• Minimum tyre size: Width 52 mm – max. pressure 2.95 bar/43 PSI
• Maximum tyre size: Width 76 mm – max. pressure 2.45 bar/36 psi
• ASTM Category 4: Enduro and trail racing
• Maximum recommended system weight: 150 kg

Mavic E Crosstrail SL Application:

E-bikes, all-mountain, trail enduro. Suitable for use with disc brakes only. Approved by Mavic for riders and bikes up to 150 kg. These wheels can be used with genuine UST tyres, tubeless-ready tyres and standard tyre-inner tube combinations.

Spare parts E-Crosstrail SL front wheel:

• Boost 15x110 mm thru-axle end caps, Part No:V2372501
• Boost Torque Caps 15x110 mm thru-axle end caps, Part No:V2374401
• 29-inch replacement rim, front and rear, Item No.:V00115231
• 29-inch replacement spoke, front and rear, 305 mm, stainless steel. Item No.: V00100831
• 27.5-inch replacement rim, front and rear, Item No.: V00115331
• 27.5-inch replacement spoke, front and rear, 286 mm, stainless steel. Item No: V00100931
• Ball bearing 18x30x7 mm Item No: V2500901
• Hub axle 110 mm QRM auto with bearing caps, disc, 6-hole. Item No.: V2372401

Torque Caps:

The wheel mount on many current RockShox suspension forks is designed for Torque Cups. These provide a significantly larger contact surface for the hubs and thus greater stiffness in the suspension fork/wheel system. The Torque Cups have a diameter of 31 mm, whereas standard cups are 22 mm.

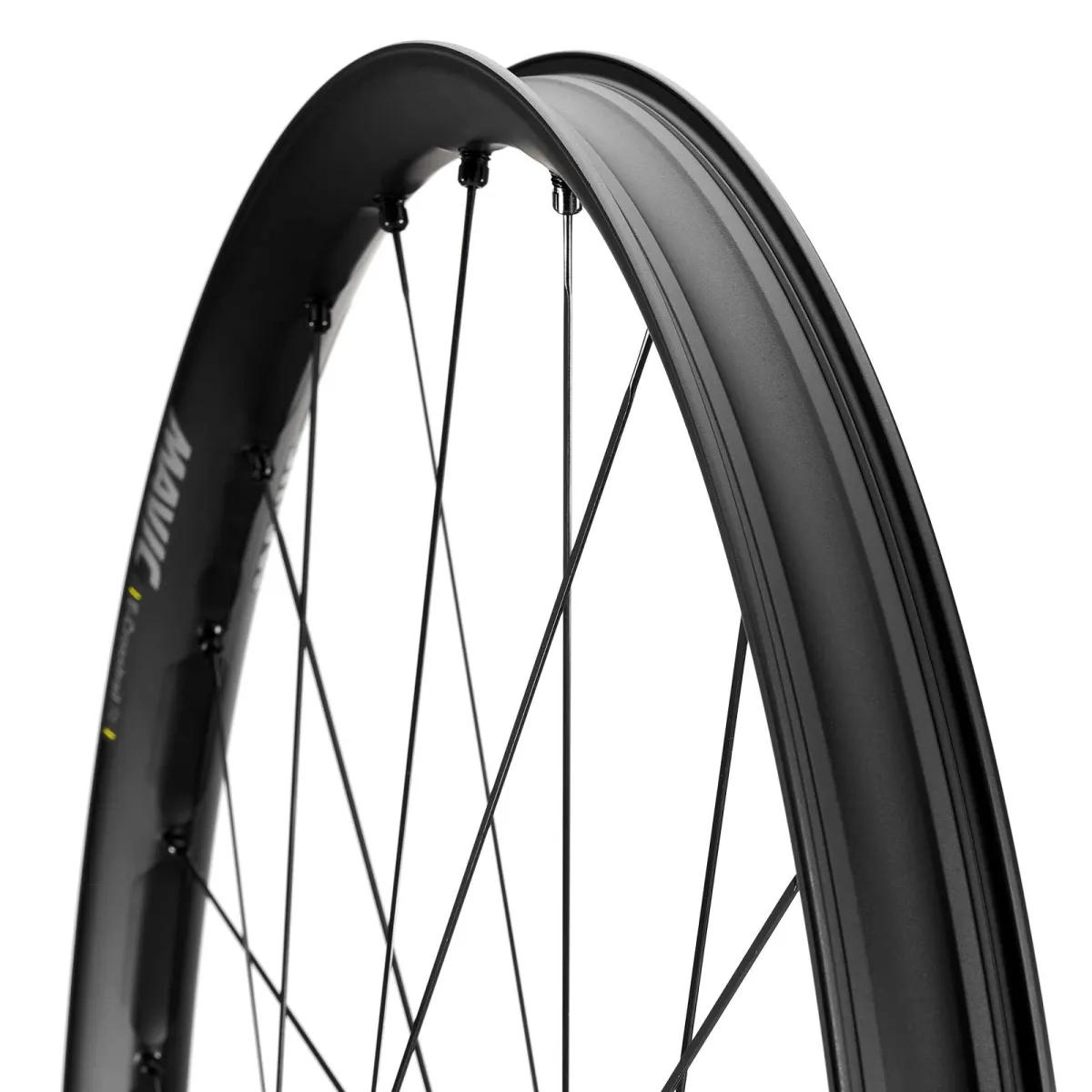

Mavic E Crosstrail SL Force UST rims:

These wide rims, with a 30 mm rim width, are made from high-strength Maxtal aluminium, making them lightweight and, thanks to their asymmetrical spoke lacing, very laterally stiff.

The Force threads for the spoke heads are formed into the rims by material displacement; the rim bed itself is unbored, airtight and requires no tubeless rim tape. This saves weight, simplifies assembly and ensures rims that are 20 per cent stiffer than conventional drilled rims.

The rims, specially developed for use on e-bikes, are particularly stable and, thanks to ISM milled-out sections, also lightweight. The new Black Shield hardened rims are extra robust and scratch-resistant. Even in the event of punctures, the rims remain black at the damaged point. The rim flange is additionally welded and planed. Thanks to the asymmetrical rim design, braking and drive forces are absorbed evenly, which increases the service life. The Crosstrail SL rims are suitable for UST, tubeless tyres, Tubeless Ready tyres and standard tyres with an additional inner tube.

Mavic Force ALU:

A tubeless rim that is 20 per cent stiffer and ultra-durable. Thanks to this innovation, a thread is created at the same time as the spoke hole is drilled. The spokes are screwed directly into the rim wall without nipples and secured. Only one of the two rim walls is drilled through, leaving the upper rim flange intact. No rim tape is required, saving 30 g and increasing stiffness. It is the most reliable tubeless system with easy tyre fitting.

Mavic Pinch Flat Protection:

Fewer punctures, more fun. By creating a reinforcement at the rim edge that protects the tyre from impacts or pinching, you can withstand a 20 per cent stronger impact without suffering a puncture. This advantage is particularly suitable for heavier bikes such as e-bikes and for riding with lower tyre pressure.

Mavic Blackshild:

Thanks to a unique double treatment of the rim – a first black anodised layer coated with a second satin-finished layer – resistance to impacts and scratches is twice that of a conventional wheel. The lifespan against stone chips and scratches is twice as long: the rim remains black upon impact and has a distinctive matt finish.

Mavic Crosstrail spokes:

High-strength aero stainless steel spokes offer very high strength and durability. The spokes form a single unit with the Force nipples. These are screwed directly into the rim, further increasing stability.

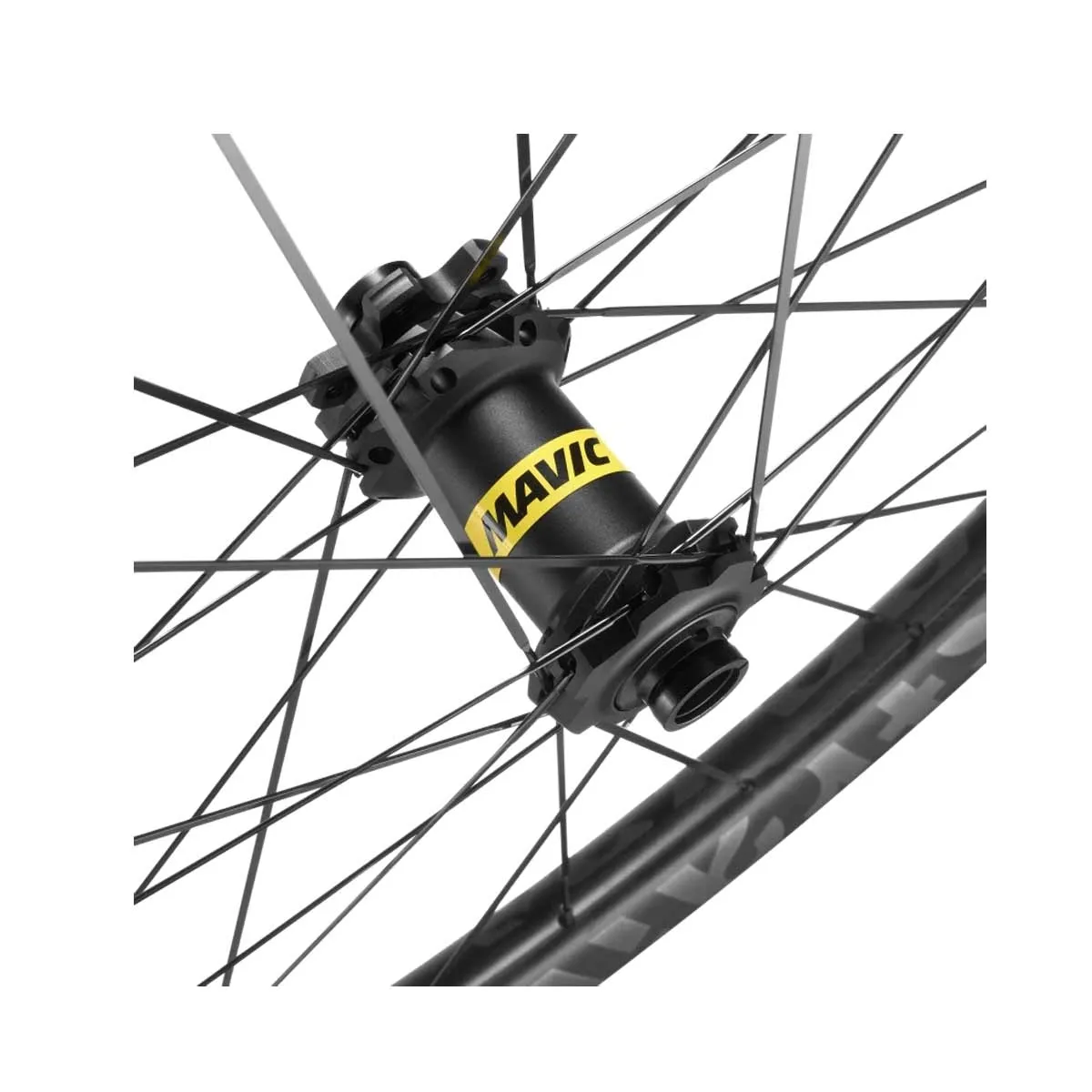

Mavic Infinity E-bike Hub:

The Instant Drive 360 freehub system is super-light and ensures rapid power transfer with an engagement angle of just 9 degrees. A large, contact-free rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two pawls ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available as an HG10 version for Shimano 8-11-speed / SRAM 8-10-speed, SRAM XD 11- and 12-speed, and Shimano 12-speed Micro Spline.

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
