Mavic E Deemax S35 27.5 replacement spoke

14 spokes are required per side. The UST spoke nipples have a 7 mm head; the required spoke wrench is item no. M40652

Is your Mavic wheel damaged? We repair all Mavic wheels, provided that a repair is feasible and the spare parts are still available. Please email us the serial number of your wheel in advance, along with a brief description of the damage. You will usually find the serial number on a small sticker, either on the rim edge or near the barcode

Spare parts for Mavic E Deemax S35 front wheel Boost 27.5-inch:

• Item No: V3766515, front wheel rim 28-hole, 27.5-inch, rim width 35 mm, width 41 mm, height 19 mm
• Item No: V2388801, front wheel spokes, 287 mm
• Item No: V2375601, front wheel axle with threaded connection, Boost 20x110 mm Disc Centerlock
• Item No: V2375601, Front wheel axle with Boost 20x110 mm Disc Centerlock thread
• Item No: V2500901, front wheel bearing set, dimensions 18x30x7 mm
• Item No: V2372501, End stops Boost 20x110 mm for Disc Centerlock hub
• Item No: V2680401, End stops Boost 20x110 mm for Disc 6-hole hub
• Item No: 12982801, Boost 15x110 mm end stops for Disc Centerlock hub

Spare parts for Mavic Deemax S 35 rear wheel Boost QRM Auto 27.5 inch:

• Item No: V3766515, Rear wheel rim, 28-hole, 27.5-inch, rim width 35 mm, width 41 mm, height 19 mm

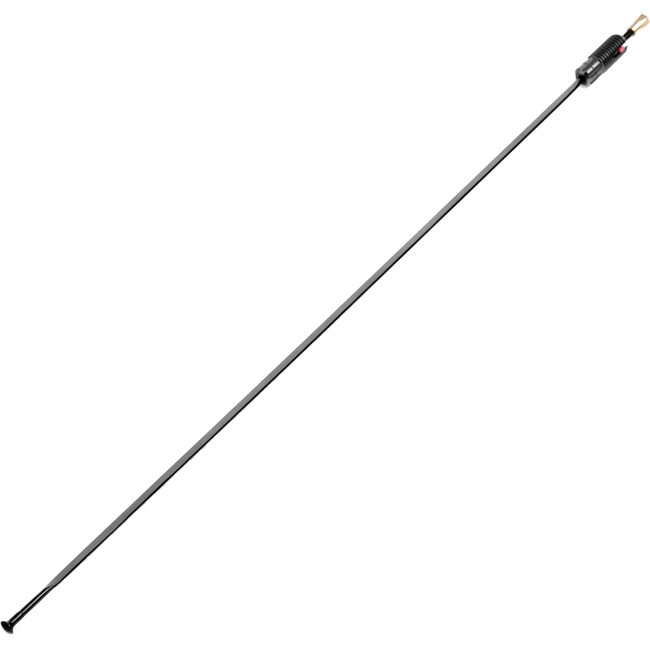

• Item No: V2388901, Rear wheel spoke, right-hand side (freewheel body side), 287 mm
• Item No: V2389001, Rear wheel spoke, left, disc side, 285 mm
• Item No: V2560201, ID360 hub bearing, dimensions 17x30x7mm, type 6903
• Item No: V2375201, ID360 sprockets 24 teeth with spring and pad for noise reduction
• Item No: V2252601, Freehub body seal with grease
• Part No: V3780101, ID360 freewheel body HG10
• Part No: V3990101, ID360 freehub body Micro Spline
• Item No: V3740101, ID360 freewheel body Sram XD
• Item No: V2373001, ID360 rear axle with splined disc, retaining ring and Disc Centerlock cover
• Item No: V2372201, ID360 rear axle with spline disc, retaining ring and Disc 6-hole cover
• Item No: V2251101, Left-hand bearing cap with wave washer and retaining ring
• Item No: V2510701, End stops 12x148 mm thru-axle mount, Disc 6-hole and Centerlock

Mavic hubs are not available as spare parts.
