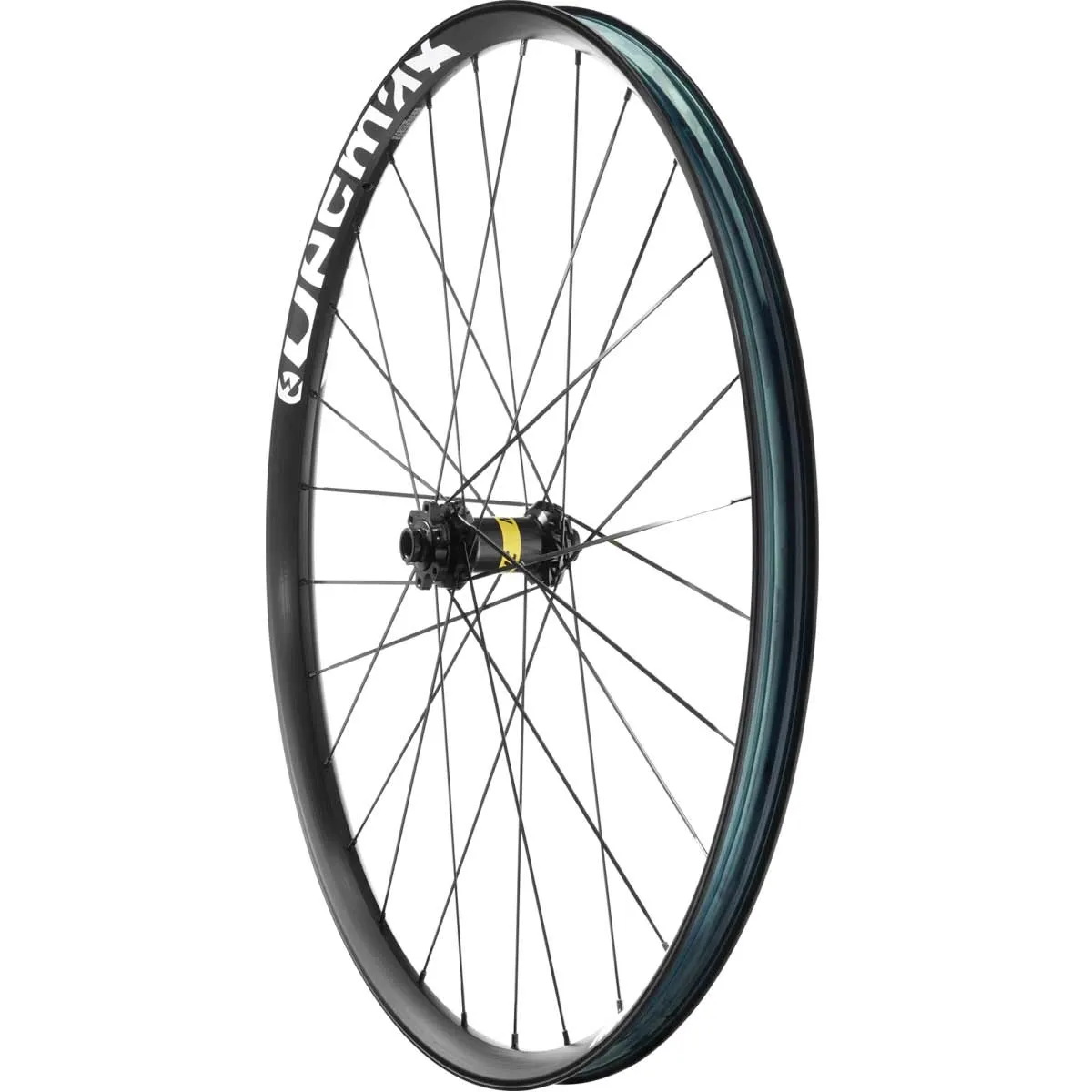

Mavic E Deemax 29 e-bike wheelset

The E Deemax mountain bike wheels with the new WB rims for easier tyre fitting. Approved for e-bikes and a system weight of 180 kg.

Included in delivery:

• Mavic E Deemax 29 front wheel, end stops as selected, tubeless rim tape, tubeless valve

Mavic E Deemax 29 wheel technology and dimensions:

• 29-inch ETRTO 622x30
• Recommended tyre width: 2.5 to 3.0 inches

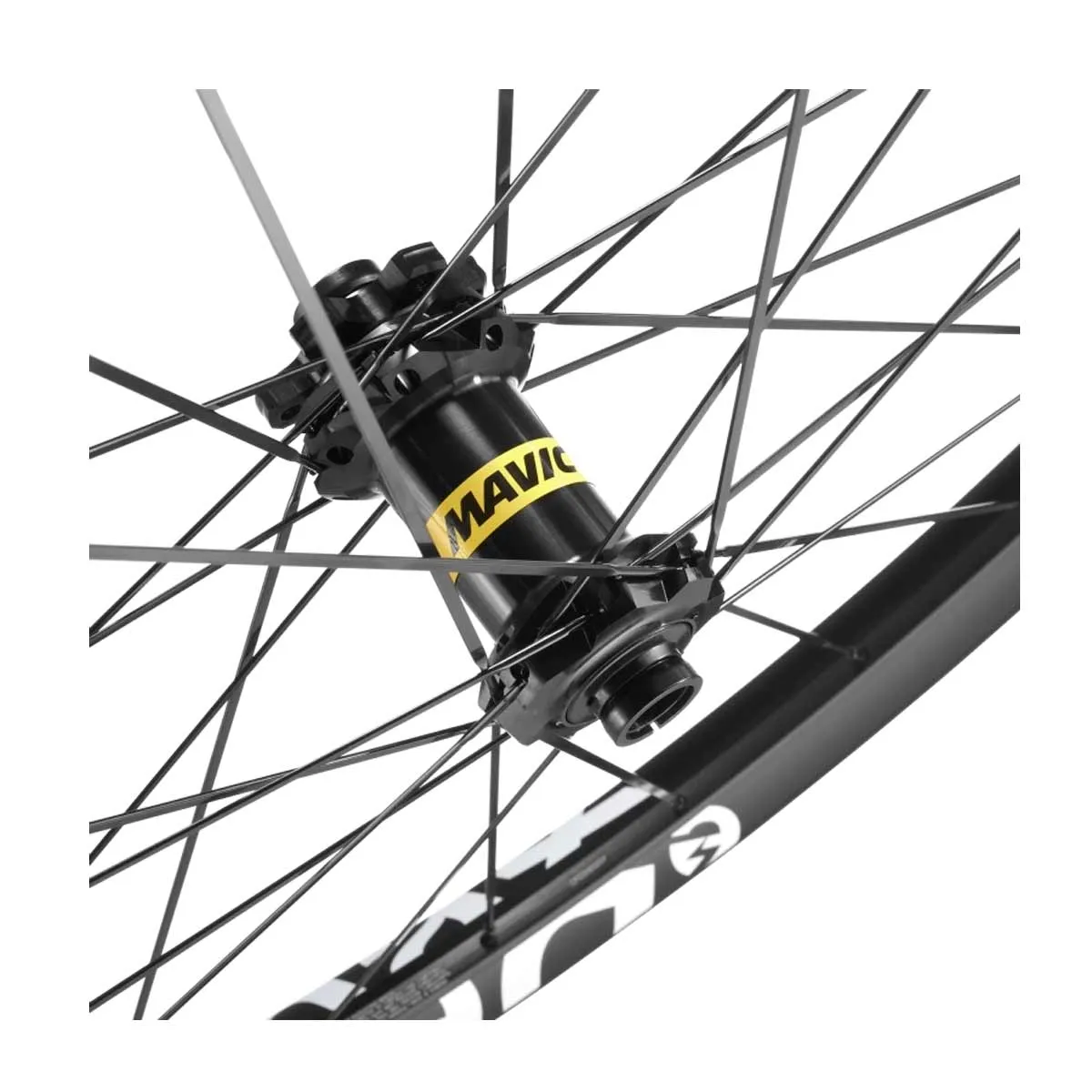

• Hub: aluminium body, sealed industrial bearings, adjustable,
• Rim width: 30 mm
• Rim: Welded, extra-reinforced e-bike profile
• Spokes: 28 stainless steel spokes
• Front wheel: Boost 15x110 mm thru-axle, convertible to torque caps
• Brake disc mount: IS Disc 6-hole
• Weight approx. front wheel 1035 grams (manufacturer’s specification)
• Maximum recommended system weight: 180 kg
• Mavic ASTM Category 5: for use on extreme terrain, particularly downhill

Designed and developed for DH, Enduro and E-Mountain bikes, equipped with ultra-sturdy Deemax hubs, Instant Drive sprocket freewheel, reinforced and lightweight ISM rims with a 30 mm rim width and extra-reinforced PFP sidewalls for tyre widths up to 3.0. Approved for a system weight of up to 180 kg and ASTM Class 5, the new E Deemax is perfect for DH, Enduro and E-bikes, the bike park and other extreme riding

Mavic E Deemax Boost 15x110 front wheel:

The Deemax Boost front wheel with 15x110mm Boost thru-axle mount. These Boost front wheels are only compatible with Boost forks featuring a 15x110mm thru-axle. Compatible front wheel dropouts:

• Boost 15x110 mm thru-axle fitting, Item No: 12982801
• Boost Torque Caps 15x110 mm thru-axle fitting, Item No.:V2374401

The name E-Deemax has become a benchmark in the e-MTB scene – and the new E-Deemax 30 lives up to this reputation by offering numerous features and technologies found on higher-end models, whilst also hitting an extremely attractive price point. One of the top features is our Pinch Flat Protection (PFP) technology, where the contact surface of the rim flanges is so large that the risk of cuts and punctures to the tyre is significantly reduced. For greater reliability, the rims are welded. Thanks to a 30 mm rim width and tubeless-ready compatibility, it can be ridden with lower tyre pressure to further enhance traction and control.

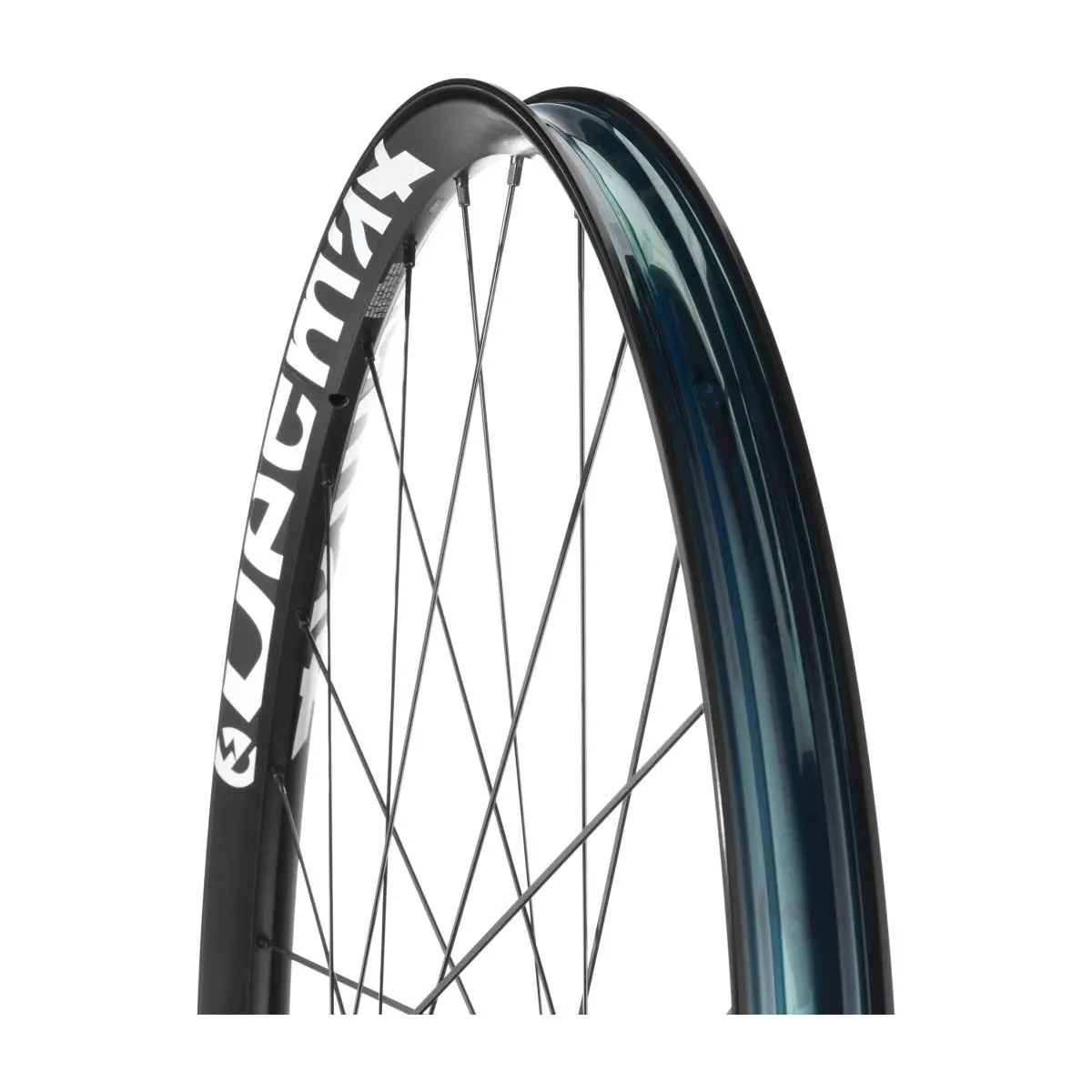

Mavic E Deemax Disc rims:

The wide rims with a 30 mm rim width are very laterally stiff thanks to their asymmetrical spoke pattern. The rims, specially developed for use on e-bikes, are ultra-stable. The rim flanges are highly puncture-resistant thanks to Pinch Flat Protection technology. Thanks to the asymmetrical rim design, braking and drive forces are absorbed evenly, which increases the service life. The E Deemax 30 rims are suitable for UST, tubeless tyres, Tubeless Ready tyres and standard tyres with an additional inner tube.

Mavic E Deemax spokes:

High-strength stainless steel spokes offer very high strength and durability.

Mavic E Deemax Applications:

E-bikes, All Mountain, Trail, Enduro and DH. Suitable for use with disc brakes only. Approved by Mavic for riders up to 180 kg. These wheelsets can be used with genuine UST tyres, tubeless-ready tyres and standard tyre-inner tube combinations.

Mavic E Deemax wheel technology:

• Mavic QRM Auto: Mavic’s top-of-the-range bearing technology: featuring a double seal and extremely dimensionally stable, self-aligning, and exceptionally torsionally rigid and durable, perfect for the long-lasting bearing assembly of Mavic hubs.
• Mavic UST Force rims: The rim profile with extra-reinforced spokes offers optimum durability. Universal Standard for Tubeless: More tyre grip for better control, no inner tube required: it sounds too good to be true. UST technology puts an end to inner tube punctures caused by overheated rims, reduces rolling resistance and prevents sudden air loss in the event of a puncture.
• Mavic SRS: Spoke Retention System. The spoke seats on the hub body are specially milled so that the spoke head remains firmly anchored even under extreme conditions. Yet the spoke still has enough play to remain sufficiently flexible on rough terrain. Spokes remain securely anchored even under the harshest frontal loads. The wheel still offers sufficient flexibility.
• Mavic Maxtal: This aluminium alloy, manufactured exclusively for Mavic, is 30 per cent stronger than 6106 aluminium. This means Maxtal rims can be super-light yet still sturdy.
• Mavic SUP: Soude Usine Process. A welded rim joint is more stable, prevents any brake judder and makes it easier to lace and true a perfect wheel.

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
