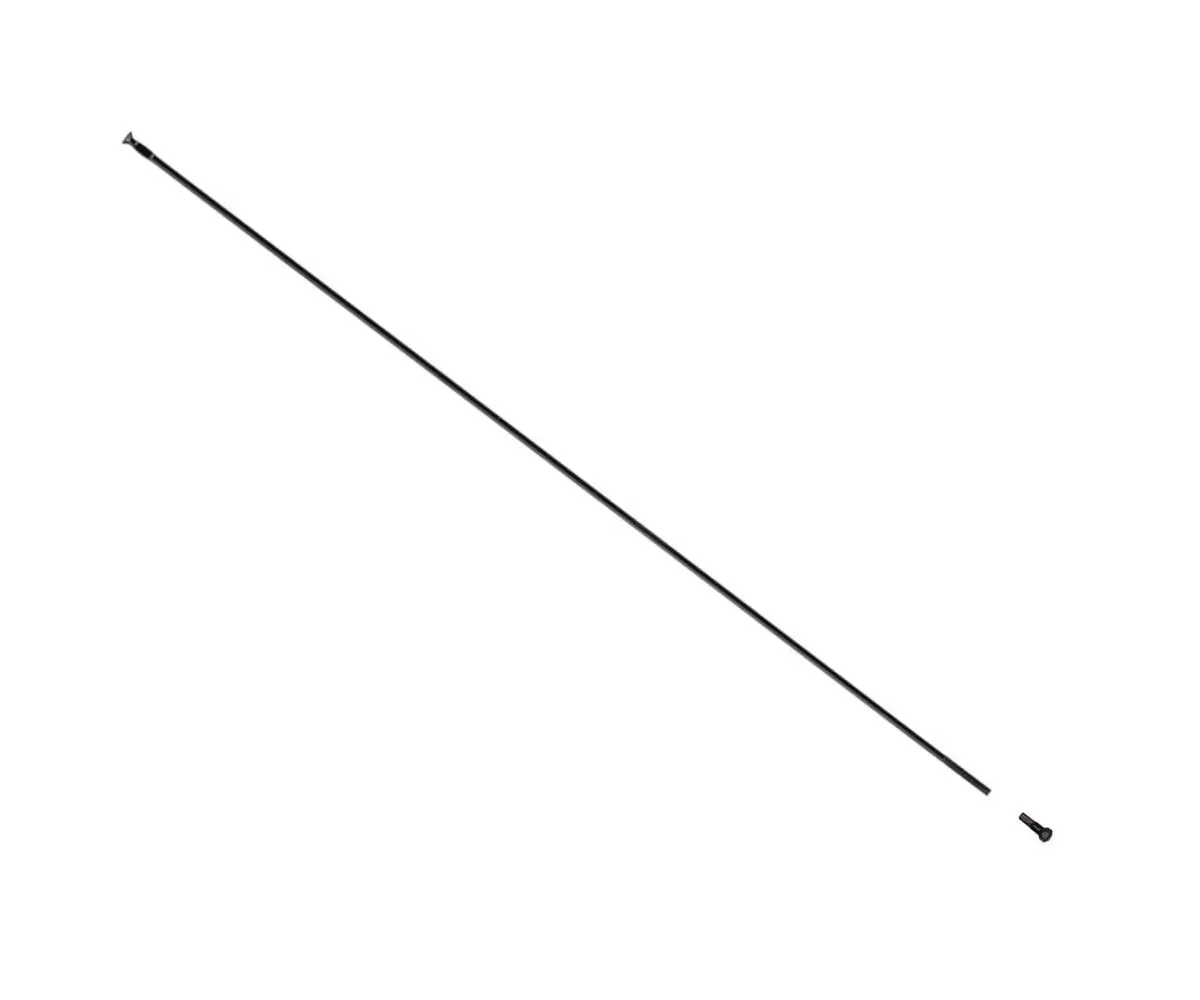

Mavic Crossmax Replacement Spoke

The Mavic replacement spoke for the Crossmax 27.5-inch wheels. This spoke is required for the 2022 model Crossmax front or rear wheel. Mavic uses only one spoke length for these wheels.

Please note that you cannot convert Boost 15x110mm / 12x148mm wheelsets to the classic 15x100 / 12x142mm mounting dimensions. Nor can you do the reverse. Boost hubs have a brake disc mount positioned further outwards.

We repair Mavic wheels. If you provide us with the serial number and details of the damage to your wheel, we can check whether it is repairable.

The compatibility of spare parts can be checked using your wheel’s serial number. You’ll usually find this on a small sticker on the rim edge, next to the barcode.

Mavic Crossmax Front Wheel Mod 2022 Spare Parts

• Item No: V00010031, Replacement rim, front or rear wheel
• Item No: V00009631, front wheel steel spoke 277 mm including nipple
• Item No: V2500901, Hub bearing, dimensions 18x30x7 mm
• Item No: V2372401, front wheel hub axle Boost 15x110 mm Disc 6-hole, with installation kit
• Item No: V2375601, front wheel hub axle Boost 15x110 mm Disc Centerlock, with installation kit
• Item No: V2372301, front wheel hub axle 15x100 mm, with installation kit
• Item No: 99694101, End stops 9x100mm
• Item No: V2372501, End stops 15x110/100mm
• Item No: V2374401, End caps Torque Caps 15x110mm

Mavic Crossmax rear wheel 2022 spare parts

• Item No: V00010031, Replacement rim, front or rear wheel
• Item No: V00009631, Rear wheel steel spoke 277 mm including nipple
• Item No: M40076, Rear wheel hub bearing Type 6903, dimensions 17x30x7 mm
• Item No: V2375701, Rear Axle Kit Boost 12x148mm Disc Centerlock with Installation Kit
• Item No: V2372201, Rear axle kit Boost 12x148mm Disc 6-hole with mounting kit
• Item No: V2372101, Rear Axle Kit 12x142mm Disc 6-hole with Mounting Kit
• Item No: V2252701, Sprocket mount with retaining ring
• Item No: V00063631, Seal with grease for Instant Drive freehub body
• Item No: V2372901, Springs for Instant Drive freehub body
• Item No: V2375401, Sprocket kit, 24-tooth Instant Drive
• Item No: V2372801, Instant Drive sprocket kit, 40-tooth
• Item No: V3780101, Instant Drive aluminium freehub body HG10
• Item No: V3790101, Instant Drive steel freehub body HG10
• Item No: V3740101, Instant Drive aluminium freehub body Sram XD
• Item No: V3990101, Instant Drive aluminium freehub body Shimano Micro Spline
• Item No: V2373001, Left-hand bearing cover with retaining clip for QRM Auto hub
• Item No: V2510801, End stops Instant Drive hub 10x135 mm for quick-release mounting
• Item No: V2510901, End stops for Instant Drive hub 12x135 mm for thru-axle mounting
• Item No: V2510701, End stops for Instant Drive hub for 12x142/148 mm thru-axle mounting

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
