Spare parts Mavic ID360 QRM auto hub

These adapters fit all Mavic MTB and road bike rear wheels with Instant Drive sprocket freehub bodies and QRM Auto bearing/axle systems. These end stops are compatible with Shimano HG, Campagnolo ED, Sram XD and Shimano Micro Spline freehub bodies. Please note that the adapter does not allow conversion of the hubs to Boost or vice versa.

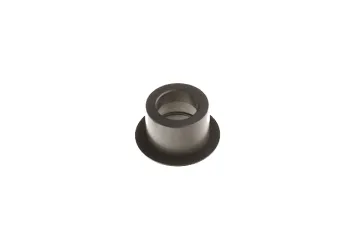

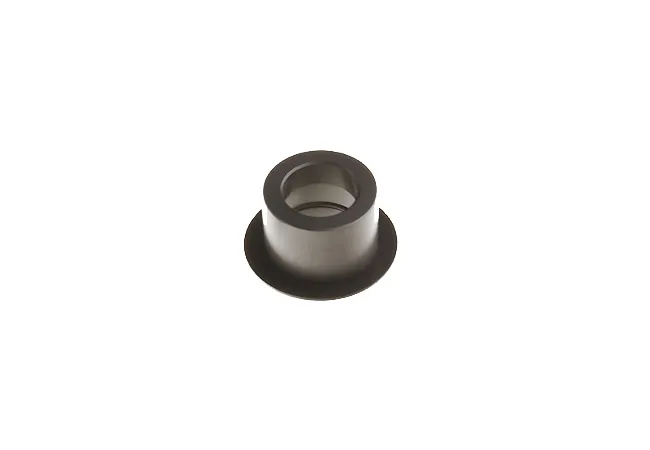

The end stop for 12x135 mm thru-axle mounting for Mavic road bike and MTB rear hubs and 12x150 mm for DH rear hubs with the QRM Auto axle system and Instant Drive 360 freehub body from the 2017 model year onwards.

Mavic changed the axle system on its Instant Drive rear hubs during the 2017 model year. You can recognise these by the fact that the axle is black on the disc side. In this case, the new adapters are required.

Mavic Instant Drive QRM Auto rear hub end stops:

• Item No. LV2510800, end stop for 10x135 mm quick-release mounting
• Item No. LV2510900, end stop for 12x135/150 mm thru-axle mounting
• Item No. LV2510700, end stop for 12x142/148/157 mm thru-axle mounting

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
