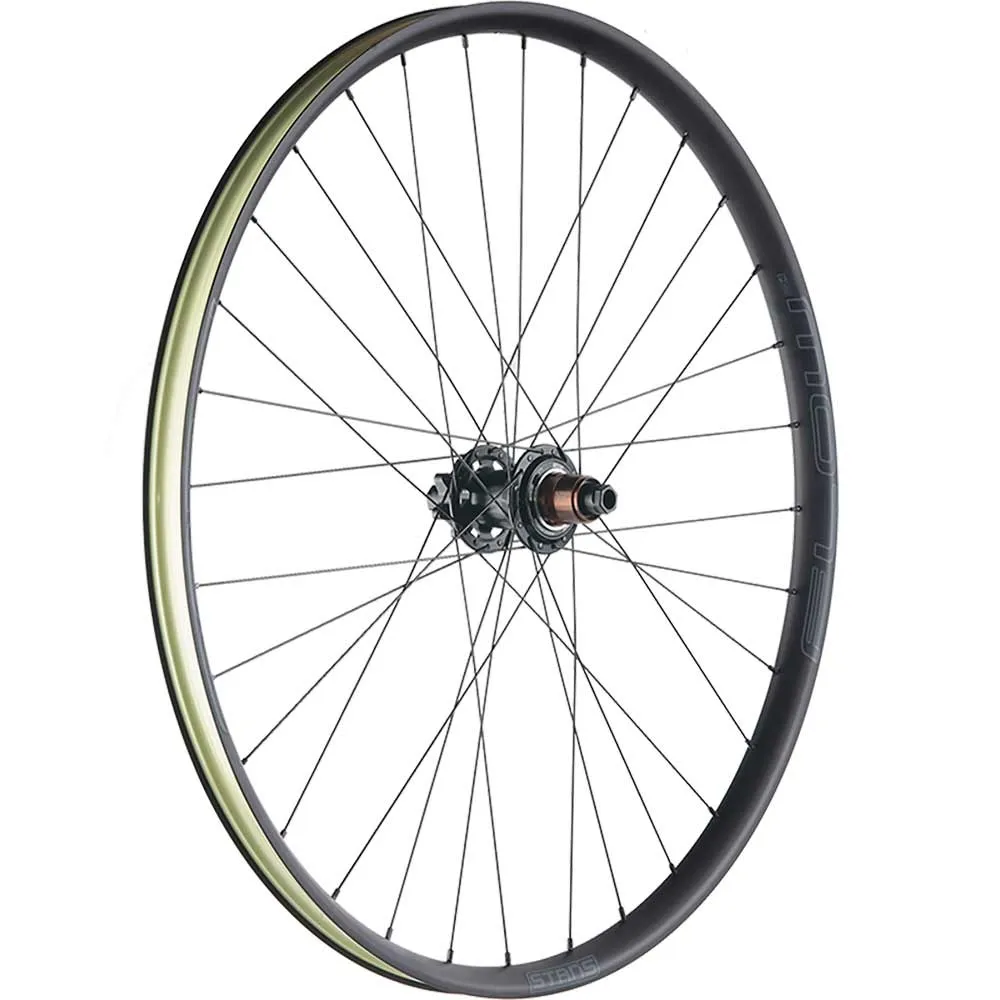

Stans Notubes M-Pulse Hub + Arch MK4 Rims

The sturdy and lightweight trail, freeride and enduro rear wheel from NoTubes featuring the new M-Pulse hub and the sturdy asymmetrical Arch MK4 rim with a 28 mm rim width for tyres up to 2.5 inches wide.

Stans Notubes M-Pulse Boost Hubs

The high-end hubs from Stans Notubes. The freehub body system of the new M-Pulse hub is based on the magnetic pawl design from Project321, manufactured in Oregon, USA. The M-Pulse hubs are equipped with six pawls featuring neodymium magnets and a bearing ring with 216 engagement points made from hardened stainless steel. The freehub body requires just a 1.66-degree turn to engage. The 17mm axles are made from 7075 aluminium and are fitted with high-quality Endurro Bearings. High-quality seals offer excellent protection and ensure a long hub life. The bearing play is adjustable.

Stans Notubes Arch MK4 rim:

The Stans Arch Trail, Freeride and Enduro rims feature an asymmetrical profile, a 28 mm rim width, and are extremely sturdy yet very lightweight.

Developed with the help of the Stans Enduro World Series team, the new Arch MK4 is ready to tackle any trail. Despite the increased rim width to 28 mm and featuring the proven lower BST rim bed, the new Arch MK4 retains its low weight for excellent acceleration and climbing performance on ascents. With the WideRight System introduced by Stans NoTubes, the rim width increases to 28 millimetres – for even better tyre support and full volume development. Inspired by Stans carbon rims, the new rim profile, combined with the new 6069 aluminium alloy, increases lateral stiffness and impact resistance whilst reducing the risk of snake bites.

The Stans NoTubes rims are perfectly designed, thanks to special rim flanges for fitting tubeless tyres. Thanks to the wide rim bed, the tyre is guided superbly and offers the best rolling resistance.

Rear hub Boost QR 12x148mm standard:

This new thru-axle standard requires new hubs. Only compatible with rear ends with a 12x148 mm mounting dimension. The wider hub shell with the flanges positioned further out allows for wheelsets with greater lateral stiffness. On Boost hubs, the brake disc mount is also positioned further out. Boost hubs can only be used with a 148 mm mounting dimension.

Notubes BST

Notubes’ Bead Socket Technology. This special rim design features a wide rim bed with a low flange for high tyre stability and full tyre volume development. The BST technology helps retain air better in tubeless systems, resulting in less rotating mass and a virtually increased effective rim width compared to competitors. A wide rim also reduces tyre flex in corners and allows the tyre to be ridden at lower pressures. The ZTR rims are fully tubeless-compatible when used with rim tape and a valve.

Stan Notube spokes:

The black stainless steel spokes used by Stan’s are highly durable and allow for easy repair or replacement should the need arise.

Stan’s NoTube Tubeless

Stan’s yellow rim tape and special NoTubes valves are included

Stans NoTubes Arch MK4 Wheel Technology:

• Wheel size
• 29 inches ETRTO 622
• Rim
• Rim: Arch MK4 BST Disc asymmetrical
• Rim material: 6061 aluminium alloy

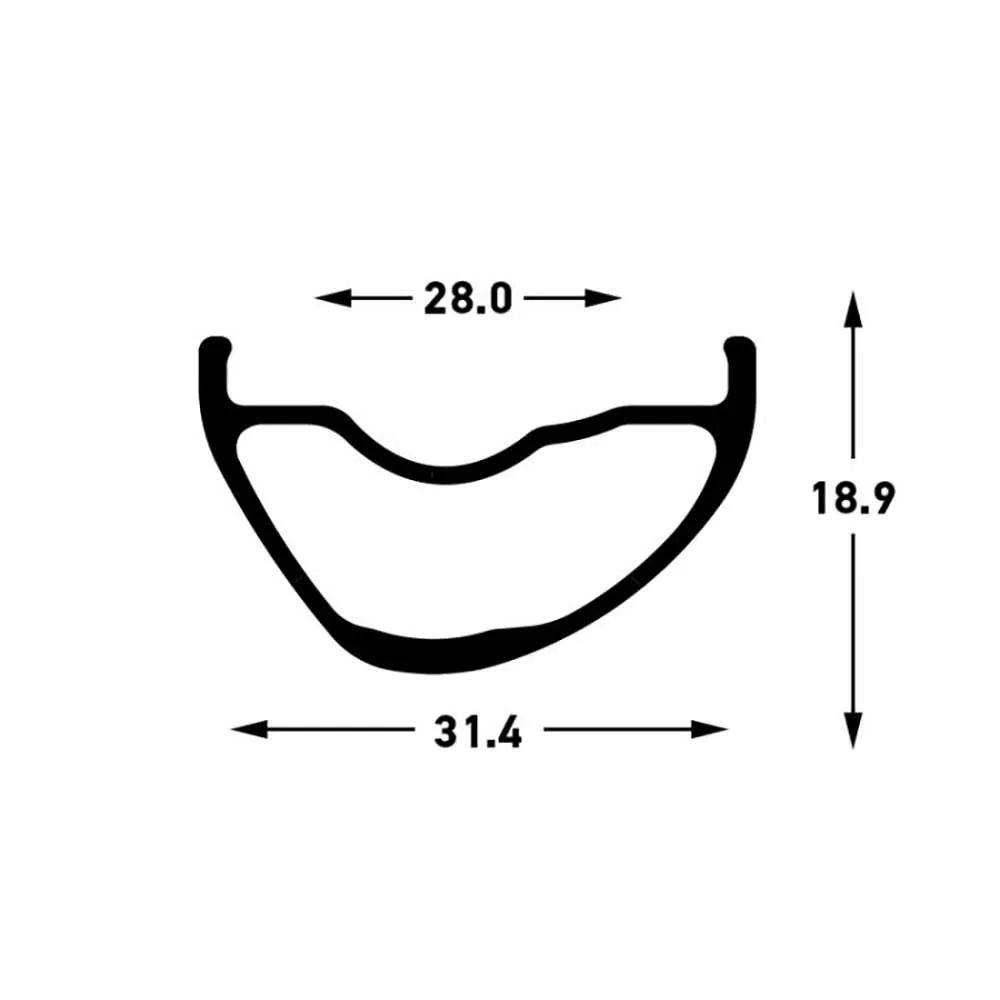

• Rim height: 18.9 mm
• Outer rim width: 31.4 mm
• Inner rim width: 28 mm
• Maximum recommended tyre pressure: 2.4 bar
• Recommended tyre widths: 2.2 to 2.5
• M-Pulse hubs
• Freewheel body with 216 engagement points
• 6 pawls with neodymium magnets
• Industrial bearings: Enduro Bearings
• Boost rear hub: 12 x 148 mm thru-axle mount, not convertible
• SRAM XDR freehub body for SRAM 11-12-speed XG MTB and 12 AXS road cassettes
• Spokes
• Sapim D-Light black stainless steel 2.0x1.65x2.0
• Aluminium Double Square nipples
• Rear 32-hole, 3-cross lacing
• Weight:
• Rear wheel 967 grams (manufacturer’s specification)
• Rim 481 grams (manufacturer’s specification)
• Max rider weight 104 kg

Contents of delivery: Stans NoTubes Arch MK4 wheel:

NoTubes Flow MK4 Boost rear wheel, tubeless rim tape, tubeless valves
