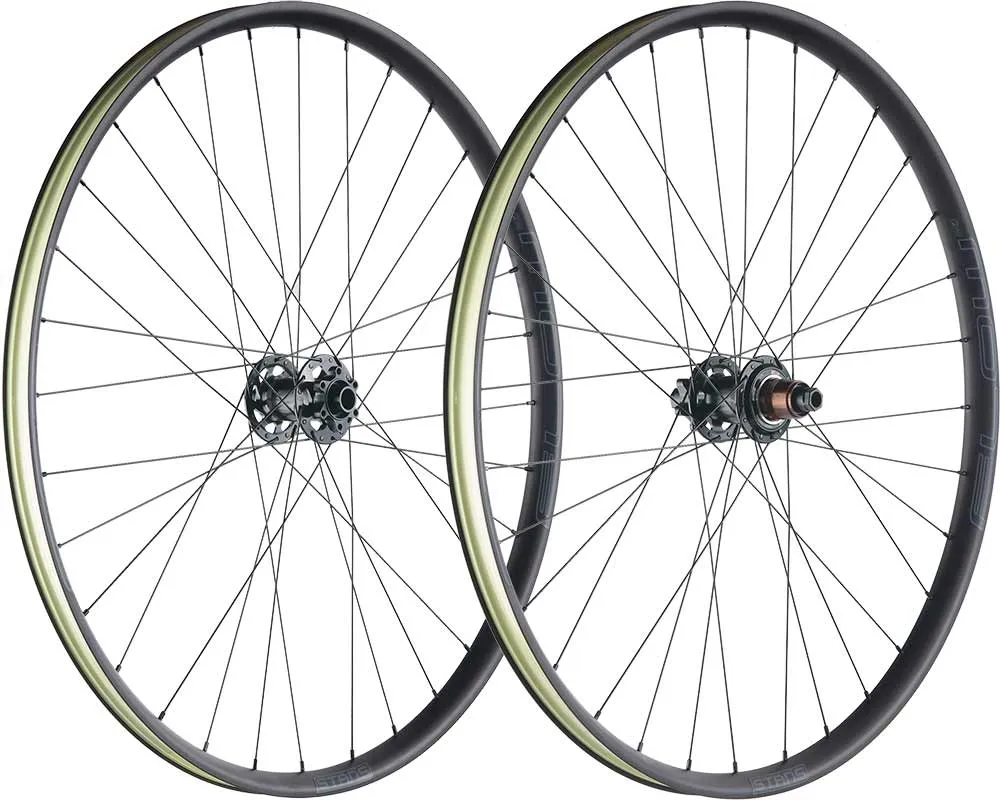

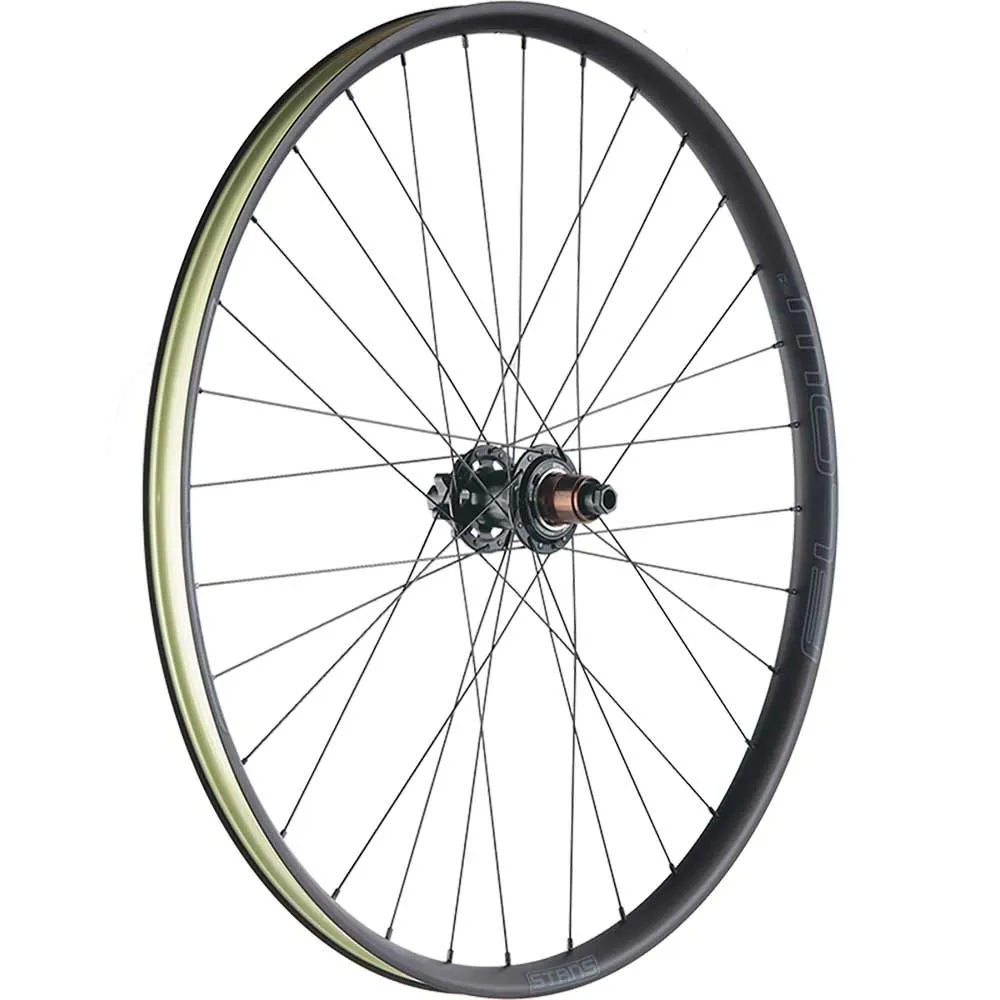

Stans Notubes M-Pulse Hubs + Crest MK4 Rims

The lightweight cross-country wheelset from NoTubes featuring the new M-Pulse hubs and the sturdy, ultra-lightweight Crest MK4 rims with a 25 mm rim width.

Stans Notubes M-Pulse Boost Hubs

The high-end hubs from Stans Notubes. The freehub body system of the new M-Pulse hub is based on the magnetic pawl design from Project321, manufactured in Oregon, USA. The M-Pulse hubs are equipped with six pawls featuring neodymium magnets and a bearing ring with 216 engagement points made from hardened stainless steel. The freehub body requires just a 1.66-degree turn to engage. The 17mm axles are made from 7075 aluminium and are fitted with high-quality Endurro Bearings. High-quality seals offer excellent protection and ensure a long hub life. The bearing play is adjustable.

Stans NoTubes Crest MK4 rim:

The legendary Crest rim is now even better. With a wider rim width and the proven low BST rim bed, the new Crest MK4 rim features a 25 mm rim width. With the WideRight System introduced by Stans NoTubes, the rim width increases to 25 millimetres, for even better tyre support and full volume development. Inspired by Stans carbon rims, the new rim profile, combined with the new 6069 aluminium alloy, increases lateral stiffness and impact resistance whilst reducing the risk of snake bites.

The Stans NoTubes rims are perfectly designed, thanks to special rim flanges for fitting tubeless tyres. Thanks to the wide rim bed, the tyre is guided superbly and offers the best rolling resistance.

Front hub Boost QR 15x110mm standard:

This new thru-axle standard requires new hubs. Compatible only with forks with a Boost 15x110 mm mounting dimension. The wider hub shell with the flanges positioned further out enables wheelsets with greater lateral stiffness. On Boost hubs, the brake disc mount is also positioned further out. Therefore, these hubs cannot be fitted to forks with a QR15x100 mm mounting dimension.

Boost QR12x148mm rear hub standard:

This new thru-axle standard requires new hubs. Only compatible with rear ends with a 12x148 mm mounting dimension. The wider hub shell with the flanges positioned further out allows for wheels with greater lateral stiffness. On Boost hubs, the brake disc mount is also positioned further out. Boost hubs can only be used with a 148 mm mounting dimension.

Notubes BST

Notubes’ Bead Socket Technology. This special rim design features a wide rim bed with a low flange for high tyre stability and full tyre volume development. The BST technology helps retain air better in tubeless systems, resulting in less rotating mass and a virtually increased effective rim width compared to competitors. A wide rim also reduces tyre flex in corners and allows the tyre to be ridden at lower pressures. The ZTR rims are fully tubeless-compatible when used with rim tape and a valve.

Stan Notubes spokes:

The black stainless steel spokes used by Stan’s are highly durable and offer the possibility of easy repair or replacement should the need arise.

Stan’s NoTube Tubeless

Stan’s yellow rim tape and special NoTubes valves are included

Stan NoTubes Crest MK4 Wheel Technology:

• Wheel size
• 27.5 inches ETRTO 584
• Rim
• Rim: Crest MK4 BST Disc
• Rim material: 6061 aluminium alloy

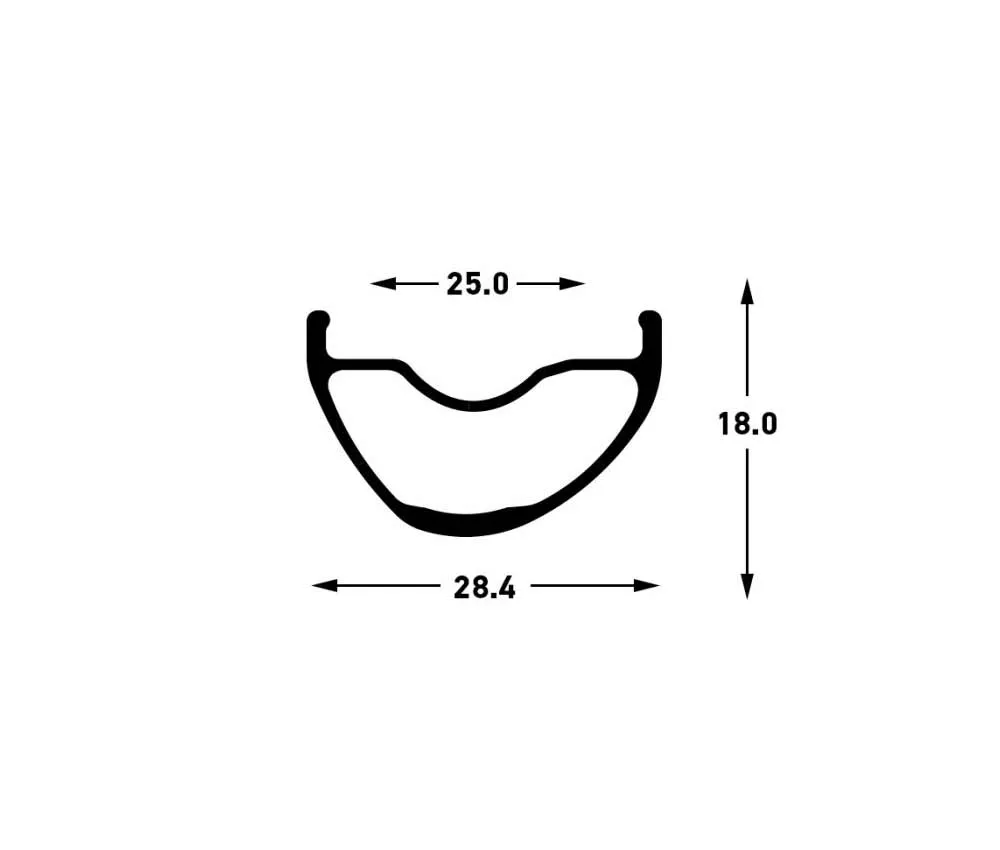

• Rim height: 18 mm
• Outer rim width: 28.4 mm
• Inner rim width: 25 mm
• Recommended tyre pressure: 3.22 to 3.85 bar
• Recommended tyre widths: 2.0 to 2.4
• Hubs: M-Pulse
• Freewheel body with 216 engagement points
• 6 pawls with neodymium magnets
• Industrial bearings: Enduro Bearings
• Boost front hub: QR 15x110 mm thru-axle mount, non-convertible
• Boost rear hub: 12 x 148 mm thru-axle mount, non-convertible
• Shimano Microsplie freehub body for Shimano 12 Micro Spline cassettes
• Spokes
• black stainless steel 2.0x1.65
• Aluminium nipples
• Front 32-hole 3-cross
• Rear 32 holes, 3-cross
• Weight:
• Wheelset approx. 1566 grams, front wheel 707 grams, rear wheel 859 grams Manufacturer’s specification
• Rim 399 grams Manufacturer’s specification
• Max rider weight 86 kg

Contents of delivery: Stans NoTubes Crest MK4 wheelset:

NoTubes Crest MK4 Boost front wheel, NoTubes Crest MK4 Boost rear wheel, tubeless rim tape, tubeless valves
