Shimano XTR WH-M9020 spare part

The 29-inch replacement rim for the Shimano WHM9020 front and rear wheels.

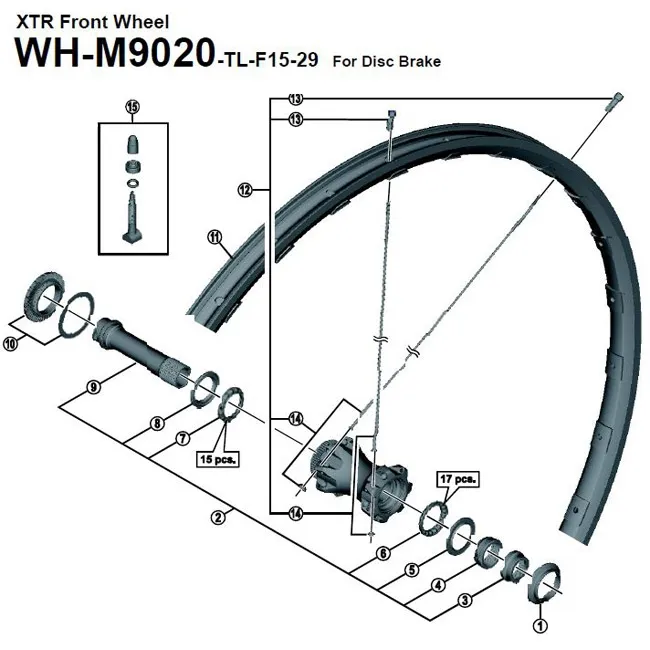

Included in the scope of delivery: No. 11 in the illustration

Shimano XTR WH-M9020 front wheel 29-inch spare parts:

• No. 1, Item No.: Y27X17000, Cap
• No. 2, Item No.: Y47V98010, Complete Hub Axle
• No. 3, Part No.: Y27X19100, Right-hand lock nut, M19
• No. 4, Item No.: Y27X11000, Right-hand cone, M19
• No. 5, Item No.: Y27X15000, Right-hand seal ring
• No. 5, Part No.: Y27X98030, Right-hand ball retainer, 5/32 x 17

• No. 7, Item No.: Y27X98040, Left-hand ball retainer, 5/32 x 15
• No. 8, Part No.: Y27X14000, Left-hand seal ring
• No. 9, Item No.: Y47V98020, Hub Axle Unit
• No. 10, Part No.: Y29F98010, Lock Ring and Washer
• No. 11, Item No.: EWHRIM2F4L, Rim {28H}
• No. 13, Item No.: Y012Z4079, Nipple
• No. 14, Part No.: Y47V98030, Spoke, 298 mm, with spherical washer
• No. 15, Item No.: Y4RJ98020, Valve Unit
• No. 16, Item No.: Y4RJ10000, Valve Tool
• No. 17, Item No.: Y4EF28000, Nipple Wrench 4.0
• No. 18, Item No.: Y48F00010, Tubeless Tape
• No. 19, Item No.: Y48F98010, Rim Sticker Unit

Spare parts Shimano XTR WH-M9020 rear wheel 29 inches:

• No. 1, Item No.: Y38L98010, Complete Hub Axle
• No. 2, Item No.: Y38L98020, Hub Axle Unit A
• No. 3, Item No.: Y4BR98130, Steel Ball, 5/32, 34 pcs
• No. 4, Item No.: Y27X98040, Ball Retainer, 5/32 x 15
• No. 5, Item No.: Y38L98030, Left-Hand Lock Nut and Cone w/Dust Cover
• No. 6, Part No.: Y38L98050, Complete Freewheel Body
• No. 7, Item No.: Y38L98060, Freewheel Body Unit
• No. 8, Part No.: Y3CZ12000, Freewheel Body Washer
• No. 9, Item No.: Y27X14000, Left-Hand Seal Ring
• No. 10, Item No.: Y29F98010, Lock Ring and Washer
• No. 11, Item No.: EWHRIM2F4L, Rim {28H}
• No. 13, Item No.: Y012Z4079, Nipple
• No. 14, Item No.: Y47V98030, Spoke, 298 mm, w/Spherical Washer
• No. 15, Item No.: Y27Y02000, SM-AX75 fixing nut, M12
• No. 16, Item No.: Y4RJ98020, Valve Unit
• No. 17, Item No.: Y4RJ10000, Valve Tool
• No. 18, Item No.: Y4EF28000, Nipple Wrench 4.0t
• No. 19, Item No.: Y48F00010, Tubeless Tape
• No. 20, Item No.: Y48F98010, Rim Sticker Unit
• No. 21, Item No.: Y13098011, TL-FH12 Hub Setting Tool
