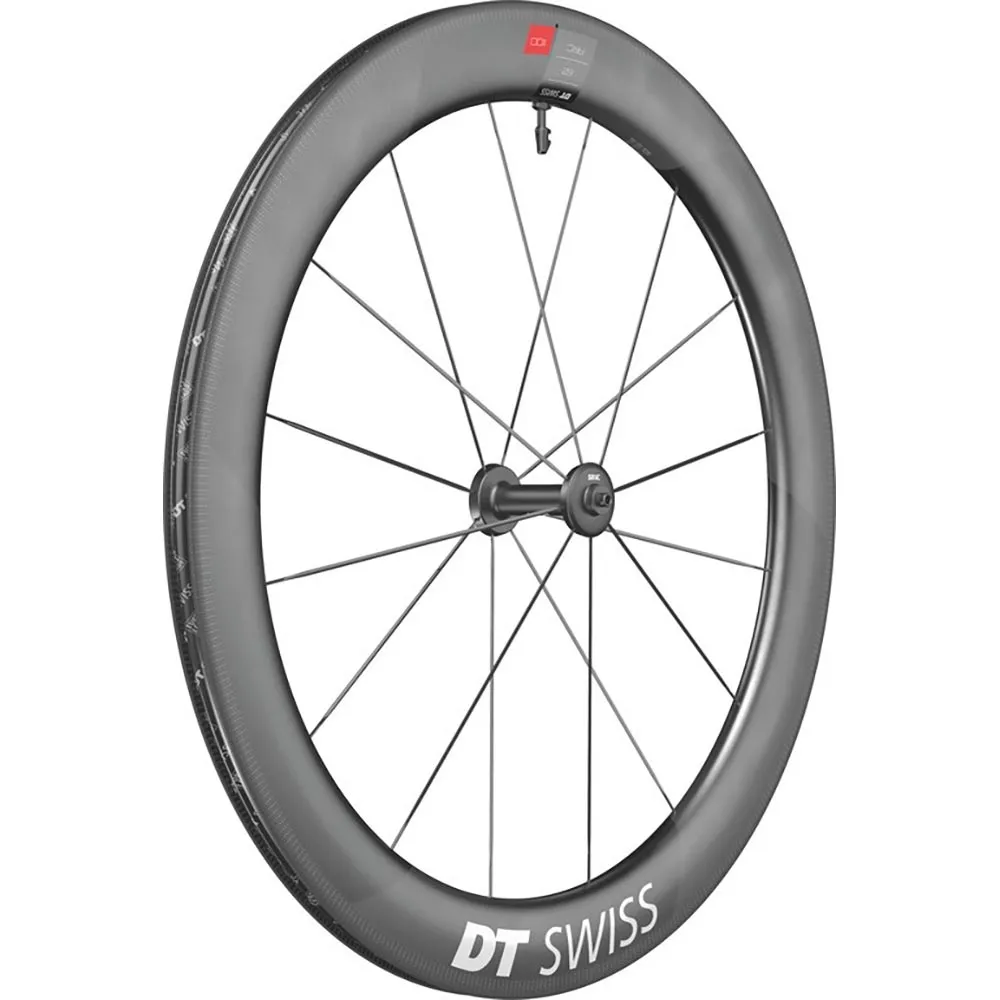

DT Swiss Dicut ARC 1100 wheelset

The high-end aero wheelset for marathon and road bikes, featuring 62 mm high and 27 mm wide full-carbon rims, allows the use of wide, excellent-rolling tubeless tyres; the asymmetrical design provides very high lateral stiffness for maximum steering precision. The DT Swiss ARC 1100 Dicut wheels are lightweight, weighing just 1620 grams; the high-end DT Swiss Dicut hubs are fitted with DT Swiss Sinc ceramic bearings. Finally, the patented ratchet system guarantees durability and easy maintenance of the wheelset. Thanks to the internal spoke nipples, the highly aerodynamic hubs and the rims developed in collaboration with Swiss Side, the ARC Dicut series offers ultimate aero performance

DT Swiss ARC 1100 Dicut hubs:

The ARC Dicut hubs are perfectly matched to the Nail Häd spoke system and offer optimum aerodynamics. Equipped with high-end Sinc Ceramic bearings and a widened flange spacing for optimum lateral stiffness at low weight. The ratchet freewheel body with Ratchet Star pawl is virtually maintenance-free and easy to convert.

DT Swiss Sinc Ceramic Bearings:

The high-end ceramic bearings from DT Swiss, specially optimised for DT Swiss hubs, offer maximum smoothness and minimal weight. In a special manufacturing process, the balls are rolled until their surface exhibits perfect roundness. Whilst the surface of conventional ceramic balls is not 100 per cent smooth, SINC Ceramic balls exhibit extremely high smoothness and, thanks to their perfect roundness, achieve extremely low rolling resistance. By combining these ceramic balls with high-quality steel bearing cups, the full potential of the bearings can be realised.

DT Swiss ARC 1100 Dicut rims:

The ARC 1100 carbon rims, developed entirely in collaboration with Swiss Side, offer the best aerodynamics and excellent handling in all wind conditions. Extensively tested and optimised in the wind tunnel, the ARC 1100 rims offer the best compromise between aerodynamics and handling. The finish is applied using a new process and does not affect aerodynamics in any way. With a 19 mm inner rim width, they are ideal for tyres from 25 mm wide and, of course, tubeless-ready.

DT Swiss ARC 1100 Dicut spokes:

The lacing using the Nail Head System ensures that the spokes cannot twist under load, so the spokes always remain at the most aerodynamically favourable angle. Flatter and lighter than any others, the DT Swiss Aerolite spokes feature an aerodynamic flat profile and are extremely lightweight. The rear wheels of the ARC Dicut wheelsets are fitted with the slightly heavier and even more stable DT Aerocomp spokes.

DT Swiss ARC 1100 Dicut 62 wheel technology:

• Full-carbon rims for folding and clincher tyres, tubeless ready
• Rim dimensions 622x17, outer width 27 mm, height 47 mm
• Rim width 17 mm
• High-end hubs with ratchet discs and Sinc Ceramic ball bearings
• Cold-forged DT Swiss Aerolite
• Pro Lock hexagonal special nipples, internal
• Spoke pattern: Front wheel 16 spokes, radial
• ARC Dicut front hub for quick-release mounting
• Weight: Set 1620 grams, front wheel 720 grams
• Maximum recommended rider weight 110 kg

Scope of delivery DT Swiss ARC 1100 Dicut 62 wheel:

DT Swiss ARC 1100 Dicut 62 front wheel, RWS quick-release skewer, 19 mm tubeless rim tape, tubeless valve, DT Swiss carbon brake pads

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
