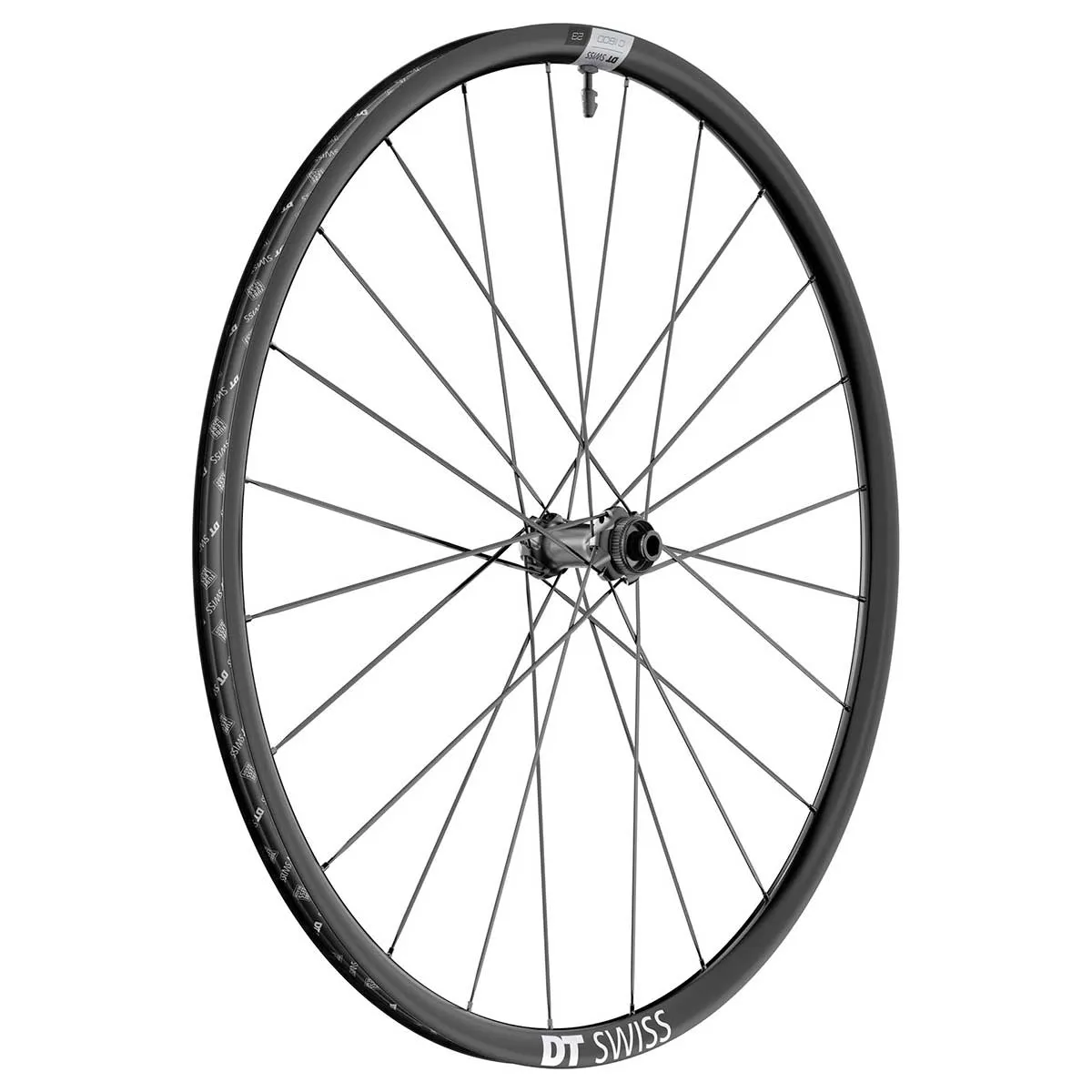

DT Swiss C 1800 Spline 23 DB wheel
The affordable Cross Road wheels, DT Swiss C 1800 Spline DB, now available in the new version featuring the Ratchet LN freehub system.
With a 22 mm rim width, ideal for road tyres up to 4 mm wide, and weighing just 1763 grams, the DT Swiss C 1800 Spline 23 Disc wheels are the recommended choice for cross-road use. Classic, affordable, good. The wide yet lightweight aluminium rim provides the basis for an excellent STW value (stiffness-to-weight ratio). Fitted with DT Swiss Spline 370 straight-pull hubs, lightweight and sturdy 23 mm high rims with a 22 mm rim width, and the Ratchet LN freehub body.
DT Swiss C 1800 Spline 25 28-inch wheelset:
- for folding and clincher tyres, Clincher ETRTO: 622 x 22
- Aluminium rims, tubeless ready, with pre-fitted tubeless rim tape
- Rim width 26 mm, height 23 mm, rim depth 22 mm
- DT 370 Spline hub with Swiss steel ball bearings and Ratchet LN 18 freehub
- Spokes: butted, cold-forged New Aero flat spokes
- Nipples: DT Swiss Prolock aluminium special nipples
- Lacing: 2-cross
- Number of spokes: 24/24 per wheel
- DT Swiss 370 Spline front hub, Disc Centerlock, convertible
- Weight from 783 grams, manufacturer’s specification
- Recommended maximum system weight 120 kg
- ASTM classification 2
- Maximum air pressure: 7 bar
Scope of delivery DT Spline C 1800 Spline DB 23 wheel:
DT Swiss C 1800 Spine DB 23 front wheel, DT Swiss end stops as selected, 25 mm tubeless rim tape, 32 mm tubeless valve
DT Swiss C 1800 Spline DB 23:
With this adaptable wheelset, you can ride through technical sections with ease, thanks to the reliable Ratchet System, which ensures the ratchet pawl discs engage simultaneously. In addition, the new robust DT Aero II straight-pull spokes, hand-laced onto the wide and sturdy rim, offer optimal comfort and traction – ideal for wider tyres. Enhance the wheels’ performance by using tubeless tyres combined with our new tubeless sealant, which allows you to ride at lower tyre pressures whilst improving comfort and traction – for an unforgettable riding experience.
DT Swiss 1800 Spline Disc Hubs:
Equipped with a Centerlock mount, the DT Swiss 1800 Spline Straightpull Disc hubs from the DT 370 series are compatible with all types of brake discs; adapters for 6-bolt brake discs are available as an option. The DT Swiss Spline Disc hubs, featuring an optimised hub shell for straight-pull spokes and the proven Ratchet LN 18 freehub system based on the classic DT Swiss 370 hubs, are exceptionally durable; the rear hubs can be serviced without tools.
DT Swiss Straight Pull Spokes

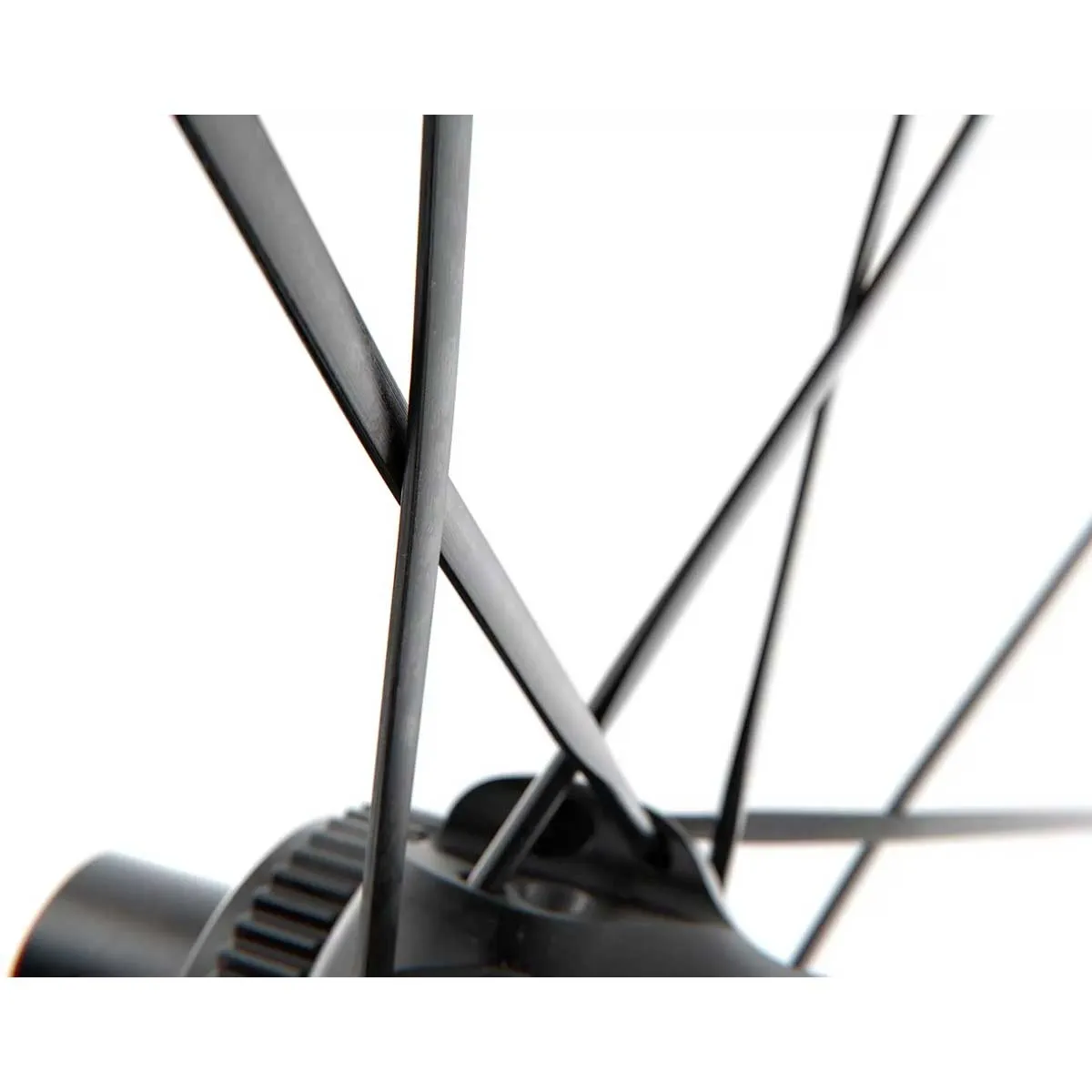

To achieve an ideal balance of weight and stability, only the highest-quality Aero Comp Wide straight-pull spokes are used in the Spline wheelsets. They are stiffer than conventional spokes yet can still be trued and replaced using standard tools.

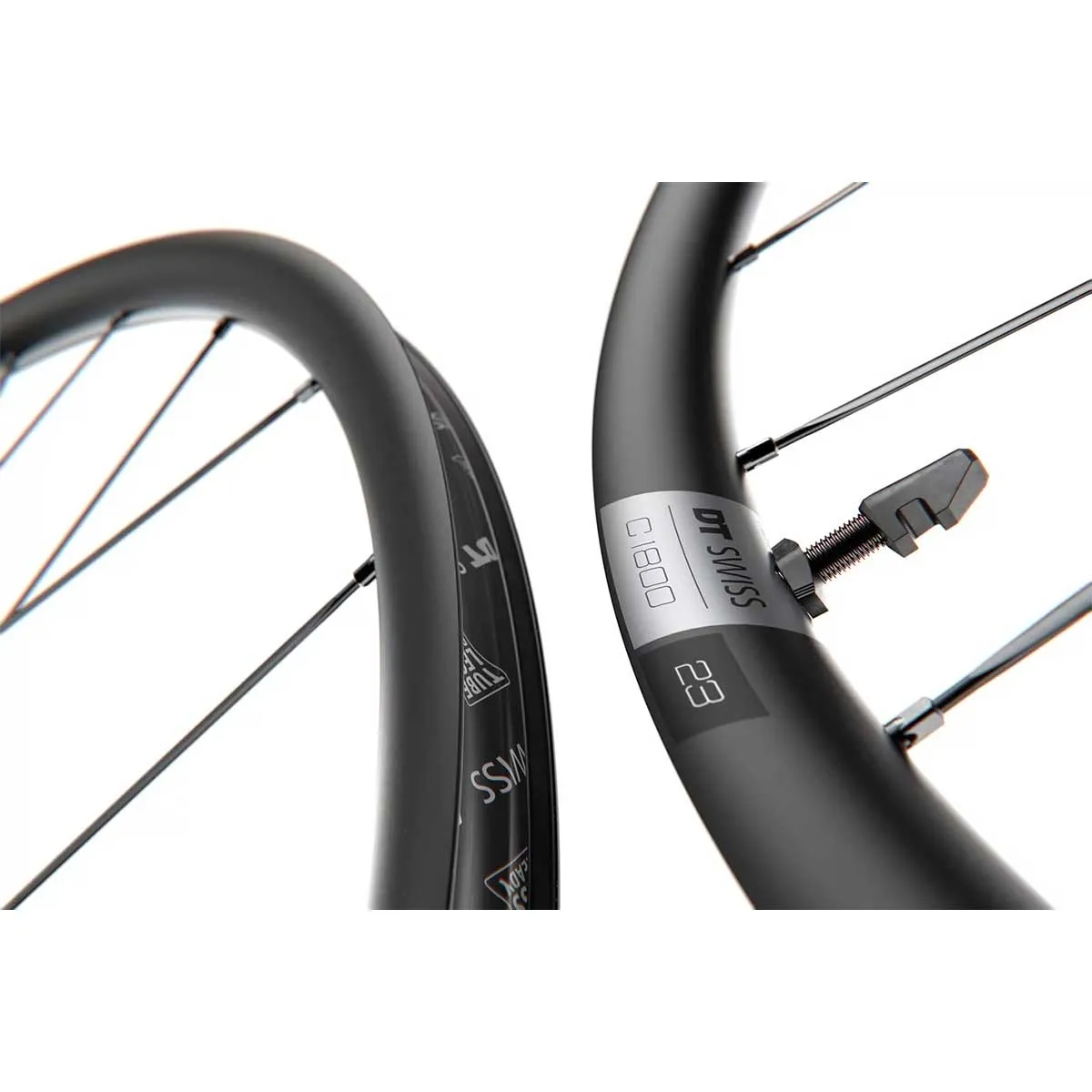

DT Swiss C 1800 Spline 23 Disc rims

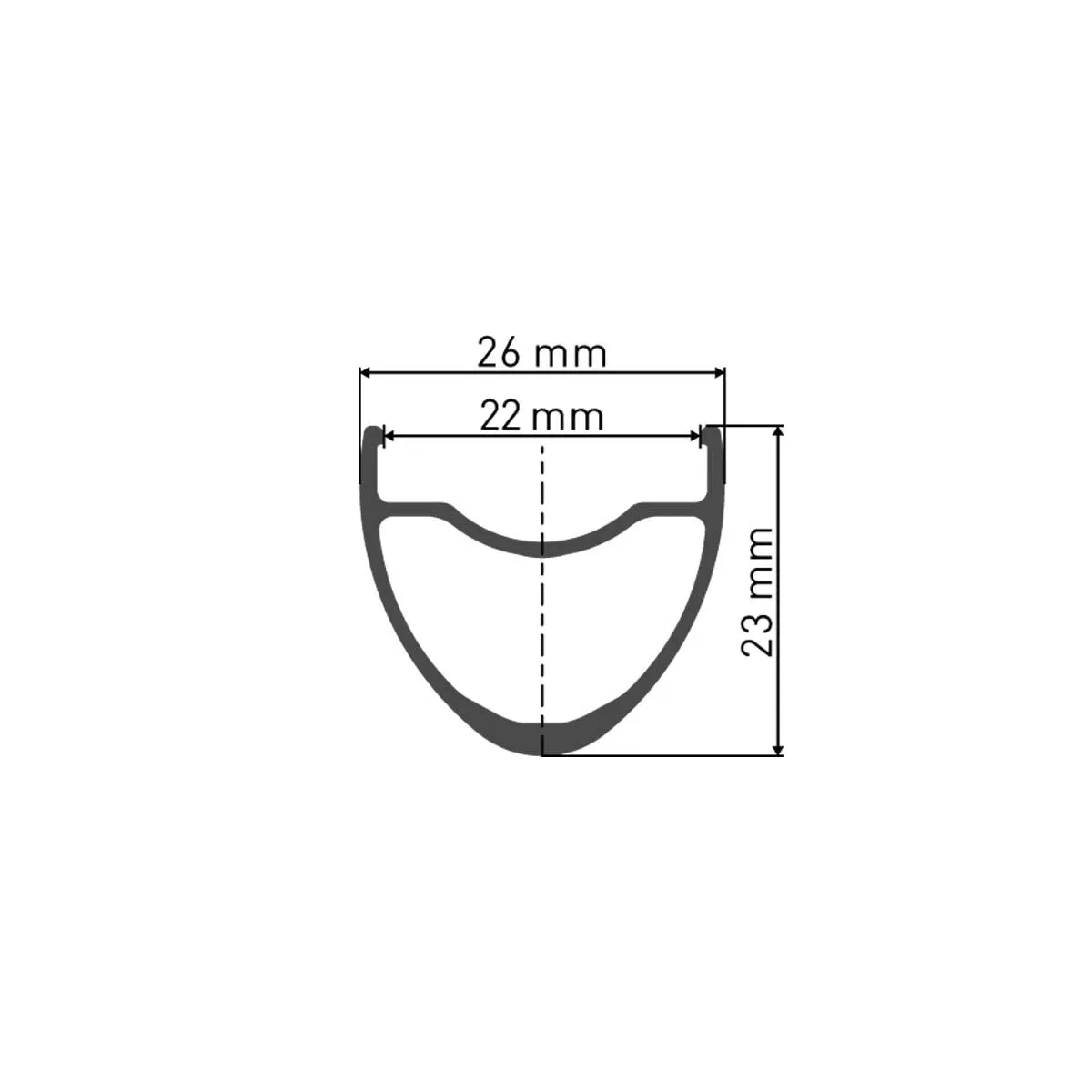

Classic hooked/crochet rims with a 22 mm rim depth, 26 mm outer width and 23 mm profile height for folding and clincher tyres from 28–35 mm wide. The new rims are tubeless-ready and come with a 22 mm tubeless rim tape pre-fitted.
DT Swiss Ratchet LN freehub body:
The proven DT Swiss Star Ratchet LN system with the toothed freehub body allows for easy conversion to various axle or rotor standards. The DT Swiss Ratchet LN rear hubs can be easily converted to fit the mounts commonly used by different cassette systems.
Compatible endstops for DT Swiss Disc Road Disc front wheels:
- Quick-release mounting 9x100 mm: Item No. HWGXXX00S3801S
- Thru-bolt mounting 9x100 mm: Item No. HWGXXX00S3803S
- QR12 thru-axle mount 12x100 mm: Item No. HWGXXX00S6885S
- QR15 thru-axle mount 15x100 mm: Item No. HWGXXX0004785S
Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
