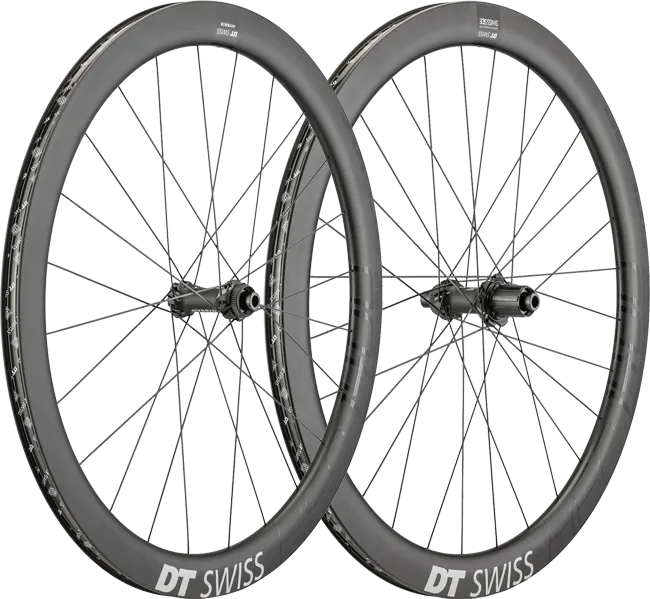

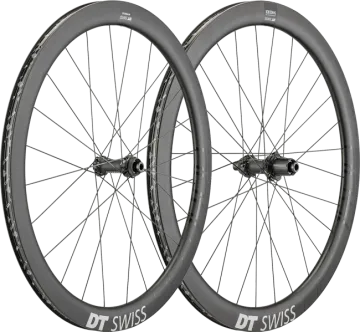

DT Swiss HEC 1400 Boost wheelset

The Boost version of the DT Swiss HEC 1400 Spline DB 47 Carbon.

Super-sturdy, super-fast and yet lightweight, the HEC 1400 Spline wheelsets for e-bikes and standard endurance road bikes. The further reinforced version of the ERC 1400 wheelsets. The AERO+ rim, developed with the specialists at Swiss Side, paired with extra-sturdy spokes, the rear wheel with 28 spokes, and the tried-and-tested 240S hub. The lightweight 1739-gramme full-carbon endurance road disc wheelset: the DT Swiss Spline HEC 1400 Spline DB 47mm clincher with a 19mm rim width for tyres ranging from 28–47mm in width. The completely newly developed HEC 1400 wheelset series offers maximum stability combined with low weight and outstanding aerodynamics. The HEC 1400 Spline carbon disc wheelset, featuring a 47 mm high-modulus full-carbon Swiss Side rim developed by DT Swiss, is designed for folding and clincher tyres, with extra-reinforced hybrid spokes and the proven high-strength Ratchet Star rear hub technology.

DT Swiss Straight Pull Hybrid Spokes

To achieve an ideal balance between weight and stability, only the highest quality straight-pull spokes are used in SPLINE wheelsets. They are more stable than conventional spokes yet can still be trued and replaced using standard tools. The HEC wheelsets are built with spokes specially reinforced for hybrid wheels.

DT Swiss HEC 1400 Spline 47 Disc Clincher Rims

The rims, with a 19 mm rim width, are built for tough cross-country and gravel use and offer outstanding aerodynamics. On the HEC 1400 Spline C, the rims are made from high-modulus carbon fibre using a new resin. The profile, developed by Swiss Side and inspired by aircraft construction, offers the best aerodynamics. The 1739-gramme lightweight wheelset, suitable for both folding and clincher tyres, is completed by straight knife spokes.

DT Swiss Spline 1400 Disc Hybrid Hubs

The DT Swiss Spline Hybrid Road hubs, with their optimised hub shell and wider hub flanges, offer high lateral stiffness. Designed for straight-pull spokes and the proven ratchet pawl freewheel system, based on the DT Swiss high-end hubs with Swiss industrial stainless steel bearings, they are exceptionally durable and can be serviced and converted to Shimano, SRAM, Campagnolo and SRAM XDR freewheel bodies without tools.

DT Swiss HEC 1400 Spline DB 47 C Disc Wheel Technology:

• For folding and clincher tyres
• Rims: unidirectional carbon ERTRO 622 x 19
• Rim width (external): 27 mm, height: 47 mm
• Top-end hub with stainless steel ball bearings and toothed freewheel
• Spokes: butted, cold-forged Aerolite flat spokes
• Nipples: DT Swiss Prolock hexagonal special nipples
• Lacing: Front wheel 2-cross, rear wheel 3-cross
• Recommended tyre width: 28–47 mm
• Front hub: Boost for 12x110 mm thru-axles; cannot be converted
• Rear hub: Boost for 12x148 mm thru-axles; cannot be converted
• Ratchet Star freehub body, available as:
  • HG11 freehub body for Shimano and SRAM cassettes, compatible with 8-, 9-, 10- and 11-speed
  • Campa ED freehub body for Campagnolo cassettes, compatible with 9-, 10-, 11- and 12-speed
  • SRAM XDR freehub body, compatible with SRAM 11–12-speed AXS road and XG MTB cassettes
• Weight approx. 1538 grams, front: 761 grams, rear: 978 grams (manufacturer’s specification)
• ASTM classification: 2, max. recommended system weight: 130 kg

Contents of delivery DT HEC 1400 Spline DB 47 carbon wheelset:

DT Swiss HEC 1400 Spline DB 47 front wheel, Boost 12x110mm Centerlock adapter, DT Swiss Tubeless Ready rim tape 21mm, DT Swiss tubeless valves 63mm
DT Swiss HEC 1400 Spline DB 47 rear wheel, Boost 12x148mm, freehub as selected, Centerlock adapter, DT Swiss tubeless-ready rim tape 21mm, DT Swiss tubeless valves 63mm

Compatible end caps for DT Swiss 1400 Spline DB Disc Road front wheels:

• Quick-release mounting 9x100 mm, Part No. HWGXXX00S6318S
• Thru-bolt mounting 9x100 mm, Item No. HWGXXX00S7567S
• QR12 thru-axle mount 12x100 mm, item no. HWGXXX00S7564S
• QR15 thru-axle mount 15x100 mm, Part No.HWGXXX00S6283S

Compatible end stops for DT Swiss 1400 Spline DB Disc Road rear wheels:

• Quick-release mount HG11 freehub, 10x135 mm, Part No. HWGXXX0002777S
• Quick-release mount Campa ED freehub, 10x135 mm, item no. HWGXXX0004634S
• Quick-release mount Sram XD freehub, 10x135 mm Item No. HWGXXX00S3115S
• Thru-bolt mount HG11 freehub, 10x135 mm, Item No. HWGXXX0004634S
• Thru-bolt mount Sram XD freehub, 10x135 mm, Item No. HWGXXX00S3218S
• QR12 thru-axle mount HG11 freehub, 12x135 mm, Item No. HWGXXX0007569S
• QR12 Thru-Axle Mount Sram XD Freewheel, 12x135 mm, Item No. HWGXXX00S3382S
• X12 thru-axle assembly HG11 freehub, 12x142 mm, Item No. HWGXXX0003525S
• X12 thru-axle assembly Campa ED freehub, 12x142 mm, Part No. HWYABX00S7154S
• X12 thru-axle fitting Sram XD freehub, 12x142 mm, Part No. HWGXXX00S3188S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
