DT Swiss Dicut ERC 1100 WTS wheelset

The high-end disc wheels for endurance and all-road bikes, DT Swiss ERC 1100 Dicut with ceramic bearings, 35 mm high and 28.5 mm wide elliptical full-carbon rims with a 22 mm rim width in the Wheel Tire version with 29 mm wide Conti Aero 111 tyres.

Included:

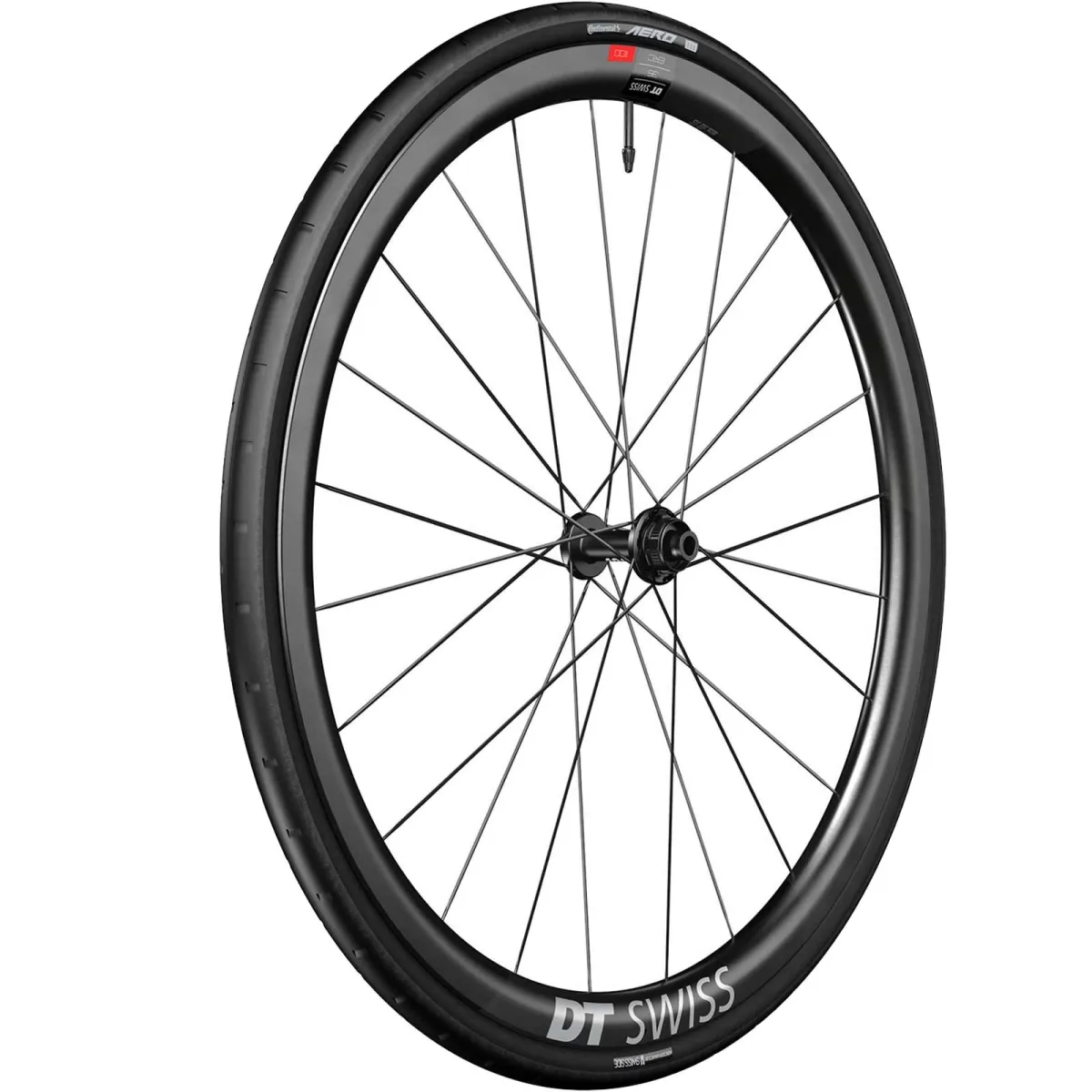

• DT Swiss ERC 1100 Dicut 35 DB front wheel, end stops as selected, 25 mm tubeless rim tape, tubeless valve, Continental Aero 111, 29 mm tyres, TPU inner tube

DT Swiss ERC 1100 Dicut Disc wheel technology and dimensions:

• Full carbon rims for folding and clincher tyres
• ETRTO: 622 x 22 / 700C, 28/29 inches

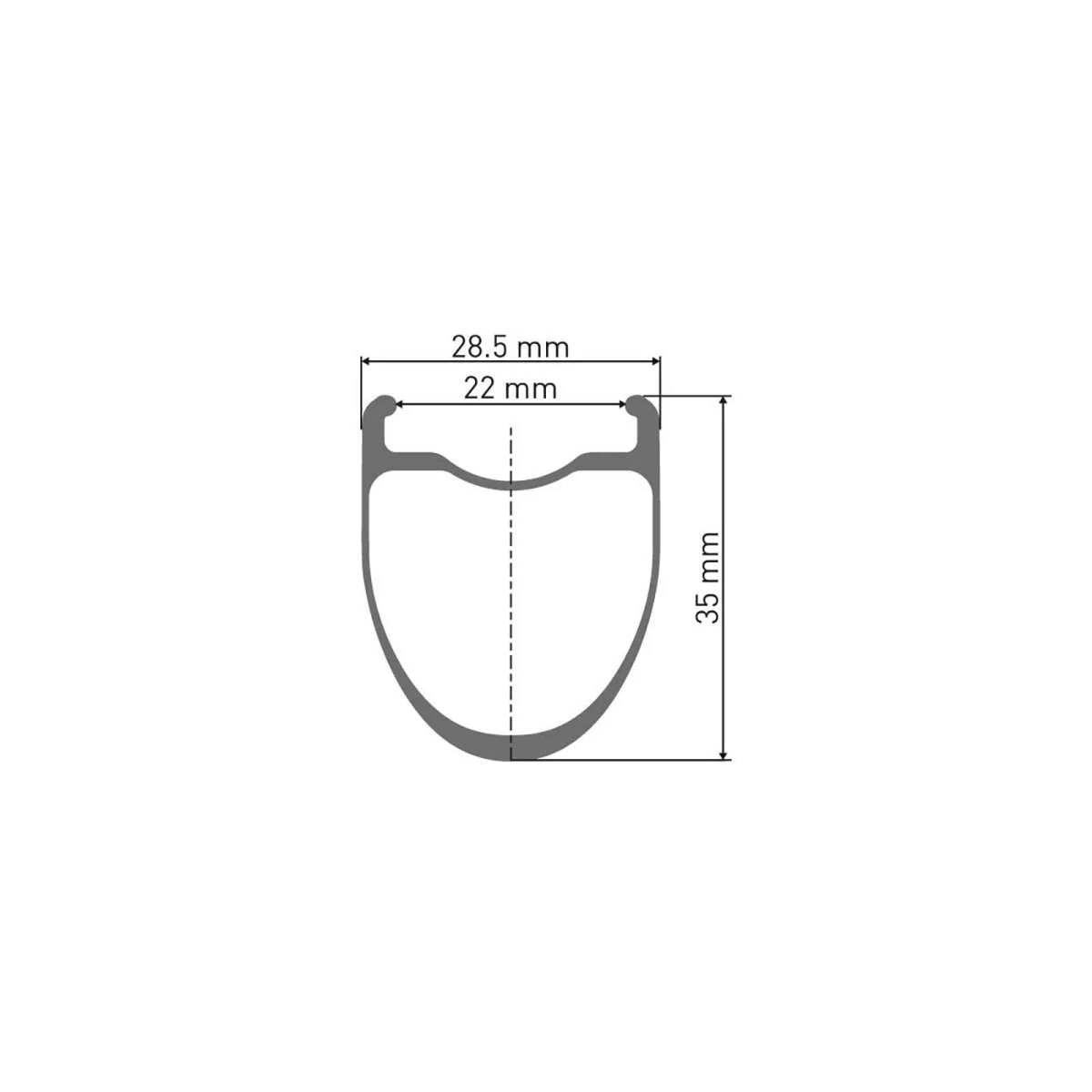

• Rim dimensions: External width 28.5 mm, height 35 mm, rim depth 22 mm
• Rim type: Hooked / Crotchet tubeless TC
• High-end hubs with sprockets and Sinc ceramic ball bearings
• Cold-forged DT Swiss Aerolite/Aerocomp spokes Front and rear wheels 24 spokes
• Pro Lock Hidden special nipples
• Spoke pattern: 2-cross
• Front hub: ERC Dicut, available with either 12x100mm thru-axles or 9x100mm quick-release hub end caps
• Weight: Front wheel 636 grams, manufacturer’s specification
• Maximum recommended rider weight 120 kg
• ASTM classification 2

DT Swiss WTS, Wheel Tire System:

When Swiss Side’s aerodynamic expertise, Continental’s tyre know-how and DT Swiss’s wheel expertise come together, the result is not just the AERO 111 tyre, but a perfected storm. Specially designed aero chambers form the basis for the tyre’s patented tread pattern and generate a turbulent airflow on the surface, which keeps the oncoming air flowing along the rim shape for longer. The result is an optimisation of the sail effect, which delays early flow separation from the rim and thus forms the basis for the most advanced aero wheel-tyre system. It doesn’t matter whether you or your friends are aiming for personal bests or competing in professional races: the tyre reduces wind resistance whilst improving handling and ride characteristics, propelling you forward.

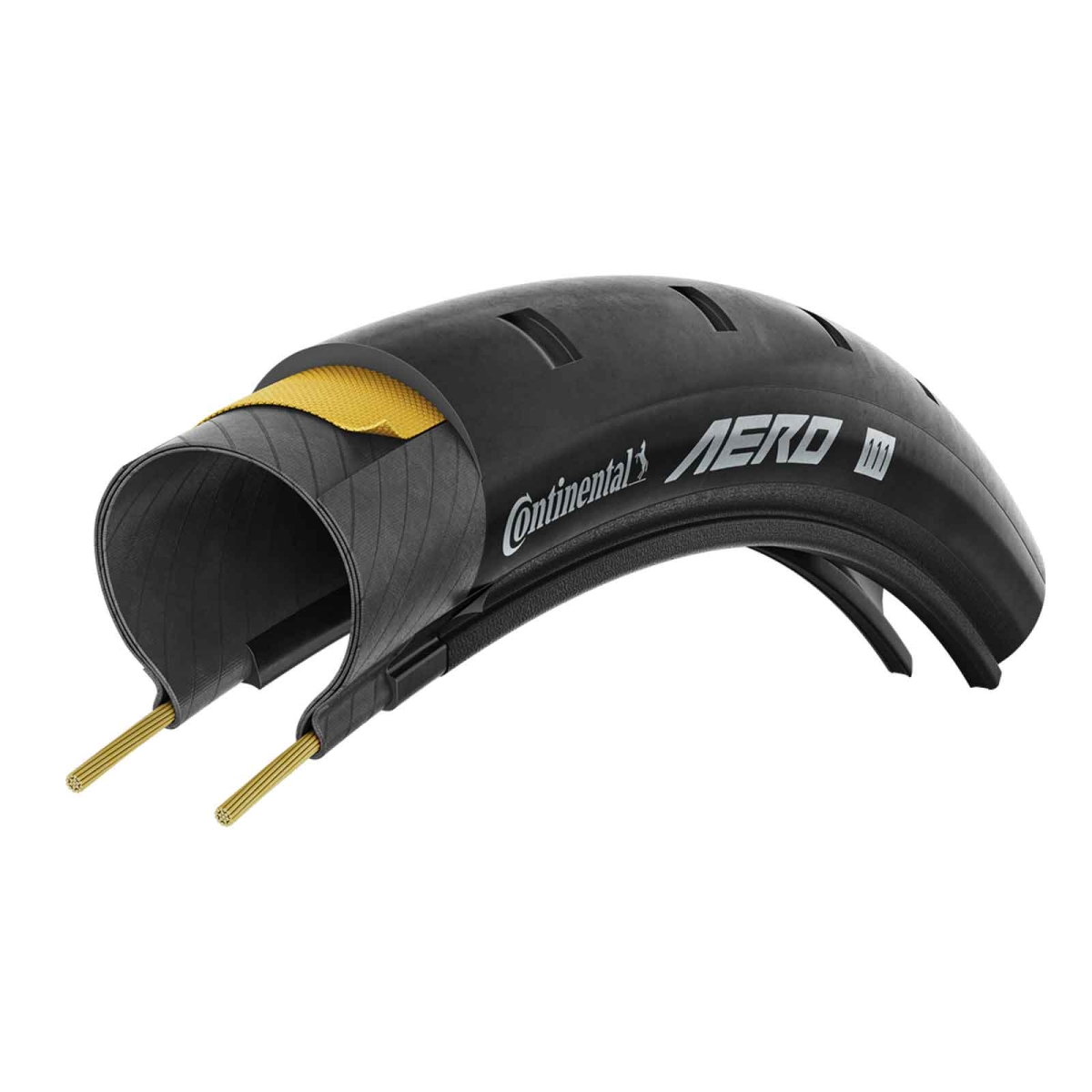

Conti AERO 111 tyres:

The next generation of aerodynamic road bike tyre performance, developed in close collaboration with the experts at DT Swiss and Swiss Side. The AERO 111 is based on the race-proven technologies of the GP5000 TR series and sets new standards in aerodynamics. The race-optimised Black Chili Compound ensures excellent grip and lower rolling resistance, whilst the proven Vectran Breaker provides puncture protection. The patented, aerodynamically optimised tread design features 48 precision-moulded air chambers. These so-called ‘vortex generators’ create controlled turbulence, causing the airflow to hug the rim for longer, which reduces drag and optimises handling in crosswinds.

DT Swiss ERC 1100 Dicut 35:

the wheelset that reliably accompanies you in mountainous terrain. The wheels, with their 35 mm high rims, are lightweight and agile to ride.

Different road surfaces or weather conditions are hardly a problem: with the ERC wheels, you always retain full control whilst riding. The new AERO+ rim profiles allow for the use of comfortable, wider tyres. Technical highlights include the 180 DICUT Aero hubs with ultra-smooth-running SINC Ceramic bearings and the latest DT Swiss Aero spokes. And with the Ratchet EXP freehub system featuring 36T ratchet pinholes, every pedal stroke is precisely converted into forward momentum and speed – from the start to the finish of your ride.

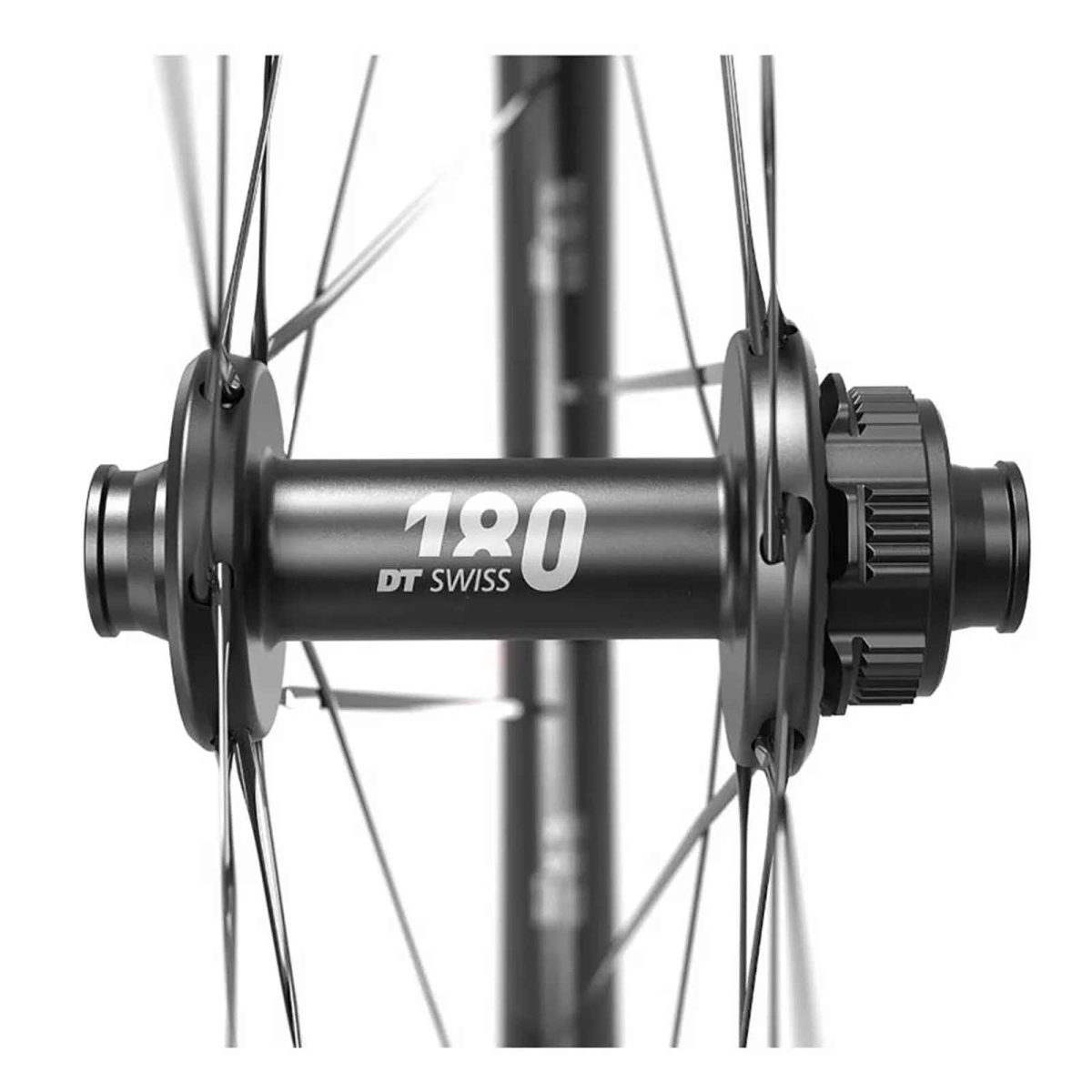

DT Swiss ERC 1100 Dicut Disc Hubs:

The Dicut Disc hubs, based on DT Swiss 180 EXP hub technology, are perfectly matched to the Nail Häd spoke system and offer optimum aerodynamics. Equipped with high-end Sinc Ceramic bearings and a widened flange spacing for optimum lateral stiffness at low weight. The ratchet body with the Ratchet EXP pawl is virtually maintenance-free and easy to convert. The Centerlock brake disc mount allows IS 6-hole brake discs to be fitted using an adapter.

DT Swiss ERC 1100 Dicut Disc compatibility:

The hub of the DT ERC 1100 Dicut Disc front wheel is compatible with 9x100 mm quick-release mounts and 12x100 mm thru-axles; the hub of the DT ERC 1100 Dicut Disc rear wheel is compatible with quick-release mounts and 12x142 mm thru-axles

DT Swiss Sinc Ceramic:

The high-end ceramic bearings from DT Swiss, specially optimised for DT Swiss hubs, offer maximum smoothness and minimal weight. In a special manufacturing process, the balls are rolled until their surface exhibits perfect roundness. Whilst the surface of conventional ceramic balls is not 100 per cent smooth, SINC Ceramic balls exhibit extremely high smoothness and, thanks to their perfect roundness, achieve extremely low rolling resistance. By combining these ceramic balls with high-quality steel bearing cups, the full potential of the bearings can be realised.

DT Swiss ERC 1100 Dicut Disc rims:

The ERC 1400 carbon rims, developed entirely in collaboration with Swiss Side, offer good aerodynamics and excellent handling in all wind conditions. Extensively tested and optimised in the wind tunnel, the ERC 1400 rims offer the best compromise between aerodynamics and handling. The finish is applied using a new process and does not affect aerodynamics in any way. With a 22 mm inner rim width, they are ideal for tyres from 25 mm wide and, of course, tubeless-ready.

Rim type Hooked / Crotchet tubeless TC:

Manufactured with a hook or crochet refers to the shape of the rim flange, which features a so-called hook. This supports the tyre bead and ensures reliable performance, even when using high tyre pressure > 5 bar. Tubeless means that the rim can be ridden without an inner tube, but a setup with an inner tube is also possible.

DT Swiss ERC 1100 Dicut spokes:

Lacing with the Nail Head System ensures that the spokes cannot twist under load, so the spokes always remain at the most aerodynamically favourable angle. Flatter and lighter than all others, the DT Swiss Aerolite spoke features an aerodynamic flat profile and is extremely lightweight. On the freehub side of the Dicut wheels, the slightly heavier and even more stable DT Aerocomp spokes are fitted.

DT Swiss EXP Star Ratchet Freehub:

The tried-and-tested DT Swiss Ratchet System in the new EXP version, featuring a toothed disc freehub body, allows for easy conversion to various axle or rotor standards. The integration of the toothed disc and threaded ring reduces the number of components and thus lowers the weight. A single coil spring ensures faster, complete engagement and therefore greater reliability.

DT Swiss EXP Road freehub body

• DT Swiss EXP Ceramic Bearing Rotor HG11 with end stop, 12x142mm thru-axle, mounting type: HWYCBL00S5380S
• DT Swiss EXP Ceramic Bearing Rotor HG11 with end stop 10x135mm quick-release Mounting Type No. HWYCBL00S5400S
• DT Swiss EXP Rotor HG11 with end stop 12x142mm thru-axle Mounting type No. HWYABL00S5378S
• DT Swiss EXP Rotor HG11 with end stop 10x135mm quick-release Mounting type No. HWYABL00S5399S
• DT Swiss EXP Rotor Micro Spline with end stop, 12x142mm thru-axle, Mounting Type No. HWYABL00S1960S
• DT Swiss EXP Rotor Campagnolo N3W with end stop 12x142mm thru-axle Mounting type No. HWYABL00S2993S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo ED with end stop 12x142mm thru-axle Mounting Type No. HWYCBL00S7075S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo ED with end stop 10x135mm quick-release Mounting Type No. HWYCBL00S7068S
• DT Swiss EXP Rotor Campagnolo ED with end stop 12x142mm thru-axle Mounting Type No. HWYABL00S7074S
• DT Swiss EXP Rotor Campagnolo ED with end stop 10x135mm quick-release Mounting type No. HWYABL00S7073S
• DT Swiss EXP Ceramic Bearing Rotor Sram XDR with end stop 12x142mm thru-axle Mounting Type No. HWYCBL00S5383S
• DT Swiss EXP Ceramic Bearing Rotor Sram XDR with end stop 10x135mm quick-release Mounting Type No. HWYCBL00S5402S
• DT Swiss EXP Rotor Sram XDR with end stop 12x142mm thru-axle Mounting type No. HWYABL00S5401S
• DT Swiss EXP Rotor Sram XDR with end stop 10x135mm quick-release Mounting type No. HWYABL00S5382S

Spare parts DT Swiss ERC 1100 DICUT db 12/100 mm front wheel

• Tubeless ready tape 53 mm / 10 m black, Item No: TVX2510S29809S
• Tubeless valve, aluminium, black, for 26–35 mm rim height, Item No.: TVVXA42S25868S
• End stops 9x100mm quick-release mounting, front wheel adapter conversion kit 100mm / Ø5mm, Item No: HWGXXX0000051S
• Aluminium axle 100 mm, Ø15/58.3 mm, FW AXLE AL 100MM Ø15/58.3MM DBCL, Item No.: HHSBXXX00N2336S
• Ball bearing 6802 CERAMIC Ø 15/24x5mm, B.BEARING 6802 ESB/ESNB CER L, Item No.: HSBXXX00N2521S
• DT aluminium nipple hidden Pro Lock silver, Item No: NPAF20120N01000
• Spokes left: DT aerolite II T-head black 2.0/0.7/3.1 x 285mm, Item No: SLWS20285S00207624
• Spokes right: DT Aerolite II T-head black 2.0/0.7/3.1 x 288mm, Item No: SLWS20288S00207624

Spare parts DT Swiss ERC 1100 DICUT db 12/142 mm rear wheel

• Tubeless ready tape 53 mm / 10 m black, Item No: TVX2510S29809S
• Tubeless valve, aluminium, black, for 26–35 mm rim height, Item No.: TVVXA42S25868S
• Spacer Ø18/15x10.7mm, SPACER ALLOY 10.7 EXP, Item No: HHSBXXX00N2336S
• Ball bearing 1526 CERAMIC Ø 15/26x7mm, B.BEARING 1526 ESB/ESNB CER L, Item No: HSBXXX00N6522S
• Maintenance kit, SERVICE KIT RATCHET 36T EXP W/O TO, Item No: HWYXXX00N0042S
• Hub/rotor seal, SEAL HUB/ROTOR Ø30x36x2.5mm, Item No: HSBXXX00N6522S
• Ball bearing 6802 CERAMIC Ø 15/24x5mm, B.BEARING 6802 ESB/ESNB CER L, Item No: HSBXXX00N2521S
• Aluminium axle 142mm, RW AXLE AL XXXMM Ø15/48.85MM EXP, Item No: HCCXXX00S9109S
• DT aluminium nipple hidden Pro Lock silver, Item No: NPAF20120N01000
• Spokes left: DT Aerolite II T-head black 2.0/0.7/3.1 x 287mm, Item No: SLWS20287S00207624
• Spokes, right: DT Aerolite II T-head black 2.0/0.7/3.1 x 285mm, Item No: SLWS20285S00207624

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
